Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#25108) — 147 parça
Tümü
A - FVR5FF
B - FVR5MF
◀

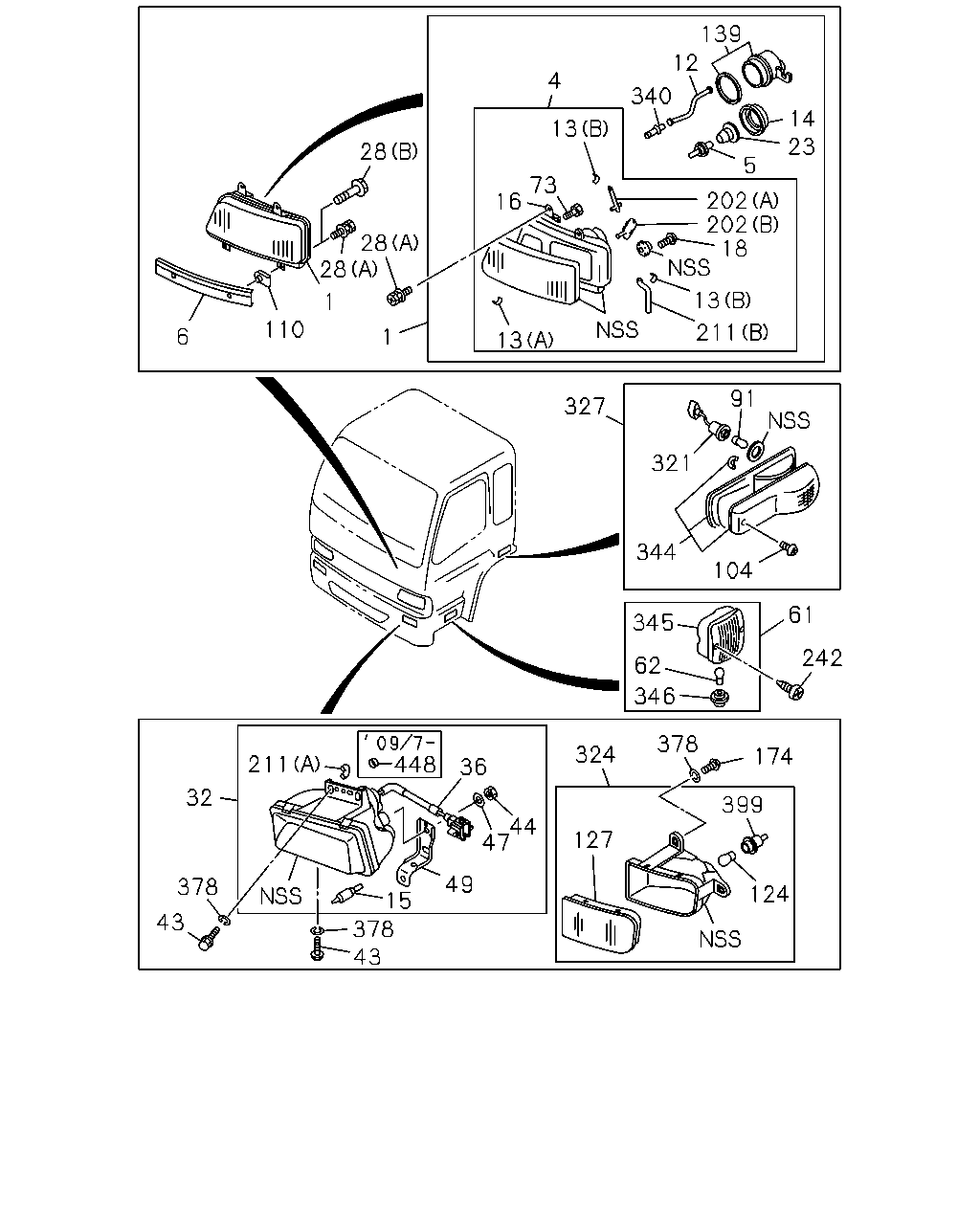

[801A] WIDE CAB (84 parça)

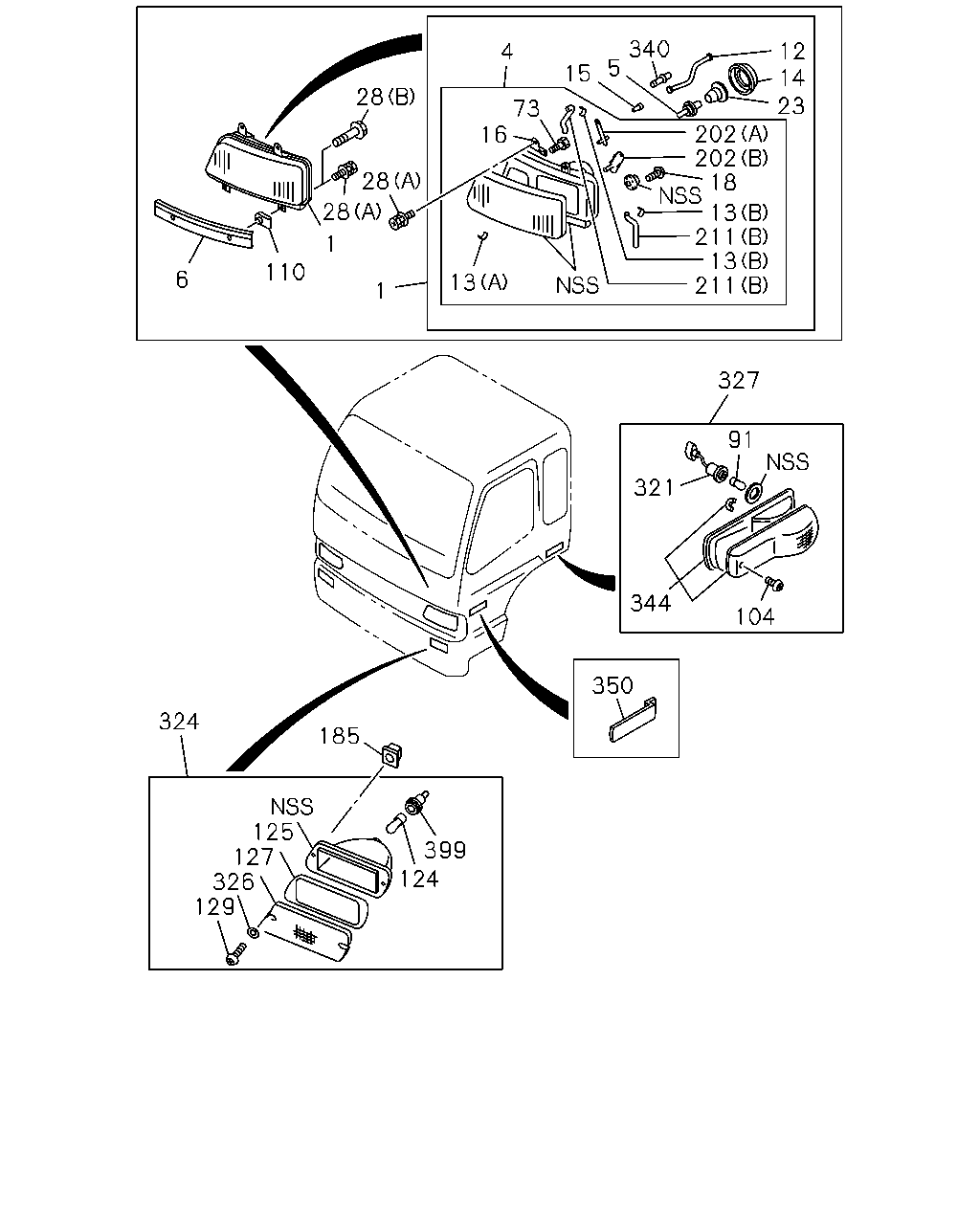

[801A] STD CAB (63 parça)
▶
124
127
399
378
174
324
44
47
36
49
15
43
378
43
378
32
211
448
346
62
345
242
61
104
344
321
91
327
211
13
18
202
202
5
23
14
139
12
340
4
13
73
16
13
1
1
28
28
28
110
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; HEAD
1-86830-121-4
01
1
0609-
●
1
LAMP ASM; HEAD
1-86830-122-4
01
1
0609-
●
1
LAMP ASM; HEAD
1-86830-358-0
01
1
0609-
●
1
LAMP ASM; HEAD
1-86830-359-0
01
1
0609-
●
4
HEADLAMP UNIT
1-86830-193-1
01
1
0609-
●
4
HEADLAMP UNIT
1-86830-194-1
01
1
0609-
●
4
HEADLAMP UNIT
1-82119-199-0
01
1
0609-
●
4
HEADLAMP UNIT
1-82119-200-0
01
1
0609-
●
5
BULB; HEADLAMP
24V 75/70W
8-94405-657-0
02
1
0609-
●
5
BULB; HEADLAMP
24V 75/70W
1-82194-063-0
02
1
0609-
●
6
RIM; HEADLAMP
FOG LAMP<T96>
1-86830-035-5
01
1
0609-
●
6
RIM; HEADLAMP
FOG LAMP<T96>
1-86830-036-5
01
1
0609-
●
6
RIM; HEADLAMP
EXC. FOG LAMP<T96>
1-86830-005-5
01
1
0609-
●
6
RIM; HEADLAMP
1-86830-005-5
01
1
0609-
●
6
RIM; HEADLAMP
EXC. FOG LAMP<T96>
1-86830-006-5
01
1
0609-
●
6
RIM; HEADLAMP
1-86830-006-5
01
1
0609-
●
12
HARNESS; HEADLAMP
1-86830-199-0
02
1
0609-
●
12
HARNESS; HEADLAMP
1-86830-145-0
02
1
0609-
●
13
CLIP; HEADLAMP
(B)
1-82119-084-0
04
1
0609-
●
●
13
CLIP; HEADLAMP
(A)
8-94381-588-0
14
1
0609-
●
●
14
CAP; BULB,LAMP
1-86830-148-0
02
1
0609-
●
●
15
BULB; FOG LAMP
24V 70W
1-82194-106-0
02
1
0609-
●
15
BULB; FOG LAMP
24V 55W
1-82194-079-0
02
1
0609-
●
16
BRACKET; HEADLAMP
1-86830-075-0
01
1
0609-
●
●
16
BRACKET; HEADLAMP
1-86830-076-0
01
1
0609-
●
●
18
SCREW; GEAR CASE
M4X16 TAPPING
1-82119-067-0
08
1
0609-
●
●
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
0609-
●
●
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0609-0708
●
●
28
BOLT; HEADLAMP
(B) M6X16 FLANGE
0-28650-616-0
04
1
0709-
●
●
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
0609-
●
●
32
LAMP ASM; FOG
1-82110-453-0
01
1
0609-0712
●
32
LAMP ASM; FOG
1-82110-475-0
01
1
0801-0906
●
32
LAMP ASM; FOG
8-98149-149-1
01
1
0907-1301
●
32
LAMP ASM; FOG
8-98232-064-0
01
1
1302-
●
32
LAMP ASM; FOG
1-82110-454-0
01
1
0609-0712
●
32
LAMP ASM; FOG
1-82110-476-0
01
1
0801-0906
●
32
LAMP ASM; FOG
8-98149-150-1
01
1
0907-1301
●
32
LAMP ASM; FOG
8-98232-065-0
01
1
1302-
●
36
CORD; FOG LAMP
1-82118-015-0
01
1
0609-
●
36
CORD; FOG LAMP
1-82118-016-0
01
1
0609-
●
43
BOLT; FOG LAMP
M6X20 FLANGE
0-28650-620-0
04
1
0609-
●
43
BOLT; FOG LAMP
M8X20 FLANGE
0-28650-820-0
02
1
0609-
●
44
NUT; FOG LAMP
M6
8-98217-430-0
02
1
1205-
●
47
WASHER; PL,FOG LAMP
8-98217-429-0
02
1
1205-
●
49
BRACKET; LAMP
8-98051-437-0
01
1
0609-
●
49
BRACKET; LAMP
8-98051-438-0
01
1
0609-
●
61
LAMP ASM; CORNERING
24V 30W
1-86830-185-2
01
1
0609-
●
61
LAMP ASM; CORNERING
24V 30W
1-86830-186-2
01
1
0609-
●
62
BULB; CORNERING LAMP
24V 30W
8-97010-179-0
02
1
0609-
●
73
BOLT; BRKT,HEADLAMP
8-94332-050-0
04
1
0609-
●
●
91
BULB; SIDE TURN SIGNAL
24V 12W
1-82194-030-0
02
1
0609-
●
●
104
SCREW; SIDE TURN SIGNAL
1-86830-149-0
02
1
0609-
●
●
110
CLIP; RIM,HEADLAMP
1-86830-213-1
04
1
0609-
●
●
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-105-0
02
1
0609-
●
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-036-0
02
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-073-0
01
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-074-0
01
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-064-0
01
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-065-0
01
1
0609-
●
139
COVER; HEADLAMP
1-82119-224-0
02
1
0609-
●
174
BOLT
M6X20 W/LK&PL WASHER
0-50640-620-0
04
1
0609-
●
202
GEAR UNIT; HEADLAMP
(A)
1-86830-139-0
02
1
0609-
●
●
202
GEAR UNIT; HEADLAMP
(B)
1-86830-140-0
02
1
0609-
●
●
211
TUBE; HEADLAMP
(A)
8-97025-128-0
02
1
0609-0906
●
211
TUBE; HEADLAMP
(B)
1-86830-330-0
01
1
0609-
●
●
211
TUBE; HEADLAMP
(B)
1-86830-331-0
01
1
0609-
●
●
242
SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS
0-71090-420-0
04
1
0609-
●
321
HARNESS; SIDE FLASHER LAMP
1-86830-253-0
02
1
0609-
●
●
324
LAMP; FRT FLASHER
1-82210-259-1
01
1
0609-
●
324
LAMP; FRT FLASHER
1-82210-260-1
01
1
0609-
●
324
LAMP; FRT FLASHER
1-82210-202-1
01
1
0609-
●
324
LAMP; FRT FLASHER
1-82210-203-1
01
1
0609-
●
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-007-6
01
1
0609-
●
●
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-011-6
01
1
0609-
●
●
340
BULB; POSITION
24V 5W
1-82194-042-0
02
1
0609-
●
●
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-240-1
01
1
0609-
●
●
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-241-1
01
1
0609-
●
●
345
LAMP UNIT; CORNERING
1-86830-254-0
01
1
0609-
●
345
LAMP UNIT; CORNERING
1-86830-255-0
01
1
0609-
●
346
SOCKET; CORNERING LAMP
1-86830-256-0
02
1
0609-
●
378
WASHER; PL
ID=6.4
0-91610-606-0
08
1
0609-
●
399
SOCKET; TURN SIGNAL
1-82219-038-0
02
1
0609-
●
399
SOCKET; TURN SIGNAL
1-82219-034-0
02
1
0609-
●
448
CAP ASM; LAMP
8-97378-874-0
02
1
0907-
●
4
16
73
15
5
340
12
14
23
202
202
18
13
211
13
211
13
28
28
28
110
6
1
1
327
91
321
104
344
350
185
324
125
127
326
129
399
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; HEAD
1-86830-121-4
01
1
0609-
●
1
LAMP ASM; HEAD
1-86830-122-4
01
1
0609-
●
1
LAMP ASM; HEAD
1-86830-358-0
01
1
0609-
●
1
LAMP ASM; HEAD
1-86830-359-0
01
1
0609-
●
4
HEADLAMP UNIT
1-86830-193-1
01
1
0609-
●
4
HEADLAMP UNIT
1-86830-194-1
01
1
0609-
●
4
HEADLAMP UNIT
1-82119-199-0
01
1
0609-
●
4
HEADLAMP UNIT
1-82119-200-0
01
1
0609-
●
5
BULB; HEADLAMP
24V 75/70W
8-94405-657-0
02
1
0609-
●
5
BULB; HEADLAMP
24V 75/70W
1-82194-063-0
02
1
0609-
●
6
RIM; HEADLAMP
FOG LAMP<T96>
1-86830-035-5
01
1
0609-
●
6
RIM; HEADLAMP
FOG LAMP<T96>
1-86830-036-5
01
1
0609-
●
6
RIM; HEADLAMP
EXC. FOG LAMP<T96>
1-86830-005-5
01
1
0609-
●
6
RIM; HEADLAMP
1-86830-005-5
01
1
0609-
●
6
RIM; HEADLAMP
EXC. FOG LAMP<T96>
1-86830-006-5
01
1
0609-
●
6
RIM; HEADLAMP
1-86830-006-5
01
1
0609-
●
12
HARNESS; HEADLAMP
1-86830-199-0
02
1
0609-
●
12
HARNESS; HEADLAMP
1-86830-145-0
02
1
0609-
●
13
CLIP; HEADLAMP
(B)
1-82119-084-0
04
1
0609-
●
●
13
CLIP; HEADLAMP
(A)
8-94381-588-0
14
1
0609-
●
●
14
CAP; BULB,LAMP
1-86830-148-0
02
1
0609-
●
●
15
BULB; FOG LAMP
24V 70W
1-82194-106-0
02
1
0609-
●
15
BULB; FOG LAMP
24V 55W
1-82194-079-0
02
1
0609-
●
16
BRACKET; HEADLAMP
1-86830-075-0
01
1
0609-
●
●
16
BRACKET; HEADLAMP
1-86830-076-0
01
1
0609-
●
●
18
SCREW; GEAR CASE
M4X16 TAPPING
1-82119-067-0
08
1
0609-
●
●
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
0609-
●
●
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0609-0708
●
●
28
BOLT; HEADLAMP
(B) M6X16 FLANGE
0-28650-616-0
04
1
0709-
●
●
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
10
1
0609-
●
●
73
BOLT; BRKT,HEADLAMP
8-94332-050-0
04
1
0609-
●
●
91
BULB; SIDE TURN SIGNAL
24V 12W
1-82194-030-0
02
1
0609-
●
●
104
SCREW; SIDE TURN SIGNAL
1-86830-149-0
02
1
0609-
●
●
110
CLIP; RIM,HEADLAMP
1-86830-213-1
04
1
0609-
●
●
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-105-0
02
1
0609-
●
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-036-0
02
1
0609-
●
125
GASKET; FRT TURN SIGNAL
1-82216-033-0
02
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-073-0
01
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-074-0
01
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-064-0
01
1
0609-
●
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-065-0
01
1
0609-
●
129
SCREW; FRT TURN SIGNAL
1-82219-026-0
04
1
0609-
●
185
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0609-
●
202
GEAR UNIT; HEADLAMP
(A)
1-86830-139-0
02
1
0609-
●
●
202
GEAR UNIT; HEADLAMP
(B)
1-86830-140-0
02
1
0609-
●
●
211
TUBE; HEADLAMP
(A)
8-97025-128-0
02
1
0609-0906
●
211
TUBE; HEADLAMP
(B)
1-86830-330-0
01
1
0609-
●
●
211
TUBE; HEADLAMP
(B)
1-86830-331-0
01
1
0609-
●
●
321
HARNESS; SIDE FLASHER LAMP
1-86830-253-0
02
1
0609-
●
●
324
LAMP; FRT FLASHER
1-82210-259-1
01
1
0609-
●
324
LAMP; FRT FLASHER
1-82210-260-1
01
1
0609-
●
324
LAMP; FRT FLASHER
1-82210-202-1
01
1
0609-
●
324
LAMP; FRT FLASHER
1-82210-203-1
01
1
0609-
●
326
WASHER; PL,FRT TURN SIGNAL
1-82216-032-0
04
1
0609-
●
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-007-6
01
1
0609-
●
●
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-011-6
01
1
0609-
●
●
340
BULB; POSITION
24V 5W
1-82194-042-0
02
1
0609-
●
●
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-240-1
01
1
0609-
●
●
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-241-1
01
1
0609-
●
●
350
COVER; SIDE TURN HOLE
1-79996-606-0
01
1
0609-
●
350
COVER; SIDE TURN HOLE
1-79996-607-0
01
1
0609-
●
399
SOCKET; TURN SIGNAL
1-82219-038-0
02
1
0609-
●
399
SOCKET; TURN SIGNAL
1-82219-034-0
02
1
0609-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
