7-70 — SEPARATER AND BED (#25107) — 83 parça

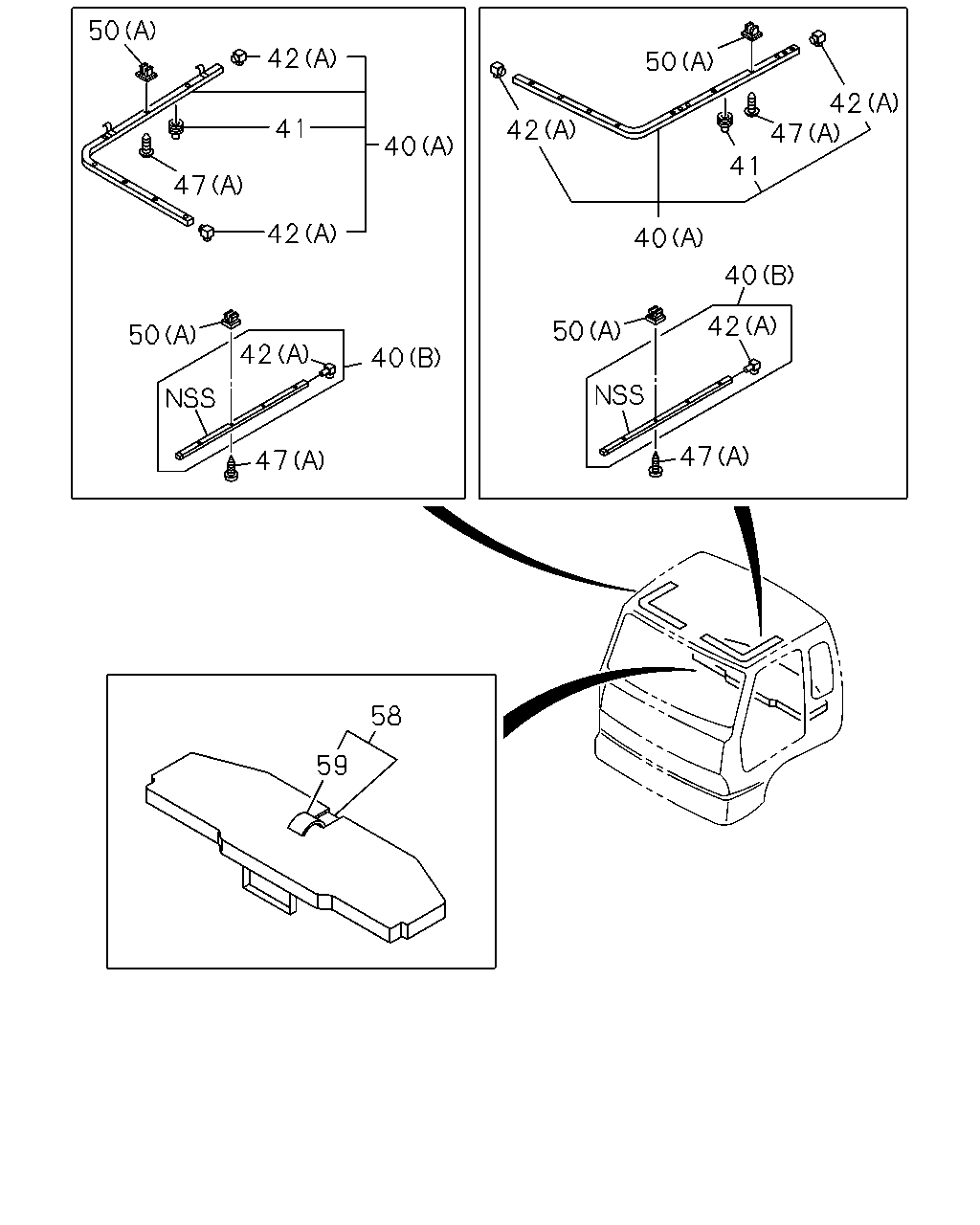

50 42 50 42 41 42 47 40 41 47 42 40 40 42 50 50 42 40 47 47 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	RAIL; CURTAIN,SIDE (A)	1-73996-494-1	01	1	0609-	●
40	RAIL; CURTAIN,SIDE (A)	1-73996-495-1	01	1	0609-	●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-367-1	01	1	0609-		●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73996-368-1	01	1	0609-		●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-378-1	02	1	0609-		●
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	60	1	0609-	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	40	1	0609-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0609-		●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	0609-	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0609-		●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	0609-	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0609-		●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0609-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0609-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0609-		●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0609-	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	08	1	0609-	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	25	1	0609-		●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0609-		●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	08	1	0609-	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0609-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	16	1	0609-	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0609-		●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-532-1	01	1	0609-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75116-531-1	01	1	0609-		●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-701-1	01	1	0609-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75116-700-1	01	1	0609-		●

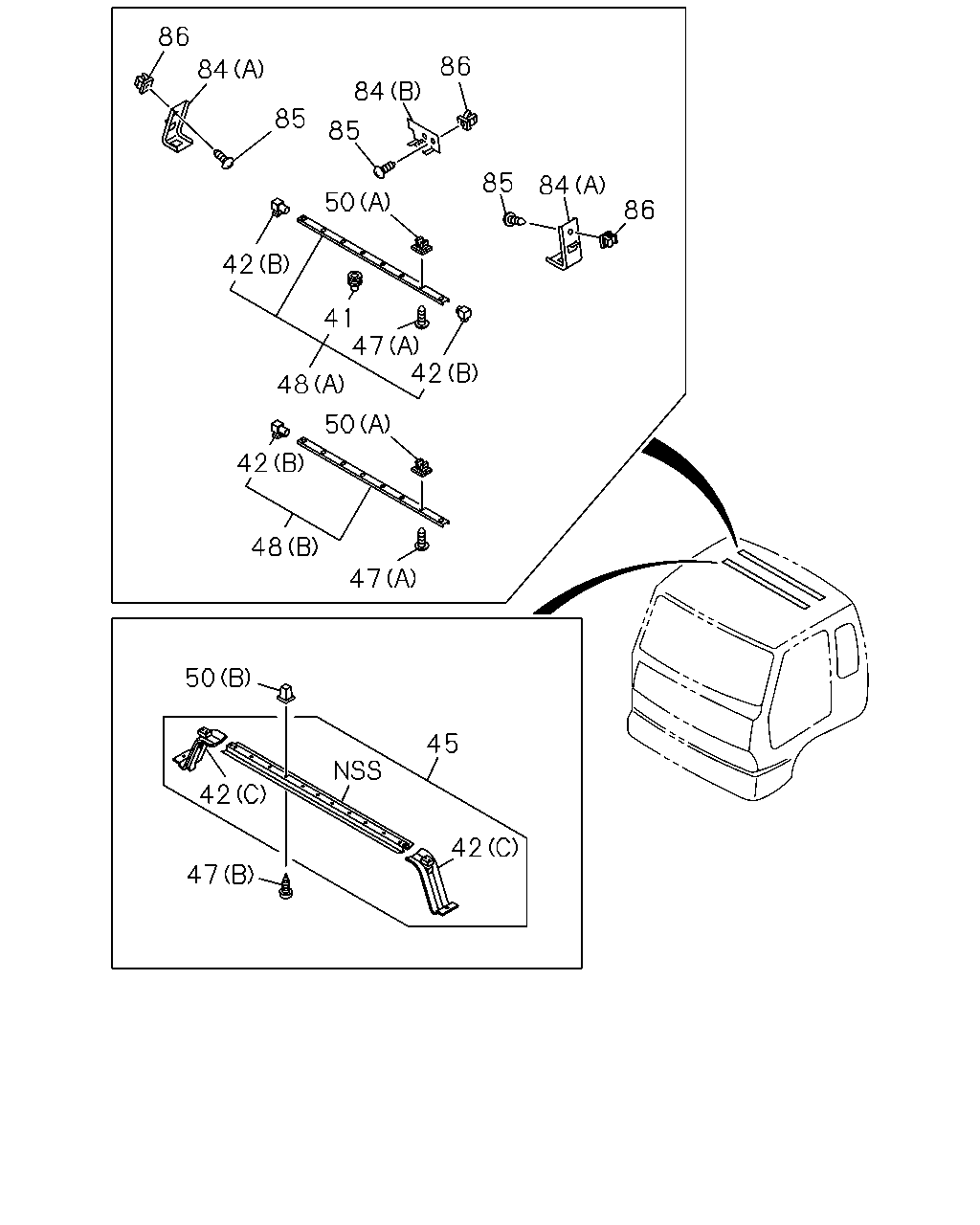

86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 50 42 48 47 50 45 42 42 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	60	1	0609-	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	40	1	0609-		●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0609-		●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	0609-	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	04	1	0609-		●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	0609-	●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0609-		●
42	STOPPER; CURTAIN RAIL (C)	1-73996-402-0	02	1	0609-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0609-		●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0609-		●
45	RAIL; CURTAIN,FRT	1-73996-493-1	01	1	0609-	●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-370-1	01	1	0609-		●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73996-369-1	01	1	0609-		●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0609-	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	08	1	0609-	●
47	SCREW; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	25	1	0609-		●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0609-		●
47	SCREW; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20	5-09981-059-0	19	1	0609-		●
48	RAIL; CURTAIN,BACK (A)	1-73996-373-1	01	1	0609-	●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-386-1	01	1	0609-		●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-385-1	01	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	08	1	0609-	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0609-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	16	1	0609-	●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5	8-94279-078-0	25	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8X8 L=13 M5	1-09983-159-0	15	1	0609-		●
50	GROMMET; SCREW,CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B) D=8.6X7.7 L=7.5	8-94279-078-0	11	1	0609-		●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	08	1	0609-	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0609-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0609-		●
85	SCREW; BRKT M5X20	5-09981-059-0	08	1	0609-	●
85	SCREW; BRKT M5X20	5-09981-059-0	02	1	0609-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	07	1	0609-		●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0609-	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0609-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	07	1	0609-		●

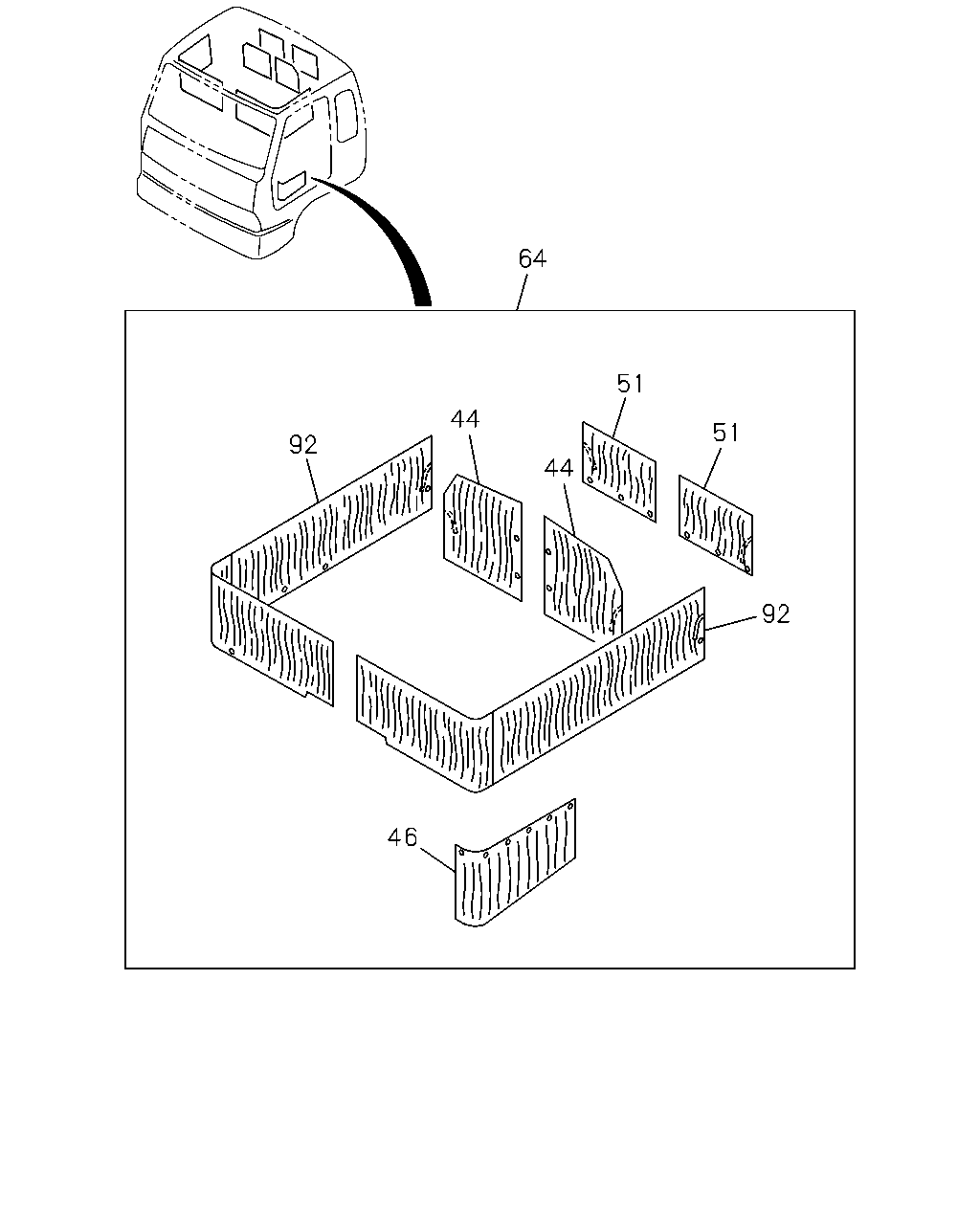

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-209-1	01	1	0609-	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-210-1	01	1	0609-	●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-207-1	01	1	0609-		●
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-208-1	01	1	0609-		●
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	0609-	●	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-213-1	01	1	0609-	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-214-1	01	1	0609-	●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-1	01	1	0609-		●
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-1	01	1	0609-		●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-206-1	01	1	0609-	●
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-1	01	1	0609-		●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-217-1	01	1	0609-	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-218-1	01	1	0609-	●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-1	01	1	0609-		●
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-1	01	1	0609-		●
