◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#25106) — 15 parça

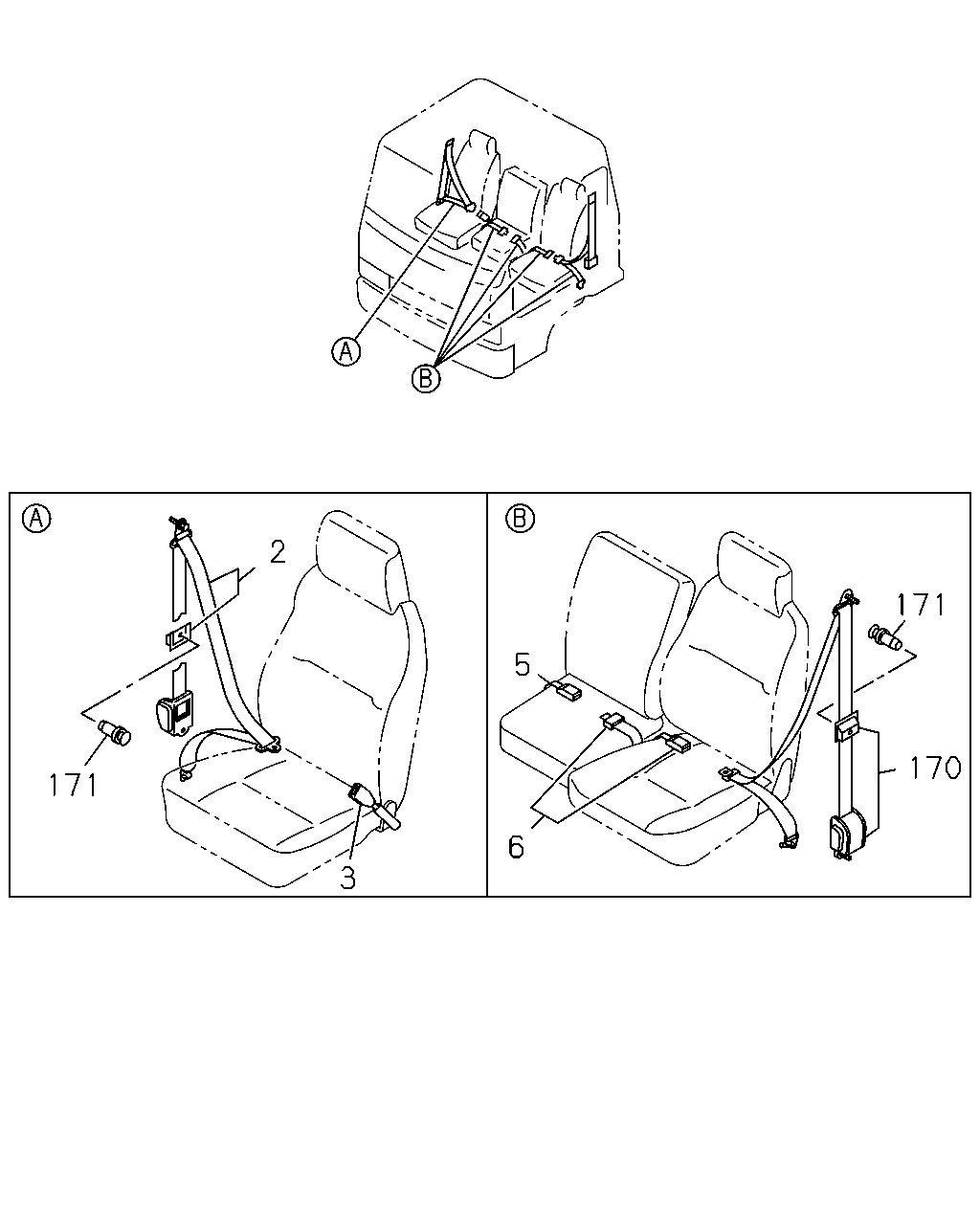

çizim 106554
2 171 5 170 171 6 3
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 1-75618-938-3 01 1 0609-0805 ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-938-3 01 1 0609-0805 ●
2 BELT; SEAT,TONGUE SIDE 8-98120-815-1 01 1 0806- ●
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-815-1 01 1 0806- ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-953-0 01 1 0609- ●
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75618-914-0 01 1 0609- ●
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0609- ●
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-553-1 01 1 0609- ●
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-899-2 01 1 0609- ●
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-547-5 01 1 0609- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-550-4 01 1 0609-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		1-75617-550-4 01 1 0609-0805 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-817-1 01 1 0806- ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3>,FRT SEATBELT DR 3 PT ELR SIDE ELR CTR LESS<SHY> 		8-98120-817-1 01 1 0806- ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0609- ● ●
