7-50 — FRONT SEAT (#25105) — 202 parça

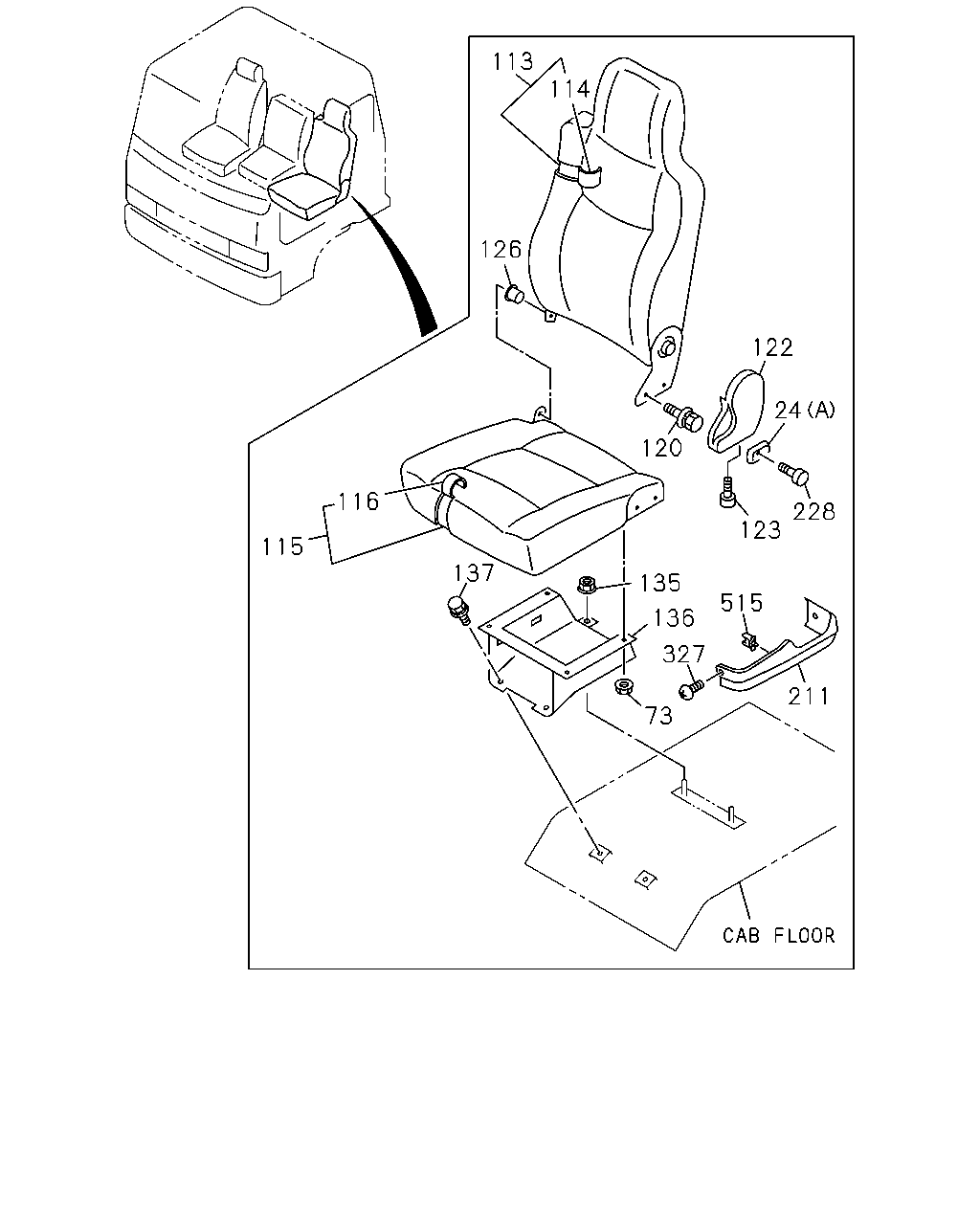

113 114 126 122 24 120 116 228 123 115 137 135 515 136 327 211 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97859-019-0	01	1	0609-	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97867-021-0	01	1	0609-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-066-0	01	1	0711-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0609-	●	●
113	BACK ASM; SEAT	1-75208-072-3	01	1	0609-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-707-1	01	1	0609-	●	●
115	CUSHION ASM; PASSENGER SEAT	1-75026-783-1	01	1	0609-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-690-1	01	1	0609-	●	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0609-	●	●
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	0609-	●	●
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0609-	●	●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0609-	●	●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0609-0703	●	●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
136	STAND; PASSENGER SEAT	1-75558-550-7	01	1	0609-1305	●	●
136	STAND; PASSENGER SEAT	8-98242-292-0	01	1	1306-	●	●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0609-0703	●	●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
211	COVER; FRT SEAT	1-72538-274-0	01	1	0609-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0609-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0609-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0609-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0609-	●	●
515	CLIP; PIPE BLACK	8-94227-248-1	01	1	0609-	●	●

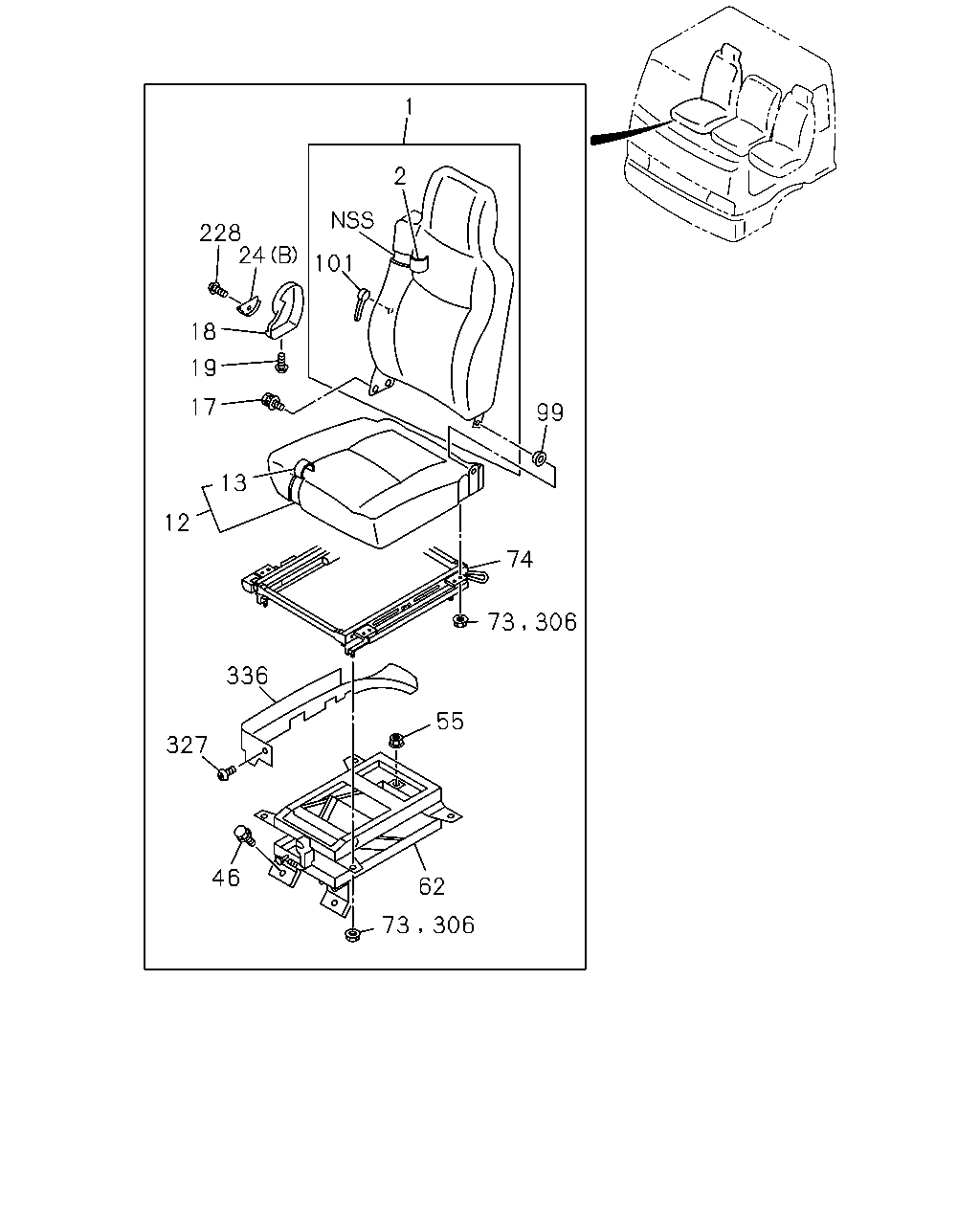

1 2 228 24 101 18 19 17 99 13 12 74 336 55 327 46 62 73 306 73 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT	1-75208-065-2	01	1	0609-0901	●	●
1	BACK ASM; SEAT	8-98135-611-0	01	1	0902-	●	●
2	COVER; TRIM,FRT SEAT,BACK	1-75116-594-1	01	1	0609-	●	●
12	CUSHION; SEAT,FRT	1-75026-693-3	01	1	0609-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75116-681-1	01	1	0609-	●	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0609-	●	●
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	0609-	●	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0609-	●	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97859-019-0	01	1	0609-	●	●
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97867-021-0	01	1	0609-0710	●	●
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-066-0	01	1	0711-	●	●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0609-0703	●	●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0609-0703	●	●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●	●
62	DAMPER ASM; SEAT SUSP	1-75538-183-8	01	1	0609-1403	●	●
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-	●	●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0609-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	0609-	●	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0609-	●	●
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	0609-	●	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0609-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0609-0710	●	●
228	SCREW; KNOB PASSENGER M4X6	8-97042-273-0	01	1	0711-	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	0609-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0609-	●	●
327	CLIP; COVER	1-09987-273-0	02	1	0609-	●	●
336	COVER; DRIVER SEAT	1-75518-303-0	01	1	0609-	●	●

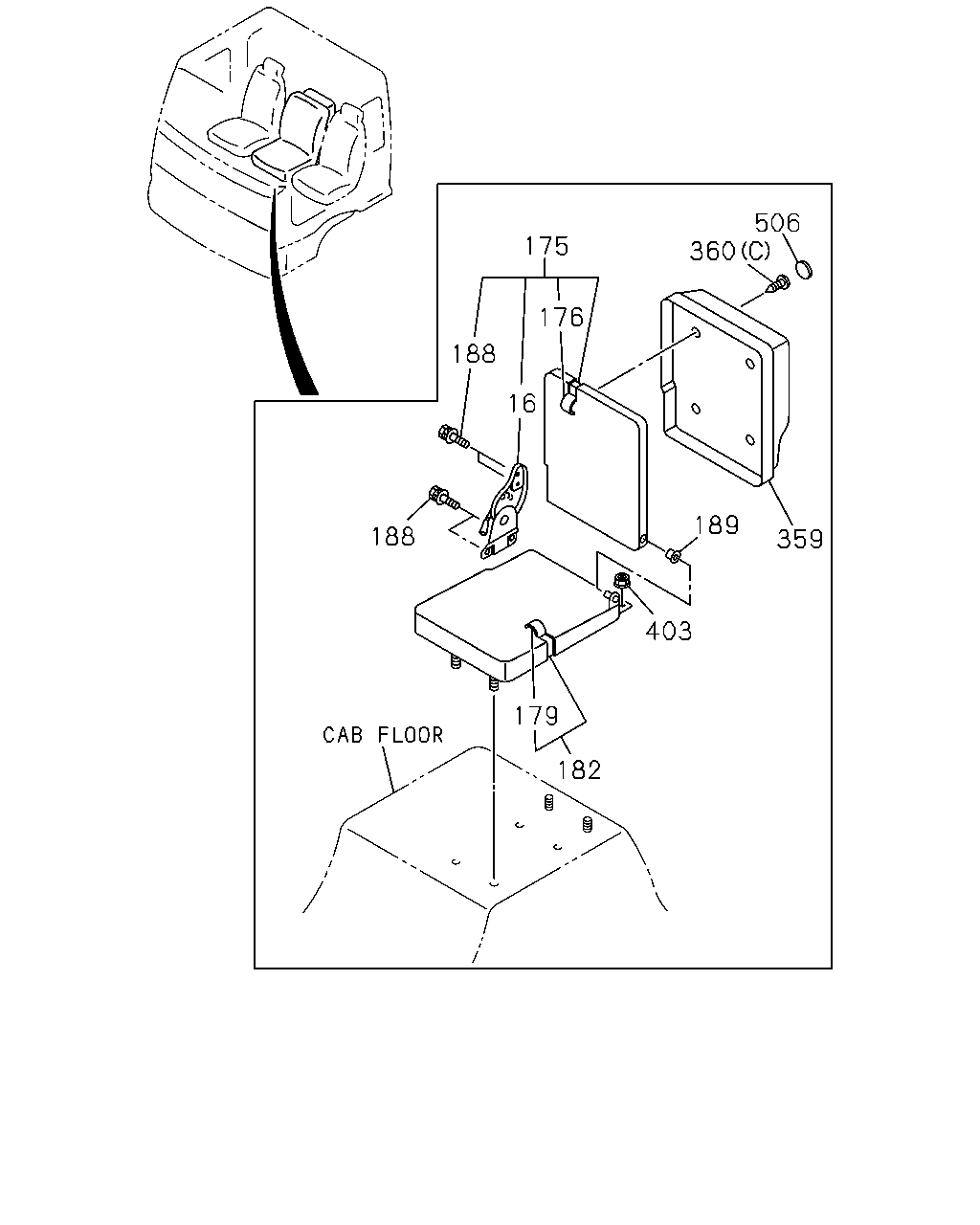

506 360 175 176 188 16 189 188 359 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0609-	●
16	ADJUSTER ASM; RECLINING CENTER SEAT 3 CREWS<SA1>	1-75418-062-1	01	1	0609-		●
175	BACK ASM; PASSENGER CENTER SEAT	1-75026-854-3	01	1	0609-	●
175	BACK ASM; PASSENGER CENTER SEAT CENTER SEAT 3 CREWS<SA1>	1-75026-854-3	01	1	0609-		●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-650-1	01	1	0609-	●
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK CENTER SEAT 3 CREWS<SA1>	1-75116-650-1	01	1	0609-		●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-637-1	01	1	0609-	●
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH CENTER SEAT 3 CREWS<SA1>	1-75116-637-1	01	1	0609-		●
182	CUSHION ASM; CENTER SEAT	1-75026-839-4	01	1	0609-	●
182	CUSHION ASM; CENTER SEAT CENTER SEAT 3 CREWS<SA1>	1-75026-839-4	01	1	0609-		●
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0609-	●
188	BOLT; BACK TO CUSHION CENTER SEAT 3 CREWS<SA1> M10X16 FLANGE	1-75198-053-0	04	1	0609-		●
189	BUSHING; HINGE,CENTER SEAT BACK	8-97854-900-0	01	1	0609-	●
189	BUSHING; HINGE,CENTER SEAT BACK CENTER SEAT 3 CREWS<SA1>	8-97854-900-0	01	1	0609-		●
359	BOX; PARCEL	1-72538-275-4	01	1	0609-1006	●
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0609-1006		●
359	BOX; PARCEL	8-98145-114-0	01	1	1007-	●
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0609-0612	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0609-0612		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006		●
360	SCREW; PARCEL (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0609-0612	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	0609-0612		●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0609-1006	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0609-1006		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-		●
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0609-0703	●
403	NUT; CENTER SEAT CENTER SEAT 3 CREWS<SA1> M8 FLANGE	1-75538-207-0	04	1	0609-0703		●
403	NUT; CENTER SEAT M8 FLANGE	0-91180-108-0	04	1	0704-	●
403	NUT; CENTER SEAT CENTER SEAT 3 CREWS<SA1> M8 FLANGE	0-91180-108-0	04	1	0704-		●
506	CAP; PARCEL BOX	1-09983-180-3	04	1	0609-1006	●
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	04	1	0609-1006		●
506	CAP; PARCEL BOX	1-09983-180-3	02	1	1007-	●
506	CAP; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-09983-180-3	02	1	1007-		●

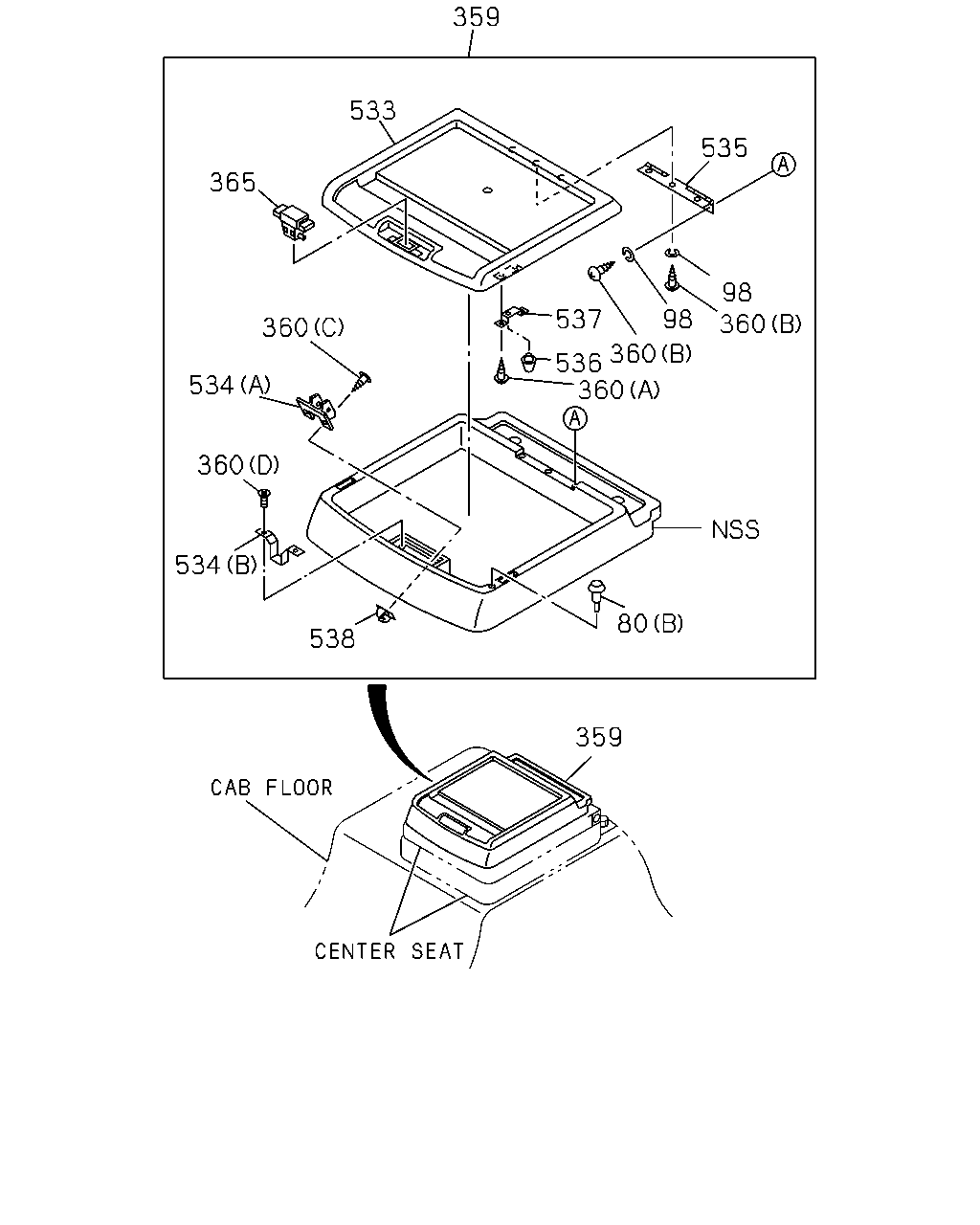

359 533 535 365 98 360 98 537 360 360 536 360 534 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-	●
80	RUBBER; STOPPER CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-		●
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	0609-	●	●
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0609-	●
98	WASHER; HINGE CENTER SEAT 3 CREWS<SA1> ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0609-		●
359	BOX; PARCEL	1-72538-275-4	01	1	0609-1006	●
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	1-72538-275-4	01	1	0609-1006		●
359	BOX; PARCEL	8-98145-114-0	01	1	1007-	●
359	BOX; PARCEL CENTER SEAT 3 CREWS<SA1>	8-98145-114-0	01	1	1007-		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0609-0612	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0609-0612		●
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006		●
360	SCREW; PARCEL (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0609-0612	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	0609-0612		●
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70040-416-0	06	1	0701-1104		●
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (B) M4X16	0-70080-416-0	06	1	1105-		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0609-1006	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0609-1006		●
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-	●
360	SCREW; PARCEL CENTER SEAT 3 CREWS<SA1> (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-		●
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0609-	●
365	LOCK ASM; SEAT CENTER SEAT 3 CREWS<SA1>	1-72538-180-0	01	1	0609-		●
533	LID; PARCEL BOX	1-72538-277-1	01	1	0609-1006	●
533	LID; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72538-277-1	01	1	0609-1006		●
533	LID; PARCEL BOX	8-98145-118-0	01	1	1007-	●
533	LID; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	8-98145-118-0	01	1	1007-		●
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0609-1006	●
534	STRIKER; PARCEL BOX CENTER SEAT 3 CREWS<SA1> (A)	1-72538-181-0	01	1	0609-1006		●
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1007-	●
534	STRIKER; PARCEL BOX CENTER SEAT 3 CREWS<SA1> (B)	1-72538-190-0	01	1	1007-		●
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0609-	●
535	HINGE; PARCEL BOX CENTER SEAT 3 CREWS<SA1>	1-72447-391-1	01	1	0609-		●
536	RUBBER; CUSHION	5-09983-002-1	02	1	0609-1006	●
536	RUBBER; CUSHION CENTER SEAT 3 CREWS<SA1>	5-09983-002-1	02	1	0609-1006		●
537	BRACKET; RUBBER	1-72548-057-1	02	1	0609-1006	●
537	BRACKET; RUBBER CENTER SEAT 3 CREWS<SA1>	1-72548-057-1	02	1	0609-1006		●
538	GROMMET; SCREW	1-09983-165-0	02	1	0609-1006	●
538	GROMMET; SCREW CENTER SEAT 3 CREWS<SA1>	1-09983-165-0	02	1	0609-1006		●

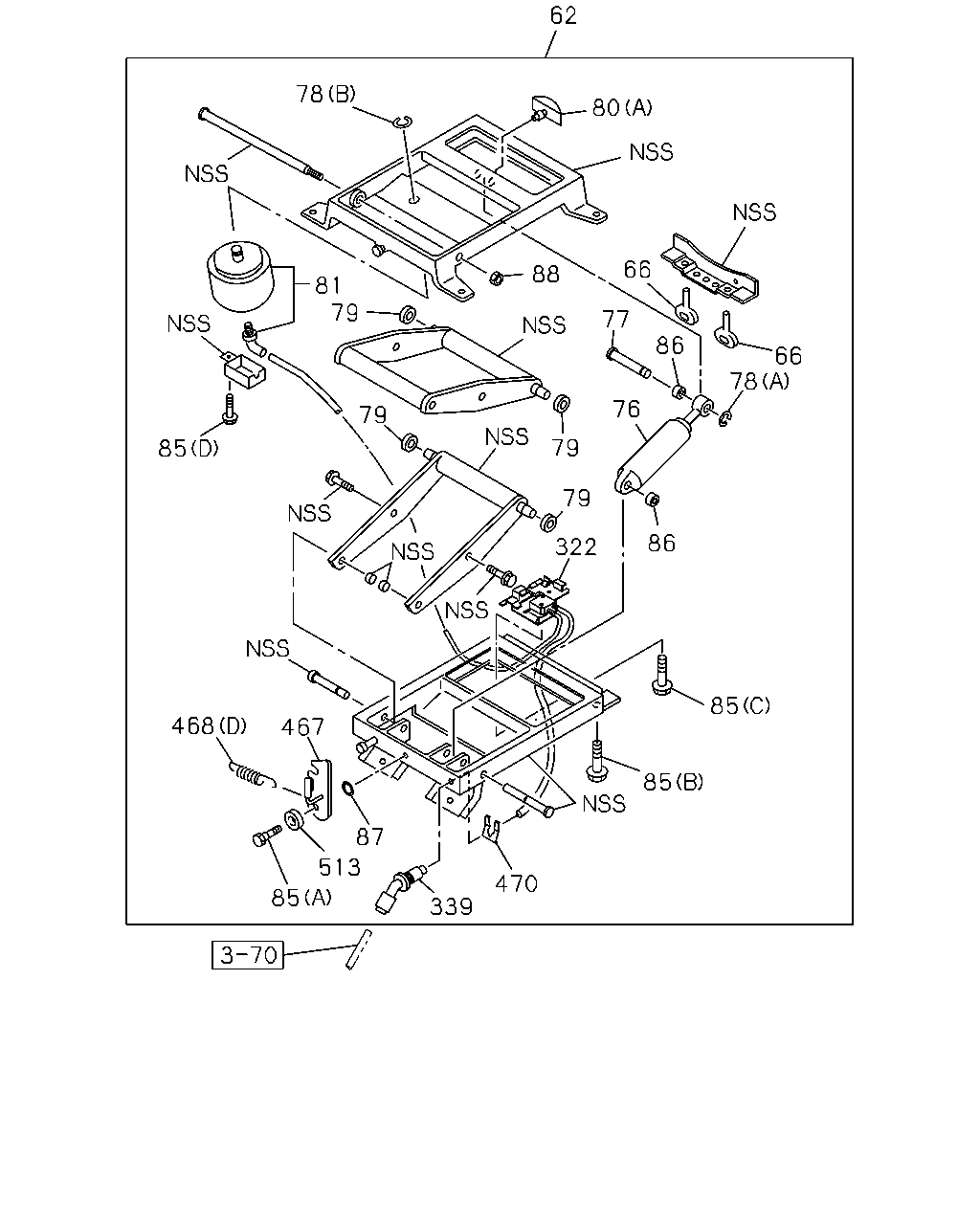

78 62 80 66 77 86 66 78 76 79 79 322 86 85 85 470 339 513 87 85 467 468 79 85 79 81 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	DAMPER ASM; SEAT SUSP	1-75538-183-8	01	1	0609-1403	●	●
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-	●	●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	0609-	●	●
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	0609-	●	●
77	PIN; DAMPER	1-75538-138-2	01	1	0609-	●	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	0609-	●	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	0609-	●	●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	0609-1403	●	●
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-	●	●
80	RUBBER; STOPPER (B)	1-72538-187-0	02	1	1007-	●
80	RUBBER; STOPPER CENTER SEAT 3 CREWS<SA1> (B)	1-72538-187-0	02	1	1007-		●
80	RUBBER; STOPPER (A)	1-09987-123-0	01	1	0609-	●	●
81	SPRING; AIR	1-75538-151-2	01	1	0609-1312	●	●
81	SPRING; AIR	8-98242-816-0	01	1	1401-	●	●
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●	●
85	BOLT; AIR SUSP (A)	1-09980-577-1	01	1	0609-	●	●
85	BOLT; AIR SUSP (C)	1-75538-208-1	02	1	0609-	●	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0609-1312	●	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-	●	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0609-	●	●
87	WASHER; AIR SUSP ID=8.2	9-09150-508-0	01	1	0609-0710	●	●
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	0711-	●	●
88	NUT; AIR SUSP	1-75537-273-1	01	1	0609-	●	●
322	VALVE; AIR SPRING	1-75538-186-3	01	1	0609-	●	●
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	0609-	●	●
467	LEVER; LOCK	1-75538-134-0	01	1	0609-	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0609-	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0609-	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0609-	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0609-	●	●
470	CLIP; HOSE	1-75538-137-0	01	1	0609-	●	●
513	SPACER; LEVER	1-75538-133-0	01	1	0609-	●	●

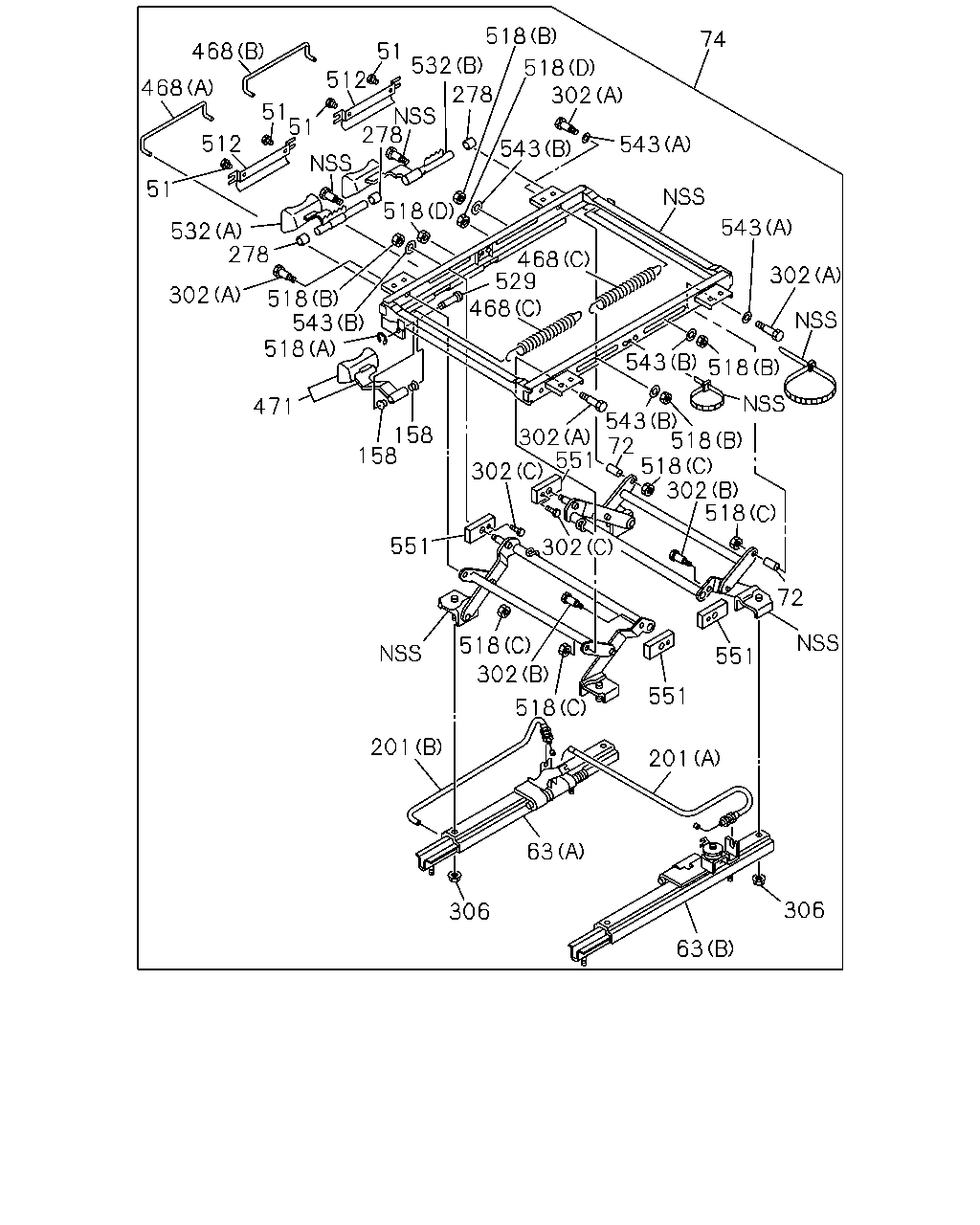

518 74 468 51 532 518 302 512 468 278 51 51 278 512 543 543 51 518 543 532 278 468 529 468 302 302 518 543 518 543 518 543 518 72 518 302 471 158 158 302 551 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	SCREW; COVER	1-75518-325-1	04	1	0609-	●	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-199-1	01	1	0609-	●	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-323-0	01	1	0609-	●	●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	0609-	●	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	0609-	●	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0609-	●	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0609-	●	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0609-	●	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	0609-	●	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	0609-	●	●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	0609-	●	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	0609-	●	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	0609-	●	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0609-	●	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0609-	●	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0609-	●	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0609-	●	●
471	LEVER; SEAT ADJ	1-75518-291-0	01	1	0609-0710	●	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	0711-	●	●
512	COVER; LEVER	1-75518-243-1	02	1	0609-	●	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0609-	●	●
518	NUT; TILT ADJ (B)	1-75518-264-0	04	1	0609-	●	●
518	NUT; TILT ADJ (C) M6 LOCK NUT	5-09984-020-0	02	1	0609-	●	●
518	NUT; TILT ADJ (D) M8 FLANGE	8-94152-886-0	04	1	0609-	●	●
529	PIN; LINK	1-75518-262-0	01	1	0609-	●	●
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	0609-	●	●
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	0609-	●	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	0609-	●	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	0609-	●	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	0609-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
