◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#25102) — 125 parça
çizim 90279
597
BalonParca AdiParca NoAdetTipApplied Date A B
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0609- ● ●

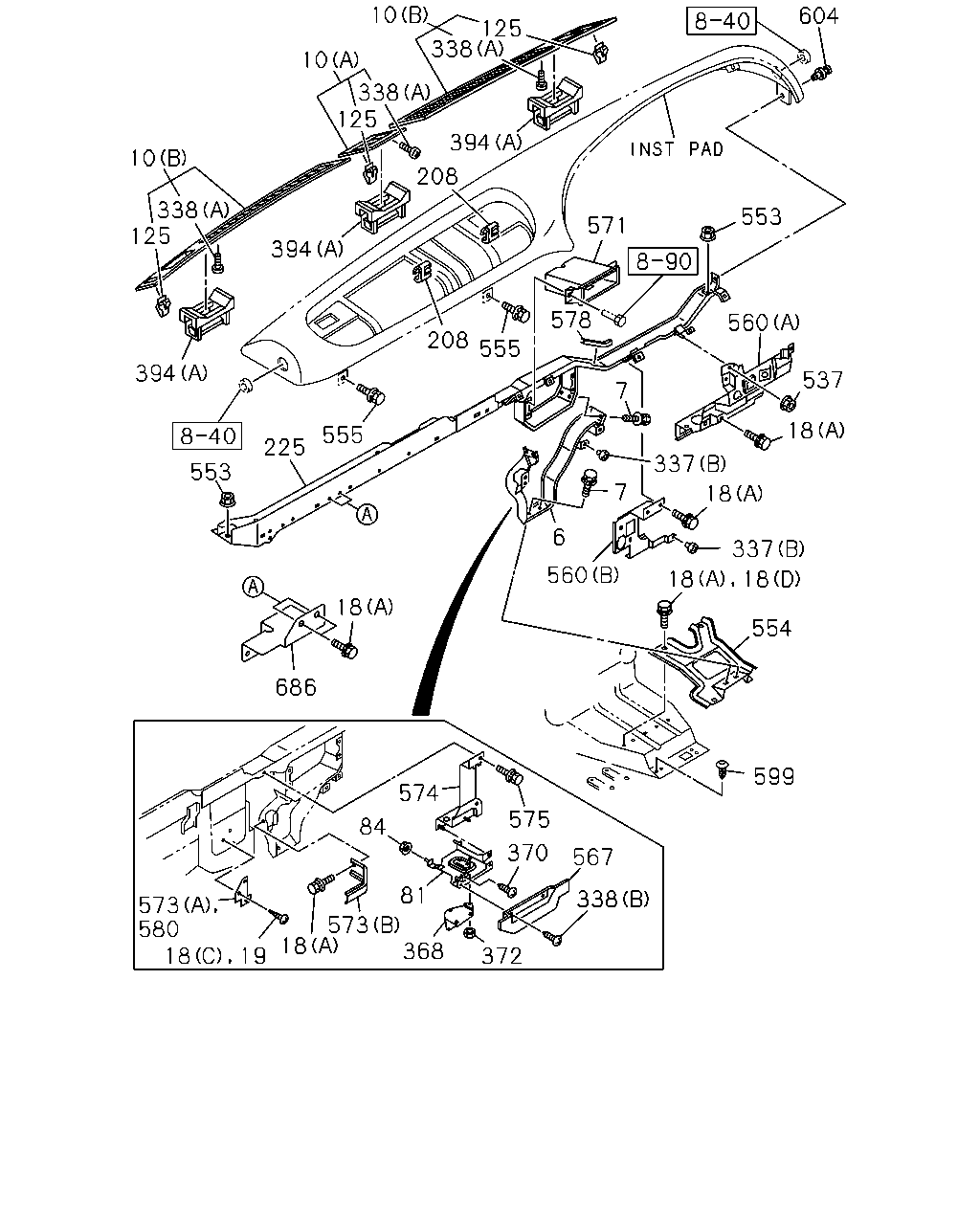

çizim 105348
10 604 125 338 10 338 125 394 208 10 338 125 553 571 394 578 560 208 555 394 537 7 18 555 225 337 553 7 18 6 337 560 18 18 18 554 686 599 574 575 84 370 567 81 338 573 580 18 573 368 18 19 372
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 1-65681-089-3 01 1 0609- ●
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0609- ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0609- ● ●
10 PANEL ASM; GARNISH
(A) CENTER 		1-72438-120-6 01 1 0609- ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0609- ● ●
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0609- ● ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0609- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0609- ● ●
18 BOLT; BRKT
(C) M5X14 		8-94279-325-0 03 1 0609- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0609- ● ●
18 BOLT; BRKT
(D) M8X40 FLANGE 		0-28650-840-0 03 1 0609- ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0609- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0609- ●
81 BRACKET; ELEC CONT UNIT
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-73908-437-1 01 1 0609- ●
81 BRACKET; ELEC CONT UNIT 1-73908-437-1 01 1 0609- ●
81 BRACKET; ELEC CONT UNIT
ZF9S1110 M/T(Y5E) 		1-73908-487-1 01 1 0609- ●
84 NUT; CONT UNIT BRKT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0609- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0609- ●
125 CLIP; INST PANEL 8-97217-066-0 03 1 0609- ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0609- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0609- ● ●
225 FRAME; FACIA 1-65681-097-2 01 1 0609-1002 ●
225 FRAME; FACIA 8-98142-103-0 01 1 1003- ●
225 FRAME; FACIA 1-65681-096-2 01 1 0609-1002 ●
225 FRAME; FACIA 8-98142-102-0 01 1 1003- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 04 1 0609- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0609- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0609- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0609- ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 02 1 0609- ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 10 1 0609-0801 ● ●
338 SCREW; COVER
(A) M5X14 		8-94279-325-0 15 1 0802- ● ●
338 SCREW; COVER
(B) M6X12 		8-97094-854-0 02 1 0609- ● ●
368 BRACKET; SUB,ELEC CONT UNIT
ZF9S1110 M/T(Y5E) 		1-65681-239-0 01 1 0609- ●
370 SCREW; BRKT,ELEC CONT UNIT
M5X14 		8-94279-325-0 01 1 0609- ● ●
372 NUT; SUB BRKT
ZF9S1110 M/T(Y5E) M6 FLANGE 		0-91180-106-0 02 1 0609- ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0609- ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0609- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0609- ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0609- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0609- ● ●
554 BRACKET; CENTER BEZEL 1-65681-023-2 01 1 0609- ●
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0609- ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 08 1 0609- ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0609- ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0609- ●
560 BRACKET
(B) 		1-65681-197-2 01 1 0609- ● ●
560 BRACKET
(A) 		1-65681-223-2 01 1 0609- ● ●
567 COVER; CONT UNIT 1-65681-022-2 01 1 0609- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0609- ● ●
571 BEZEL; POCKET 1-72438-151-3 01 1 0609- ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0609- ●
573 BRACKET; PANEL,RELAY BOX
(B) 		1-73908-024-2 01 1 0609- ●
573 BRACKET; PANEL,RELAY BOX
(A) 		1-73908-023-2 01 1 0609- ●
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0609- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609- ● ●
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0609- ● ●
580 BRACKET; COVER 1-72437-094-3 01 1 0609- ●
599 PLUG; BRKT
D7.8X20 		8-94353-238-0 03 1 0609- ●
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0609- ●
604 CLIP; INST PAD 1-09983-123-0 01 1 0609- ● ●
686 BRACKET; SENSOR & RELAY 1-65681-226-1 01 1 0609- ● ●

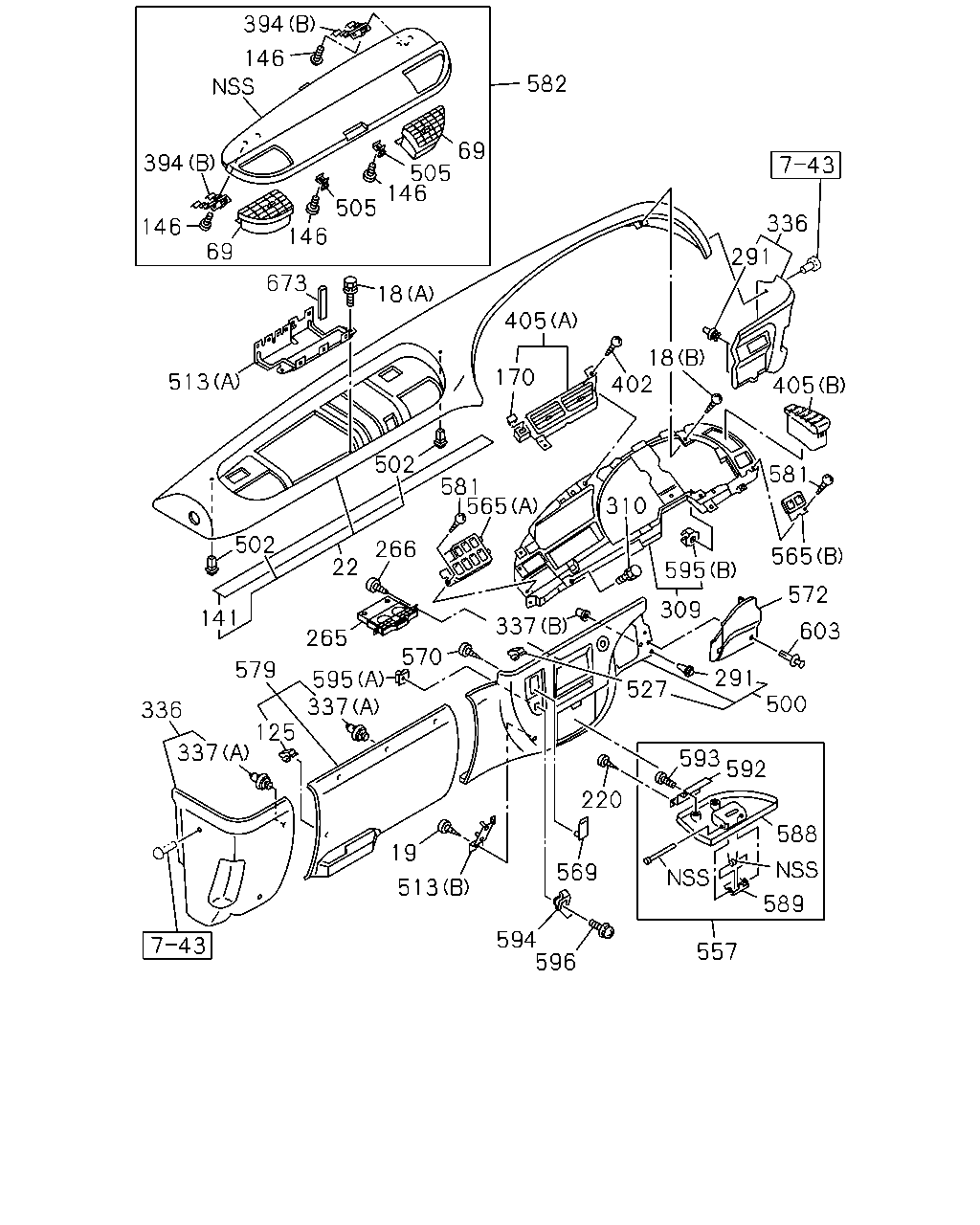

çizim 106311
394 146 582 69 505 146 394 505 336 146 146 69 291 673 18 405 18 402 170 513 405 502 581 581 565 310 502 266 565 22 595 572 309 141 337 603 265 570 579 291 595 337 527 500 336 125 337 593 592 220 588 19 569 513 589 594 596 557
BalonParca AdiParca NoAdetTipApplied Date A B
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0609- ●
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0609- ● ●
18 BOLT; BRKT
(C) M5X14 		8-94279-325-0 03 1 0609- ●
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0609- ● ●
18 BOLT; BRKT
(D) M8X40 FLANGE 		0-28650-840-0 03 1 0609- ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 0609- ● ●
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0609- ●
22 PAD; INST 1-72318-434-4 01 1 0609- ●
22 PAD; INST 1-72318-433-4 01 1 0609- ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0609- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0609- ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 0609- ●
125 CLIP; INST PANEL 8-97217-066-0 03 1 0609- ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0609- ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0609- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0609- ● ●
170 COVER; HOLE 1-76367-068-0 01 1 0609- ● ●
220 SCREW; LID TO STOPPER
M5X14 		8-94279-325-0 02 1 0609- ● ●
265 HOLDER; CUP 8-97853-172-8 01 1 0609- ● ●
266 SCREW; CUP STAND
M5X14 		8-94279-325-0 02 1 0609- ● ●
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0609- ● ●
309 PANEL; SW,INST 1-72418-009-6 01 1 0609- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0609- ● ●
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0609- ● ●
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0609- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 04 1 0609- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0609- ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0609- ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0609- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0609- ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0609- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0609- ●
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0609- ● ●
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0609- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0609- ● ●
500 CLUSTER; INST CENTER 1-72438-185-1 01 1 0609- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0609- ● ●
505 LOCK; LID 1-72558-024-2 02 1 0609- ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0609- ● ●
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0609- ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0609- ● ●
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0609- ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0609- ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0609- ● ●
569 HOLDER; CARD 1-72498-015-2 01 1 0609- ● ●
570 SCREW; HOLDER
M5X14 		8-94279-325-0 01 1 0609- ● ●
572 COVER; INSPECTION 1-72438-183-0 01 1 0609- ● ●
579 COVER; INST PNL 1-72438-186-1 01 1 0609- ●
579 COVER; INST PNL 1-72438-184-1 01 1 0609- ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0609- ● ●
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0609- ●
582 LID; FUSE & RELAY 1-72548-144-0 01 1 0609- ●
588 LID; BOX 1-72548-135-3 01 1 0609- ● ●
589 KNOB; LID 1-72548-143-0 01 1 0609- ● ●
592 HINGE; LID 1-72548-133-3 01 1 0609- ● ●
593 SCREW; HINGE
M5X14 		8-94279-325-0 02 1 0609- ● ●
594 HOOK; COAT 1-72498-013-0 01 1 0609- ● ●
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0609- ● ●
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0609- ● ●
596 SCREW; HOOK
M5X16 W/LK&PL WASHER 		8-94279-400-0 01 1 0609- ● ●
603 CLIP; COVER
D8X13.5 		1-09987-270-0 01 1 0609- ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0609- ● ●
