◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#2510) — 79 parça
çizim 28168
2 12 11 11 11 11 17 18 19 42 25 41
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-018-0 01 1 9002-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 9002-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 9002-
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 9002-
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 9002-
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 9002-
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 9002-
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 9002-
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 9002-

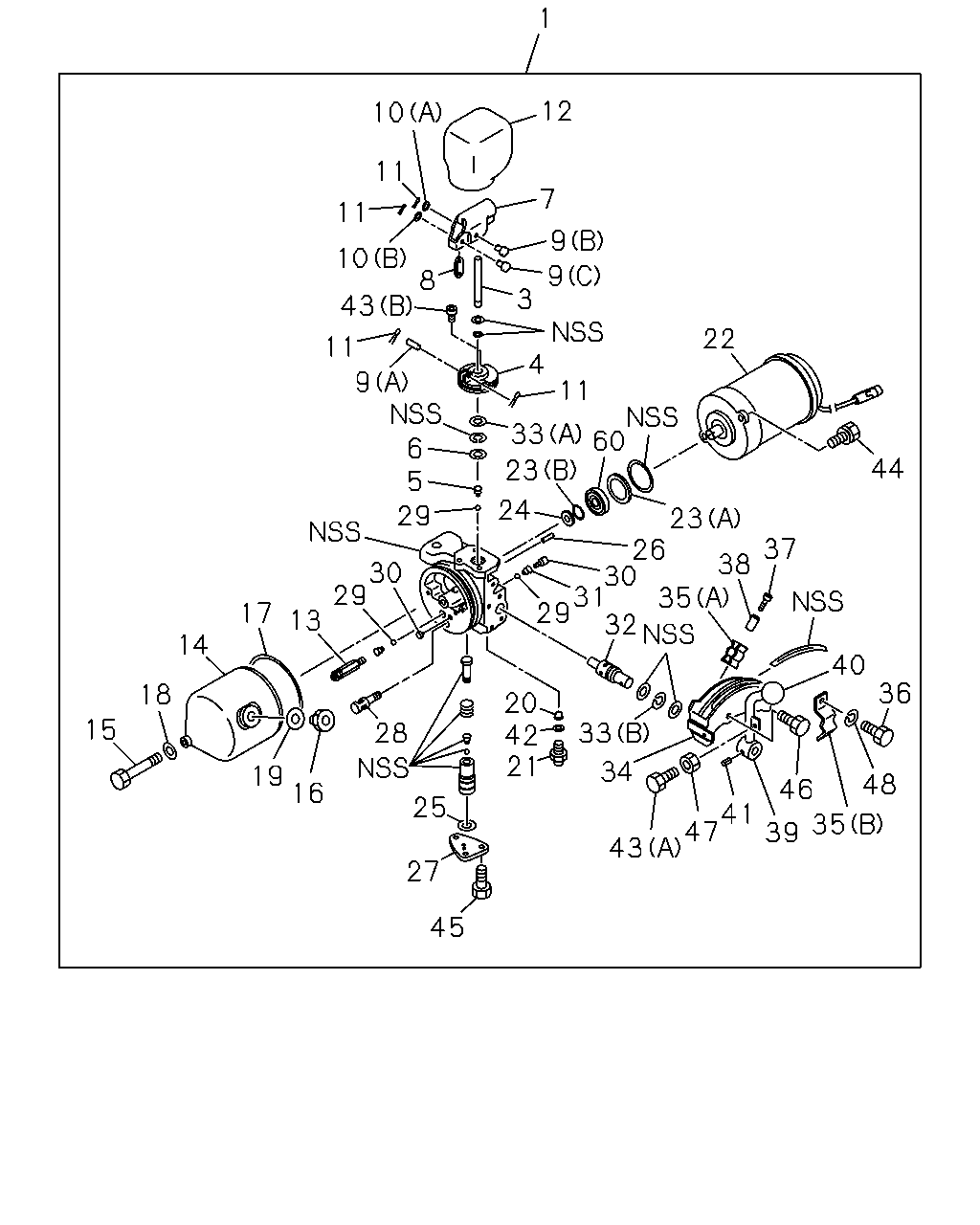

çizim 29829
1 12 10 11 7 11 9 10 9 8 43 3 4 22 11 9 6 5 29 11 60 33 44 24 23 26 30 31 29 32 37 38 30 29 13 35 17 14 40 36 18 20 42 21 15 28 33 34 19 16 48 46 35 25 41 47 39 43 27 45
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-4 01 1 9002-
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53458-068-0 01 1 9002-
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-067-0 01 1 9002-
5 SPRING; SUCTION
AUTO CAB TILT<WV2> 		1-53458-066-0 01 1 9002-
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53458-065-0 01 1 9002-
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-063-0 01 1 9002-
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-062-0 01 1 9002-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-057-0 01 1 9002-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-060-0 01 1 9002-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-061-0 01 1 9002-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-013-0 01 1 9002-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-059-0 01 1 9002-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-058-0 04 1 9002-
12 BOOT; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-056-0 01 1 9002-
13 VALVE; RELIEF,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-055-0 01 1 9002-
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-053-0 01 1 9002-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-052-0 01 1 9002-
16 CAP
AUTO CAB TILT<WV2> 		1-53458-049-0 01 1 9002-
17 GASKET; RESERVOIR
AUTO CAB TILT<WV2> 		1-53458-054-0 01 1 9002-
18 GASKET; RESERVOIR BOLT
AUTO CAB TILT<WV2> 		1-53458-051-0 01 1 9002-
19 GASKET; CAP
AUTO CAB TILT<WV2> 		1-53458-050-0 01 1 9002-
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-048-0 02 1 9002-
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> M14 		1-53458-047-0 02 1 9002-
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-046-0 01 1 9002-9010
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-233-0 01 1 9011-9512
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-731-0 01 1 9601-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53458-018-0 01 1 9002-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-045-0 01 1 9002-
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 9002-
25 GASKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-039-0 01 1 9002-
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 02 1 9002-
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-037-0 01 1 9002-
28 PIPE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-036-0 01 1 9002-
29 BALL; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-035-0 03 1 9002-
30 PLUG; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-033-0 02 1 9002-
31 SPRING; DELIVERY
AUTO CAB TILT<WV2> 		1-53458-032-0 01 1 9002-
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-031-0 01 1 9002-
33 RING; BACK UP
AUTO CAB TILT<WV2> (A) 		1-53458-014-0 01 1 9002-
33 RING; BACK UP
AUTO CAB TILT<WV2> (B) 		1-53458-028-0 01 1 9002-
34 HOLDER; LEVER
AUTO CAB TILT<WV2> 		1-53458-027-0 01 1 9002-
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (A) 		1-53458-023-0 02 1 9002-
35 STOPPER; LEVER
AUTO CAB TILT<WV2> (B) 		1-53458-026-0 01 1 9002-
36 BOLT; STOPPER
AUTO CAB TILT<WV2> 		1-53458-025-0 01 1 9002-
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X8 M5X8 		1-53458-005-0 01 1 9002-
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X14 		1-53458-011-0 01 1 9002-9312
37 SCREW; STOPPER
AUTO CAB TILT<WV2> M5X20 		1-53458-523-0 01 1 9401-
38 COLLAR; STOPPER
AUTO CAB TILT<WV2> 		1-53458-022-0 01 1 9002-9312
38 COLLAR; STOPPER
AUTO CAB TILT<WV2> 		1-53458-524-0 02 1 9401-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-021-0 01 1 9002-
40 BALL; OIL PUMP LEVER
AUTO CAB TILT<WV2> 		1-53458-020-0 01 1 9002-
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 9002-
42 GASKET; NIPPLE
AUTO CAB TILT<WV2> 		1-53458-016-0 02 1 9002-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (A) 		1-53458-008-0 01 1 9002-
43 BOLT; LEVER
AUTO CAB TILT<WV2> (B) 		1-53458-012-0 03 1 9002-
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 9002-
45 BOLT; COVER
AUTO CAB TILT<WV2> 		1-53458-006-0 03 1 9002-
46 BOLT; LEVER HOLDER
AUTO CAB TILT<WV2> M6X8 		1-53458-004-0 02 1 9002-
47 NUT; LEVER
AUTO CAB TILT<WV2> 		1-53458-003-0 01 1 9002-
48 WASHER; STOPPER
AUTO CAB TILT<WV2> 		1-53458-002-0 01 1 9002-
60 BEARING; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-043-0 01 1 9307-

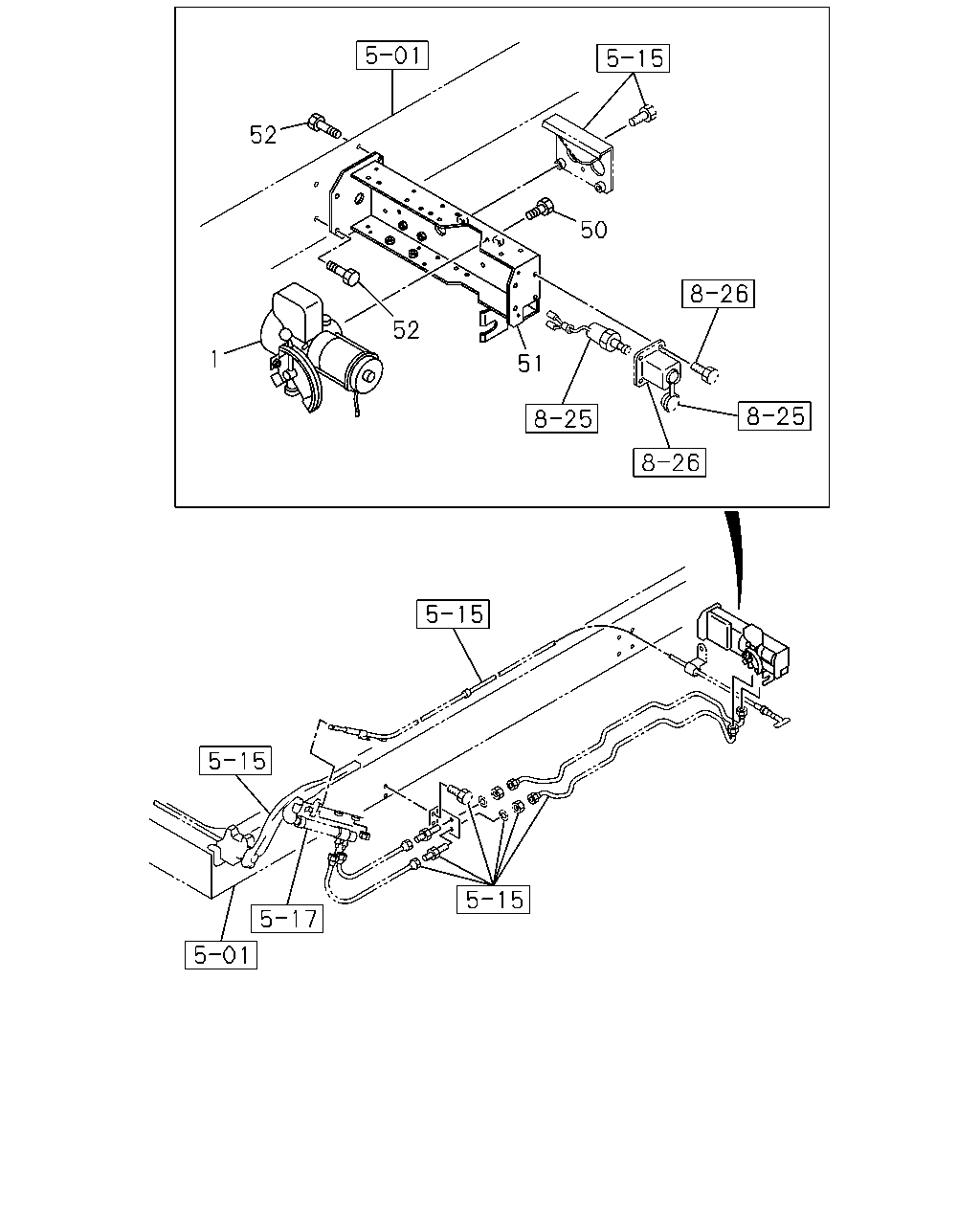

çizim 93946
52 50 52 1 51
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		1-53459-901-4 01 1 9002-
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		9-01911-020-0 03 1 9002-9002
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 W/LK WASHER 		0-50041-020-0 03 1 9003-9307
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X20 FLANGE 		0-28081-020-0 03 1 9308-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53459-868-9 01 1 9002-9204
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-372-1 01 1 9205-9306
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-475-1 01 1 9307-
52 BOLT; BRKT
AUTO CAB TILT<WV2> M10X35 W/LK WASHER 		0-50041-035-0 04 1 9002-9204
52 BOLT; BRKT
AUTO CAB TILT<WV2> M12X40 W/LK WASHER 		0-50041-240-0 04 1 9205-9307
52 BOLT; BRKT
AUTO CAB TILT<WV2> M12X40 FLANGE 		0-28081-240-0 04 1 9308-
