Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

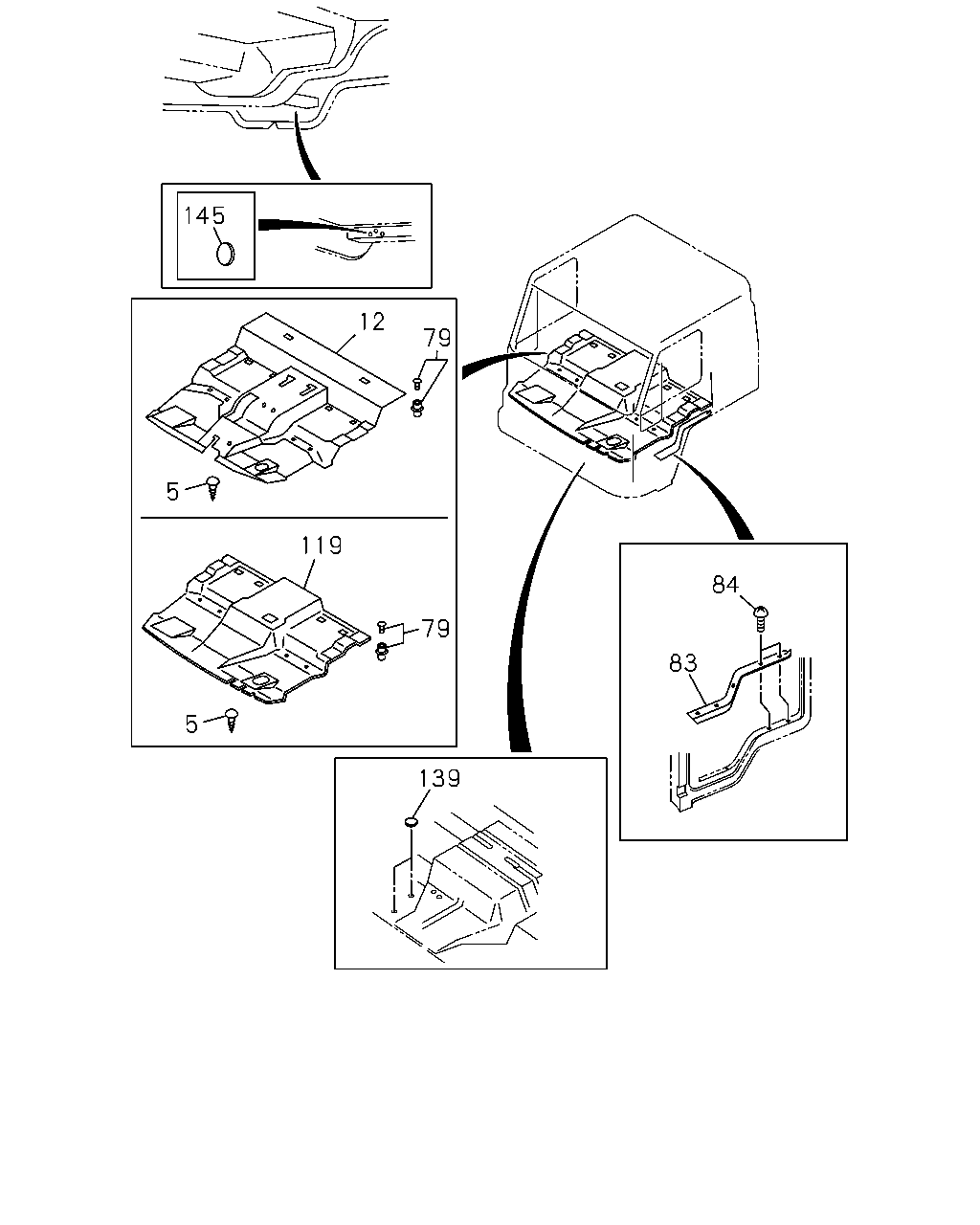

6-75 — MAT AND CARPET
(#251) — 16 parça
145
12
79
5
119
84
79
83
5
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; TRIM,HEAT INSULATOR
8-94279-048-0
04
1
9404-
12
CARPET; FLOOR,RR
PASSENGER SEAT MULTI USED<WX9> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-73238-718-3
01
1
9212-
12
CARPET; FLOOR,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PASSENGER SEAT MULTI USED<WX9>
1-73238-719-3
01
1
9212-
12
CARPET; FLOOR,RR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. PASSENGER SEAT MULTI USED<WX9>
1-73238-717-3
01
1
9212-
12
CARPET; FLOOR,RR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), PASSENGER SEAT MULTI USED<WX9>
1-73238-716-3
01
1
9212-
79
HOOK; MALE
NYLON 6
8-94291-778-0
08
1
9212-
83
PLATE; KICKING,FLOOR MAT
1-76797-019-3
01
1
9212-
83
PLATE; KICKING,FLOOR MAT
1-76797-018-3
01
1
9212-
84
SCREW; PLATE TO FLOOR
M6X24 W/PL WASHER
1-09981-504-0
04
1
9212-
84
SCREW; PLATE TO FLOOR
M6X16 W/PL WASHER
1-09981-505-0
06
1
9212-
119
MAT; FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) VENTILATOR & DEFROSTER WO/HEATER(SAZ)
1-73238-810-1
01
1
9212-
119
MAT; FLOOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. VENTILATOR & DEFROSTER WO/HEATER(SAZ)
1-73238-693-1
01
1
9212-
119
MAT; FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), VENTILATOR & DEFROSTER WO/HEATER(SAZ)
1-73238-692-1
01
1
9212-
119
MAT; FLOOR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-73238-795-1
01
1
9212-
139
SEAL; FLOOR
1-76778-007-0
01
1
9212-
145
SEAL; FLOOR PANEL
OD=25 BLACK
1-76798-019-0
01
1
9212-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
