7-10 — CAUTION PLATE AND LABEL (#25099) — 13 parça

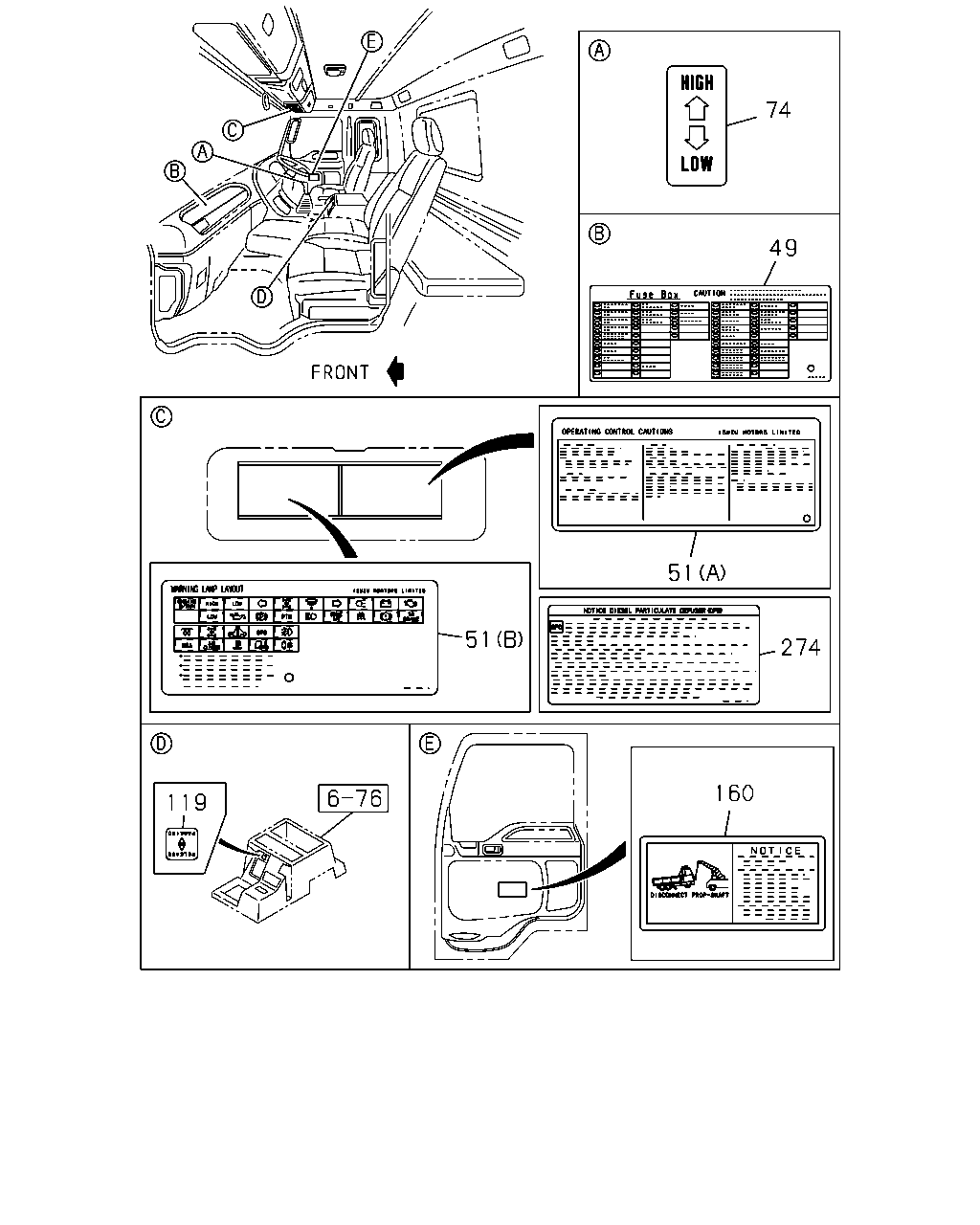

çizim 90137

74 49 51 51 274 160 119

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	49	PLATE; CAUTION,FUSE BOX	1-85878-551-1	01	1	0609-	●	●
	51	PLATE; CAUTION,WARNING (B)	1-85878-552-0	01	1	0609-	●	●
	51	PLATE; CAUTION,WARNING (A)	1-85880-707-1	01	1	0609-	●	●
	74	PLATE; CAUTION,CHANGE LEV ZF9S1110 M/T(Y5E)	1-85881-736-1	01	1	0609-0805	●
	74	PLATE; CAUTION,CHANGE LEV ZF9S1110 M/T(Y5E)	8-98118-493-0	01	1	0806-	●
	119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	0609-	●	●
	160	PLATE; CAUTION,TOWING ZF9S1110 M/T(Y5E)	1-85888-737-1	01	1	0609-	●
	274	PLATE; CAUTION,DPD	8-97616-473-0	01	1	0609-	●	●

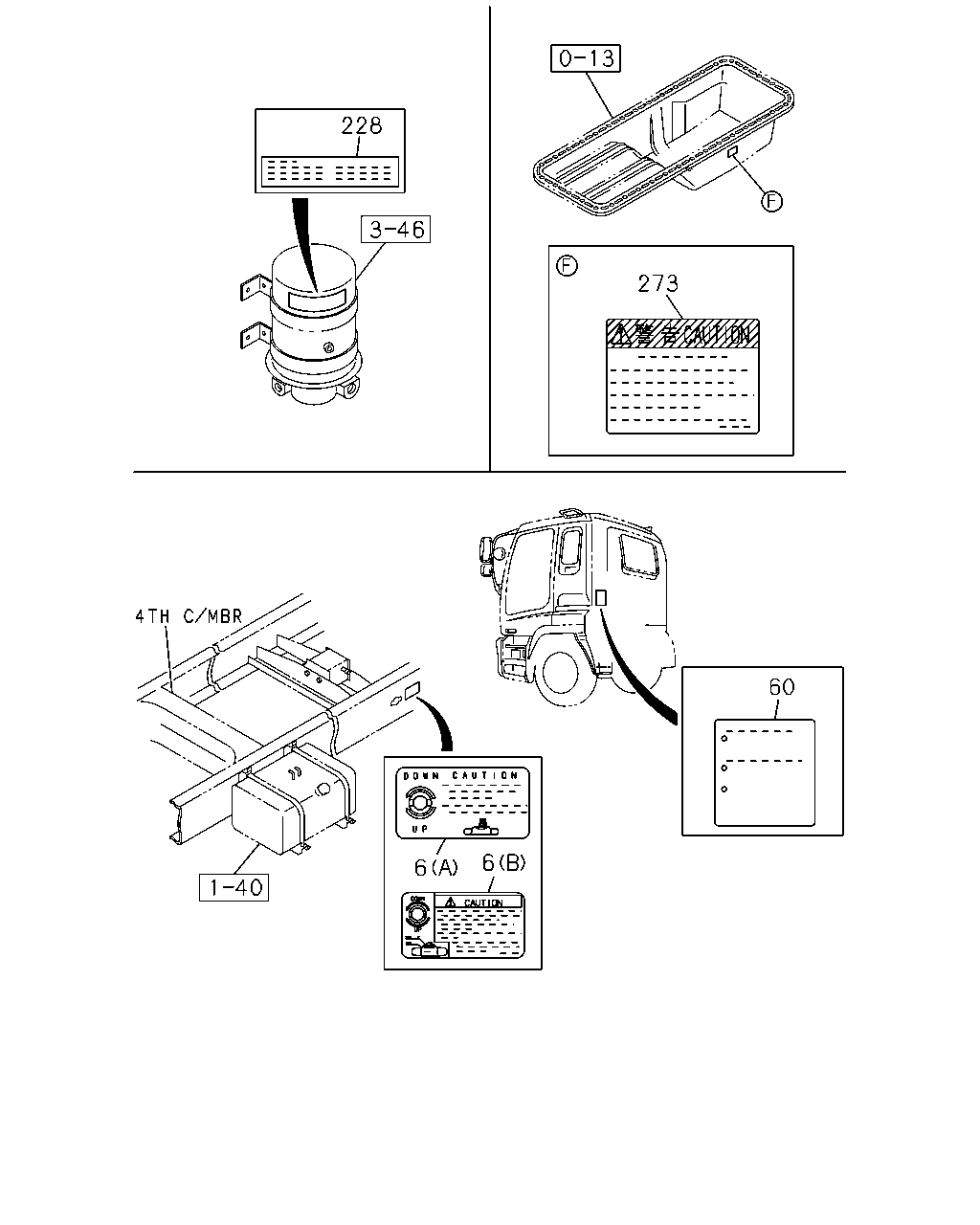

çizim 105351

228 273 6 6 60

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> (A)	1-53639-004-0	01	1	0609-0708	●	●
	6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> (B)	8-98082-437-0	01	1	0709-	●	●
	60	PLATE; CAUTION,CAB TILT	1-85883-169-0	01	1	0609-	●	●
	228	PLATE; CAUTION,AIR DRYER	1-85887-935-0	01	1	0609-1001	●	●
	273	LABEL; CAUTION,OIL	8-98070-064-0	01	1	0701-0904	●	●
