◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#25090) — 30 parça

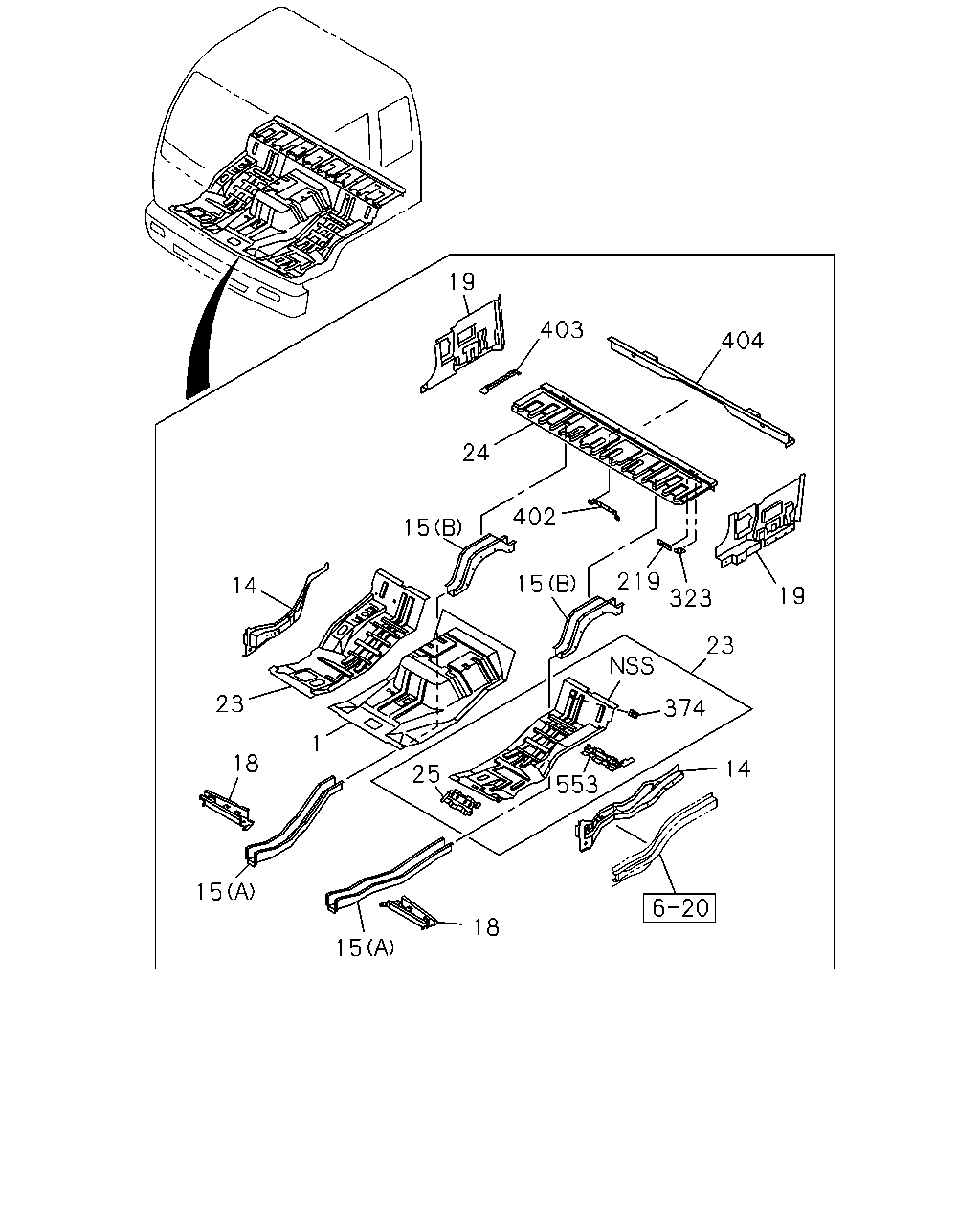

çizim 90144
19 403 404 24 15 402 219 323 19 15 23 374 14 553 25 14 1 23 18 15 15 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-62183-818-0 01 1 0609- ●
1 PANEL; FLOOR
ZF9S1110 M/T(Y5E) 		1-62183-864-0 01 1 0609- ●
1 PANEL; FLOOR 1-62183-846-0 01 1 0609- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0609- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0609- ● ●
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0609- ● ●
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0609- ● ●
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0609- ● ●
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0609- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-976-9 01 1 0609- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-977-9 01 1 0609- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0609- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0609- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0609- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0609- ● ●
23 PANEL; FLOOR,SIDE 1-62183-252-5 01 1 0609- ●
23 PANEL; FLOOR,SIDE 1-62183-255-5 01 1 0609- ●
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0609- ●
23 PANEL; FLOOR,SIDE 1-62183-270-4 01 1 0609- ●
24 PANEL; BED PAN 1-62182-958-9 01 1 0609- ●
24 PANEL; BED PAN 1-62182-940-9 01 1 0609- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0609- ● ●
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0609- ● ●
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0609- ● ●
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0609- ● ●
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0609- ● ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 0609- ●
404 RAIL ASM; MTG,RR 1-62483-127-1 01 1 0609- ●
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0609- ●
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
