◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#2509) — 173 parça

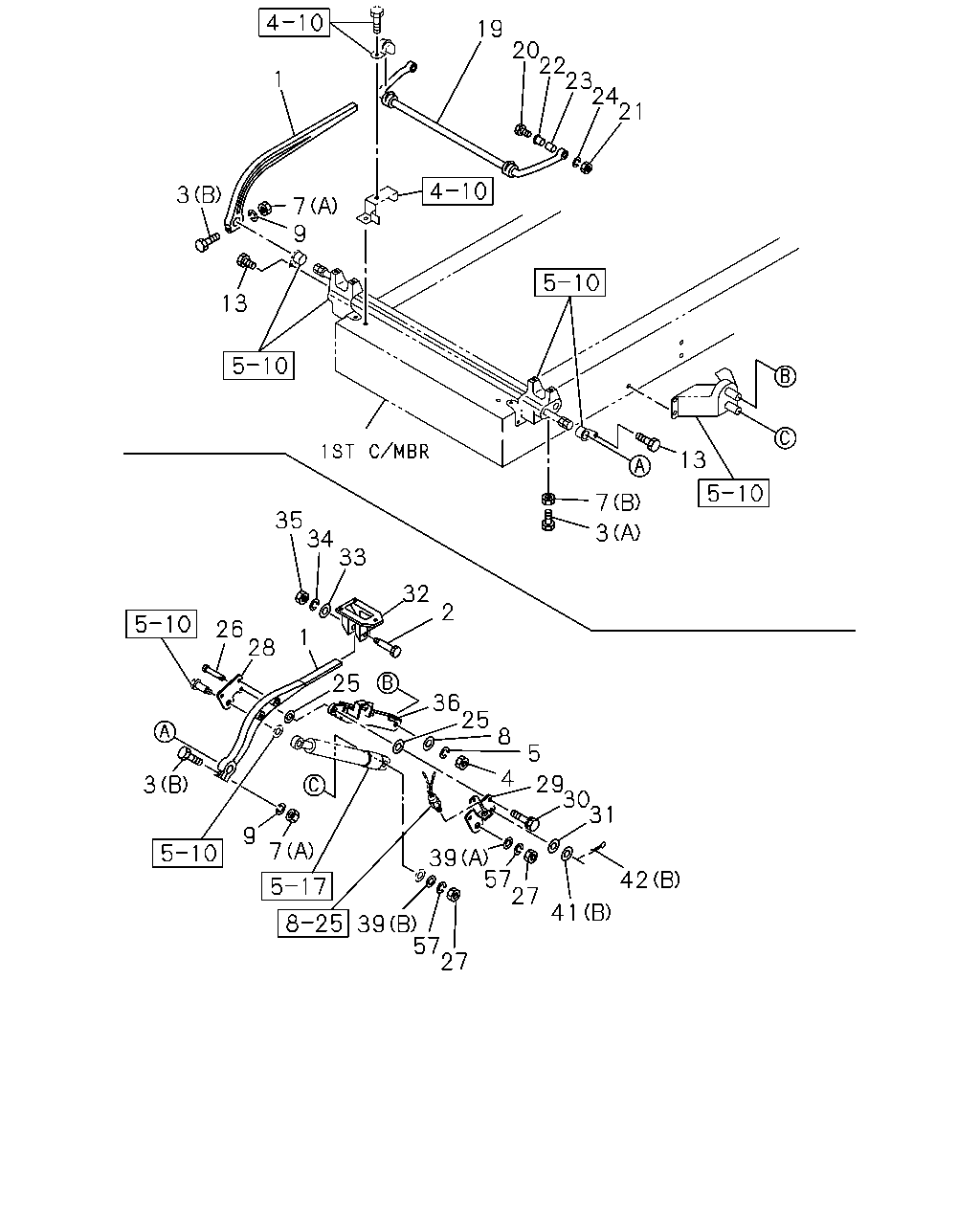

çizim 27547
19 20 22 23 24 21 1 3 7 9 13 13 7 35 34 33 3 32 2 26 28 1 25 36 25 8 5 4 29 30 31 3 9 7 39 57 27 42 41 39 57 27
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER; TORSION BAR 1-53459-341-4 01 1 9002-
1 LEVER; TORSION BAR 1-53459-342-4 01 1 9002-
2 PIN; HANGER
AUTO CAB TILT<WV2> 		1-53459-452-0 02 1 9002-
3 BOLT; LEVER
(A) M10X30 		1-09000-283-0 02 1 9002-
3 BOLT; LEVER
(B) M12X65 		9-91061-265-0 02 1 9002-
4 NUT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002-
5 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 02 1 9002-
7 NUT; LK,LEVER
(B) M10 		9-09110-510-0 02 1 9002-
7 NUT; LK,LEVER
(A) M12 		9-99110-512-0 02 1 9002-
8 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 02 1 9002-
9 WASHER; LK
ID=12.2 		9-09150-612-0 02 1 9002-
13 BOLT; BUSHING,TORSION BAR
M6X16 		9-01970-616-0 02 1 9002-9005
13 BOLT; BUSHING,TORSION BAR
M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9006-
19 BAR; STAB,CAB SUSP 1-53459-788-1 01 1 9002-
20 BOLT 1-09000-353-0 02 1 9002-
21 NUT
M10 		9-09111-410-0 02 1 9002-
22 BUSHING; STABILIZER 1-53459-786-1 01 1 9002-
23 TUBE; DIST 1-53459-787-3 02 1 9002-
24 WASHER; LK
ID=10.2 		9-09150-510-0 02 1 9002-
25 WASHER; PL,STAY
AUTO CAB TILT<WV2> ID=15 OD=30 		9-09160-614-0 02 1 9002-
26 PIN; STAY
AUTO CAB TILT<WV2> 		9-08234-452-0 01 1 9002-
27 NUT; OIL CYL
AUTO CAB TILT<WV2> M14 		9-99110-514-0 02 1 9002-
28 BRACKET; OIL CYL,UPR,INNER
AUTO CAB TILT<WV2> 		1-53459-362-3 01 1 9002-
29 BRACKET; OIL CYL,UPR,OUTER
AUTO CAB TILT<WV2> 		1-53459-361-2 01 1 9002-
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 		9-01911-245-0 02 1 9002-9005
30 BOLT; BRKT FIX
AUTO CAB TILT<WV2> M12X45 W/LK WASHER 		0-50041-245-0 02 1 9006-
31 WASHER; WAVE
AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 01 1 9002-
32 HANGER; POWER CAB TILT
AUTO CAB TILT<WV2> 		1-53459-451-4 02 1 9002-
33 WASHER; PL
AUTO CAB TILT<WV2> ID=10.5 OD=26 		9-09160-710-0 01 1 9002-
34 WASHER; LK
AUTO CAB TILT<WV2> ID=10.2 		9-09150-510-0 01 1 9002-
35 NUT; BRKT
AUTO CAB TILT<WV2> M10 		9-09110-510-0 01 1 9002-
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002-
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> (A) ID=15 		9-09160-514-0 01 1 9002-
39 WASHER; PL,BRKT
AUTO CAB TILT<WV2> (B) ID=15 OD=30 		9-09160-614-0 01 1 9002-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 02 1 9002-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (B) OD=2.8 L=18 		9-08113-018-0 01 1 9002-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (A) OD=3.7 L=25 		9-08114-025-0 02 1 9002-
57 WASHER; LK,BRKT
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002-

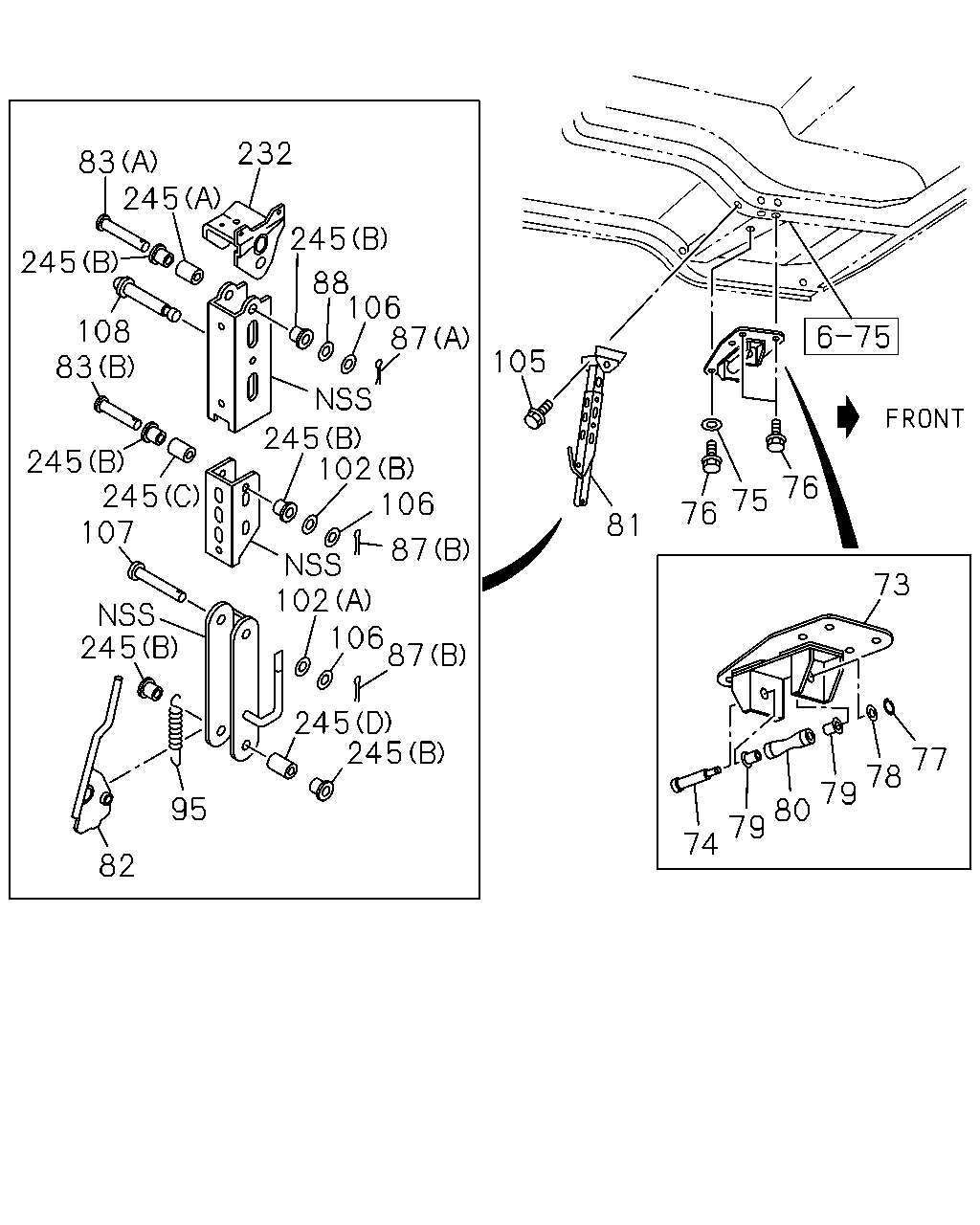

çizim 28018
232 83 245 245 245 88 106 87 108 83 105 245 102 106 245 245 107 76 75 76 102 106 87 81 87 73 245 245 245 77 78 79 80 79 74 95 82
BalonParca AdiParca NoAdetTipApplied Date
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-355-4 02 1 9002-9002
73 PAD; TORSION BAR
AUTO CAB TILT<WV2> 		1-53459-859-0 02 1 9003-
73 PAD; TORSION BAR
EXC. AUTO CAB TILT<WV2> 		1-53459-645-0 02 1 9003-
74 PIN; ROLLER
14X65 		1-53459-345-0 02 1 9002-
75 WASHER; PL,PAD 1-09985-111-0 02 1 9002-
76 BOLT; PAD
M10X25 		9-01971-025-0 06 1 9002-9002
76 BOLT; PAD
M10X25 W/LK&PL WASHER 		0-50141-025-0 06 1 9003-
77 RING; SNAP 1-09588-032-0 02 1 9002-
78 WASHER; PL
ID=15 OD=26 		9-09164-514-0 02 1 9002-
79 BUSHING; ROLLER 5-33659-053-0 04 1 9002-
80 ROLLER 1-53459-357-2 02 1 9002-
81 STAY ASM; CAB TILT
EXC. AUTO CAB TILT<WV2> 		1-65570-214-1 01 1 9002-
82 LEVER; CAB STAY LK
EXC. AUTO CAB TILT<WV2> 		1-62500-416-0 01 1 9002-
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) OD=14 L=62 		9-08234-462-0 01 1 9002-
83 PIN; JOINT,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) OD=14 L=66 		9-08234-466-0 01 1 9002-
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (B) L=30 L=30 		1-09987-080-0 02 1 9002-
87 PIN; SPLIT,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> (A) OD=2.8 L=18 		9-08113-018-0 01 1 9002-
88 WASHER; PL,CAB STAY PIN
EXC. AUTO CAB TILT<WV2> ID=15 		9-09160-514-0 01 1 9002-
95 SPRING; RETURN,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-09585-064-1 01 1 9002-
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-
102 WASHER; PL,CAB STAY
EXC. AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 01 1 9002-
105 BOLT; CAB STAY
M10X25 W/LK&PL WASHER 		1-09980-488-0 03 1 9002-
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=11.3 		5-09550-001-0 01 1 9002-
106 WASHER; WAVE,CAB STAY
EXC. AUTO CAB TILT<WV2> ID=15 OD=25 		8-11053-111-0 02 1 9002-
107 PIN; LK LEVER
EXC. AUTO CAB TILT<WV2> 		9-08234-033-0 01 1 9002-
108 PIN; ADJ,CAB STAY
EXC. AUTO CAB TILT<WV2> 		1-62500-518-0 01 1 9002-
232 BRACKET; SUPPORT,CAB TILT STAY 1-65570-215-1 01 1 9002-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (A) L=41.0 		1-53459-626-0 01 1 9002-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (C) L=31.5 		1-53459-627-0 01 1 9002-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (D) L=27.5 		1-53459-628-0 01 1 9002-
245 BUSHING; CAB STAY
EXC. AUTO CAB TILT<WV2> (B) L=12.0 		1-53459-971-0 06 1 9002-

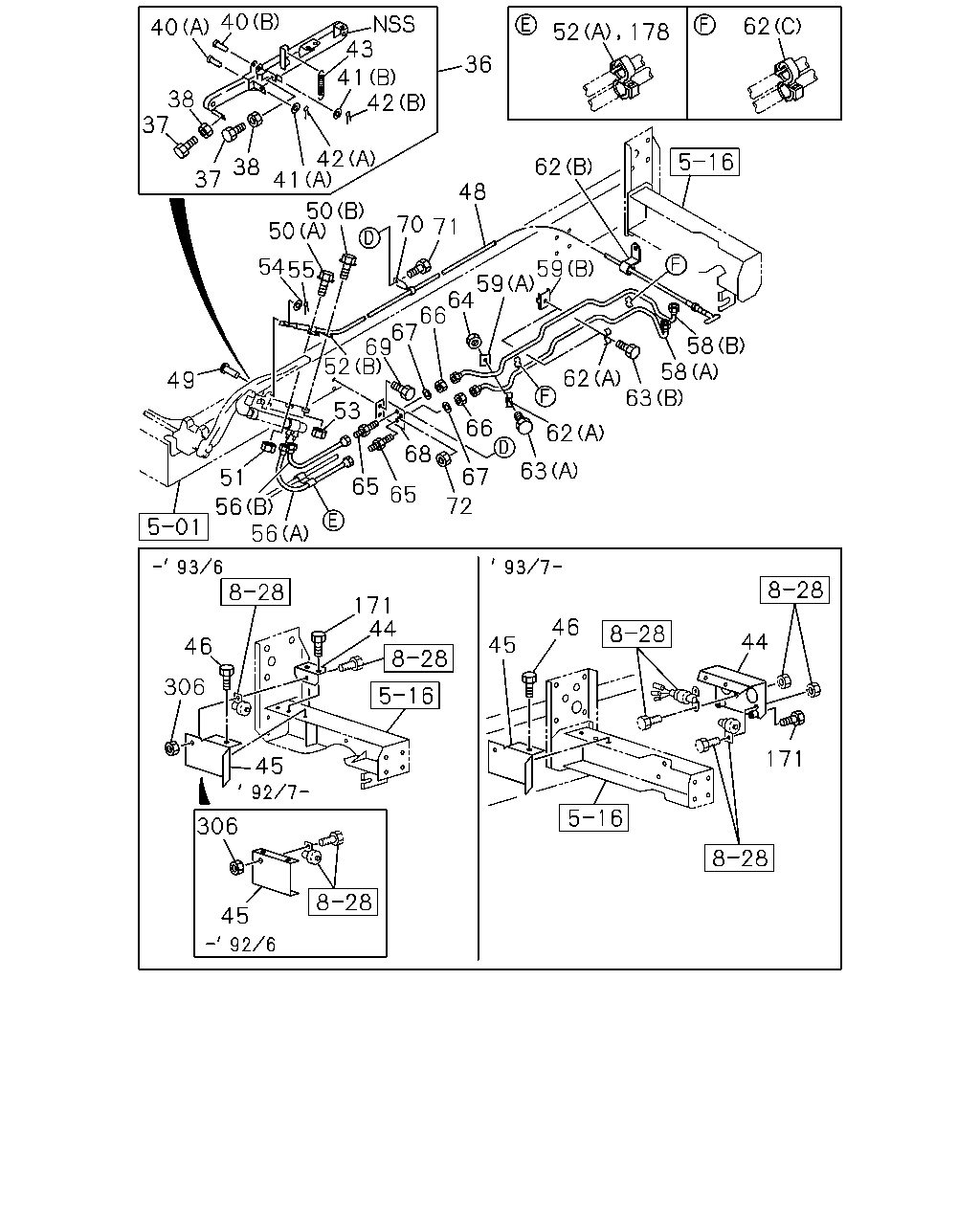

çizim 29262
40 43 62 40 52 178 36 41 42 38 37 42 41 62 38 37 48 50 50 70 71 59 54 55 59 64 66 67 69 52 53 58 58 63 62 49 66 68 62 51 63 67 65 65 56 56 72 171 44 46 44 45 46 306 45 171 306 45
BalonParca AdiParca NoAdetTipApplied Date
36 STAY; OIL TILT
AUTO CAB TILT<WV2> 		1-62500-429-2 01 1 9002-
37 BOLT; STOP SW ADJ
AUTO CAB TILT<WV2> 		1-09000-330-0 02 1 9002-
38 NUT; LK
AUTO CAB TILT<WV2> M8 		9-09110-408-0 02 1 9002-
40 PIN; LK
AUTO CAB TILT<WV2> (B) OD=14 L=52 		1-09744-062-0 01 1 9002-
40 PIN; LK
AUTO CAB TILT<WV2> (A) OD=10 L=42 		9-08234-042-0 01 1 9002-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (A) ID=10.5 OD=18 		9-09160-510-0 01 1 9002-
41 WASHER; PL,STAY
AUTO CAB TILT<WV2> (B) ID=15 		9-09160-514-0 02 1 9002-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (B) OD=2.8 L=18 		9-08113-018-0 01 1 9002-
42 PIN; SPLIT,STAY
AUTO CAB TILT<WV2> (A) OD=3.7 L=25 		9-08114-025-0 02 1 9002-
43 SPRING; RETURN,LEVER
AUTO CAB TILT<WV2> 		9-09942-604-0 01 1 9002-
44 BRACKET; BUZZER,POWER TILT
10PD1 STD ENG(40L) AUTO CAB TILT<WV2> 		1-53459-902-0 01 1 9205-9206
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53459-902-0 01 1 9207-9306
44 BRACKET; BUZZER,POWER TILT
AUTO CAB TILT<WV2> 		1-53458-232-1 01 1 9307-
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53459-869-1 01 1 9002-9206
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> 		1-53458-445-0 01 1 9207-9501
45 PROTECTOR; HEAT
AUTO CAB TILT<WV2> L TYPE ENG<90L> 		1-53458-445-0 01 1 9502-
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		9-01900-820-0 04 1 9002-9204
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205-9206
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8X20 FLANGE 		0-28080-820-0 02 1 9207-9501
46 BOLT; HEAT PROTECTOR
AUTO CAB TILT<WV2> L TYPE ENG<90L> M8X20 FLANGE 		0-28080-820-0 02 1 9502-
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> L=2250 		1-53459-447-2 01 1 9002-9002
48 CABLE ASM; CONT
AUTO CAB TILT<WV2> L=2250 		1-53459-720-2 01 1 9002-
49 PIN; JAW FIX
AUTO CAB TILT<WV2> 		9-08233-828-0 01 1 9002-
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (B) M8X20 W/LK WASHER 		9-01910-820-0 01 1 9002-9005
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (B) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9302
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (B) M8X20 FLANGE 		0-28080-820-0 01 1 9303-
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (A) M10X20 W/LK WASHER 		9-01911-020-0 02 1 9002-9002
50 BOLT; CONT CABLE
AUTO CAB TILT<WV2> (A) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9003-
51 NUT; CONT CABLE
AUTO CAB TILT<WV2> M10 		9-09110-510-0 02 1 9002-
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (A) ID=6-10 & 10-14 		1-09709-201-1 01 1 9002-
52 CLIP; CONT CABLE
AUTO CAB TILT<WV2> (B) ID=11 L=28 		9-09525-055-0 01 1 9002-
53 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002-
54 WASHER; PL
AUTO CAB TILT<WV2> ID=8.4 		9-09160-508-0 01 1 9002-
55 PIN; SPLIT
AUTO CAB TILT<WV2> OD=1.8 L=15 		9-08112-015-0 01 1 9002-
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (A) UP L=650 		1-09364-432-3 01 1 9002-
56 HOSE; FLEX,OIL PIPE
AUTO CAB TILT<WV2> (B) DOWN L=600 		1-09364-437-2 01 1 9002-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1566 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (A) L=1566 SERVICED BY L=1700 		1-47426-391-0 01 1 9307-
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1571 SERVICED BY L=1700 		1-47437-412-0 01 1 9002-9306
58 PIPE; OIL,POWER UNIT
AUTO CAB TILT<WV2> (B) L=1571 SERVICED BY L=1700 		1-47426-391-0 01 1 9307-
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (A) L=50 		1-47475-299-2 01 1 9002-
59 BRACKET; CLIP
AUTO CAB TILT<WV2> (B) 		1-47475-427-1 02 1 9002-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (A) ID=9 & 9 L=17 & 17 		1-09700-651-0 03 1 9002-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=8 & 10 		8-94252-372-0 04 1 9002-9006
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=6-10 & 6-10 		1-09709-192-0 04 1 9007-9102
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (C) ID=6-10 & 6-10 		1-09709-192-1 01 1 9103-
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) ID=11 L=40 		9-09525-075-0 01 1 9002-9002
62 CLIP; OIL PIPE
AUTO CAB TILT<WV2> (B) ID=10 		1-09700-868-0 02 1 9002-
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X16 W/LK WASHER 		9-01900-816-0 01 1 9002-9204
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205-9302
63 BOLT; CLIP
AUTO CAB TILT<WV2> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9303-9306
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X45 W/LK WASHER 		9-01900-845-0 02 1 9002-9204
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9205-9302
63 BOLT; CLIP
AUTO CAB TILT<WV2> (B) M8X50 FLANGE 		0-28080-850-0 03 1 9303-
64 NUT; CLIP
AUTO CAB TILT<WV2> M8 		9-09110-408-0 01 1 9002-
65 UNION; OIL PIPE
AUTO CAB TILT<WV2> M14 		9-09223-308-1 02 1 9002-
66 NUT; UNION,OIL PIPE
AUTO CAB TILT<WV2> M14 		9-99111-414-0 02 1 9002-
67 WASHER; LK,UNION,OIL PIPE
AUTO CAB TILT<WV2> ID=14.2 		9-09150-514-0 02 1 9002-
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47475-314-1 01 1 9002-9210
68 BRACKET; UNION
AUTO CAB TILT<WV2> 		1-47476-765-1 01 1 9211-
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		9-01911-030-0 02 1 9002-9002
69 BOLT; BRKT
AUTO CAB TILT<WV2> M10X30 W/LK WASHER 		0-50041-030-0 02 1 9003-
70 CLIP; UNION BRKT
AUTO CAB TILT<WV2> 		1-09700-098-0 01 1 9002-
71 BOLT
AUTO CAB TILT<WV2> M6X20 		9-01910-620-0 01 1 9002-9005
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK WASHER 		0-50040-620-0 01 1 9006-9210
71 BOLT
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		0-50140-620-0 01 1 9211-
72 NUT
AUTO CAB TILT<WV2> M6 		9-09110-406-0 01 1 9002-
171 BOLT; BRKT
10PD1 STD ENG(40L) AUTO CAB TILT<WV2> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9206
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9207-9302
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306
171 BOLT; BRKT
AUTO CAB TILT<WV2> M8X30 FLANGE 		0-28080-830-0 02 1 9307-
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=6-10 & 10-14 		1-09709-201-1 01 1 9002-9409
178 CLIP; FLEX HOSE
AUTO CAB TILT<WV2> ID=12-16 & 12-16 		1-09709-191-0 01 1 9410-
306 NUT; HEAT PROTECTOR
AUTO CAB TILT<WV2> M8 FLANGE 		5-09440-005-0 01 1 9207-9306

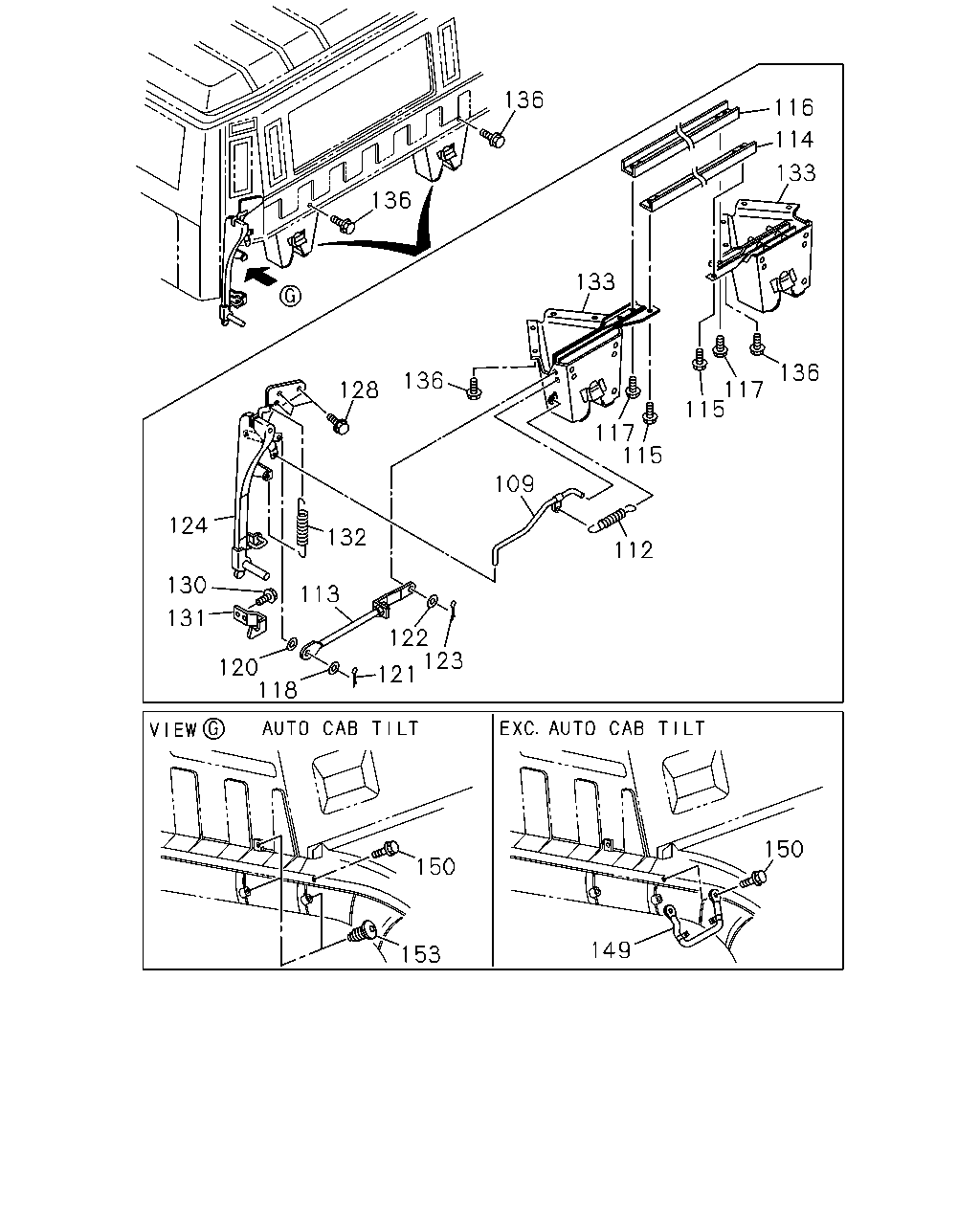

çizim 93952
136 116 114 133 136 133 136 136 117 115 128 117 115 109 124 132 112 130 113 131 122 123 120 118 121 150 150 149 153
BalonParca AdiParca NoAdetTipApplied Date
109 ROD; SAFETY,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-446-3 01 1 9002-
112 SPRING; RETURN,SAFETY ROD
EXC. AUTO CAB TILT<WV2> 		1-79717-417-0 01 1 9002-
113 ROD; CONN,CAB LK 1-79717-499-2 01 1 9002-
114 ARM ASM; CONN,SAFETY
EXC. AUTO CAB TILT<WV2> 		1-79717-469-1 01 1 9002-
115 BOLT; CONN ARM
EXC. AUTO CAB TILT<WV2> M8X20 W/LK&PL WASHER 		1-09980-512-0 03 1 9002-
116 ARM ASM; CONN 1-79717-435-1 01 1 9002-
117 BOLT; CONN ARM
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002-
118 WASHER; PL,CONNROD
ID=10.5 OD=18 		1-09985-173-0 01 1 9002-
120 WASHER; NYLON
ID=10.5 OD=16 		9-09855-178-0 01 1 9002-
121 PIN; SPLIT,CONNROD 1-09987-077-0 01 1 9002-
122 WASHER; PL,CAB LOCK ROD
ID=12.5 OD=22 		8-94279-627-0 01 1 9002-
123 PIN; SPLIT,CAB LOCK ROD 1-09987-078-0 01 1 9002-
124 LEVER ASM; HAND,CAB LK 1-79717-494-6 01 1 9002-9102
124 LEVER ASM; HAND,CAB LK
EXC. AUTO CAB TILT<WV2> 		1-79717-494-9 01 1 9103-
124 LEVER ASM; HAND,CAB LK
AUTO CAB TILT<WV2> 		1-79717-595-2 01 1 9103-
128 BOLT; BRKT
M8X20 W/LK&PL WASHER 		1-09980-512-0 04 1 9002-
130 BOLT; BRKT,SAFETY KEY
M8X20 W/LK&PL WASHER 		1-09980-512-0 02 1 9002-
131 BRACKET; SAFETY KEY 1-79717-501-1 01 1 9002-
132 SPRING; HAND LEVER 1-09985-148-0 01 1 9002-
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-508-6 01 1 9002-
133 LOCK ASM; CAB
AUTO CAB TILT<WV2> 		1-79717-507-6 01 1 9002-
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-506-6 01 1 9002-
133 LOCK ASM; CAB
EXC. AUTO CAB TILT<WV2> 		1-79717-505-6 01 1 9002-
136 BOLT; CAB LK
M8X20 		1-09980-529-0 16 1 9002-
149 HANDLE; TILT
EXC. AUTO CAB TILT<WV2> 		1-71997-490-1 01 1 9002-
150 BOLT; TILT HANDLE
AUTO CAB TILT<WV2> M6X20 W/LK&PL WASHER 		1-09980-495-0 05 1 9002-
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> M6X25 W/LK&PL WASHER 		0-50100-625-0 04 1 9002-9204
150 BOLT; TILT HANDLE
EXC. AUTO CAB TILT<WV2> 		0-50180-625-0 04 1 9205-
153 PLUG; DUMMY,GRIP TILT
AUTO CAB TILT<WV2> D4.7X11 		1-76378-154-0 01 1 9002-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
