Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

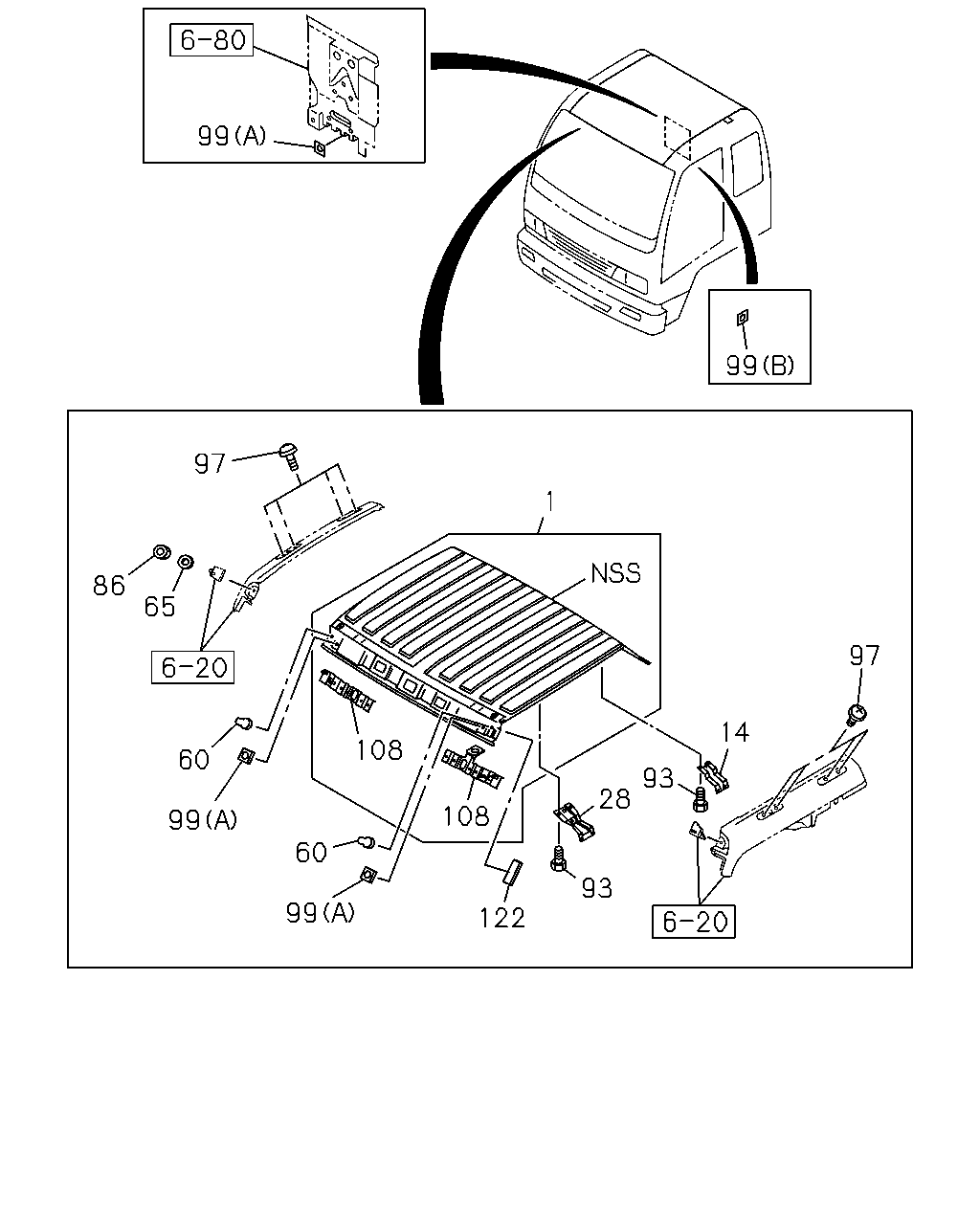

6-60 — ROOF PANEL
(#25088) — 21 parça
Tümü
A - FVR5FF
B - FVR5MF
99
99
97
1
86
65
97
14
108
60
93
28
108
99
60
93
99
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; ROOF
1-61181-174-0
01
1
0609-
●
1
PANEL; ROOF
PRIMER
1-61181-152-0
01
1
0609-
●
14
SUPPORT; ROOF
1-73318-595-3
02
1
0609-
●
●
28
SUPPORT; ROOF FRT
1-73317-301-1
01
1
0609-
●
28
SUPPORT; ROOF FRT
1-73317-302-1
01
1
0609-
●
60
COVER; ROOF
1-79998-922-3
02
1
0609-
●
●
65
WASHER; PL
ID=8 T=2.3
8-94368-403-1
01
1
0609-0701
●
●
65
WASHER; PL
ID=8 T=2.3
8-98073-399-0
01
1
0702-
●
●
86
NUT; ROOF
M8 LOCK NUT
0-91370-008-0
01
1
0609-
●
●
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
20
1
0609-
●
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER
8-94279-200-0
10
1
0609-
●
97
BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER
1-79198-003-2
08
1
0609-
●
●
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
08
1
0609-
●
●
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
17
1
0609-
●
●
99
SEAL; BODY,METAL
(B) 14X14 ID=10 T=0.7
1-61281-427-1
02
1
0609-
●
●
99
SEAL; BODY,METAL
(B) 14X14 ID=10 T=0.7
1-61281-427-1
08
1
0609-
●
●
99
SEAL; BODY,METAL
(A) 30X30 ID=9 T=0.7
1-61281-444-1
02
1
0609-
●
●
108
PATCH; MIRROR
1-61180-956-4
01
1
0609-
●
●
108
PATCH; MIRROR
1-61180-979-4
01
1
0609-
●
●
122
SEAL; FRT UPR
1-61270-919-0
02
1
0609-0809
●
●
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
●
●
