◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#25084) — 37 parça

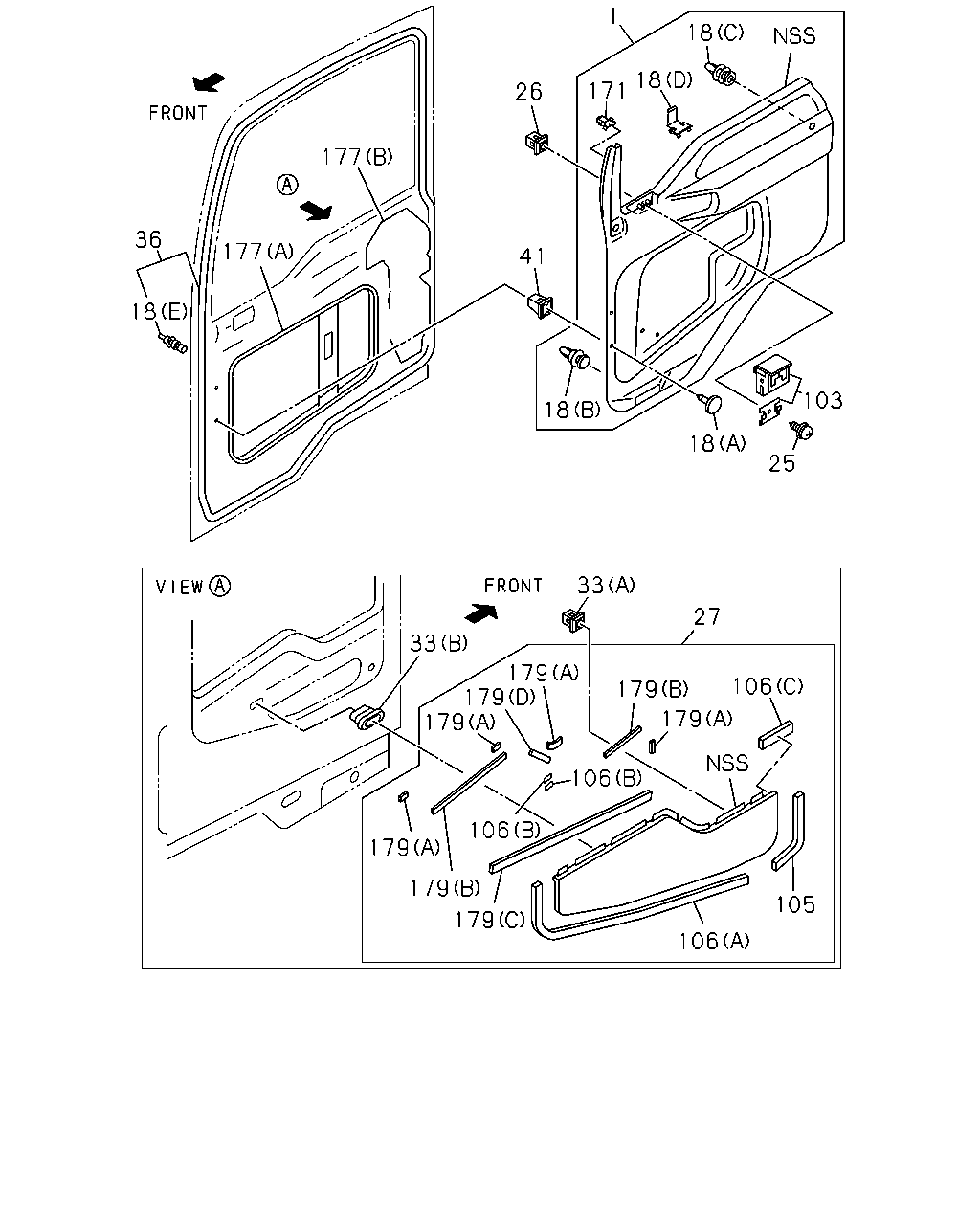

çizim 90283
26 1 18 171 18 41 18 18 103 25 177 177 36 18 33 27 33 179 179 179 179 179 105 106 179 179 179 106 106 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR 1-73337-509-0 01 1 0609-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-513-0 01 1 0703- ● ●
1 PAD; TRIM,FRT DOOR 1-73338-539-0 01 1 0609-0702 ● ●
1 PAD; TRIM,FRT DOOR 1-73337-516-0 01 1 0703- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0609- ● ●
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 0609- ● ●
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0609- ● ●
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0609- ● ●
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0609- ● ●
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0609- ● ●
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0609- ● ●
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0609- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-095-7 01 1 0609-1210 ● ●
27 PANEL; ORNAMENT,DOOR 8-98229-328-0 01 1 1211- ● ●
27 PANEL; ORNAMENT,DOOR 1-76218-099-7 01 1 0609- ● ●
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0609-0802 ● ●
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803- ● ●
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0609- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 0609-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 0609-1010 ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011- ● ●
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0609- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0609- ● ●
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0609- ● ●
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0609- ● ●
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211- ● ●
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0609- ● ●
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 0609- ● ●
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0609- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0609- ● ●
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 0609- ● ●
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 0609- ● ●
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0609- ● ●
179 TAPE; ORNAMENT
(C) L=770 		1-76218-091-2 02 1 0609- ● ●
179 TAPE; ORNAMENT
(D) L=160 		1-76218-094-1 02 1 0609- ● ●
179 TAPE; ORNAMENT
(B) L=235 		1-76218-127-1 04 1 0609- ● ●
