◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#25080) — 61 parça

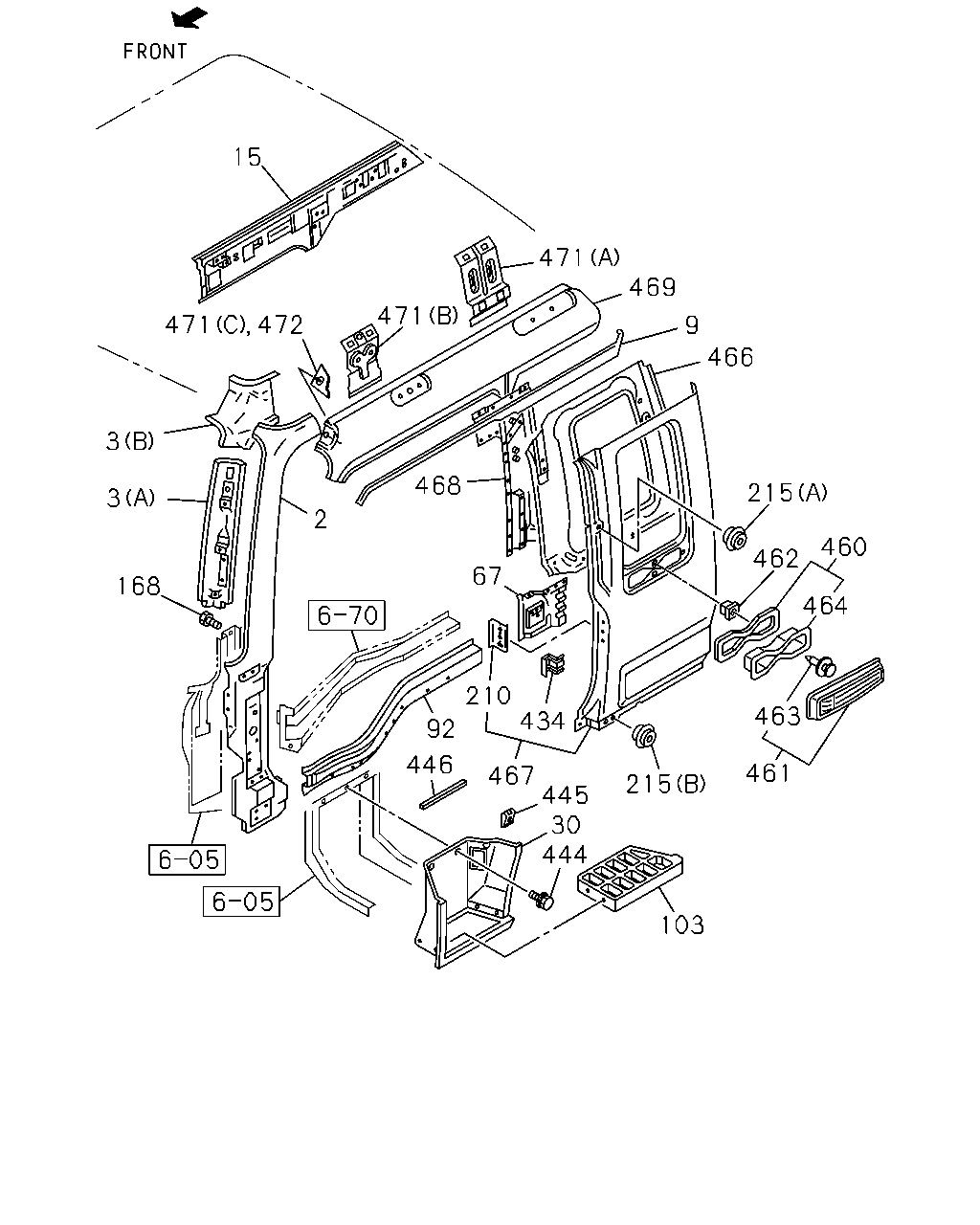

çizim 90160
15 471 472 471 471 469 9 466 215 462 460 464 463 461 215 434 210 67 468 2 3 3 168 92 446 467 445 30 444 103
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61281-155-4 01 1 0609- ● ●
2 PILLAR; FRT 1-61281-156-4 01 1 0609- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-169-5 01 1 0609- ● ●
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-170-5 01 1 0609- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-343-5 01 1 0609- ● ●
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-344-5 01 1 0609- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0609- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0609- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0609- ● ●
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0609- ● ●
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0609- ● ●
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0609- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0609- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0609- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0609- ● ●
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0609- ● ●
103 PLATE; STEP 1-71996-173-0 01 1 0609- ● ●
103 PLATE; STEP 1-71996-174-0 01 1 0609- ● ●
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0609- ● ●
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0609- ● ●
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0609- ● ●
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0609- ● ●
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0609- ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0609-0904 ● ●
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ●
445 NUT; CLOSING 8-94279-723-0 02 1 0609-0609 ●
445 NUT; CLOSING 8-94279-723-0 02 1 0610- ● ●
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0609- ● ●
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0609- ● ●
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0609- ● ●
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0609- ● ●
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0609- ● ●
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0609- ● ●
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0609- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0609- ● ●
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0609- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0609- ● ●
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 0609- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0609- ● ●
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0609- ● ●
469 ROOF; SIDE 1-61281-198-8 01 1 0609- ● ●
469 ROOF; SIDE 1-61281-199-8 01 1 0609- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 0609- ● ●
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 0609- ● ●
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 0609- ● ●
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0609-0812 ● ●
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901- ● ●
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0609- ● ●

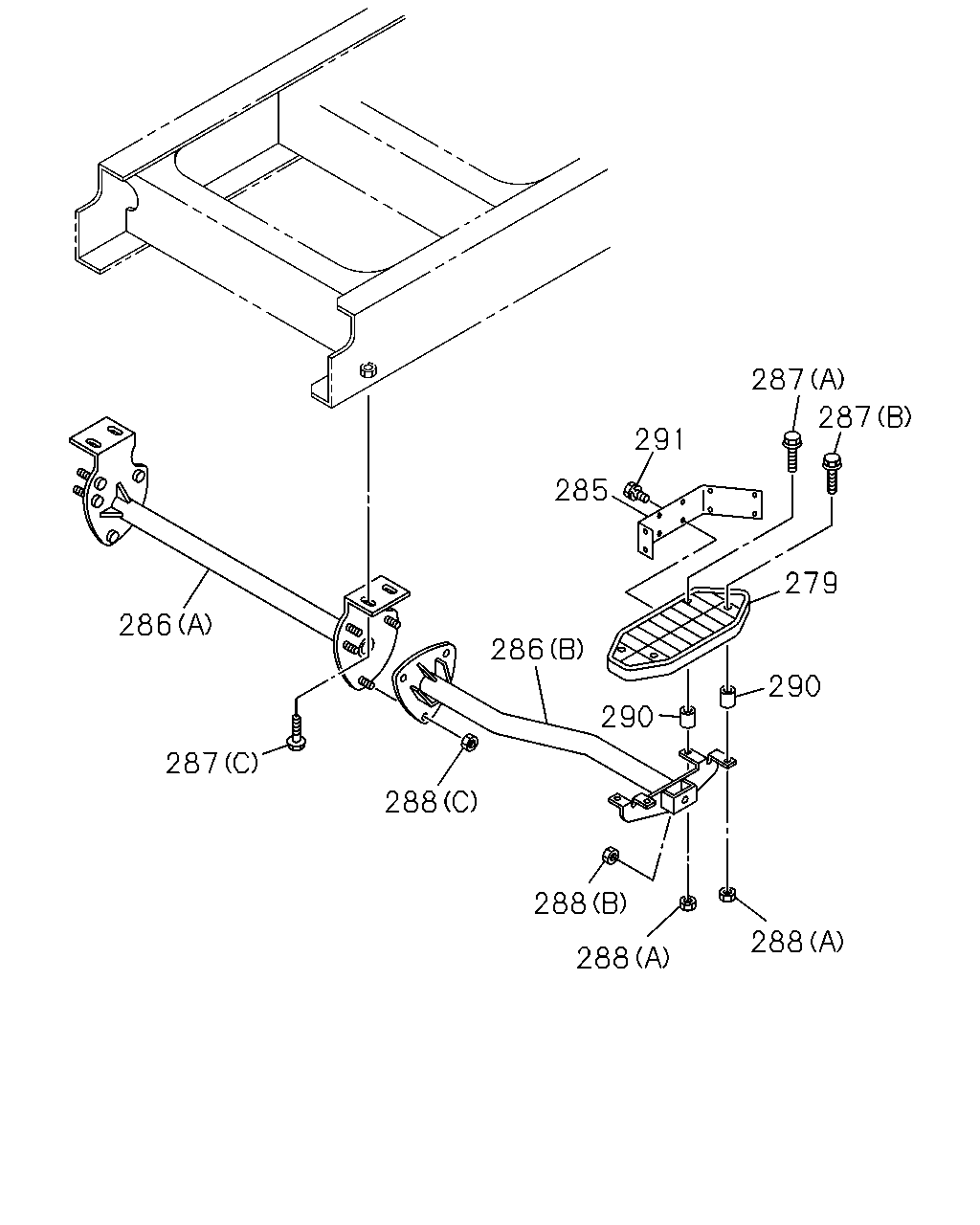

çizim 90243
287 287 291 285 279 286 286 290 290 287 288 288 288 288
BalonParca AdiParca NoAdetTipApplied Date A B
279 BOARD; STEP 1ST 1-53414-035-0 02 1 0609- ● ●
285 PLATE; STEP,1ST STEP 1-53414-066-0 02 1 0609- ● ●
286 STEP ASM; 1ST
(B) 		1-53414-129-2 01 1 0609- ● ●
286 STEP ASM; 1ST
(B) 		1-53414-130-2 01 1 0609- ● ●
286 STEP ASM; 1ST
(A) 		1-53414-254-0 01 1 0609- ● ●
287 BOLT; BOARD STEP
(A) M6X35 FLANGE 		0-28650-635-0 04 1 0609- ● ●
287 BOLT; BOARD STEP
(B) M8X35 FLANGE 		0-28650-835-0 04 1 0609- ● ●
287 BOLT; BOARD STEP
(C) M12X35 FLANGE 		0-28651-235-0 04 1 0609- ●
288 NUT; STEP
(B) M6 FLANGE 		0-91180-106-0 04 1 0609- ● ●
288 NUT; STEP
(A) M8 FLANGE 		0-91180-108-0 04 1 0609- ● ●
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 06 1 0609- ● ●
290 SPACER 1-53414-016-0 08 1 0609- ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28050-616-0 10 1 0609- ● ●
