5-10 — CAB MOUNTING; FRAME SIDE (#2508) — 193 parça

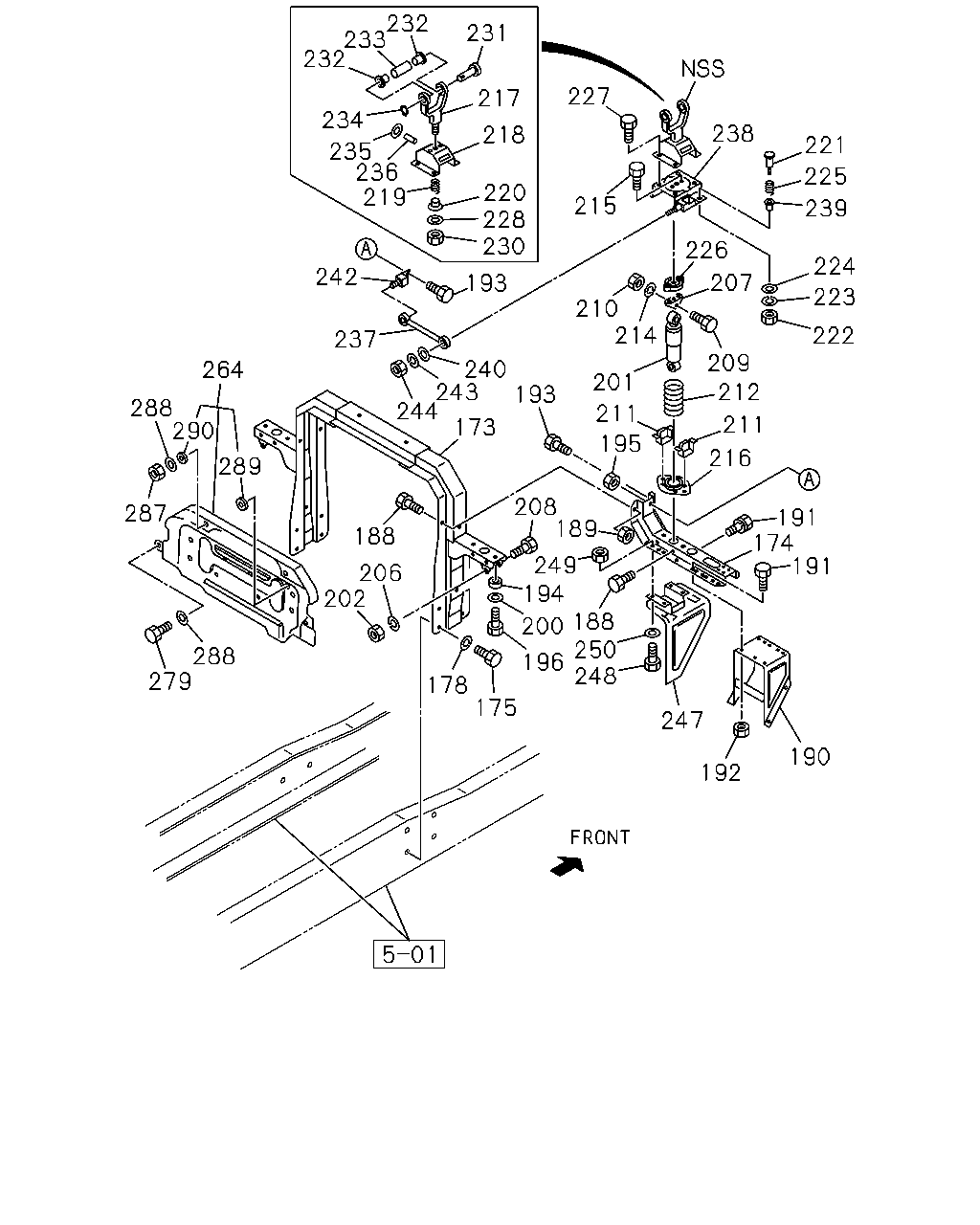

232 233 232 231 227 217 234 238 218 221 235 236 219 225 220 228 230 215 239 226 224 242 207 193 223 210 214 222 237 209 212 240 243 244 264 201 193 288 290 211 211 173 195 216 289 208 189 287 191 174 191 188 249 194 206 202 188 250 248 200 288 279 196 178 175 247 190 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
173	MEMBER; CAB MTG RR	1-53450-485-3	01	1	9002-9410
173	MEMBER; CAB MTG RR EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-485-3	01	1	9411-9501
173	MEMBER; CAB MTG RR	1-53450-485-3	01	1	9502-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>	1-53450-510-4	01	1	9411-9412
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9>	1-53450-507-5	01	1	9501-9501
174	OUTRIGGER	1-53456-153-6	02	1	9002-9210
174	OUTRIGGER	1-53456-242-1	02	1	9211-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9002-
178	WASHER; LK,MEMBER ID=14.2	9-09150-614-0	08	1	9002-
188	BOLT; OUTRIGGER M10X25	9-01911-025-0	08	1	9002-9002
188	BOLT; OUTRIGGER M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005
188	BOLT; OUTRIGGER M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
189	NUT; OUTRIGGER M12	9-99110-512-0	02	1	9002-
190	BRACKET; MUD GUARD	1-79930-477-3	02	1	9002-
191	BOLT; BRKT FIX M8X20 W/LK WASHER	9-01910-820-0	02	1	9002-9005
191	BOLT; BRKT FIX M8X20 W/LK WASHER	0-50040-820-0	02	1	9006-9302
191	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9303-9304
191	BOLT; BRKT FIX M10X25	9-01911-025-0	04	1	9002-9002
191	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
192	NUT; BRKT FIX M10	9-09110-410-0	04	1	9002-9009
192	NUT; BRKT FIX M10	9-09110-410-0	01	1	9010-9304
192	NUT; BRKT FIX M10	9-09110-510-0	03	1	9305-
193	BOLT; BRKT M10X30 W/LK WASHER	9-01911-030-0	02	1	9002-9002
193	BOLT; BRKT M10X30 W/LK WASHER	0-50041-030-0	02	1	9003-
193	BOLT; BRKT M12X30 W/LK WASHER	9-01911-230-0	02	1	9002-9005
193	BOLT; BRKT M12X30 W/LK WASHER	0-50041-230-0	02	1	9006-
194	SEAT; RUBBER	1-53459-320-0	04	1	9002-
195	NUT; BRKT FIX M10	9-09110-510-0	02	1	9002-
196	BOLT; CAB SUSP MTG	1-09009-090-0	04	1	9002-
200	WASHER; PL,BRKT FIX ID=10.5 OD=22	9-09160-610-0	04	1	9002-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-152-0	02	1	9002-9404
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-450-1	02	1	9405-
202	NUT; S/ABS M12	9-99110-512-0	02	1	9002-
206	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-
207	BRACKET; S/ABS	1-51681-299-0	02	1	9002-
208	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005
208	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-
209	BOLT; S/ABS M12X55	9-91056-255-0	02	1	9002-9005
209	BOLT; S/ABS M12X55	0-10806-255-0	02	1	9006-
210	NUT; S/ABS M12	9-99110-512-0	02	1	9002-
211	RUBBER; CUSHION,S/ABS	1-53366-050-1	04	1	9002-
212	SPRING; COIL	1-09580-351-0	02	1	9307-
212	SPRING; COIL HONG KONG EQUIPMENT(PQ1)	1-09580-351-0	02	1	9002-9306
212	SPRING; COIL EXC. HONG KONG EQUIPMENT(PQ1)	1-09580-353-0	02	1	9002-9306
214	WASHER; LK,S/ABS ID=12.2	9-09150-512-0	02	1	9002-
215	BOLT; BRKT TO HOLDER M10X25	9-01911-025-0	04	1	9002-9002
215	BOLT; BRKT TO HOLDER M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
216	HOLDER; COIL SPR,CAB BACK	1-53459-319-0	02	1	9002-
217	JAW; CAB HOOK	1-53459-373-1	02	1	9002-
218	HOLDER	1-53459-838-0	02	1	9002-9106
218	HOLDER	1-53458-290-0	02	1	9107-
219	SPRING; COIL,CAB HOOK	1-09580-350-1	02	1	9002-
220	GUIDE; SPR	1-53459-374-0	02	1	9002-
221	PLATE AUTO CAB TILT<WV2>	1-53459-546-1	01	1	9002-
222	NUT; PLATE FIX AUTO CAB TILT<WV2> M10	9-09110-510-0	01	1	9002-
223	WASHER; LK AUTO CAB TILT<WV2> ID=10.2	9-09150-510-0	01	1	9002-
224	WASHER; PL AUTO CAB TILT<WV2> ID=10.5 OD=22	9-09160-610-0	01	1	9002-
225	SPRING AUTO CAB TILT<WV2>	1-09580-400-0	01	1	9002-
226	RUBBER; BUFFER	1-53459-539-0	02	1	9002-
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	9-01970-825-0	08	1	9002-9005
227	BOLT; BUFFER RUBBER ROD M8X25 W/LK&PL WASHER	0-50140-825-0	08	1	9006-
228	WASHER; PL	1-09503-152-0	02	1	9002-
230	NUT M14	9-99110-514-0	02	1	9002-
231	PIN; CAB HOOK	1-53459-375-0	02	1	9002-
232	BUSHING; COLLAR	5-33659-053-0	04	1	9002-
233	COLLAR; CAB HOOK	1-53459-376-0	02	1	9002-
234	RING; SNAP	1-09588-032-0	02	1	9002-
235	ROLLER; GUIDE	1-53459-377-0	02	1	9002-
236	PIN; SPR,ROLLER	1-09748-018-0	02	1	9002-
237	ROD ASM; LATERAL	1-53459-337-5	02	1	9002-9012
237	ROD ASM; LATERAL	1-53459-730-1	02	1	9101-9207
237	ROD ASM; LATERAL	1-53458-288-0	02	1	9208-
238	BRACKET; BUFFER,RH	1-53459-329-4	01	1	9002-9108
238	BRACKET; BUFFER,RH	1-53458-291-0	01	1	9109-
238	BRACKET; BUFFER,RH AUTO CAB TILT<WV2>	1-53459-545-1	01	1	9002-
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>	1-53459-330-4	01	1	9002-9108
238	BRACKET; BUFFER,RH EXC. AUTO CAB TILT<WV2>	1-53458-292-0	01	1	9109-
239	BUSHING; BRKT,BUFFER AUTO CAB TILT<WV2>	1-09330-055-0	01	1	9002-
240	WASHER; PL,BRKT ID=12.5	9-09160-512-0	04	1	9002-
242	BRACKET; LATERAL ROD	1-53454-224-2	01	1	9002-
242	BRACKET; LATERAL ROD	1-53454-223-2	01	1	9002-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	04	1	9002-
244	NUT; LATERAL ROD M12	9-99110-512-0	04	1	9002-
247	PROTECTOR ASM; HEAT	1-79930-378-6	01	1	9002-9410
247	PROTECTOR ASM; HEAT EXC. ANTI NOISE EQUIPMENT<SV9>	1-79930-378-6	01	1	9411-
247	PROTECTOR ASM; HEAT 10PD1 STD ENG(40L)	1-79930-379-6	01	1	9002-9410
247	PROTECTOR ASM; HEAT 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-79930-379-6	01	1	9411-
248	BOLT; HEAT PROTECTOR M10X25	9-01911-025-0	02	1	9002-9002
248	BOLT; HEAT PROTECTOR 10PD1 STD ENG(40L) M10X25	9-01911-025-0	02	1	9002-9002
248	BOLT; HEAT PROTECTOR M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9410
248	BOLT; HEAT PROTECTOR 10PD1 STD ENG(40L) M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-9410
248	BOLT; HEAT PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER	0-50041-025-0	02	1	9411-
248	BOLT; HEAT PROTECTOR 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M10X25 W/LK WASHER	0-50041-025-0	02	1	9411-
249	NUT; PROTECTOR M10	9-09110-510-0	02	1	9002-9410
249	NUT; PROTECTOR 10PD1 STD ENG(40L) M10	9-09110-510-0	02	1	9002-9410
249	NUT; PROTECTOR EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9411-
249	NUT; PROTECTOR 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	02	1	9411-
250	WASHER; LK ID=10.5 OD=18	9-09160-510-0	02	1	9002-9410
250	WASHER; LK 10PD1 STD ENG(40L) ID=10.5 OD=18	9-09160-510-0	02	1	9002-9410
250	WASHER; LK EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18	9-09160-510-0	02	1	9411-
250	WASHER; LK 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> ID=10.5 OD=18	9-09160-510-0	02	1	9411-
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-810-0	01	1	9411-9412
279	BOLT ANTI NOISE EQUIPMENT<SV9>	0-28280-822-0	02	1	9411-9412
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	5-09440-005-0	02	1	9411-9412
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	02	1	9501-9501
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	04	1	9411-9412
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9411-9412
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9411-9412

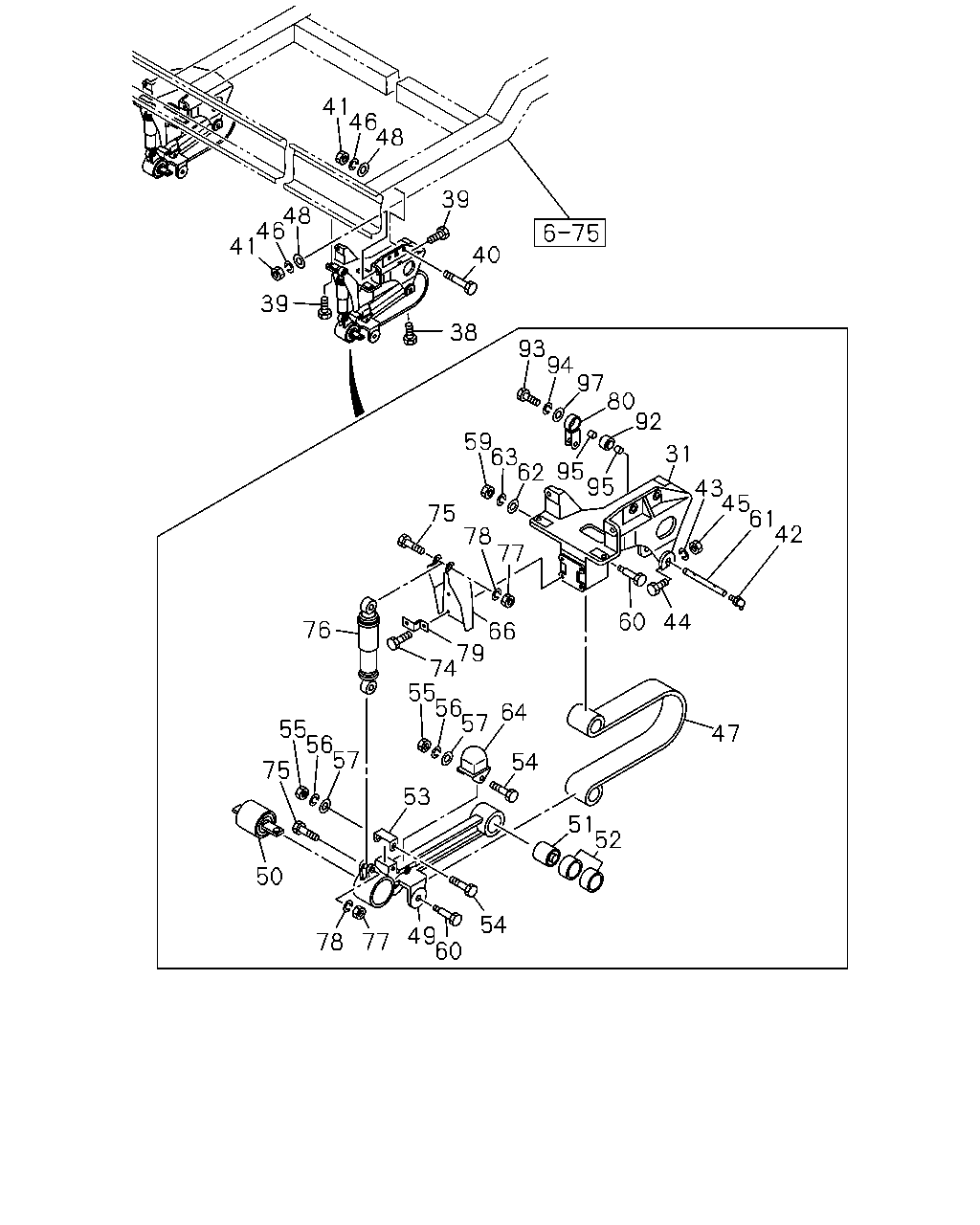

41 46 48 39 48 46 41 40 39 38 93 94 97 80 92 59 63 95 31 43 45 61 42 75 78 77 60 44 76 66 79 74 55 56 57 64 55 56 57 47 54 75 53 51 52 50 54 49 60 78 77 62 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB	1-53453-033-4	01	1	9002-
31	BRACKET; CAB	1-53453-032-4	01	1	9002-
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	9-01911-035-0	02	1	9002-9002
38	BOLT; CAB TO BRKT,RR M10X35 W/LK WASHER	0-50041-035-0	02	1	9003-
39	BOLT; CAB TO BRKT M10X30	1-09980-546-0	08	1	9002-
40	BOLT; CAB TO BRKT M10X100	1-09980-547-0	04	1	9002-
41	NUT M10	9-09110-410-0	08	1	9002-
42	NIPPLE; GREASE PT1/8 ELBOW	9-09031-210-0	02	1	9002-
43	WASHER; LK ID=8.2	9-09150-508-0	02	1	9002-
44	BOLT; PIN LOCK M8X50	9-01050-850-0	02	1	9002-9005
44	BOLT; PIN LOCK M8X50	0-10810-850-0	02	1	9006-
45	NUT M8	9-09110-408-0	02	1	9002-
46	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-
47	SPRING; LEAF,"U"	1-53459-387-4	02	1	9307-
47	SPRING; LEAF,"U" HONG KONG EQUIPMENT(PQ1)	1-53459-387-4	02	1	9002-9306
47	SPRING; LEAF,"U" EXC. HONG KONG EQUIPMENT(PQ1)	1-53459-395-4	02	1	9002-9306
48	WASHER; PL ID=10.5 OD=26	9-09160-710-0	04	1	9002-
49	ARM; LINK	1-53459-297-2	02	1	9002-
50	BUSHING; RUBBER	1-53459-308-2	02	1	9002-9004
50	BUSHING; RUBBER	1-53459-974-0	02	1	9005-9108
50	BUSHING; RUBBER	1-53458-293-1	02	1	9109-
51	BUSHING; RUBBER	1-53459-315-2	02	1	9002-
52	BUSHING; RUBBER	1-09330-068-0	04	1	9002-
53	RUBBER; STOPPER	1-53459-314-0	02	1	9002-
54	BOLT; RUBBER M8X70	9-01055-870-0	04	1	9002-9005
54	BOLT; RUBBER M8X70	0-10805-870-0	04	1	9006-
55	NUT; RUBBER M8	9-09110-408-0	04	1	9002-
56	WASHER; LK ID=8.2	9-09150-508-0	04	1	9002-
57	WASHER; PL ID=8.4	9-09160-508-0	08	1	9002-
59	NUT M10	9-09110-410-0	04	1	9002-
60	PIN; "U" LEAF SPRING	1-53459-307-3	04	1	9002-
61	PIN; BRKT TO LINK ARM	1-53459-540-0	02	1	9002-
62	WASHER; PL ID=10.5 OD=18	9-09160-510-0	04	1	9002-
63	WASHER; LK ID=10.2	9-09150-510-0	04	1	9002-
64	RUBBER; CUSHION	1-53366-089-0	02	1	9002-9010
64	RUBBER; CUSHION	1-53366-122-0	02	1	9011-9404
64	RUBBER; CUSHION	1-53366-110-0	02	1	9405-
66	BRACKET; S/ABS	1-53459-305-2	02	1	9002-
74	BOLT; BRKT FIX M8X22	9-01910-822-0	08	1	9002-9005
74	BOLT; BRKT FIX M8X22 W/LK WASHER	0-50040-822-0	08	1	9006-
75	BOLT; S/ABS M12X60	9-91056-260-0	04	1	9002-9005
75	BOLT; S/ABS M12X60	0-10806-260-0	04	1	9006-
76	ABSORBER ASM; SHOCK	1-51630-151-0	02	1	9002-9404
76	ABSORBER ASM; SHOCK	1-51630-449-1	02	1	9405-
77	NUT M12	9-99110-412-0	04	1	9002-
78	WASHER; LK ID=12.2	9-09150-512-0	04	1	9002-
79	BRACKET; FLEX SHAFT	1-83129-033-1	02	1	9002-
80	LINK ASM; STABILIZER W/BUSHING	1-53459-608-0	02	1	9002-
92	BUSHING; RUBBER	1-53459-417-2	02	1	9002-
93	BOLT; PIN	1-09000-354-0	02	1	9002-
94	WASHER; DISH	1-09500-007-0	02	1	9002-9105
94	WASHER; DISH	1-09500-028-0	02	1	9106-
95	BUSHING; RUBBER	1-09330-069-0	04	1	9002-
97	WASHER; PL ID=17	9-09160-516-0	02	1	9002-

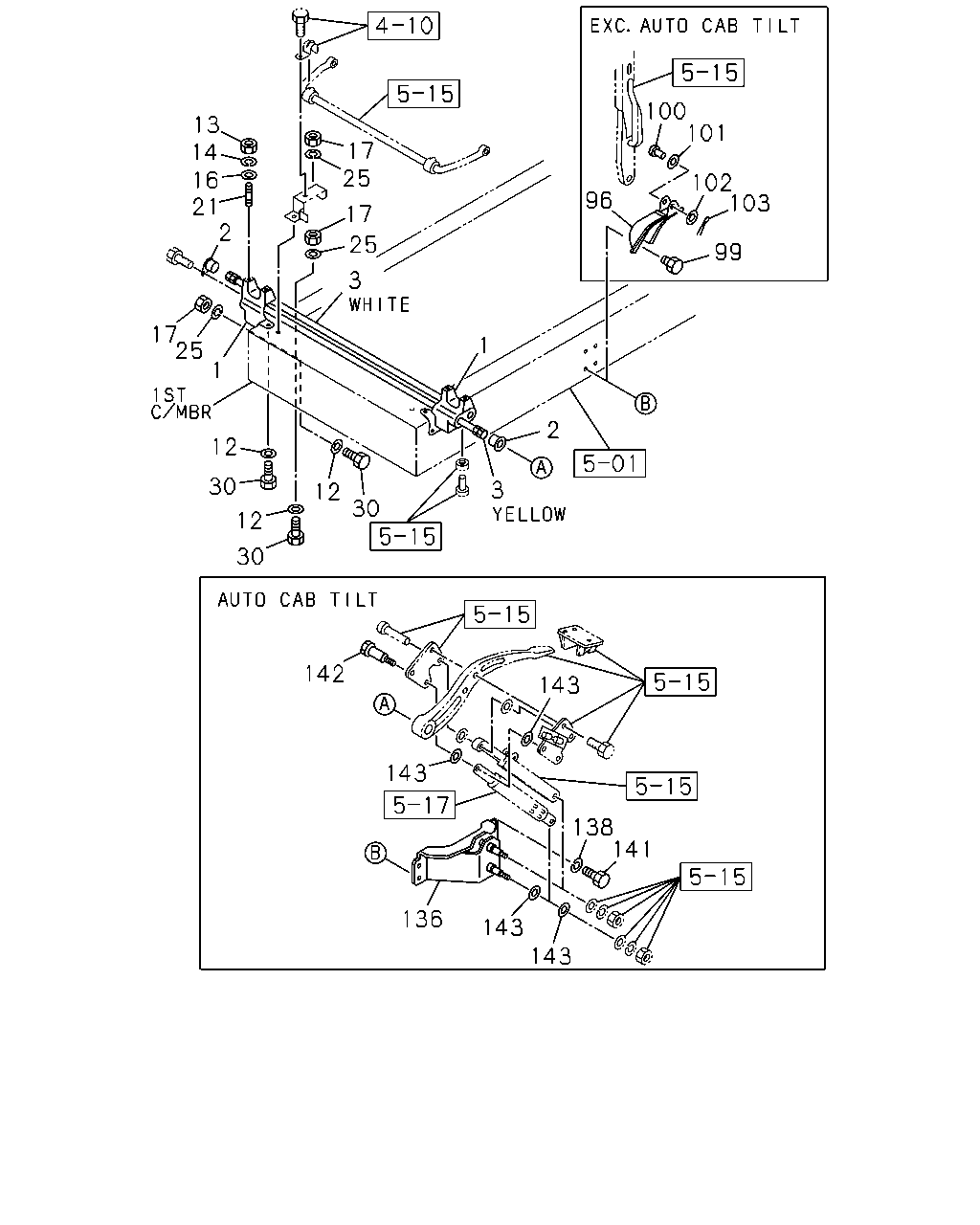

100 101 13 14 16 21 2 17 25 102 96 17 25 99 3 17 25 1 1 2 12 30 3 12 30 12 30 142 143 143 138 141 136 143 143 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-036-4	02	1	9002-
2	BUSHING; TORSION BAR	1-53459-837-0	02	1	9002-
3	TORSION BAR YELLOW	1-09585-089-1	01	1	9002-
3	TORSION BAR WHITE	1-09585-090-1	01	1	9002-
12	WASHER; LK,BRKT ID=15	9-09651-069-0	10	1	9002-
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9002-
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9002-
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9002-
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	10	1	9002-
17	NUT; BRKT,CAB TILT M12	1-09468-012-1	01	1	9307-
21	STUD; BRKT,CAB TILT	9-94321-235-0	04	1	9002-
25	WASHER; LK,BRKT,CAB TILT ID=14.2	9-09150-614-0	10	1	9002-
30	BOLT; CAB FRT FOOT M14X75	1-09000-292-0	02	1	9002-
30	BOLT; CAB FRT FOOT M14X50	9-91066-450-0	06	1	9002-
30	BOLT; CAB FRT FOOT M14X55	9-91066-455-0	02	1	9002-
96	BRACKET; CAB STAY EXC. AUTO CAB TILT<WV2>	1-53459-622-0	01	1	9002-
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35	9-01911-235-0	04	1	9002-9005
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M12X35 W/LK WASHER	0-50041-235-0	04	1	9006-
100	PIN; JOINT EXC. AUTO CAB TILT<WV2>	9-08234-455-0	01	1	9002-
101	WASHER; WAVE EXC. AUTO CAB TILT<WV2> ID=15 OD=25	8-11053-111-0	01	1	9002-
102	WASHER; PL,CAB STAY EXC. AUTO CAB TILT<WV2> ID=15	9-09160-514-0	01	1	9002-
103	PIN; SPLIT,CAB STAY EXC. AUTO CAB TILT<WV2> OD=3.7 L=25	9-08114-025-0	01	1	9002-
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	1-53459-378-3	01	1	9002-9306
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	1-53459-909-1	01	1	9307-
138	WASHER; LK,BRKT AUTO CAB TILT<WV2> ID=12.2	9-09150-612-0	04	1	9002-
141	BOLT; BRKT AUTO CAB TILT<WV2> M12X45	9-91066-245-0	04	1	9002-9306
141	BOLT; BRKT AUTO CAB TILT<WV2> M12X45	9-91066-245-0	02	1	9307-
141	BOLT; BRKT AUTO CAB TILT<WV2> M12X70	9-91066-270-0	02	1	9307-
142	PIN; OIL CYL,UPR AUTO CAB TILT<WV2>	1-53459-352-0	01	1	9002-
143	SPACER; OIL CYL,LWR AUTO CAB TILT<WV2>	1-53459-463-0	04	1	9002-
