◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#25078) — 160 parça

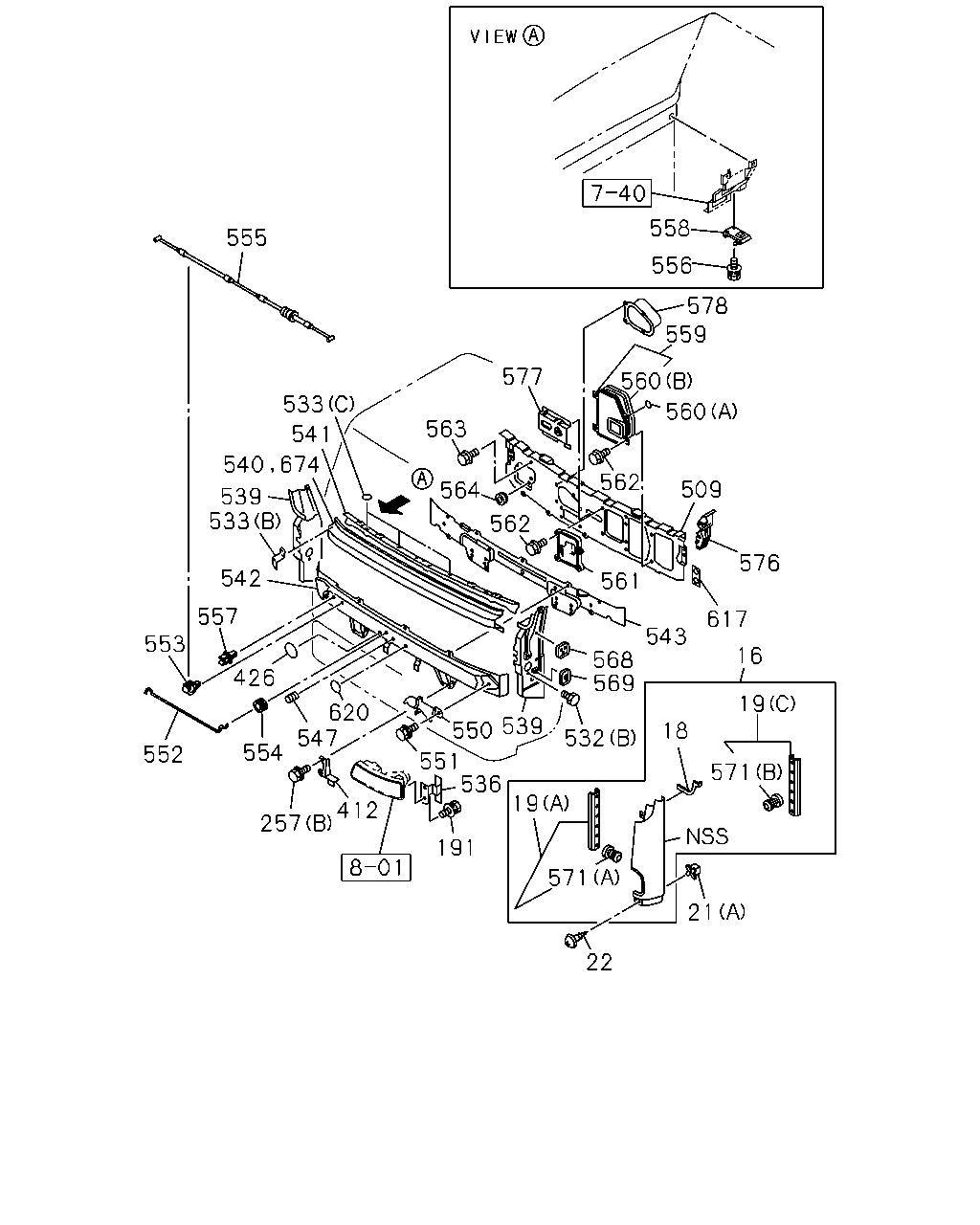

çizim 106397
558 555 556 578 559 577 560 533 560 563 541 562 509 564 539 533 562 576 542 561 557 617 543 553 16 568 569 426 620 547 19 550 539 18 532 554 552 551 536 571 412 257 19 191 571 21 22 540 674
BalonParca AdiParca NoAdetTipApplied Date A B
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0609- ● ●
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0609- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0609- ● ●
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0609- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0609- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0609- ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0609-0810 ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 0811-1010 ● ●
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 1011- ● ●
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0609-0708 ● ●
191 BOLT; HINGE
M6X16 FLANGE 		0-28650-616-0 04 1 0709- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0609- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0609-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0609- ● ●
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0609- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0609- ● ●
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0609- ● ●
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 0609- ●
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 03 1 0609- ● ●
509 PANEL; DASH 1-62280-220-2 01 1 0609- ●
509 PANEL; DASH 1-62280-213-2 01 1 0609- ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0609- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0609- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0609- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0609- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0609- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0609- ● ●
536 HINGE 1-86830-003-5 01 1 0609- ● ●
536 HINGE 1-86830-004-5 01 1 0609- ● ●
539 CLOSING; PILLAR 1-61480-673-6 01 1 0609- ● ●
539 CLOSING; PILLAR 1-61480-674-6 01 1 0609- ● ●
540 PANEL; FRONT,OUTER 1-61480-785-1 01 1 0609- ●
541 PANEL; FRONT,INNER 1-61480-702-0 01 1 0609- ●
541 PANEL; FRONT,INNER 1-61480-679-0 01 1 0609- ●
542 RAIL; FRT MOUNTING 1-61480-791-9 01 1 0609- ●
542 RAIL; FRT MOUNTING 1-61480-773-9 01 1 0609- ●
543 CLOSING; FRT MTG RAIL 1-61480-707-5 01 1 0609- ●
543 CLOSING; FRT MTG RAIL 1-61480-687-4 01 1 0609- ●
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0609- ● ●
550 LOCK ASM; FRT LID 1-79318-009-4 01 1 0609- ● ●
550 LOCK ASM; FRT LID 1-79318-010-2 01 1 0609- ● ●
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0609- ● ●
552 STAY; FRT LID 1-71996-310-0 01 1 0609-0706 ● ●
552 STAY; FRT LID 1-71996-352-0 01 1 0707- ● ●
553 CLIP; STAY 8-97031-428-0 01 1 0609- ● ●
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0609- ● ●
555 CABLE; FRT LID
L=2342 		1-79348-002-5 01 1 0609- ●
555 CABLE; FRT LID
L=2142 		1-79348-001-4 01 1 0609- ●
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0609- ● ●
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0609- ● ●
558 LEVER; FRT LID 1-79338-007-0 01 1 0609- ● ●
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0609- ● ●
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0609- ● ●
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0609- ●
561 COVER; HEATER CORE 1-71998-829-1 01 1 0609- ● ●
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0609- ● ●
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 12 1 0609- ● ●
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0609- ● ●
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0609- ● ●
568 PATCH; INST REINF 1-61480-675-2 02 1 0609- ● ●
569 PATCH; LWR GRIP 1-61480-689-2 01 1 0609- ● ●
569 PATCH; LWR GRIP 1-61480-736-2 01 1 0609- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0609- ● ●
571 CLIP; SEAL
(A) 		1-09987-228-0 06 1 0609- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0609- ● ●
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 07 1 0609- ● ●
576 FRAME; INST SIDE 1-62280-176-6 01 1 0609- ● ●
576 FRAME; INST SIDE 1-62280-177-7 01 1 0609- ● ●
577 BRACKET; IDLER 1-62280-195-0 01 1 0609- ●
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0609- ●
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0609- ●
617 SEAL; DASH 1-61281-497-1 02 1 0609- ● ●
620 SEAL; FRT MTG
OD=25 BLACK 		1-76798-019-0 02 1 0609- ● ●
674 PANEL; UPR 1-61480-790-2 01 1 0609- ●

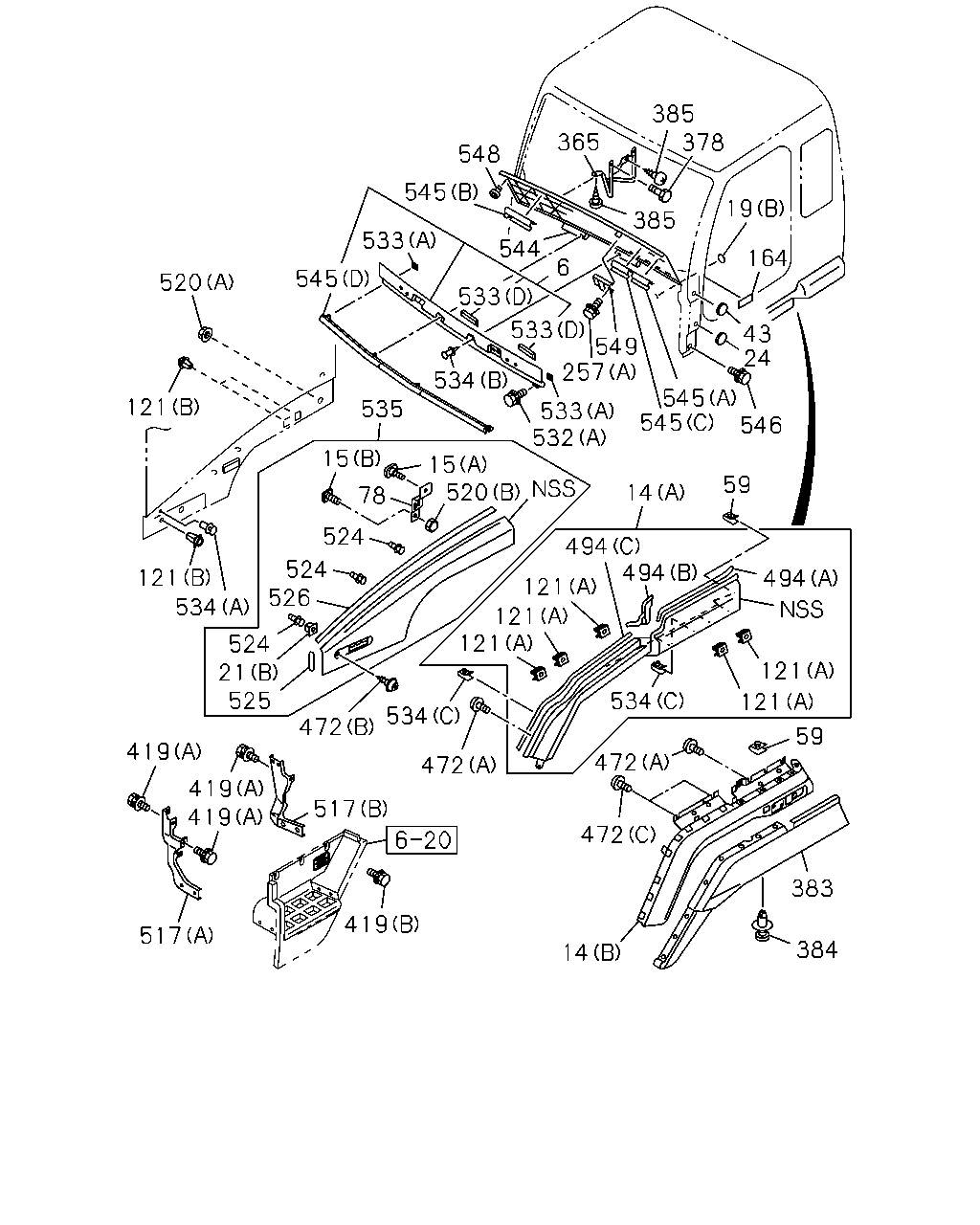

çizim 106481
385 378 365 548 545 19 385 533 544 6 164 545 520 533 533 43 24 549 257 534 545 545 546 121 535 533 532 15 15 520 59 78 14 524 494 494 524 526 121 494 121 534 121 121 524 21 525 121 534 121 534 472 59 419 472 472 419 419 517 472 383 419 517 384 14
BalonParca AdiParca NoAdetTipApplied Date A B
6 PANEL; FRONT 1-65481-747-2 01 1 0609- ●
6 PANEL; FRONT 1-65481-744-2 01 1 0609- ●
14 FENDER; FRT
(A) WHITE 		1-65482-022-1 01 1 0609- ●
14 FENDER; FRT
(A) WHITE 		1-65482-023-1 01 1 0609- ●
14 FENDER; FRT
(A) WHITE 		1-65482-044-1 01 1 0609- ●
14 FENDER; FRT
(A) WHITE 		1-65482-045-1 01 1 0609- ●
14 FENDER; FRT
(B) GRAY 		1-71996-177-1 01 1 0609- ●
14 FENDER; FRT
(B) GRAY 		1-71996-178-1 01 1 0609- ●
15 BOLT; FENDER
(A) M6X7 		1-71268-294-0 02 1 0609- ● ●
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD 		1-71268-300-1 02 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-101-1 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(C) 		1-71996-102-1 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0609- ● ●
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0609- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0609- ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0609- ● ●
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 04 1 0609- ● ●
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0609- ● ●
59 GROMMET; SCREW 8-94279-723-0 02 1 0609- ●
78 BRACKET; FENDER 1-71268-322-0 01 1 0609- ● ●
78 BRACKET; FENDER 1-71268-323-0 01 1 0609- ● ●
121 GROMMET; FENDER
(B) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0609- ● ●
121 GROMMET; FENDER
(A) 		8-94279-723-0 16 1 0609- ● ●
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0609- ● ●
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0609- ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0609-0904 ● ●
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0905- ● ●
365 SUPPORT; FENDER 1-71996-147-1 01 1 0609- ●
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0609- ●
383 GUARD; MUD,FENDER LWR 1-71996-061-3 01 1 0609- ●
383 GUARD; MUD,FENDER LWR 1-71996-062-3 01 1 0609- ●
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 06 1 0609- ●
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0609- ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0609-0904 ● ●
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905- ● ●
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0609- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 17 1 0609- ●
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0609- ● ●
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0609- ●
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0609- ●
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0609- ●
494 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 0609- ● ●
494 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 0609- ● ●
494 FINISHER; FENDER
(C) 		1-71998-900-3 02 1 0609-0610 ● ●
494 FINISHER; FENDER
(C) 		1-71907-641-0 02 1 0611- ● ●
494 FINISHER; FENDER
(A) 		1-71998-999-0 02 1 0609- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0609- ● ●
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0609- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0609- ● ●
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0609- ● ●
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0609- ● ●
520 NUT; FENDER
(B) M6 		1-09984-189-0 02 1 0609- ● ●
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0609- ● ●
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0609- ● ●
526 FINISHER; FENDER 1-71268-275-1 02 1 0609- ● ●
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0609- ● ●
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0609- ● ●
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 03 1 0609- ● ●
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 0609- ● ●
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 13 1 0609- ● ●
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 0609- ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0609-1302 ● ●
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303- ● ●
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0609- ● ●
534 FASTENER
(C) 		1-71996-035-1 26 1 0609- ●
535 FENDER; BLISTER
WHITE 		1-71268-428-2 01 1 0609- ● ●
535 FENDER; BLISTER
WHITE 		1-71268-429-1 01 1 0609- ● ●
544 LID; FRT 1-71108-161-1 01 1 0609- ●
544 LID; FRT 1-71108-235-3 01 1 0609- ●
545 SEAL; FRT LID
(B) 		1-71996-254-0 01 1 0609- ●
545 SEAL; FRT LID
(C) 		1-71996-256-0 01 1 0609- ●
545 SEAL; FRT LID
(D) 		1-71998-836-4 01 1 0609- ●
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0609- ● ●
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0609- ●
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0609- ●
545 SEAL; FRT LID
(D) 		1-71998-814-4 01 1 0609- ●
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0609- ● ●
548 STRIKER; FRT LID PANEL 1-79318-008-1 02 1 0609- ● ●
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
