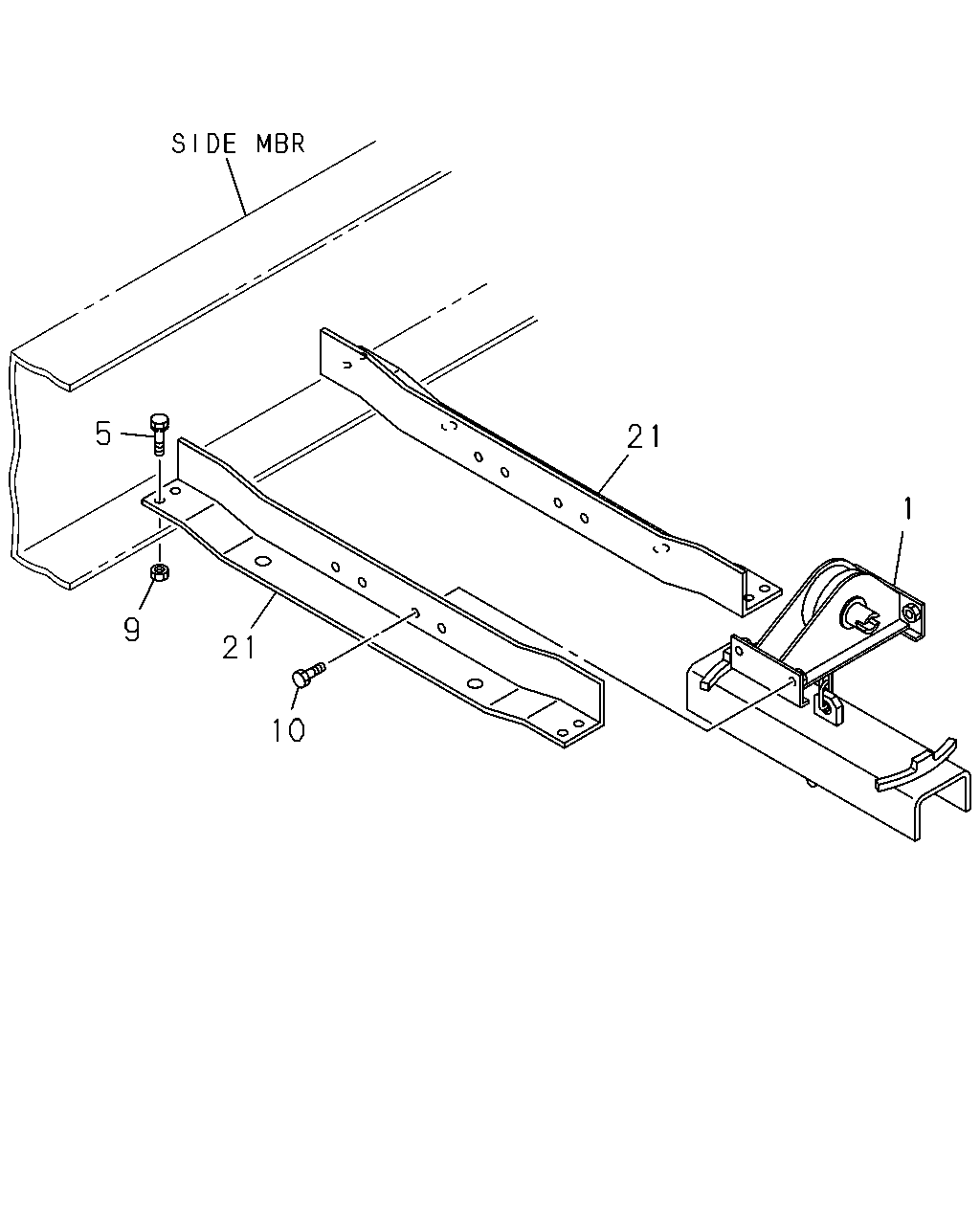

5-30 — SPARE TIRE CARRIER AND COVER (#25074) — 6 parça

5 21 1 9 21 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>	1-53630-210-4	01	1	0609-	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0609-0609	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28051-035-0	08	1	0610-	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0609-	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0609-	●	●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-395-1	02	1	0609-	●	●
