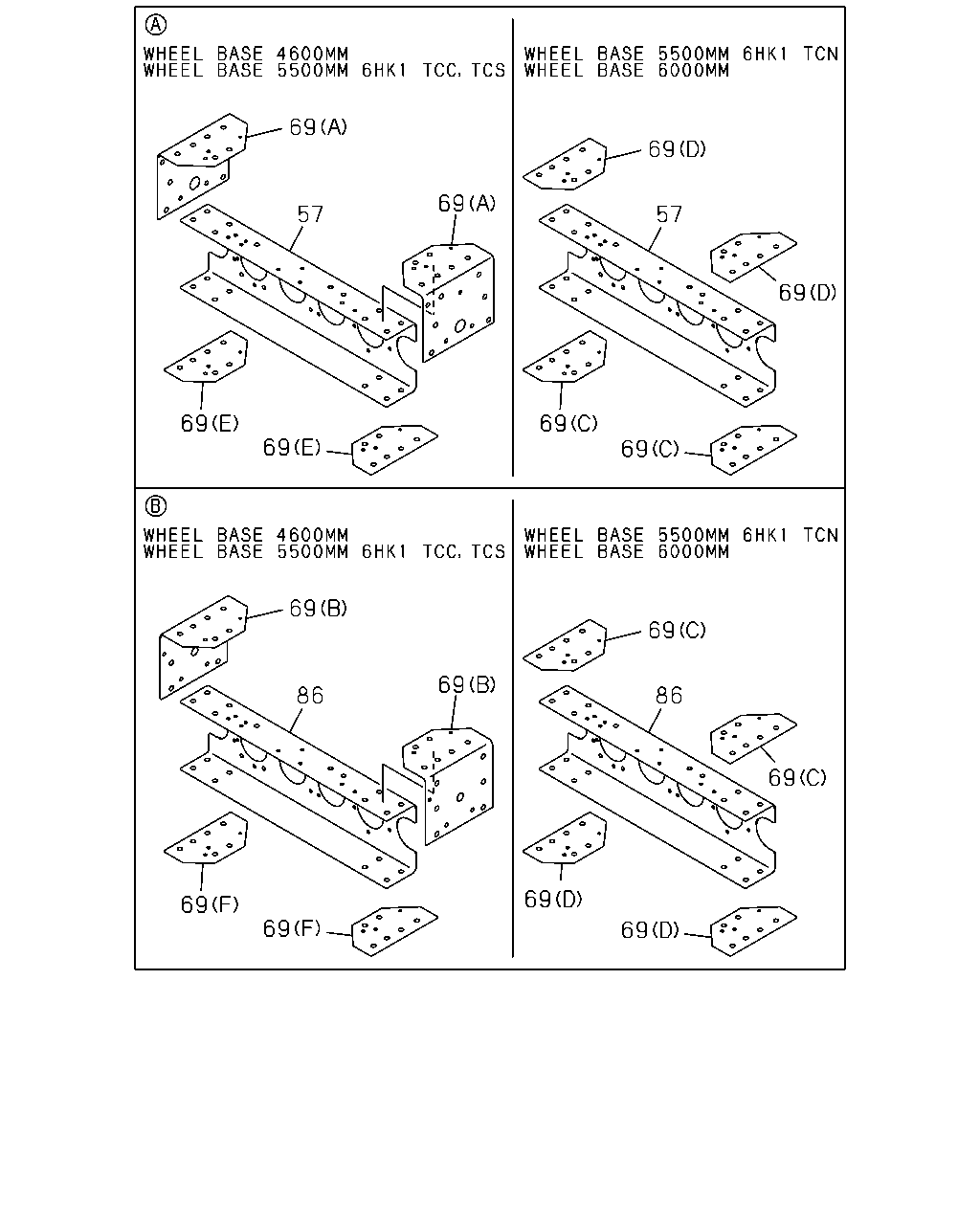

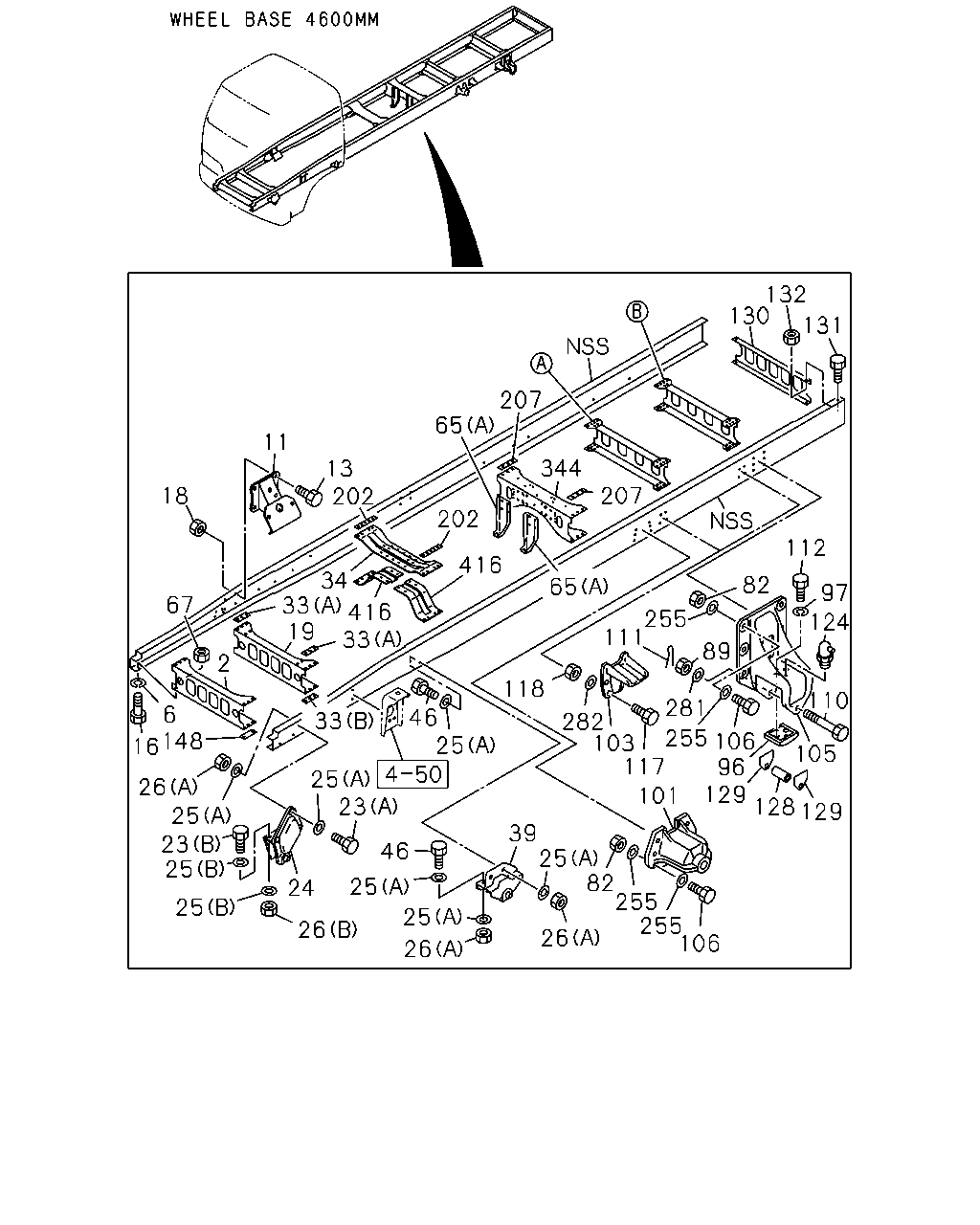

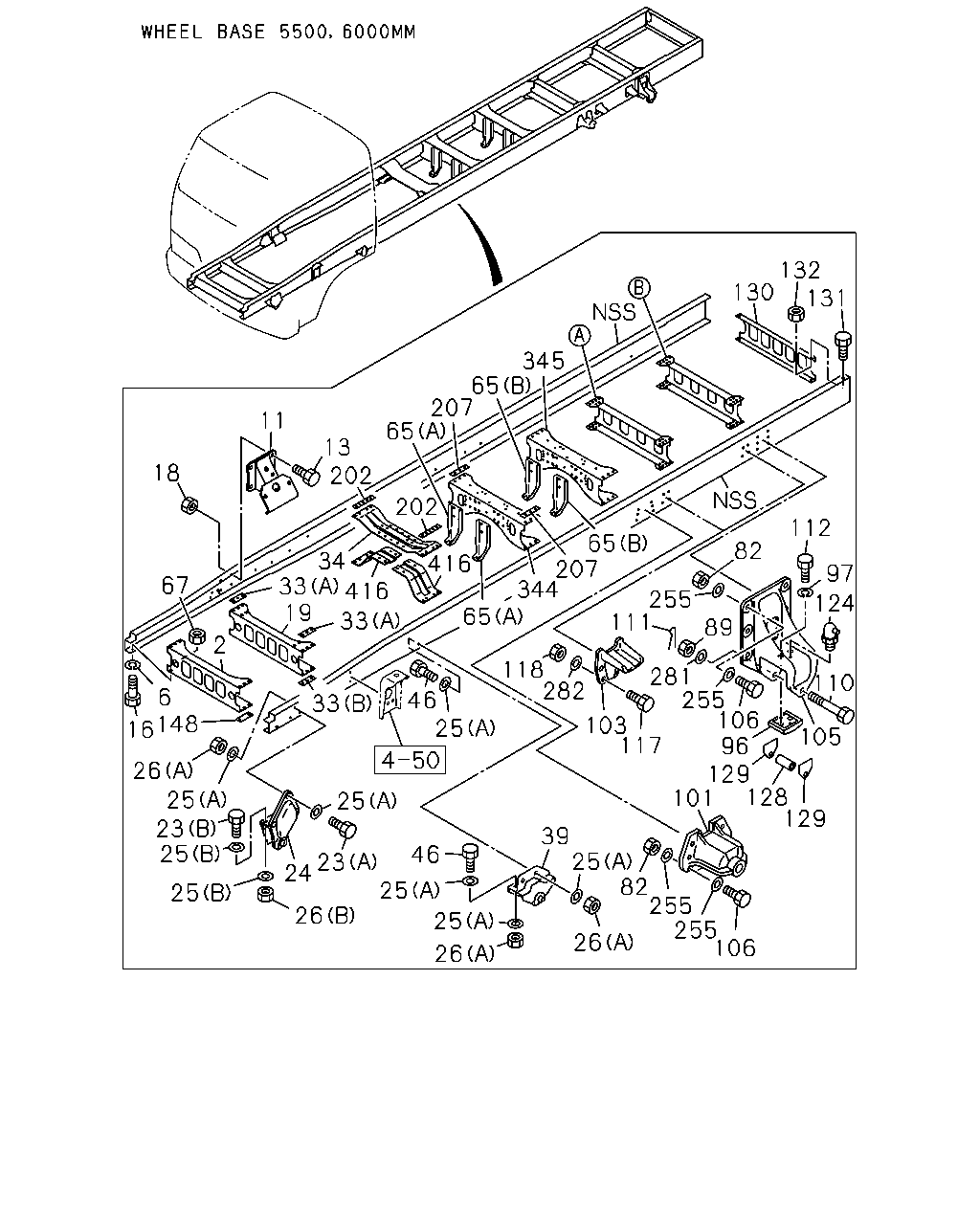

5-01 — FRAME AND OTHER PARTS (#25070) — 167 parça

69 6 69 57 57 69 69 69 69 69 69 6 69 86 86 69 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	02	1	0609-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-815-1	01	1	0609-	●
57	MEMBER; CROSS,RR SUSP FRT 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L)	1-53181-815-1	01	1	0609-		●
57	MEMBER; CROSS,RR SUSP FRT 6HK1 TCN ENG(82L)	1-53181-380-6	01	1	0609-		●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-380-6	01	1	0609-			●
69	GUSSET; RR SUSP,UPR (A) 21-HOLE	1-53167-095-5	01	1	0609-	●
69	GUSSET; RR SUSP,UPR 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (A) 21-HOLE	1-53167-095-5	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (A) 21-HOLE	1-53167-096-4	01	1	0609-	●
69	GUSSET; RR SUSP,UPR 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (A) 21-HOLE	1-53167-096-4	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (B) 17-HOLE	1-53167-097-5	01	1	0609-	●
69	GUSSET; RR SUSP,UPR 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (B) 17-HOLE	1-53167-097-5	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (B) 17-HOLE	1-53167-098-5	01	1	0609-	●
69	GUSSET; RR SUSP,UPR 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (B) 17-HOLE	1-53167-098-5	01	1	0609-		●
69	GUSSET; RR SUSP,UPR (F)	1-53167-099-4	02	1	0609-	●
69	GUSSET; RR SUSP,UPR 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (F)	1-53167-099-4	02	1	0609-		●
69	GUSSET; RR SUSP,UPR (E)	1-53167-100-3	02	1	0609-	●
69	GUSSET; RR SUSP,UPR 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (E)	1-53167-100-3	02	1	0609-		●
69	GUSSET; RR SUSP,UPR 6HK1 TCN ENG(82L) (D)	1-53167-462-0	04	1	0609-		●
69	GUSSET; RR SUSP,UPR (D)	1-53167-462-0	04	1	0609-			●
69	GUSSET; RR SUSP,UPR 6HK1 TCN ENG(82L) (C)	1-53167-463-0	04	1	0609-		●
69	GUSSET; RR SUSP,UPR (C)	1-53167-463-0	04	1	0609-			●
86	MEMBER; CROSS,RR SUSP RR	1-53181-815-1	01	1	0609-	●
86	MEMBER; CROSS,RR SUSP RR 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L)	1-53181-815-1	01	1	0609-		●
86	MEMBER; CROSS,RR SUSP RR 6HK1 TCN ENG(82L)	1-53181-380-6	01	1	0609-		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-380-6	01	1	0609-			●

132 130 131 345 65 207 65 11 13 202 18 202 34 416 33 416 19 112 82 65 207 344 65 97 67 255 111 2 124 33 89 281 110 255 106 96 129 101 128 129 118 282 33 6 148 16 46 25 103 117 26 25 23 25 25 39 25 82 255 255 106 46 23 24 25 25 26 25 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-991-1	01	1	0609-	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	02	1	0609-	●	●	●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	0609-	●
11	BRACKET; ENG MTG 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L)	1-53211-196-0	02	1	0609-		●
11	BRACKET; ENG MTG 6HK1 TCN ENG(82L)	1-53211-195-0	02	1	0609-		●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	0609-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0609-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	02	1	0609-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0609-	●	●	●
19	MEMBER; CROSS,2ND	1-53181-992-3	01	1	0609-	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0609-	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0609-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0609-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0609-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0609-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0609-1201	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0609-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0609-	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	0609-	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	0609-	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	0609-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0609-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0609-	●	●	●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	0609-	●		●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L),6HK1 TCN ENG(82L) M14X45	9-92061-445-0	08	1	0609-		●
46	BOLT; BRKT FIX 6HK1 TCC ENG(81L) M14X40	0-20951-440-0	08	1	0609-		●
65	BRACKET; CENTER BRG 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (B) L=285	1-53271-342-0	02	1	0609-		●
65	BRACKET; CENTER BRG (A) L=320	1-53271-336-0	02	1	0609-		●	●
65	BRACKET; CENTER BRG (B) L=300	1-53271-298-1	02	1	0609-			●
65	BRACKET; CENTER BRG (A) L=330	1-53271-265-2	02	1	0609-	●
65	BRACKET; CENTER BRG 6HK1 TCN ENG(82L) (B) L=280	1-53271-310-1	02	1	0609-		●
67	NUT; C/MBR M16	0-91110-516-0	02	1	0609-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	0609-	●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0609-	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	0609-	●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0609-	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0609-	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0609-	●	●	●
106	BOLT; BRKT M14X45	9-92061-445-0	24	1	0609-	●
106	BOLT; BRKT 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) M14X45	9-92061-445-0	24	1	0609-		●
106	BOLT; BRKT 6HK1 TCN ENG(82L) M14X50	0-20951-450-0	24	1	0609-		●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0609-			●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0609-	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0609-	●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0609-	●	●	●
117	BOLT; STOPPER M14X45	9-92061-445-0	16	1	0609-	●
117	BOLT; STOPPER 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) M14X45	9-92061-445-0	16	1	0609-		●
117	BOLT; STOPPER 6HK1 TCN ENG(82L) M14X50	0-10956-450-0	16	1	0609-		●
117	BOLT; STOPPER M14X50	0-10956-450-0	16	1	0609-			●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0609-	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0609-	●	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	0609-	●		●
128	COLLAR; RUBBER WIDE CAB(FV*F)	1-53359-004-0	02	1	0609-		●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0609-	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0609-	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0609-	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0609-	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0609-	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	0609-	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0609-	●	●	●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	0609-	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0609-1201	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0609-	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	0609-1201	●	●	●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1202-	●	●	●
344	MEMBER; CROSS,4TH	1-53181-580-2	01	1	0609-	●	●	●
345	MEMBER; CROSS,5TH	1-53181-580-2	01	1	0609-		●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	0609-	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	0609-	●	●	●

132 130 131 207 65 11 344 13 202 18 207 202 34 33 416 19 33 112 416 82 65 97 67 255 111 2 124 89 281 110 282 255 103 106 105 117 96 129 118 33 6 148 16 46 25 25 23 26 25 23 25 128 129 101 39 25 82 255 255 106 46 25 24 25 25 26 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-991-1	01	1	0609-	●	●	●
6	WASHER; LK,1ST C/MBR ID=16.2	0-91510-616-0	02	1	0609-	●	●	●
11	BRACKET; ENG MTG	1-53211-196-0	02	1	0609-	●
11	BRACKET; ENG MTG 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L)	1-53211-196-0	02	1	0609-		●
11	BRACKET; ENG MTG 6HK1 TCN ENG(82L)	1-53211-195-0	02	1	0609-		●
11	BRACKET; ENG MTG	1-53211-195-0	02	1	0609-			●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0609-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20851-640-0	02	1	0609-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0609-	●	●	●
19	MEMBER; CROSS,2ND	1-53181-992-3	01	1	0609-	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	0609-	●	●	●
23	BOLT; BRKT,SPR (A) M14X45	9-92061-445-0	06	1	0609-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	0609-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	0609-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	08	1	0609-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	28	1	0609-1201	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	1202-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0609-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0609-	●	●	●
33	SPACER; 2ND C/MBR,UPR (A)	1-53168-276-0	02	1	0609-	●	●	●
33	SPACER; 2ND C/MBR,UPR (B)	1-53168-287-0	02	1	0609-	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	0609-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	0609-	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	0609-	●	●	●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	0609-	●		●
46	BOLT; BRKT FIX 6HK1 TCS ENG(80L),6HK1 TCN ENG(82L) M14X45	9-92061-445-0	08	1	0609-		●
46	BOLT; BRKT FIX 6HK1 TCC ENG(81L) M14X40	0-20951-440-0	08	1	0609-		●
65	BRACKET; CENTER BRG 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) (B) L=285	1-53271-342-0	02	1	0609-		●
65	BRACKET; CENTER BRG (A) L=320	1-53271-336-0	02	1	0609-		●	●
65	BRACKET; CENTER BRG (B) L=300	1-53271-298-1	02	1	0609-			●
65	BRACKET; CENTER BRG (A) L=330	1-53271-265-2	02	1	0609-	●
65	BRACKET; CENTER BRG 6HK1 TCN ENG(82L) (B) L=280	1-53271-310-1	02	1	0609-		●
67	NUT; C/MBR M16	0-91110-516-0	02	1	0609-	●	●	●
82	NUT; BRKT M14	0-91110-514-0	24	1	0609-	●	●	●
89	NUT; LEAF SPR STOPPER M14 SLOTTED	0-91116-514-0	02	1	0609-	●	●	●
96	PAD; RR SPR	1-53359-047-0	02	1	0609-	●	●	●
97	WASHER; LK,PAD ID=14.2	0-91510-514-0	04	1	0609-	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-078-1	02	1	0609-	●	●	●
103	STOPPER; SUB SPR	1-53356-057-0	04	1	0609-	●	●	●
105	BRACKET; RR SPR,RR	1-53354-064-1	02	1	0609-	●	●	●
106	BOLT; BRKT M14X45	9-92061-445-0	24	1	0609-	●
106	BOLT; BRKT 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) M14X45	9-92061-445-0	24	1	0609-		●
106	BOLT; BRKT 6HK1 TCN ENG(82L) M14X50	0-20951-450-0	24	1	0609-		●
106	BOLT; BRKT M14X50	0-20951-450-0	24	1	0609-			●
110	BOLT; LEAF SPR STOPPER	1-09000-007-0	02	1	0609-	●	●	●
111	PIN; SPLIT,LEAF SPR STOPPER OD=2.8 L=28	0-81123-028-0	02	1	0609-	●	●	●
112	BOLT; PAD M14X35	0-20851-435-0	04	1	0609-	●	●	●
117	BOLT; STOPPER M14X45	9-92061-445-0	16	1	0609-	●
117	BOLT; STOPPER 6HK1 TCS ENG(80L),6HK1 TCC ENG(81L) M14X45	9-92061-445-0	16	1	0609-		●
117	BOLT; STOPPER 6HK1 TCN ENG(82L) M14X50	0-10956-450-0	16	1	0609-		●
117	BOLT; STOPPER M14X50	0-10956-450-0	16	1	0609-			●
118	NUT; STOPPER M14	0-91110-514-0	16	1	0609-	●	●	●
124	NIPPLE; GREASE PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0609-	●	●	●
128	COLLAR; RUBBER	1-53359-004-0	02	1	0609-	●		●
128	COLLAR; RUBBER WIDE CAB(FV*F)	1-53359-004-0	02	1	0609-		●
129	SHIM; SIDE T=4.5	1-53359-061-1	02	1	0609-	●	●	●
129	SHIM; SIDE T=3.2	1-53359-062-1	02	1	0609-	●	●	●
130	MEMBER; CROSS,END	1-53181-151-2	01	1	0609-	●	●	●
131	BOLT; END C/MBR M12X30 FLANGE	0-28651-230-0	04	1	0609-	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-112-0	04	1	0609-	●	●	●
148	SPACER; C/MBR	1-53168-341-0	02	1	0609-	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	0609-	●	●	●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	0609-	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	0609-1201	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	48	1	1202-	●	●	●
281	WASHER; LEAF SPR STOPPER ID=15 OD=30	9-09160-614-0	04	1	0609-	●	●	●
282	WASHER; PL,STOPPER ID=15	9-09651-069-0	16	1	0609-1201	●	●	●
282	WASHER; PL,STOPPER ID=15	8-98010-627-1	16	1	1202-	●	●	●
344	MEMBER; CROSS,4TH	1-53181-580-2	01	1	0609-	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	0609-	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	0609-	●	●	●
