◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#25069) — 27 parça

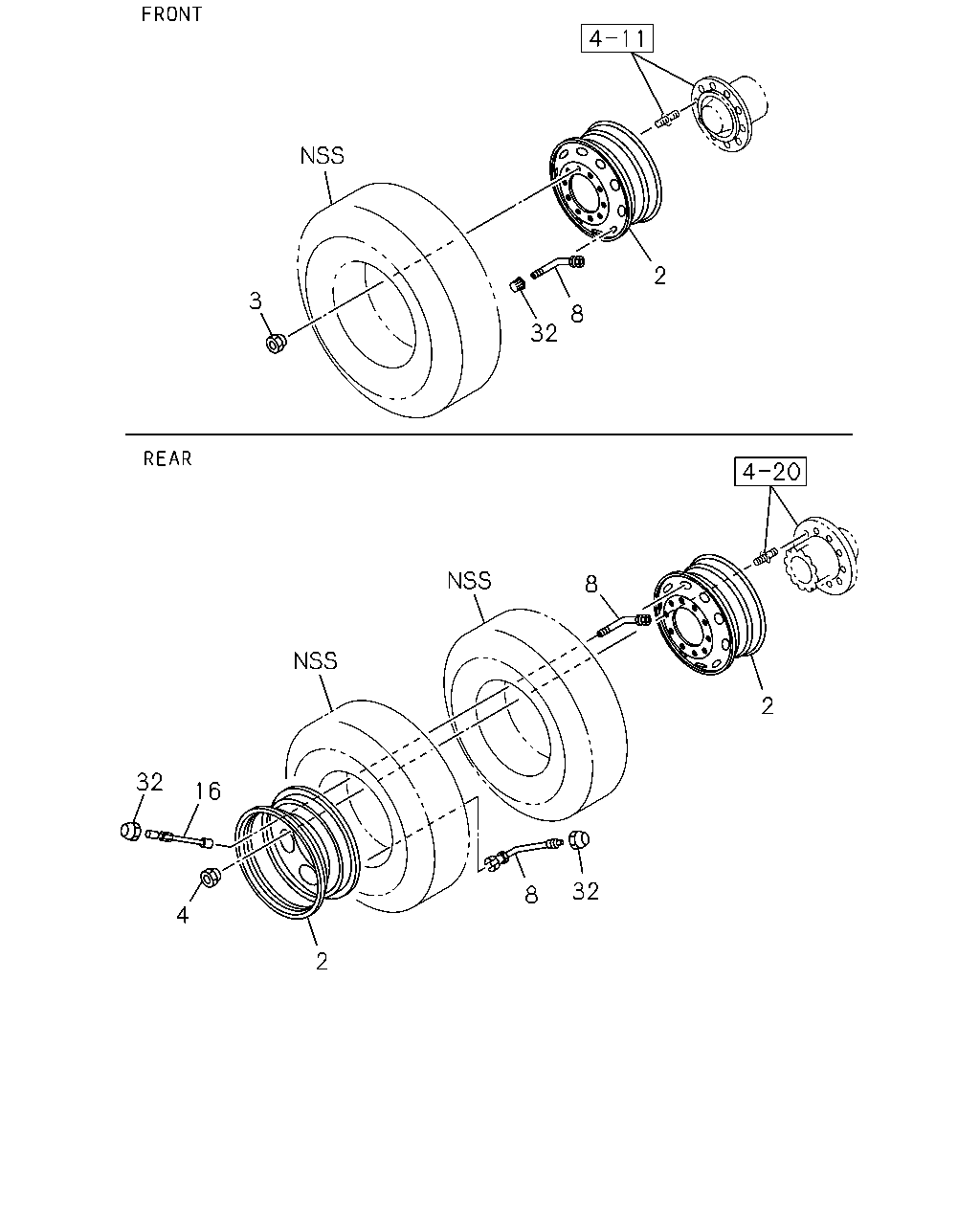

çizim 90168
2 3 8 32 8 2 32 16 32 8 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) SPARE 		1-42350-730-0 01 1 0609-1205 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-730-0 01 1 0609-1205 ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) SPARE 		8-98217-247-0 01 1 1206- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		8-98217-247-0 01 1 1206- ● ●
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE 		1-42350-745-0 01 1 0609- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-745-0 01 1 0609- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) SPARE 		1-42350-730-0 06 1 0609-1205 ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) 		8-98217-247-0 06 1 1206- ● ●
2 WHEEL; DISC
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-42350-745-0 06 1 0609- ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-050-1 20 1 0609-0907 ● ●
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 20 1 0908- ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-050-1 20 1 0609-0907 ● ●
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 20 1 0908- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) SPARE 		1-42370-048-0 01 1 1206- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-048-0 01 1 1206- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8) 		1-42370-048-0 06 1 1206- ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 22.5X7.50 162-12(Q87) SPARE 		1-42370-020-3 01 1 0609-1205 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 22.5X7.50 162-12(Q87) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0609-1205 ● ●
8 VALVE; TIRE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE 		1-42370-020-3 01 1 1206- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 1206- ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 22.5X7.50 162-12(Q87) 		1-42370-020-3 06 1 0609-1205 ● ●
8 VALVE; TIRE
DISC WHEEL 10STUD 22.5X7.50 162-12(Q87) 		1-42370-020-3 06 1 1206- ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 0609-1003 ● ●
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		8-98167-052-0 02 1 1004- ● ●
32 CAP; VALVE
DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 22.5X7.50 162-12(Q87) SPARE 		1-42374-001-0 01 1 0609- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 22.5X7.50 162-12(Q87) SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42374-001-0 01 1 0609- ● ●
32 CAP; VALVE
DISC WHEEL 10STUD 22.5X8.25 165-13(QM8),DISC WHEEL10STUD 22.5X7.50 162-12(Q87) 		1-42374-001-0 06 1 0609- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
