◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#25065) — 36 parça

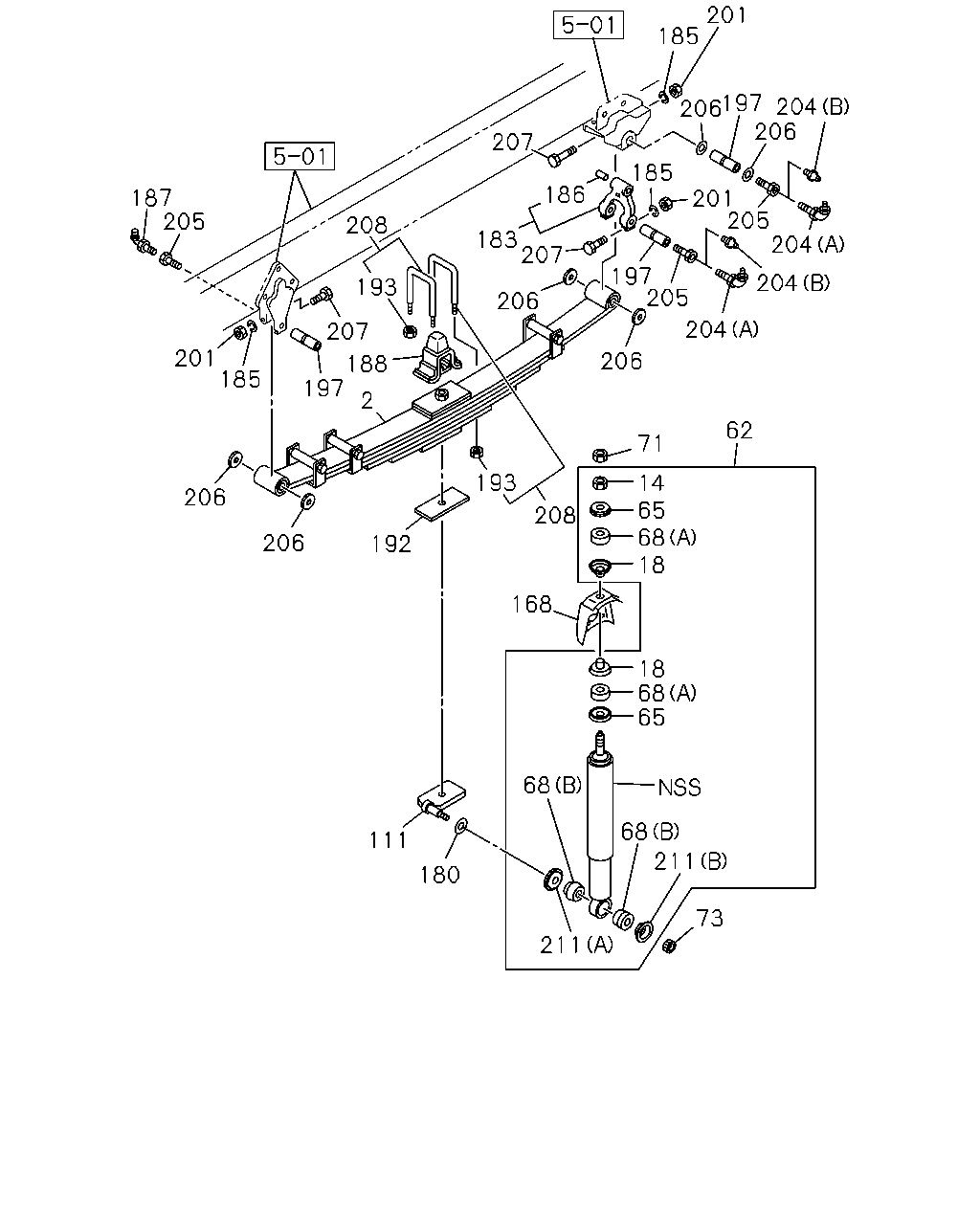

çizim 106157
201 185 197 206 204 206 207 185 186 187 205 201 205 204 208 183 207 197 205 204 193 206 204 207 201 206 188 197 185 2 62 71 193 14 65 68 18 206 208 206 192 168 18 68 65 68 68 111 211 180 73 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF 		1-51130-343-0 02 1 0609- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 9-LEAF 		1-51130-349-0 02 1 0609- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 0609- ● ●
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 0609- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-579-0 02 1 0609- ● ●
65 WASHER; S/ABS
ID=16.5 		9-51631-040-0 04 1 0609- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 0609- ● ●
68 BUSHING; S/ABS
(A) 		9-51631-039-0 04 1 0609- ● ●
71 NUT; LK,S/ABS,UPR
M14 		0-91111-514-0 02 1 0609- ● ●
73 NUT; BRKT,SHOCK
M20 		0-91110-520-0 02 1 0609- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-722-1 01 1 0609-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-483-0 01 1 1005- ● ●
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-723-1 01 1 0609-1004 ● ●
111 SUPPORTER; S/ABS,FRT SUSP 8-98153-484-0 01 1 1005- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 0609- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 0609- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 0609- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 0609- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 0609-0902 ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 0903- ● ●
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 0609- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-1 02 1 0609- ● ●
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 01 1 0609- ● ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 0609-1206 ● ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207- ● ●
197 PIN; FRT SPR,FRT 1-51161-031-0 06 1 0609- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 0609- ● ●
204 NIPPLE; GREASE,RR
(B) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0609- ● ●
204 NIPPLE; GREASE,RR
(A) PT1/8 ELBOW 		0-90301-610-0 02 1 0609- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 0609- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 0609- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 0609- ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-380-1 04 1 0609-1206 ● ●
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1207- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0609- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0609- ● ●
