4-36 — POWER STEERING CONTROL; ENGINE SIDE (#25062) — 12 parça

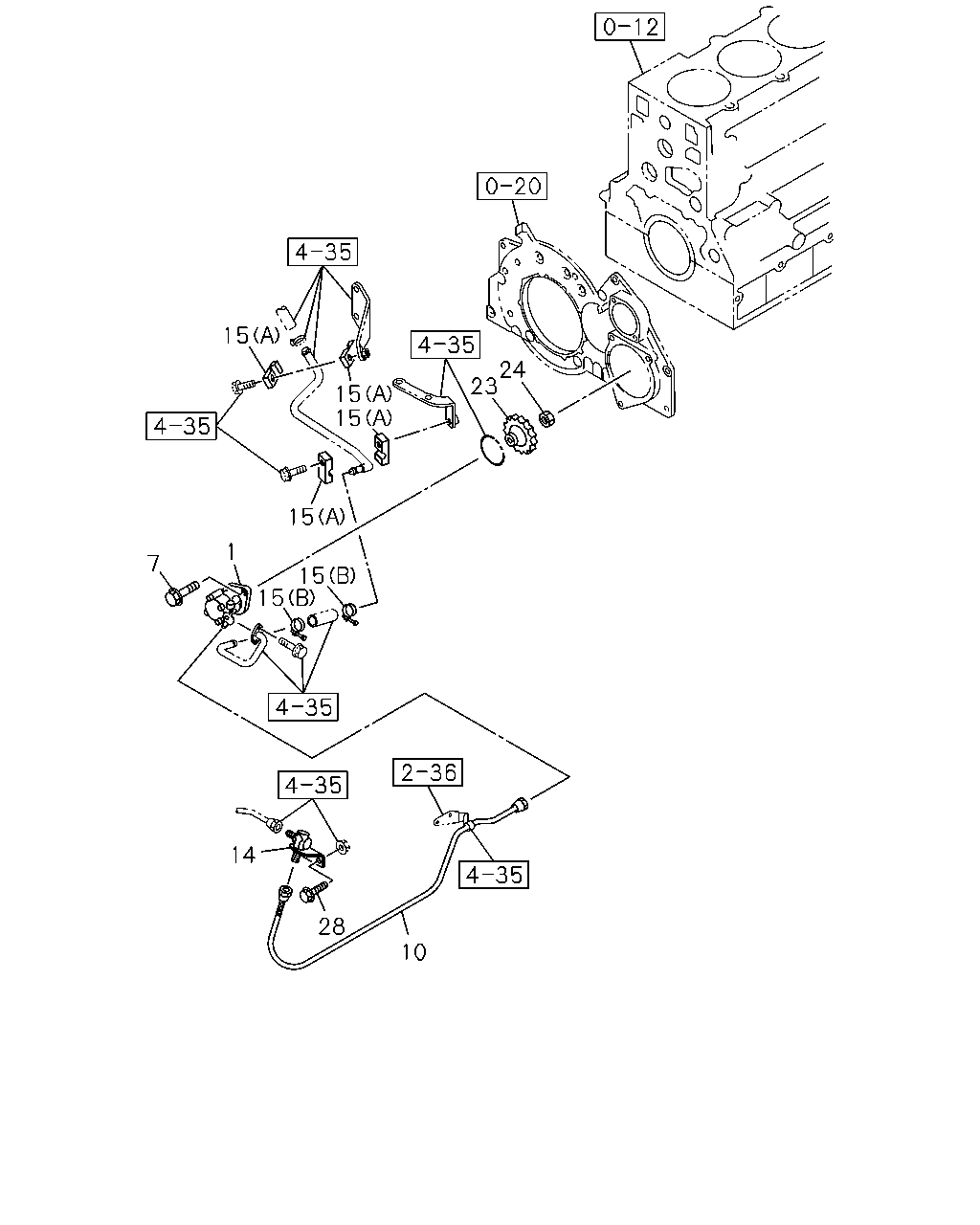

çizim 90165
15 24 23 15 15 15 1 7 15 15 14 28 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-548-1 01 1 0609- ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-94399-863-1 02 1 0609-0805 ● ●
7 BOLT; OIL PUMP,P/S
M10X55 FLANGE 		8-97365-449-0 02 1 0806- ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) L=1025 		1-09365-107-0 01 1 0609- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCC ENG(81L) L=900 		1-09365-251-0 01 1 0609- ●
10 HOSE; FLEX,P/S OIL PUMP,INL
L=900 		1-09365-251-0 01 1 0609- ●
14 UNION; FLEX HOSE,P/S 1-47470-663-0 01 1 0609- ● ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-284-0 04 1 0609- ● ●
15 CLIP; OIL PIPE SUCTION
(B) ID=32 		1-09704-085-0 04 1 0609- ● ●
23 GEAR; OIL PUMP
Z=30 		8-94396-957-3 01 1 0609- ● ●
24 NUT; GEAR,P/S PUMP
M14 FLANGE 		0-91180-114-0 01 1 0609- ● ●
28 BOLT; BRKT,FLEX HOSE,P/S
M8X20 FLANGE 		0-28650-820-0 02 1 0609- ● ●
