4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#25061) — 43 parça

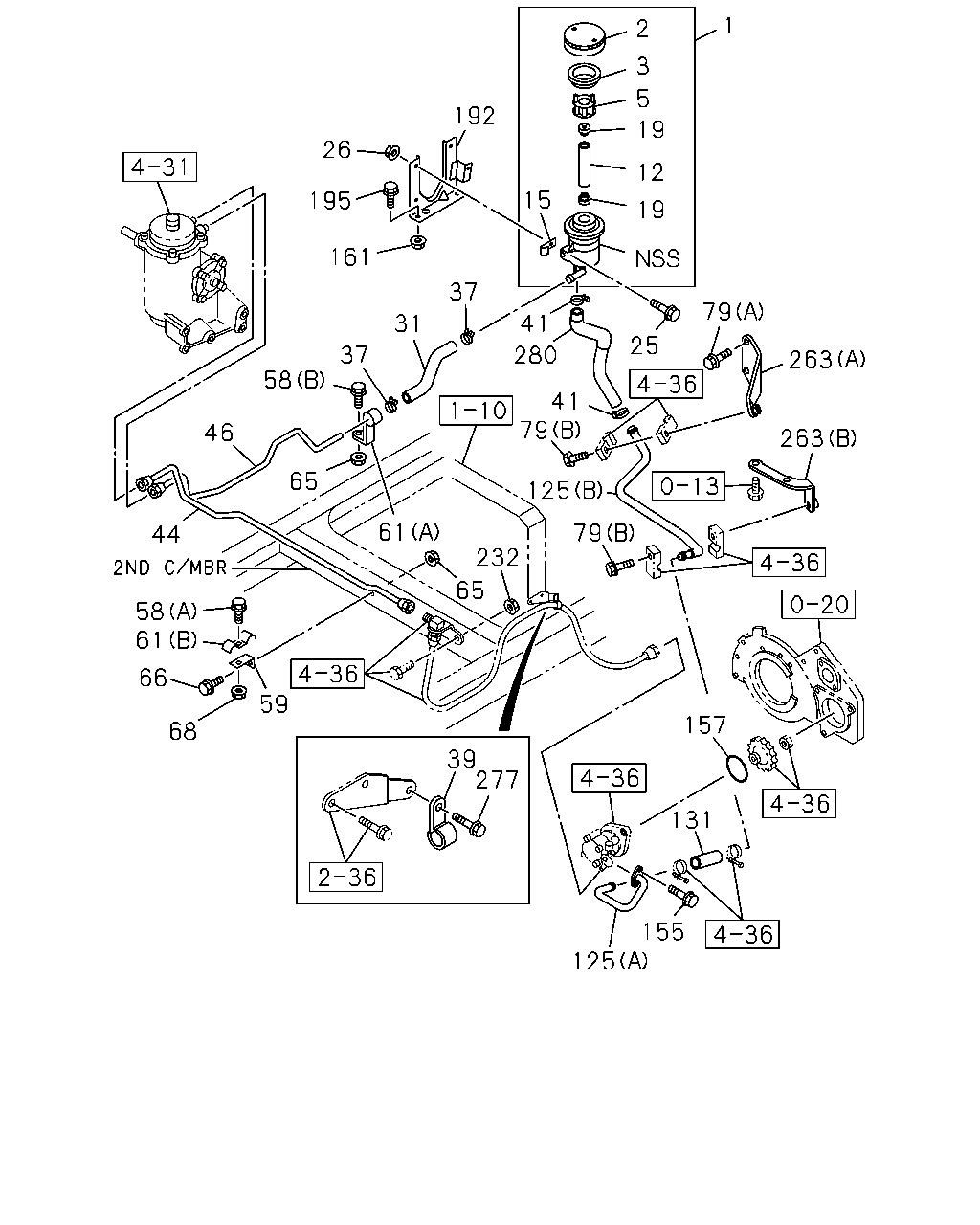

çizim 106152
1 2 3 5 192 19 26 12 15 195 19 161 37 79 41 31 25 37 280 263 58 41 79 46 263 65 125 61 79 44 232 65 58 61 59 66 157 68 39 277 131 155 125
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0609-1006 ● ●
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007- ● ●
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0609-1006 ● ●
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007- ● ●
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0609- ● ●
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0609- ● ●
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0609- ● ●
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0609- ● ●
19 SEAT; OIL TANK 1-21249-004-0 02 1 0609- ● ●
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0609- ● ●
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 0609- ● ●
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0609- ● ●
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0609- ● ●
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0609- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21117-812-0 01 1 0609- ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=965 		1-21117-226-0 01 1 0609- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21115-621-0 01 1 0609- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=786 		1-21115-336-0 01 1 0609- ●
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0609- ● ●
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0609- ● ●
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0609- ● ●
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0609- ● ●
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 0609- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0609- ● ●
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0609- ● ●
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0609- ● ●
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 01 1 0609- ● ●
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 04 1 0609- ● ●
79 BOLT; BRKT
(B) M8X45 FLANGE 		0-28050-845-0 01 1 0609- ● ●
125 CONNECTOR; P/S PUMP
(A) 		8-98045-797-0 01 1 0609- ● ●
125 CONNECTOR; P/S PUMP
(B) 		8-98045-798-0 01 1 0609- ● ●
131 HOSE; RUBBER,P/S
L=100 SERVICED BY L=10000 		9-09912-813-0 01 1 0609- ● ●
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0609- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-467-0 01 1 0609- ● ●
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 01 1 0609- ● ●
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 0609- ● ●
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
263 BRACKET; P/S PIPE
(A) 		8-97614-668-1 01 1 0609- ● ●
263 BRACKET; P/S PIPE
(B) 		8-98049-252-0 01 1 0609- ● ●
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0609- ● ●
280 HOSE; P/S OIL PUMP,INL 1-21117-907-0 01 1 0609- ● ●
