◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#2506) — 47 parça

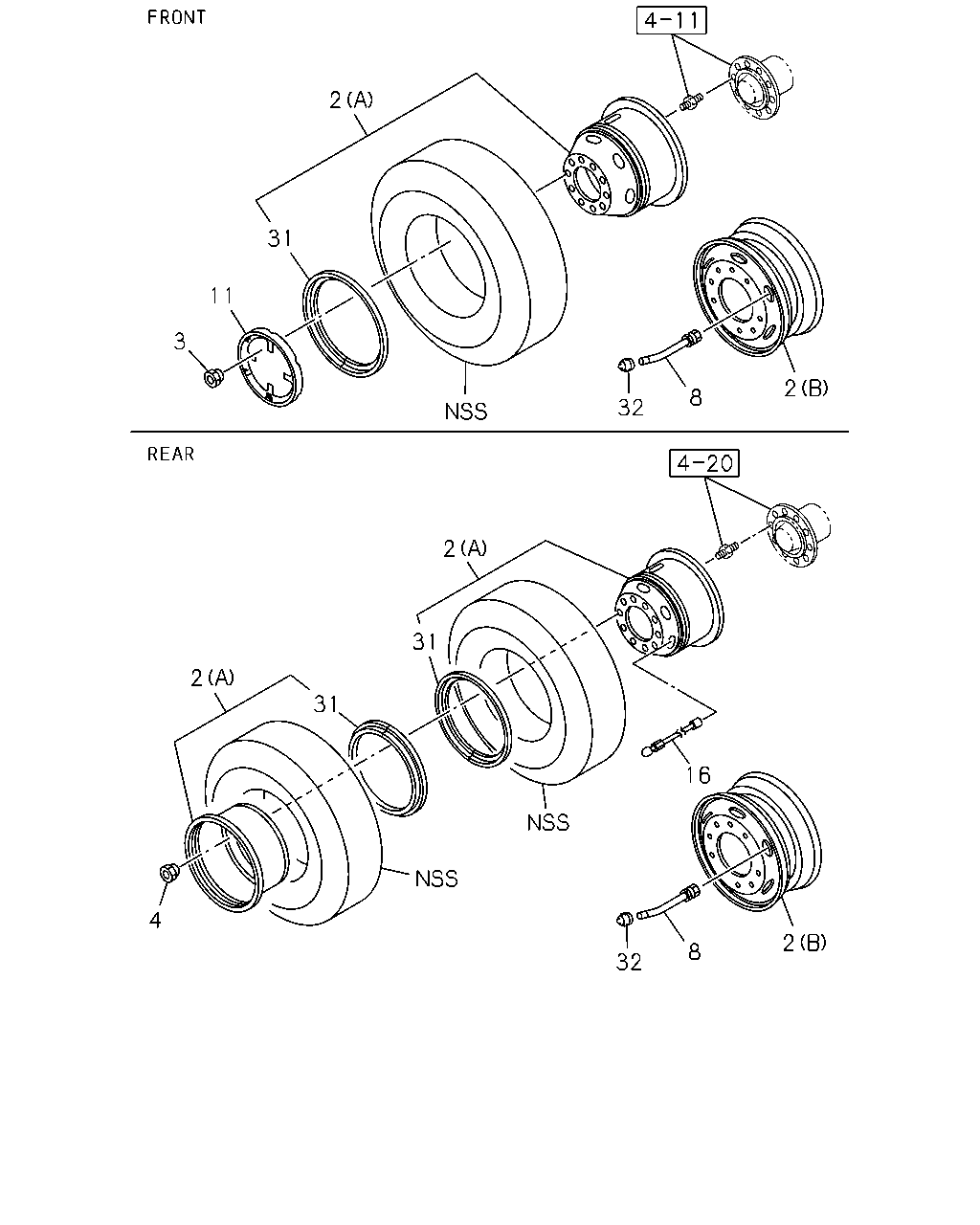

çizim 95449
2 31 11 3 2 8 32 2 31 2 31 16 4 2 8 32
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-137-1 01 1 9002-9406
2 WHEEL; DISC
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-496-0 01 1 9407-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-333-0 01 1 9002-9312
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-471-0 01 1 9401-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-333-0 06 1 9002-9312
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-471-0 06 1 9401-
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42350-334-0 01 1 9004-9306
2 WHEEL; DISC
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) 		1-42350-334-0 06 1 9004-9306
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-161-2 01 1 9002-9301
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-448-0 01 1 9302-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-330-0 01 1 9002-9306
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) 		1-42350-330-0 01 1 9307-9312
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) 		1-42350-468-0 01 1 9401-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) 		1-42350-332-0 01 1 9004-9306
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-332-0 06 1 9004-9306
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-331-0 06 1 9004-9306
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) WHEEL PAINTED LIGHT ARGENT<SKD> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) 		1-42350-331-0 01 1 9004-9306
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> (B) 		1-42350-330-0 06 1 9002-9306
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-330-0 06 1 9307-9312
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. WHEEL PAINTED LIGHT ARGENT<SKD> (B) 		1-42350-468-0 06 1 9401-
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-161-2 06 1 9002-9301
2 WHEEL; DISC
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-448-0 06 1 9302-
2 WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-137-1 06 1 9002-9406
2 WHEEL; DISC
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) 		1-42350-496-0 06 1 9407-
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-029-0 20 1 9002-9203
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD 		1-42333-042-0 20 1 9204-
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-031-0 20 1 9002-9110
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-040-0 20 1 9111-
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-029-0 20 1 9002-9203
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 RH THREAD 		1-42333-042-0 20 1 9204-
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-031-0 20 1 9002-9110
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 		1-42333-040-0 20 1 9111-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42370-020-3 06 1 9002-
8 VALVE; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42370-020-3 01 1 9002-
11 STEP; DISC WHEEL SIDE 1-43139-012-2 02 1 9002-9003
11 STEP; DISC WHEEL SIDE
EXC. WHEEL PAINTED LIGHT ARGENT<SKD>,DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-43139-012-2 02 1 9004-9306
11 STEP; DISC WHEEL SIDE 1-43139-012-2 02 1 9307-
11 STEP; DISC WHEEL SIDE
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> 		1-43139-025-0 02 1 9004-9306
11 STEP; DISC WHEEL SIDE
WHEEL PAINTED LIGHT ARGENT<SKD> 		1-43139-026-0 02 1 9004-9306
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9002-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42355-004-1 01 1 9002-
31 RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42355-014-0 01 1 9002-
31 RING; SIDE,DISC WHEEL
INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42355-014-0 06 1 9002-
31 RING; SIDE,DISC WHEEL
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) 		1-42355-004-1 06 1 9002-
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 9304-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 9304-
