4-31 — STEERING COLUMN AND SHAFT
(#25059) — 41 parça
Tümü
A - FVR5FF
B - FVR5MF
◀

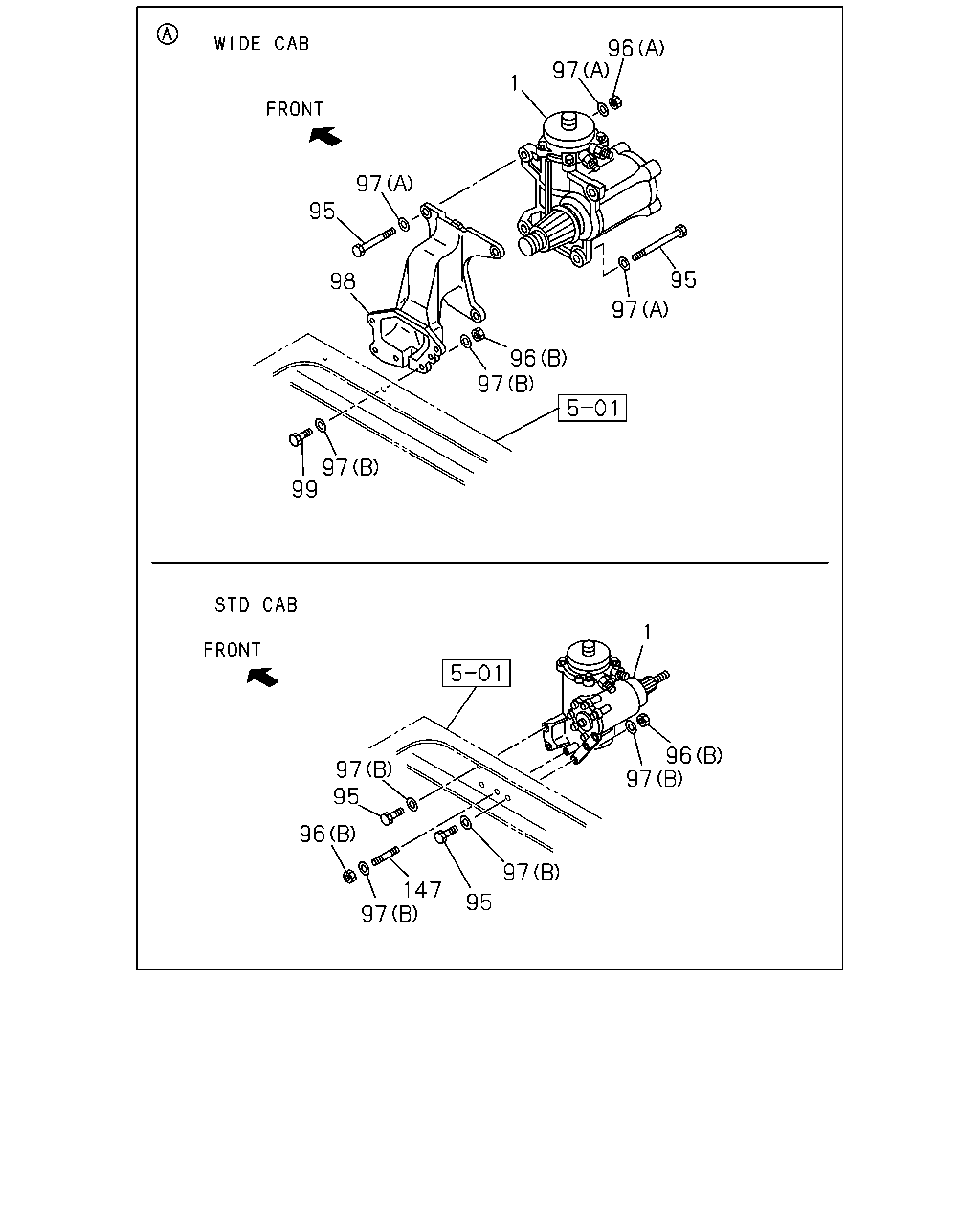

[431A] STEERING UNIT (14 parça)

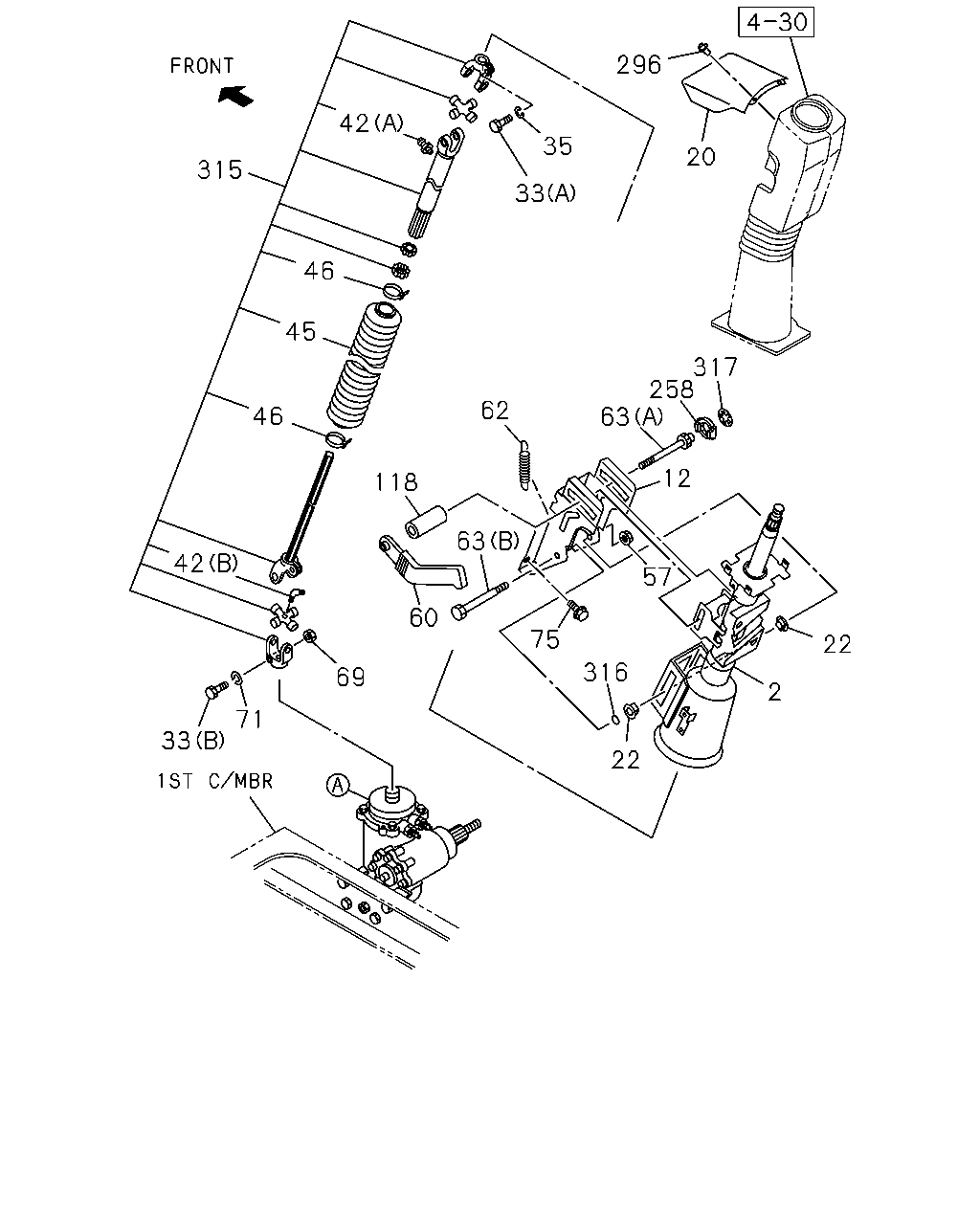

[431A] STEERING SHAFT (27 parça)
▶
96
97
1
97
95
95
98
97
96
97
97
99
1
96
97
97
95
96
97
147
97
95
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-840-4
01
1
0609-
●
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-834-4
01
1
0609-
●
95
BOLT; STRG UNIT
M16X66
1-09000-305-0
04
1
0609-
●
95
BOLT; STRG UNIT
M14X55
9-92061-455-0
05
1
0609-
●
96
NUT; STRG UNIT
(A) M16
0-91110-516-0
02
1
0609-
●
96
NUT; STRG UNIT
(B) M14
0-91110-514-0
06
1
0609-
●
●
97
WASHER; PL,STRG UNIT
(A) ID=16.2
1-09503-223-0
06
1
0609-
●
97
WASHER; PL,STRG UNIT
(B) ID=15
9-09651-069-0
12
1
0609-1201
●
97
WASHER; PL,STRG UNIT
(B) ID=15
8-98010-627-1
12
1
1202-
●
97
WASHER; PL,STRG UNIT
(B) ID=15
9-09651-069-0
11
1
0609-1201
●
97
WASHER; PL,STRG UNIT
(B) ID=15
8-98010-627-1
11
1
1202-
●
98
BRACKET; STRG GEAR BOX
1-44226-136-1
01
1
0609-
●
99
BOLT; BRKT TO FRAME
M14X55
9-92061-455-0
06
1
0609-
●
147
STUD; STRG UNIT
M14X37 L=66
1-09300-095-1
01
1
0609-
●
296
42
35
20
315
33
46
45
317
258
63
62
46
12
118
63
42
57
60
75
22
316
69
2
71
33
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
SHAFT ASM; STRG
1-44130-689-1
01
1
0609-
●
●
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
0609-0811
●
●
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0812-
●
●
20
COVER; STRG SHAFT
1-72438-121-3
01
1
0609-
●
●
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0609-
●
●
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0609-0707
●
●
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0708-
●
●
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0609-
●
●
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
0609-
●
●
42
NIPPLE; GREASE,SLEEVE YOKE
(A)
1-44135-375-0
01
1
0609-
●
●
42
NIPPLE; GREASE,SLEEVE YOKE
(B)
1-44135-376-0
01
1
0609-
●
●
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
0609-
●
●
46
CLIP; BOOT
1-44139-156-0
02
1
0609-
●
●
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0609-
●
●
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0609-
●
●
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0609-
●
●
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
0609-
●
●
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
0609-
●
●
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
0609-
●
●
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
0609-
●
●
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
0609-
●
●
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0609-
●
●
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0609-
●
●
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
0609-
●
●
315
JOINT; SPLINE
1-44135-377-0
01
1
0609-
●
●
316
RING
1-44227-152-0
01
1
0609-
●
●
317
NUT; PUSH
1-44227-148-0
01
1
0609-
●
●
