3-77 — BRAKE PIPING; AIR,REAR
(#25051) — 58 parça
Tümü
A - FVR5FF
B - FVR5MF
◀

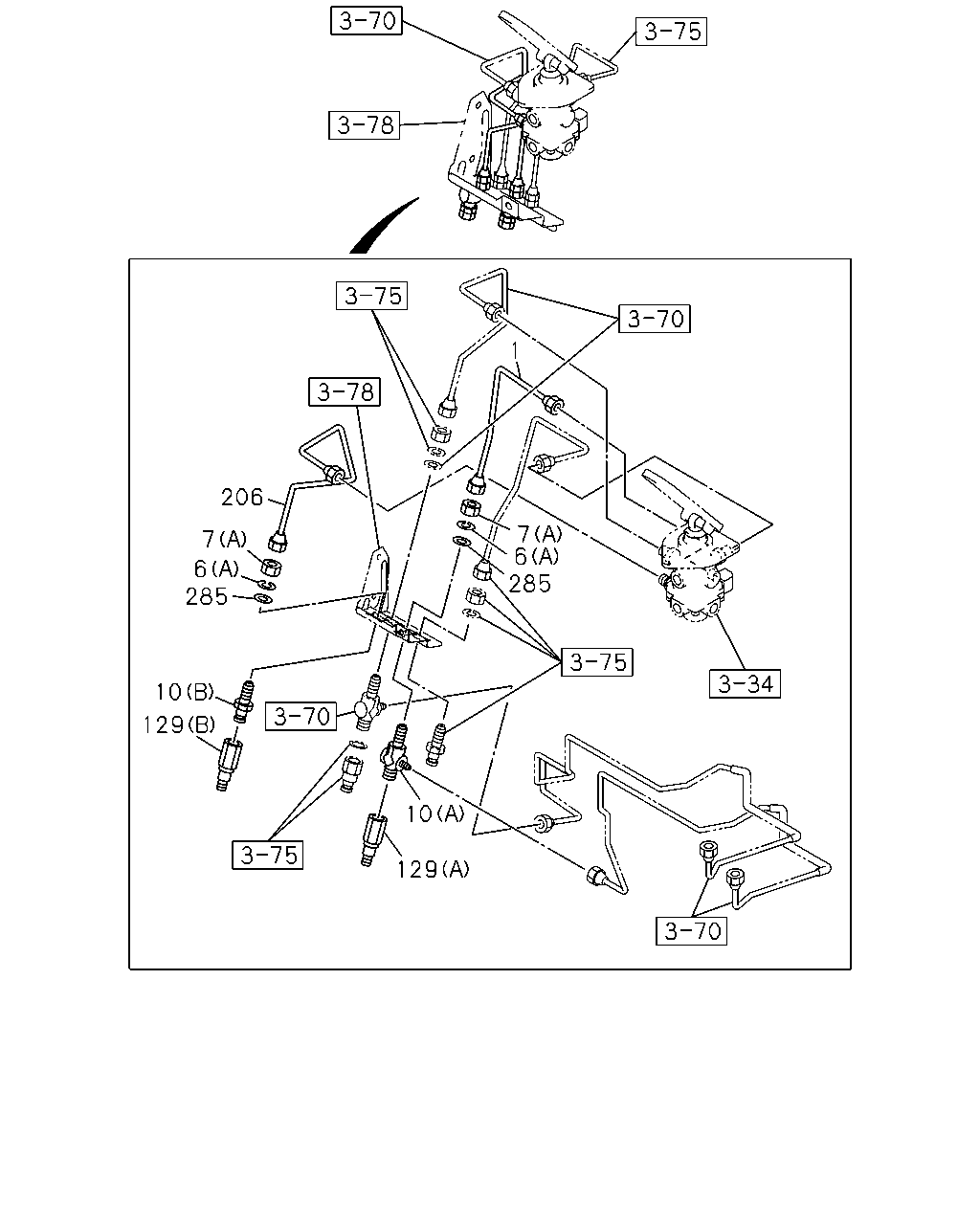

[377A] CAB SIDE NO.2 (12 parça)

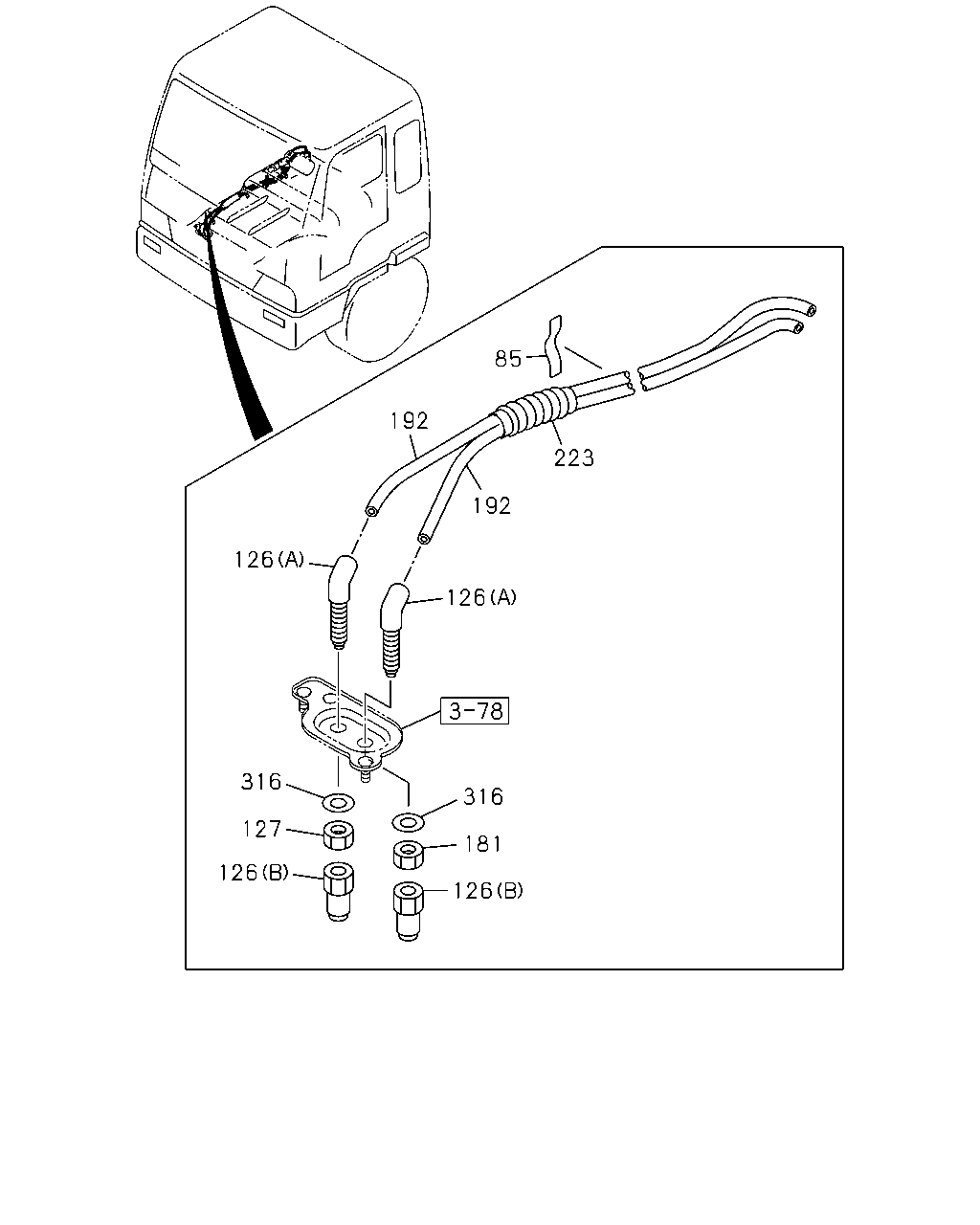

[377A] CAB SIDE NO.1 (13 parça)

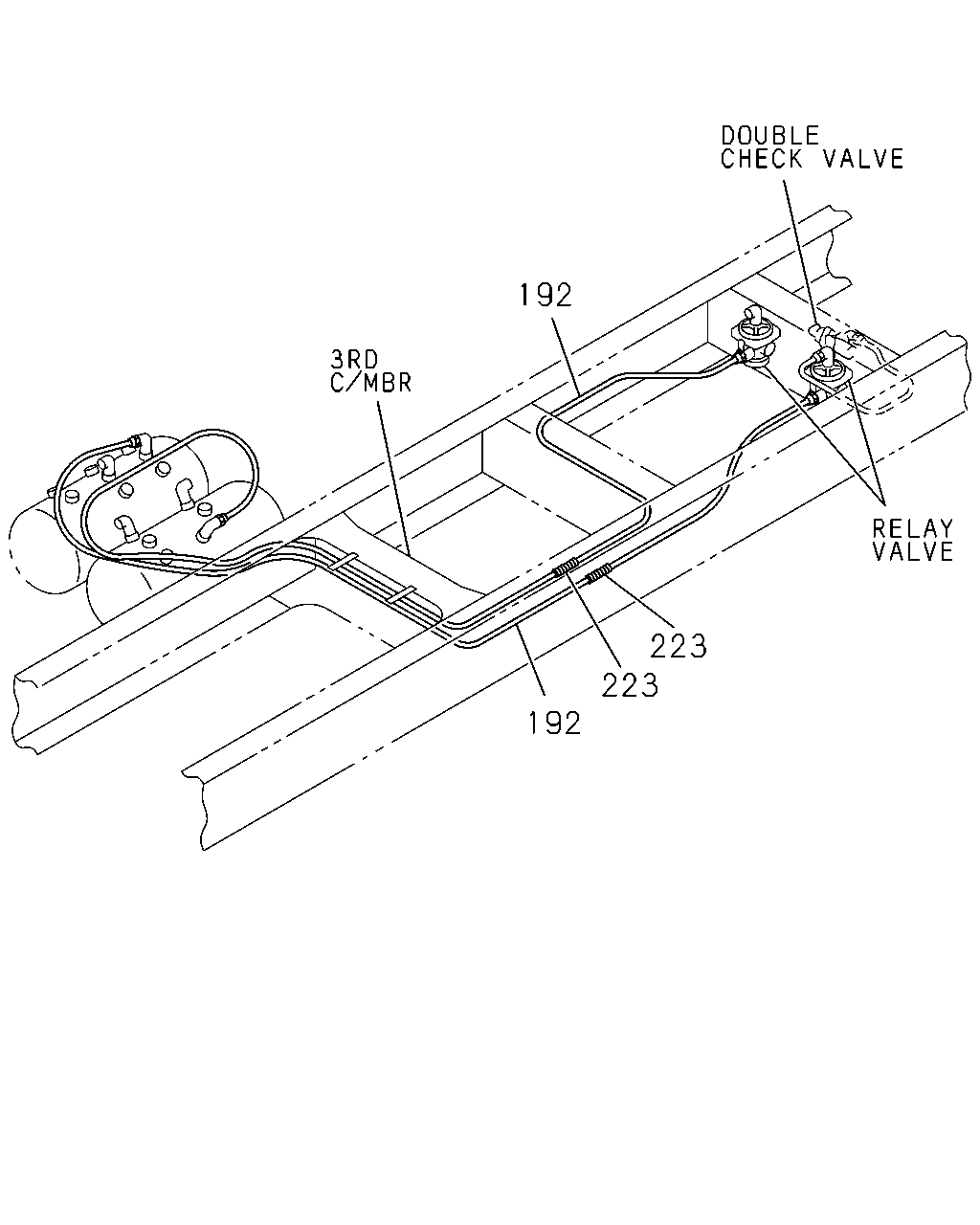

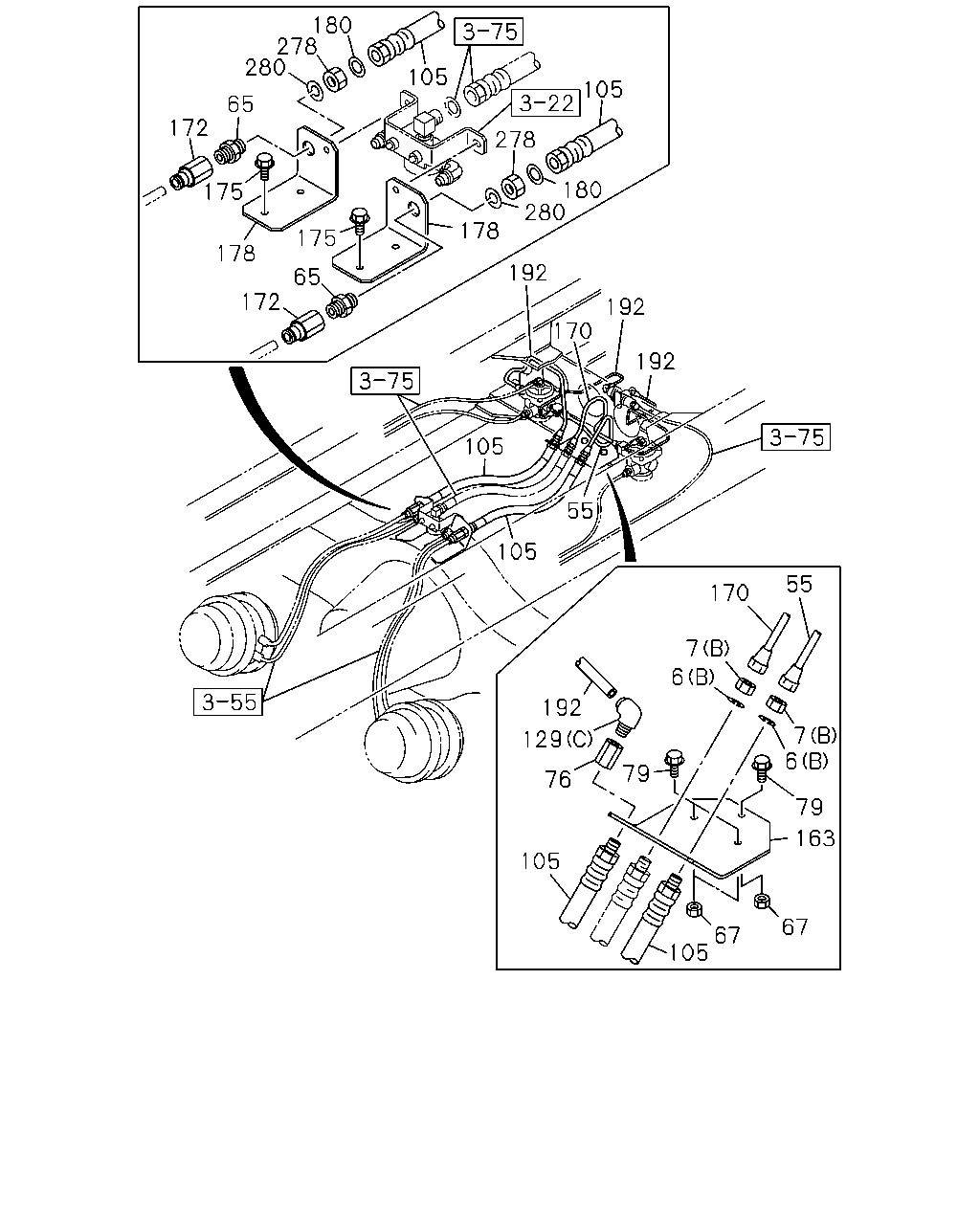

[377A] FRAME SIDE NO.2 (27 parça)
[377A] FRAME SIDE NO.1 (6 parça)
▶
1
206
7
6
285
7
6
285
10
129
10
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0609-
●
●
6
WASHER; LK,FLEX HOSE
(A) ID=16.2
0-91510-516-0
02
1
0609-
●
●
6
WASHER; LK,FLEX HOSE
(B) ID=20.2
0-91510-520-0
02
1
0609-
●
●
7
NUT; FLEX HOSE
(A) M16
0-91111-516-0
02
1
0609-
●
●
7
NUT; FLEX HOSE
(B) M20
0-91111-520-0
02
1
0609-
●
●
10
CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT
1-09654-380-0
01
1
0609-
●
●
10
CONNECTOR; FLEX HOSE
(A)
1-09656-754-0
01
1
0609-
●
●
129
CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0609-
●
●
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0609-
●
●
129
CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0609-
●
●
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0609-
●
●
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0609-
●
●
85
192
223
192
126
126
316
316
127
181
126
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
85
GASKET; NYLON TUBE
100X40
1-72498-022-1
05
1
0609-
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0609-0706
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
8-98078-117-0
02
1
0707-
●
●
126
UNION; NYLON TUBE
(B) DIN8 & M20 STRAIGHT
1-09661-381-0
02
1
0609-0706
●
●
127
NUT; UNION
M20
0-91111-520-0
01
1
0609-
●
●
181
NUT; TUBE UNION
M20
0-91111-520-0
01
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=12000 OD=12
1-87411-015-0
AR
1
0609-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0609-
●
●
316
WASHER; PL
ID=21
0-91610-520-0
02
1
0609-
●
●
180
278
280
105
105
65
172
278
180
280
175
178
175
178
192
65
172
192
170
192
105
55
105
55
170
7
6
192
7
6
129
79
76
79
163
105
67
67
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
WASHER; LK,FLEX HOSE
(A) ID=16.2
0-91510-516-0
02
1
0609-
●
●
6
WASHER; LK,FLEX HOSE
(B) ID=20.2
0-91510-520-0
02
1
0609-
●
●
7
NUT; FLEX HOSE
(A) M16
0-91111-516-0
02
1
0609-
●
●
7
NUT; FLEX HOSE
(B) M20
0-91111-520-0
02
1
0609-
●
●
55
PIPE; AIR,RELAY VLV TO FLEX HOSE
L=426
1-49118-958-0
01
1
0609-
●
●
65
CONNECTOR; FLEX HOSE,POWER CHAMBER
M20 STRAIGHT
1-09654-240-1
02
1
0609-
●
●
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
03
1
0609-
●
●
76
ADAPTER; NYLON TUBE
M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
0609-
●
●
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
03
1
0609-
●
●
105
HOSE; FLEX
L=610
0-57807-610-1
02
1
0609-
●
●
129
CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0609-
●
●
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0609-
●
●
129
CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0609-
●
●
163
BRACKET; FLEX HOSE
1-47477-997-1
01
1
0609-
●
●
170
PIPE; AIR,RELAY VLV TO FLEX HOSE
L=510
1-49118-957-0
01
1
0609-
●
●
172
ADAPTER; UNION
DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0609-
●
●
175
BOLT; HOSE BRKT
M8X16 FLANGE
0-28050-816-0
04
1
0609-
●
●
178
BRACKET; UNION
1-47477-516-0
01
1
0609-
●
●
178
BRACKET; UNION
1-47477-517-0
01
1
0609-
●
●
180
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=12000 OD=12
1-87411-015-0
AR
1
0609-
●
●
278
NUT; UNION
M20
0-91111-520-0
02
1
0609-
●
●
280
WASHER; LK
ID=20.2
0-91510-520-0
02
1
0609-
●
●
192
223
223
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0609-
●
●
192
TUBE; NYLON
SERVICED BY L=12000 OD=12
1-87411-015-0
AR
1
0609-
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0609-
●
●
