Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#25050) — 56 parça

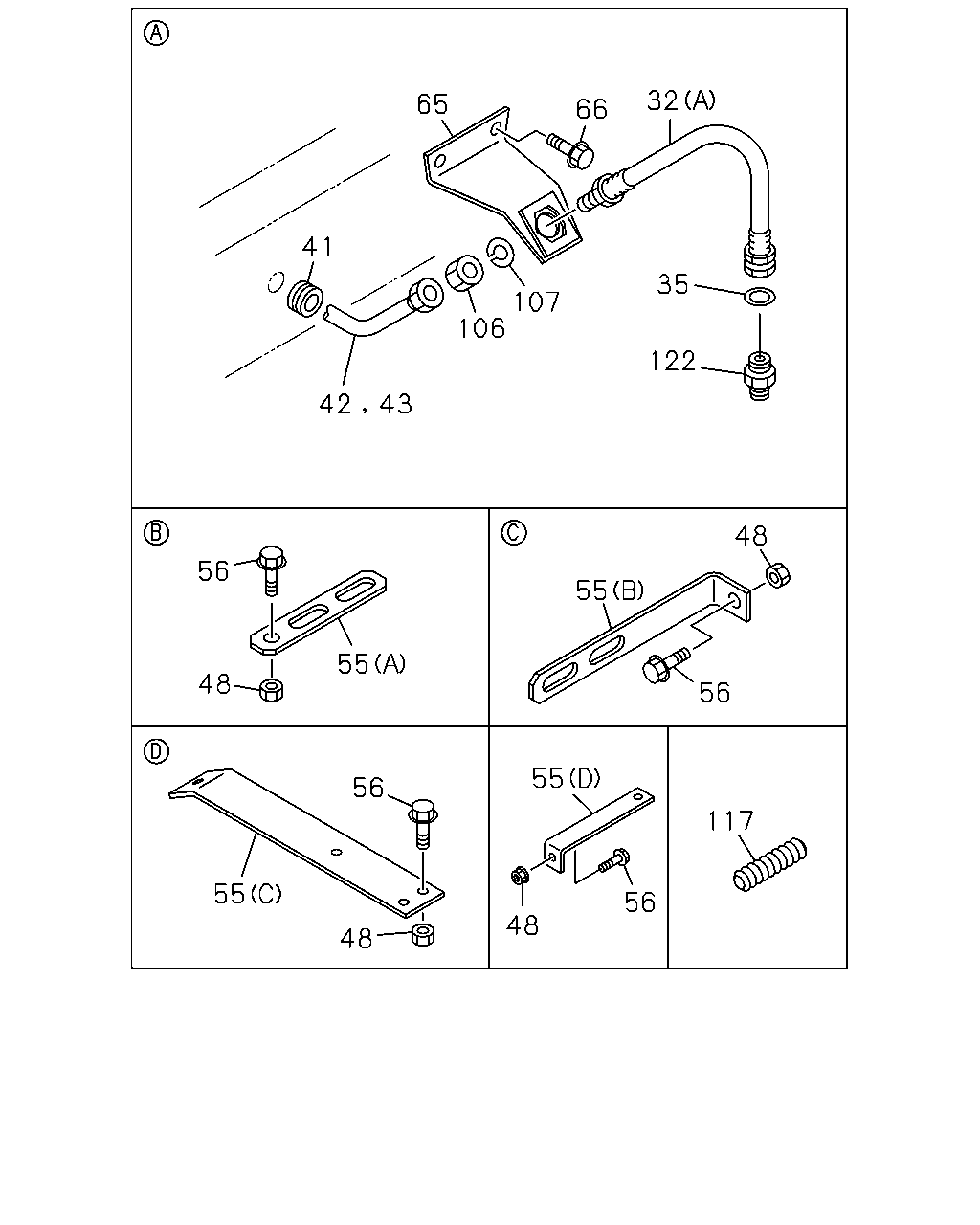

32 65 66 41 35 107 122 48 56 55 55 48 56 55 56 117 55 56 48 48 42 43 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0609-	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0609-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0609-	●	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0609-	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0609-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1204 SERVICED BY L=1250	1-47428-791-0	01	1	0609-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	01	1	0609-	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	09	1	0609-	●	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0609-	●	●
55	BRACKET; TUBE UNION (D) L=160 B=25	1-53441-518-0	01	1	0609-	●	●
55	BRACKET; TUBE UNION (C)	1-47477-256-1	01	1	0609-	●	●
55	BRACKET; TUBE UNION (A)	1-47477-514-3	03	1	0609-	●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0609-	●	●
55	BRACKET; TUBE UNION (B) L=100 H=30	1-47477-645-2	02	1	0609-	●	●
55	BRACKET; TUBE UNION (D) L=60 H=30	1-47477-716-1	02	1	0609-	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	01	1	0609-	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28650-825-0	05	1	0609-	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	06	1	0609-	●	●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0609-	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0609-	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0609-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0609-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0609-	●	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0609-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0609-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0609-	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0609-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0609-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0609-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0609-	●	●
122	CONNECTOR; FLEX HOSE M16 STRAIGHT	1-09654-380-0	01	1	0609-	●	●

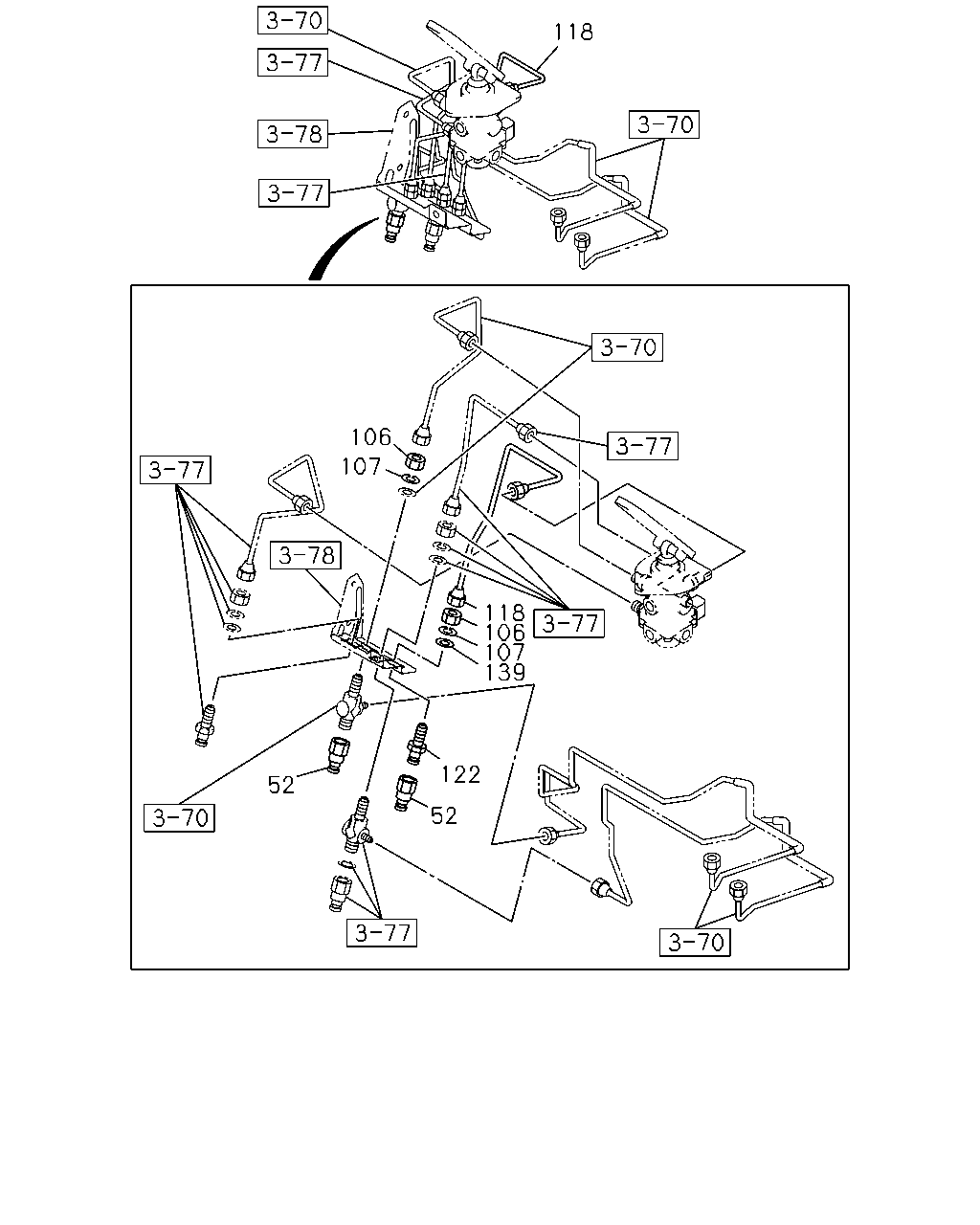

118 106 107 118 106 107 139 122 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0609-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0609-	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	0609-	●	●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0609-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0609-	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	02	1	0609-	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0609-	●	●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0609-	●	●
122	CONNECTOR; FLEX HOSE M16 STRAIGHT	1-09654-380-0	01	1	0609-	●	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0609-	●	●

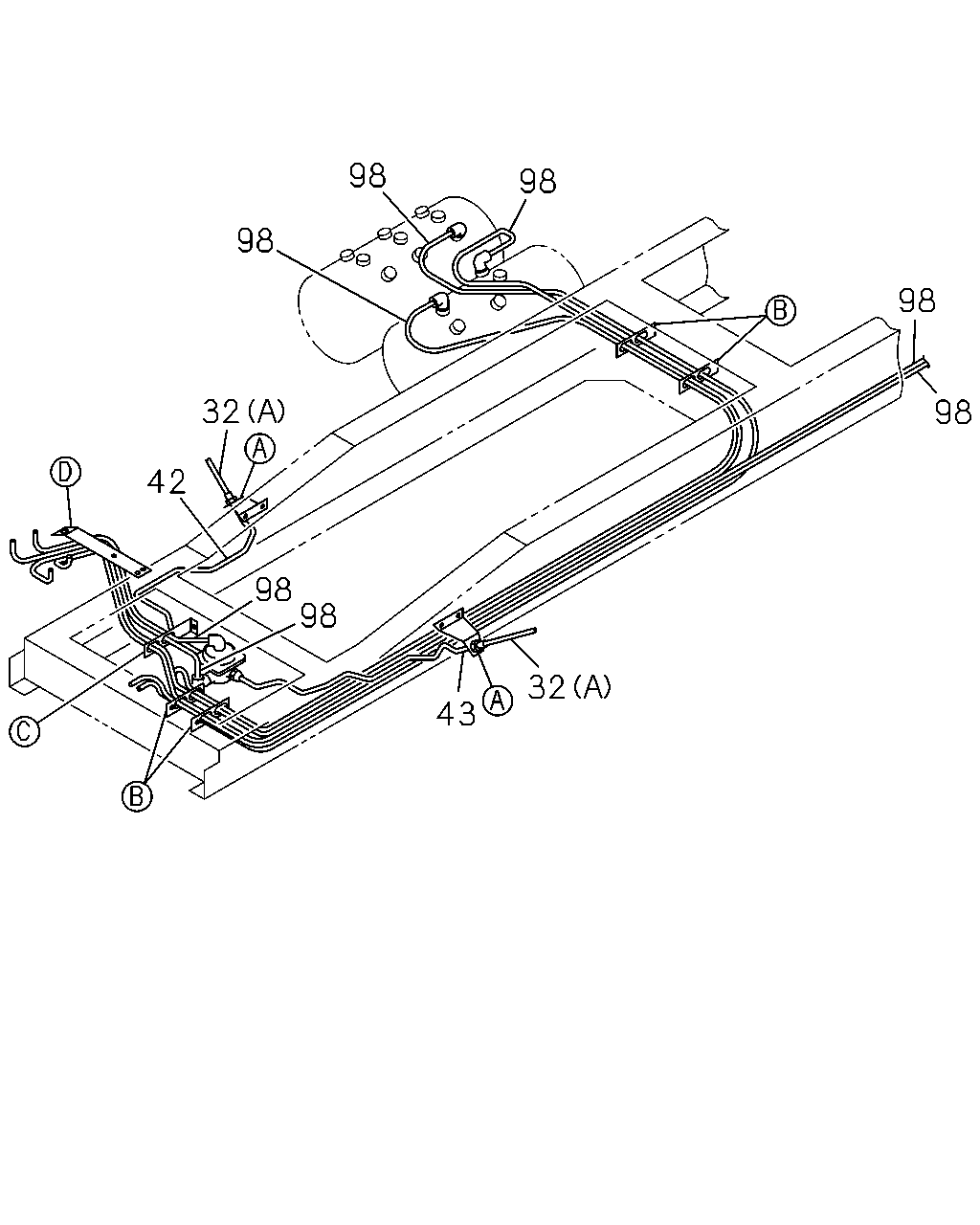

98 98 98 98 32 98 42 98 98 32 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0609-	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0609-	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION L=1185 SERVICED BY L=1250	1-47426-388-0	01	1	0609-	●	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1204 SERVICED BY L=1250	1-47428-791-0	01	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0609-	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0609-	●	●

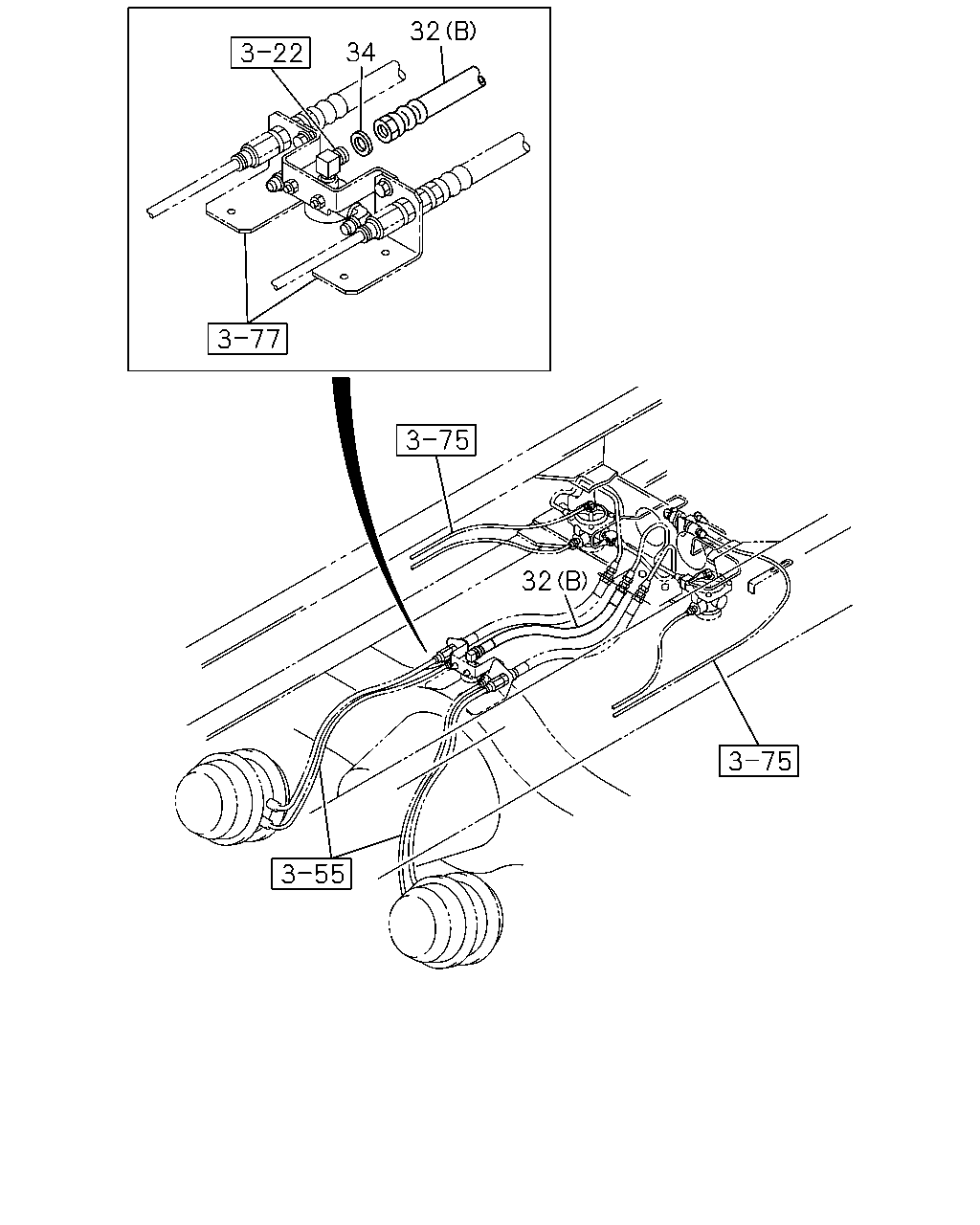

32 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0609-	●	●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0609-	●	●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0609-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
