3-70 — BRAKE PIPING; AIR,AIR MASTER (#25049) — 71 parça

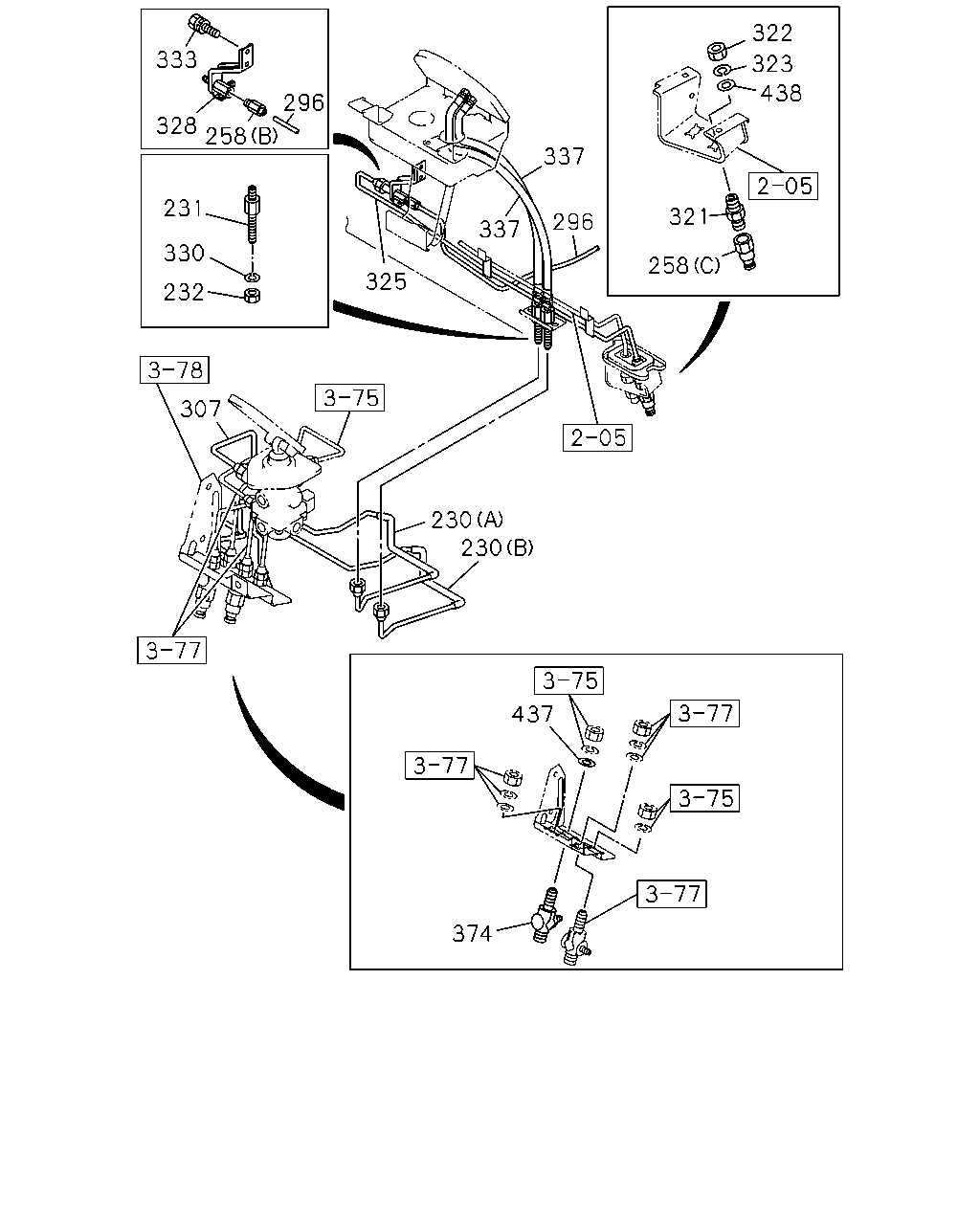

çizim 90140
322 333 323 438 296 328 258 337 231 321 296 337 330 258 325 232 307 230 230 437 374
BalonParca AdiParca NoAdetTipApplied Date A B
230 PIPE; AIR,UNION TO UNION
(A) L=1561 		1-49122-779-0 01 1 0609- ●
230 PIPE; AIR,UNION TO UNION
(B) L=1245 		1-49122-780-0 01 1 0609- ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0609- ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0609- ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0609- ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0609- ● ●
258 CONNECTOR; NYLON TUBE
NISSAN DIESEL MPS62B M/T(Y2Z) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609- ●
258 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0609- ●
258 CONNECTOR; NYLON TUBE
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0609- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0609- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0609- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0609- ● ●
321 JOINT; FLEX HOSE
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-09656-738-0 01 1 0609- ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0609- ●
321 JOINT; FLEX HOSE
ZF9S1110 M/T(Y5E) 		1-09656-772-0 01 1 0609- ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0609- ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0609- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47493-105-1 01 1 0609- ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0609- ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0609- ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0609- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0609-0609 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ●
374 CONNECTOR 1-09656-754-0 01 1 0609- ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0609- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0609- ● ●

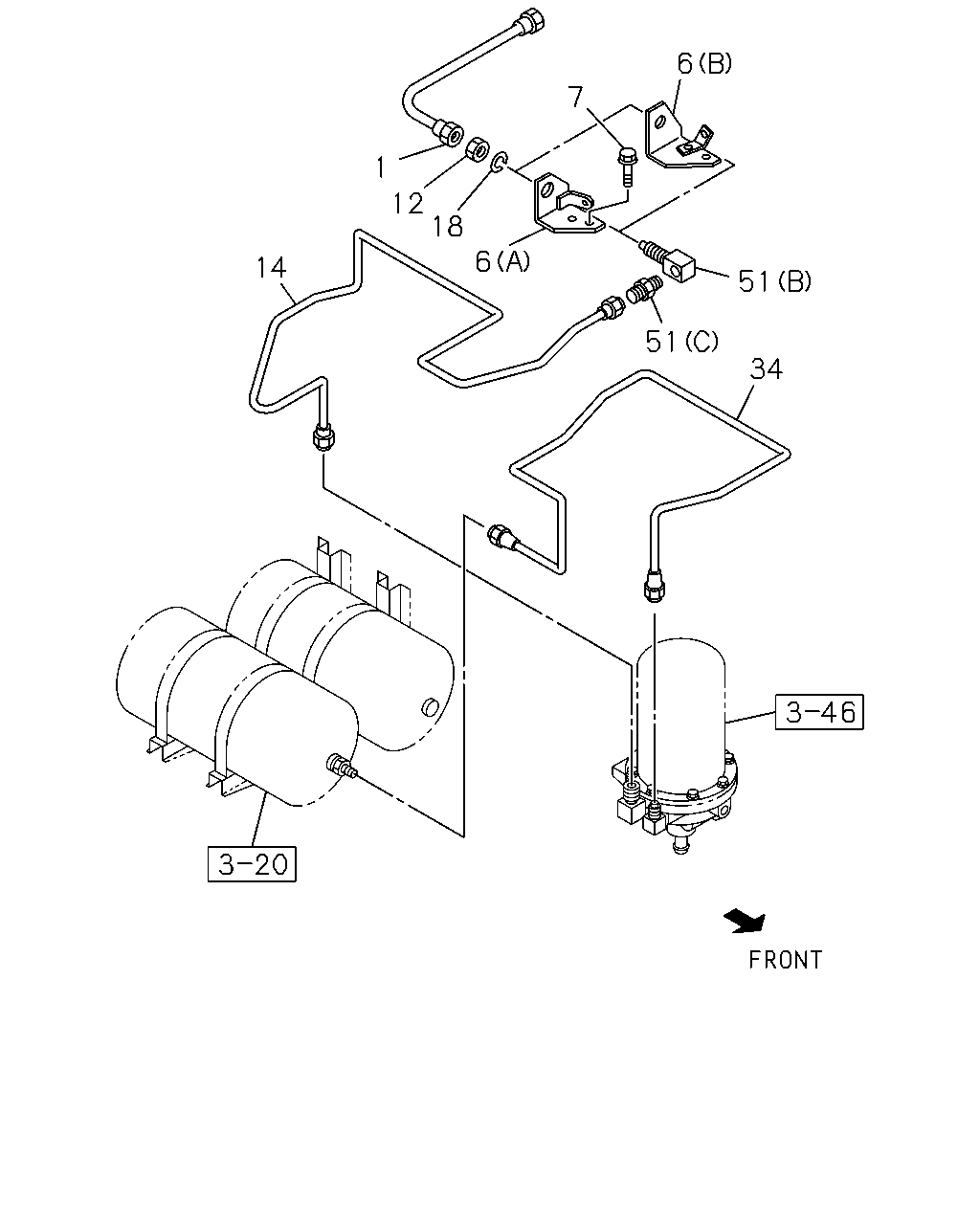

çizim 90268
6 7 1 12 18 6 14 51 51 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=300 		1-09363-760-0 01 1 0609- ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		1-47471-463-0 01 1 0609-0703 ● ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		1-47471-472-0 01 1 0704- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0609- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 0609- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=1870 		1-49124-953-0 01 1 0609- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0609- ● ●
34 PIPE; AIR
L=1382 		1-49124-954-0 01 1 0609- ● ●
51 UNION
(B) 		1-09654-433-0 01 1 0609- ● ●
51 UNION
(C) 		1-09661-810-0 01 1 0609- ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0609- ● ●

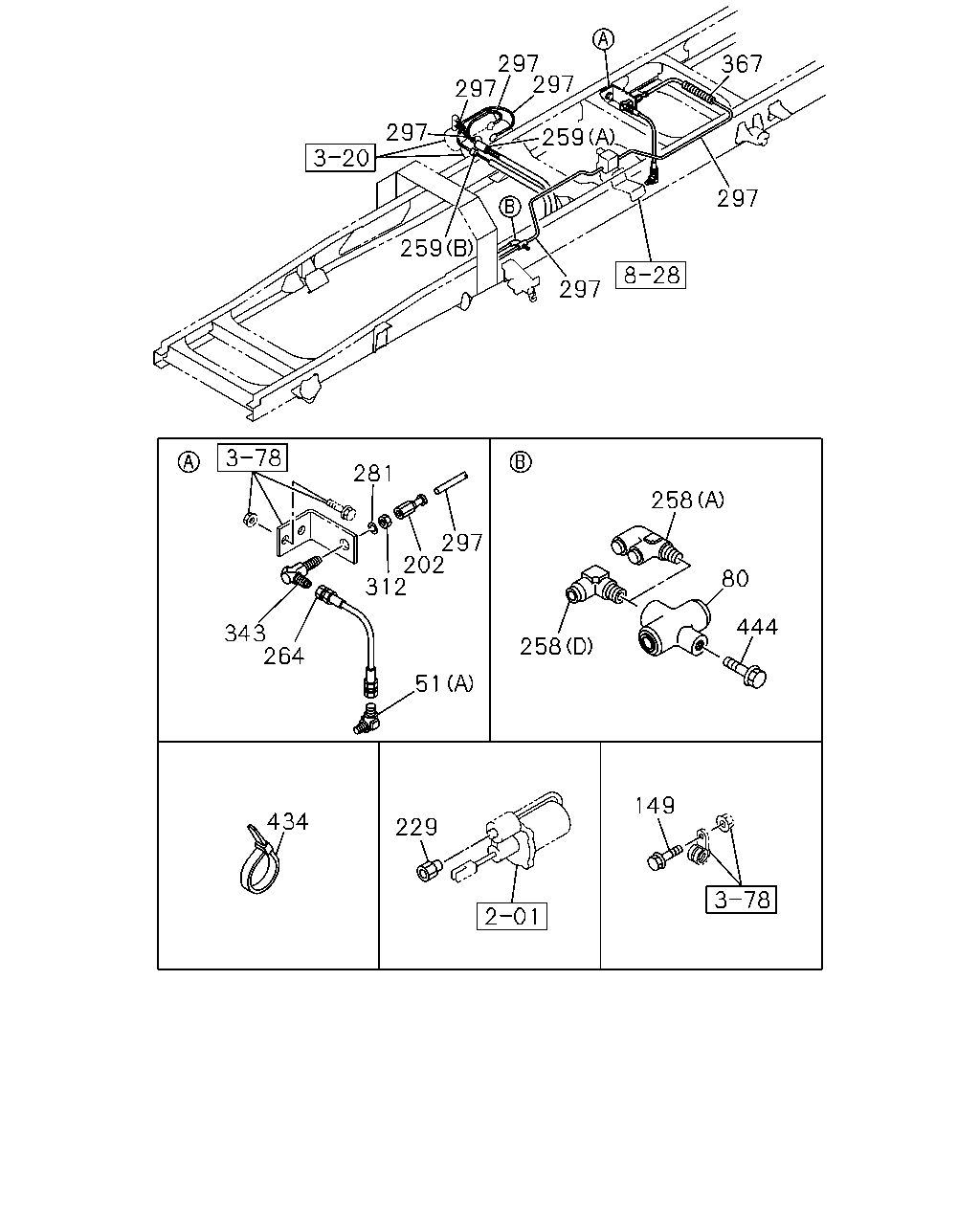

çizim 90452
297 297 297 367 259 297 297 259 297 281 258 297 202 312 80 444 343 264 258 51 149 434 229
BalonParca AdiParca NoAdetTipApplied Date A B
51 UNION
(B) 		1-09654-433-0 01 1 0609- ● ●
51 UNION
(C) 		1-09661-810-0 01 1 0609- ● ●
51 UNION
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0609- ● ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0609- ● ●
149 BOLT; TUBE CLIP
ZF9S1110 M/T(Y5E) M8X30 FLANGE 		0-28650-830-0 01 1 0609- ●
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0609- ● ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0609- ● ●
258 CONNECTOR; NYLON TUBE
NISSAN DIESEL MPS62B M/T(Y2Z) (D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609- ●
258 CONNECTOR; NYLON TUBE
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609- ●
258 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) (A) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0609- ●
258 CONNECTOR; NYLON TUBE
(B) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0609- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0609- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
(B) ID=29 OD=39 L=40 		1-09337-013-0 01 1 0609- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
(A) L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 0609- ● ●
264 HOSE; FLEX
6HK1 TCS ENG(80L) L=390 		1-09363-616-0 01 1 0609-0609 ●
264 HOSE; FLEX
6HK1 TCS ENG(80L) L=370 		1-09363-771-0 01 1 0610- ●
264 HOSE; FLEX
6HK1 TCC ENG(81L) L=430 		1-09363-677-0 01 1 0609-0609 ●
264 HOSE; FLEX
L=430 		1-09363-677-0 01 1 0609-0609 ●
264 HOSE; FLEX
6HK1 TCC ENG(81L) L=380 		1-09363-919-0 01 1 0610- ●
264 HOSE; FLEX
L=380 		1-09363-919-0 01 1 0610- ●
281 WASHER; LK UNION
ID=12.2 		0-91510-512-0 01 1 0609- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0609- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0609- ● ●
312 NUT; UNION
M12 		9-09840-280-0 01 1 0609- ● ●
343 UNION; NYLON TUBE
M12 ELBOW 		0-92125-206-0 01 1 0609- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0609- ● ●
434 CLIP
6HK1 TCS ENG(80L) WHEEL BASE 5500MM(55W) L=250 		1-09707-126-0 02 1 0609- ●
434 CLIP
WHEEL BASE 4600MM(46W) L=250 		1-09707-126-0 02 1 0609- ●
434 CLIP
WHEEL BASE 6000MM(60W) L=250 		1-09707-126-0 04 1 0609- ●
434 CLIP
6HK1 TCC ENG(81L) WHEEL BASE 5500MM(55W) L=250 		1-09707-126-0 03 1 0609- ●
434 CLIP
L=250 		1-09707-126-0 03 1 0609- ●
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0609- ● ●
