3-46 — AIR DRYER
(#25047) — 44 parça
Tümü
A - FVR5FF
B - FVR5MF
◀

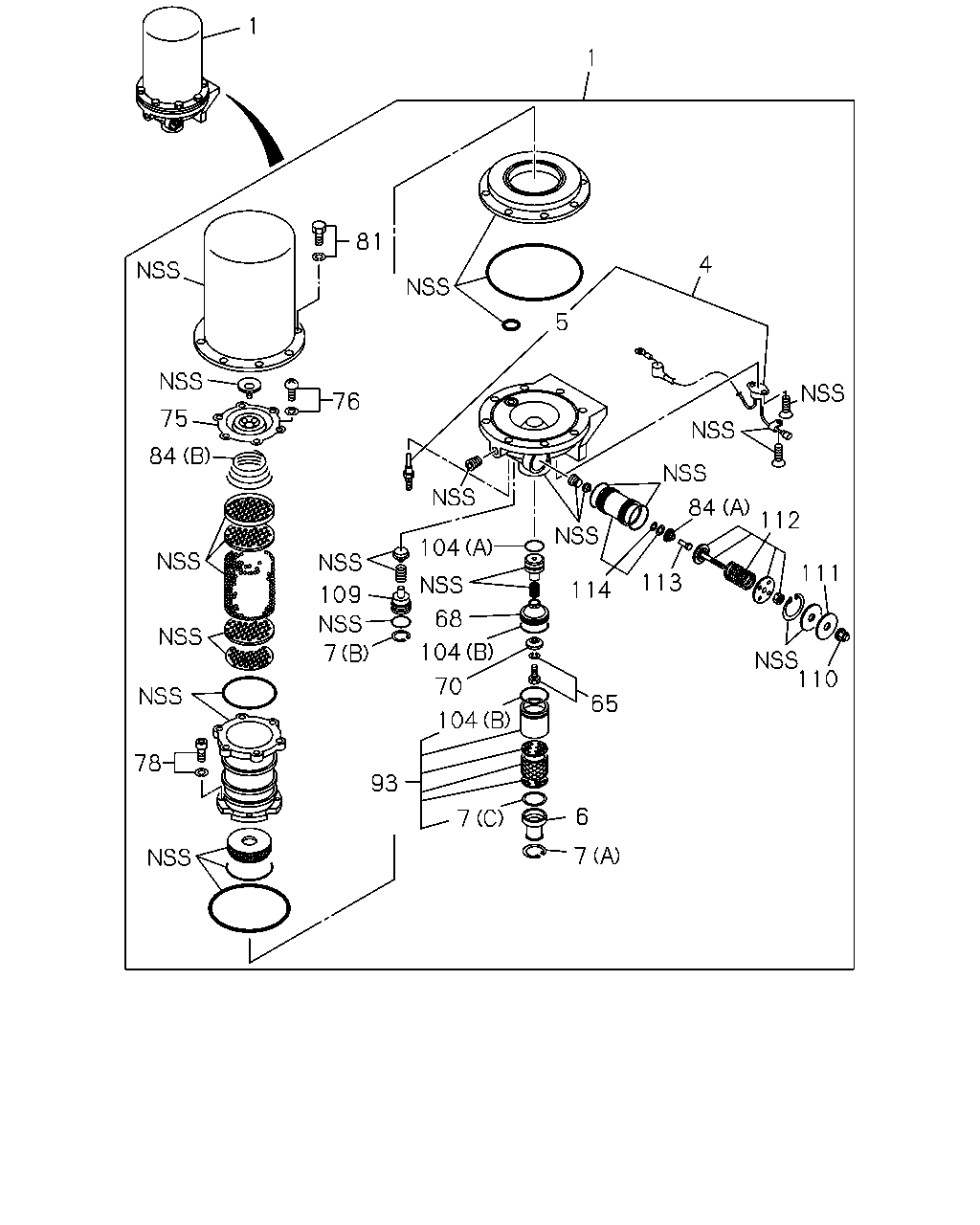

[346A] COMPONENT (26 parça)
[346A] REPAIR KIT AND PISTON KIT (9 parça)
[346A] FIXING (9 parça)
▶
1
1
4
81
5
84
112
111
114
113
110
104
68
104
70
104
65
6
7
93
7
109
78
84
75
76
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-359-1
01
1
0609-1211
●
●
1
DRYER; AIR
8-98225-296-0
01
1
1212-
●
●
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
0609-
●
●
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
0609-
●
●
6
COVER; EXH,AIR DRYER
1-48199-519-0
01
1
0609-1211
●
●
7
RING; SNAP,AIR DRYER
(A)
1-48199-520-0
02
1
0609-
●
●
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
0609-
●
●
7
RING; SNAP,AIR DRYER
(C)
1-48199-154-0
01
1
0609-1211
●
●
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0609-
●
●
68
BODY; VALVE
1-48199-515-0
01
1
0609-
●
●
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0609-
●
●
75
COVER; CASE,AIR DRYER
1-48199-562-0
01
1
0609-
●
●
76
BOLT; COVER,AIR DRYER
1-48199-561-0
06
1
0609-
●
●
78
BOLT; OIL FILTER,AIR DRYER
1-48199-557-0
04
1
0609-
●
●
81
BOLT; CASE,AIR DRYER
1-48199-436-0
08
1
0609-
●
●
84
SPRING; AIR DRYER
(A)
1-48199-523-0
01
1
0609-
●
●
84
SPRING; AIR DRYER
(B)
1-48199-564-0
01
1
0609-
●
●
93
SILENCER; AIR DRYER
1-48199-518-0
01
1
0609-1211
●
●
104
GASKET
(B)
1-48199-496-0
02
1
1212-
●
●
104
GASKET
(A)
8-98226-321-0
01
1
1212-
●
●
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
0609-
●
●
110
NUT; CAP
1-48199-527-0
01
1
0609-
●
●
111
PLATE; GOVERNOR
1-48199-526-0
01
1
0609-
●
●
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
0609-
●
●
113
STEM; EXHAUST
1-48199-522-0
01
1
0609-
●
●
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
0609-
●
●
2
3
68
65
70
70
4
5

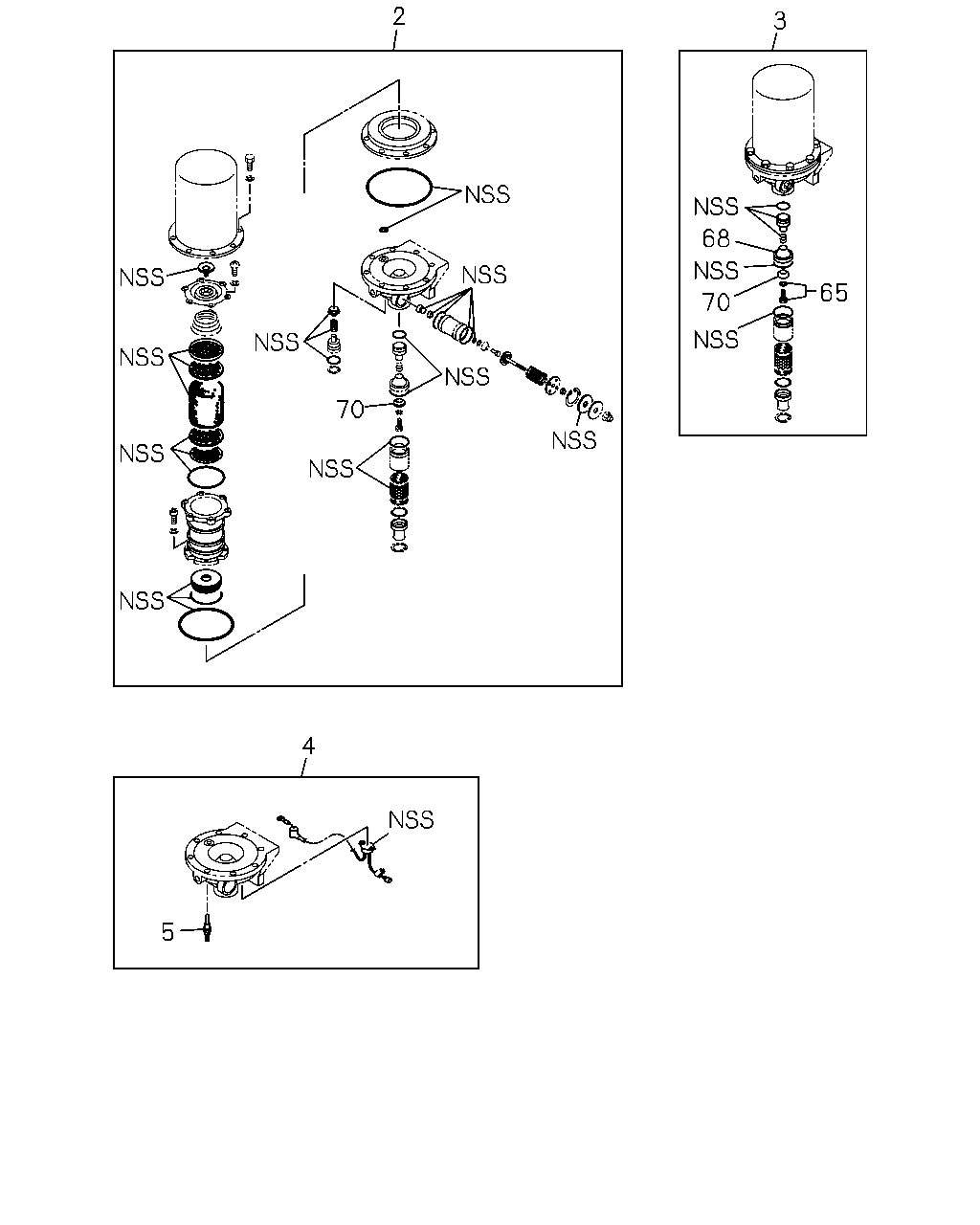

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
1-85576-445-0
01
1
0609-1211
●
●
2
REPAIR KIT; AIR DRYER
8-98226-329-0
01
1
1212-
●
●
3
PISTON KIT; AIR DRYER
1-85576-383-0
01
1
0609-1211
●
●
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1212-
●
●
4
THERMOSTAT KIT; AIR DRYER
1-85576-444-0
01
1
0609-
●
●
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
0609-
●
●
65
BOLT; PURGE VLV
1-48199-517-0
01
1
0609-
●
●
68
BODY; VALVE
1-48199-515-0
01
1
0609-
●
●
70
VALVE; AIR DRYER
1-48199-504-0
01
1
0609-
●
●
16
15
16
15
11
12
1
10
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-359-1
01
1
0609-1211
●
●
1
DRYER; AIR
8-98225-296-0
01
1
1212-
●
●
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
0609-
●
●
9
CONNECTOR; PIPE,AIR DRYER
1-09661-033-0
01
1
0609-
●
●
10
BOLT; AIR DRYER
M12X30 FLANGE
0-28051-230-0
03
1
0609-
●
●
11
BRACKET; AIR DRYER
1-48195-123-0
01
1
0609-
●
●
12
BOLT; BRKT
M14X50
0-20851-450-0
02
1
0609-
●
●
15
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0609-
●
●
16
NUT; BRKT
M14
0-91110-514-0
04
1
0609-
●
●
