◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11030 - FVR(RHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#25042) — 97 parça

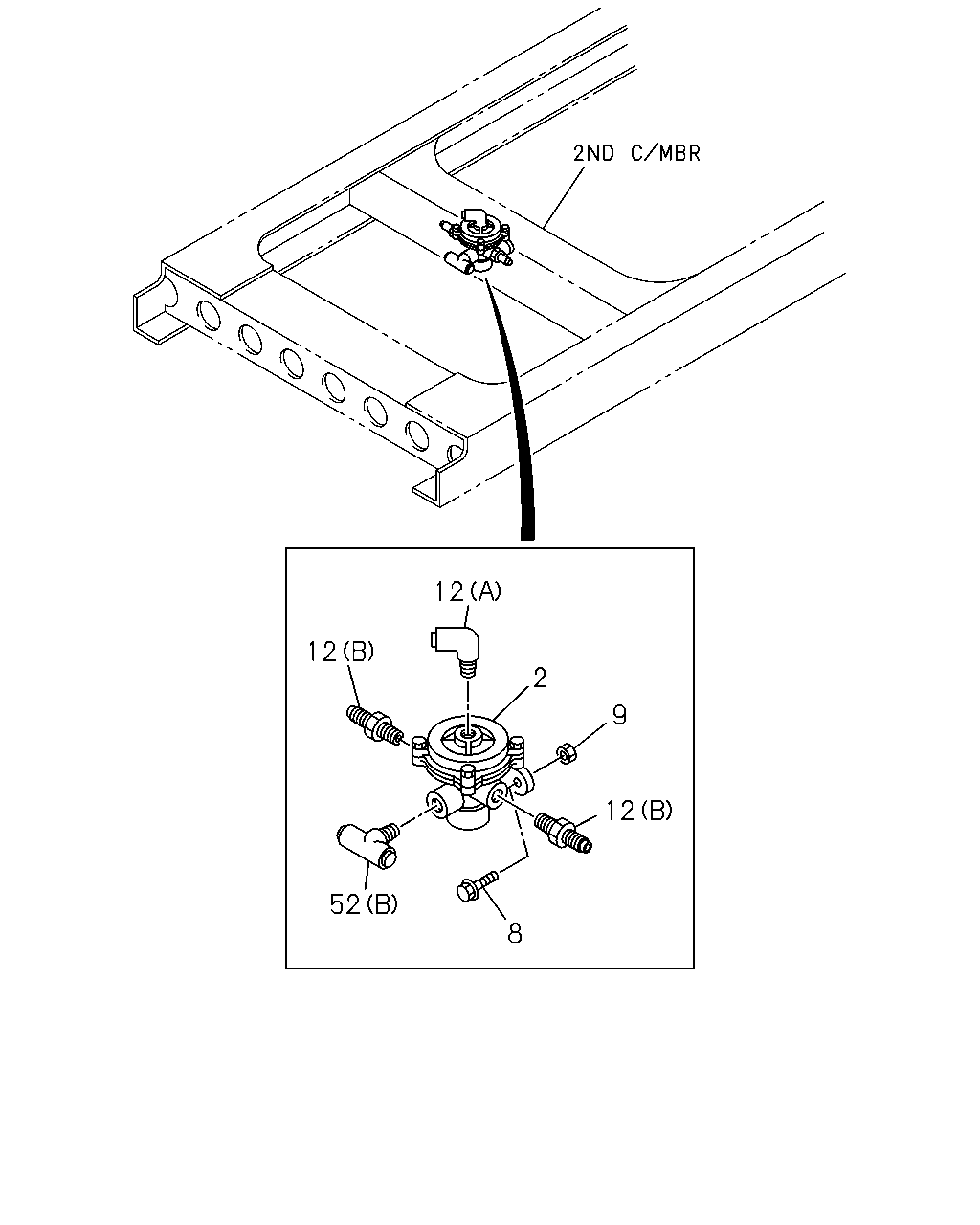

çizim 90117
12 12 2 9 12 52 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-755-0 01 1 0609- ● ●
2 VALVE; RELAY
HONG KONG EQUIPMENT(PQ1) 		1-48210-755-0 01 1 0609- ●
2 VALVE; RELAY 1-48210-755-0 01 1 0609- ●
8 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (E) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(B) M16 		1-09650-245-1 02 1 0609- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609- ● ●
52 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (A) 		1-09656-476-0 01 1 0609- ●
52 CONNECTOR; RELAY VLV
(A) 		1-09656-476-0 01 1 0609- ●
52 CONNECTOR; RELAY VLV
(B) DIN12X2 & R1/2 3WAY 		1-09661-020-0 01 1 0609- ● ●

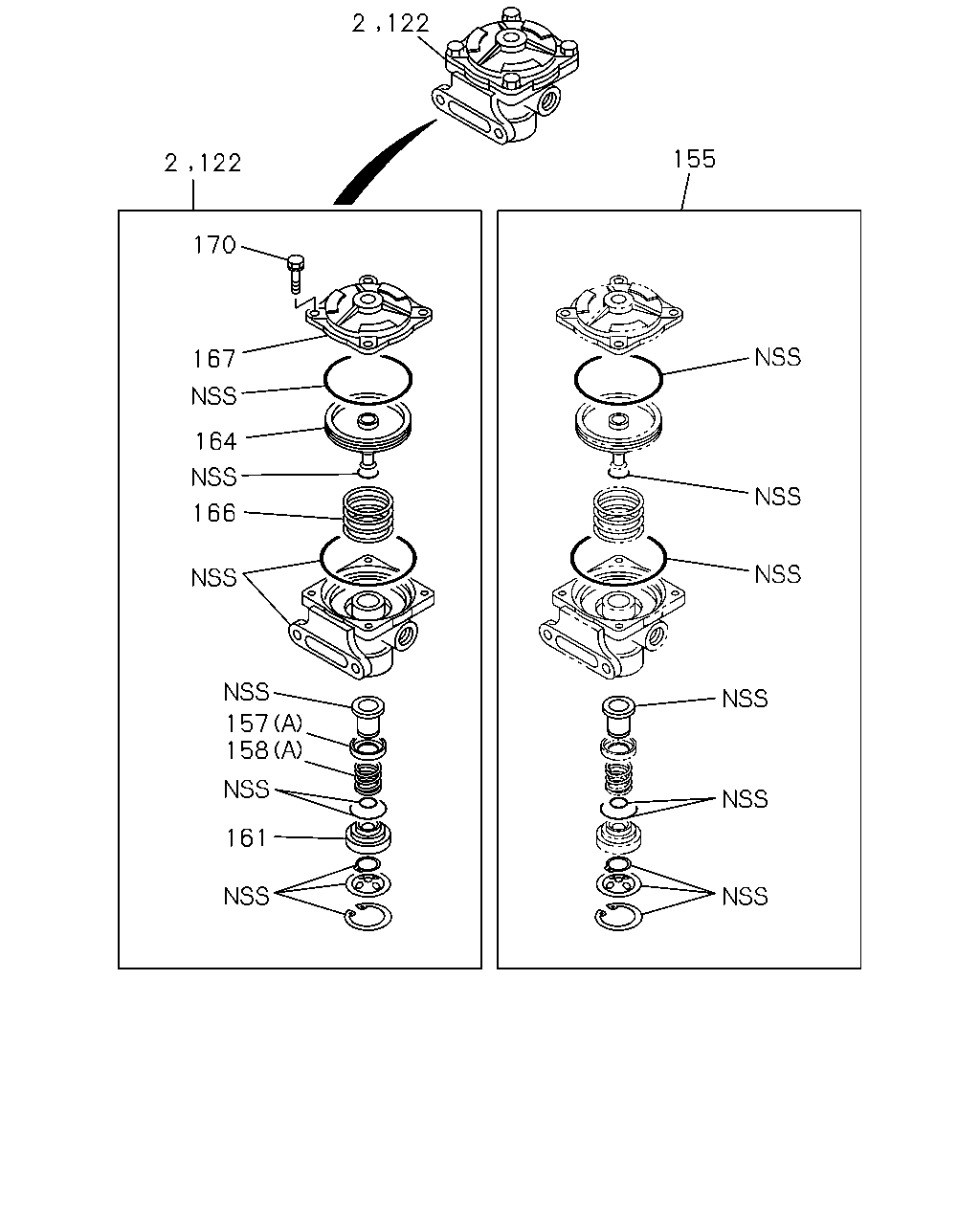

çizim 90185
2 122 155 2 122 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-755-0 01 1 0609- ● ●
2 VALVE; RELAY
HONG KONG EQUIPMENT(PQ1) 		1-48210-755-0 01 1 0609- ●
2 VALVE; RELAY 1-48210-755-0 01 1 0609- ●
122 VALVE ASM; CONT,WHEEL PARKING 1-48210-755-0 01 1 0609- ● ●
155 REPAIR KIT; RELAY VALVE
HONG KONG EQUIPMENT(PQ1) 		1-85576-033-0 01 1 0609- ●
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 01 1 0609- ●
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 02 1 0609- ● ●
157 RETAINER; VALVE
HONG KONG EQUIPMENT(PQ1) (A) 		1-48213-002-0 01 1 0609- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0609- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0609- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 0609- ● ●
158 SPRING; VALVE
HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-089-0 01 1 0609- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0609- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0609- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0609- ● ●
161 GUIDE; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48129-014-0 01 1 0609- ●
161 GUIDE; VALVE 1-48129-014-0 01 1 0609- ●
161 GUIDE; VALVE 1-48129-014-0 02 1 0609- ● ●
164 PISTON; RELAY VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48219-071-0 01 1 0609- ●
164 PISTON; RELAY VALVE 1-48219-071-0 01 1 0609- ●
164 PISTON; RELAY VALVE 1-48219-071-0 02 1 0609- ● ●
166 SPRING; PISTON
HONG KONG EQUIPMENT(PQ1) 		1-47819-090-0 01 1 0609- ●
166 SPRING; PISTON 1-47819-090-0 01 1 0609- ●
166 SPRING; PISTON 1-47819-090-0 02 1 0609- ● ●
167 COVER; VALVE
HONG KONG EQUIPMENT(PQ1) 		1-48219-070-0 01 1 0609- ●
167 COVER; VALVE 1-48219-070-0 01 1 0609- ●
167 COVER; VALVE 1-48219-070-0 02 1 0609- ● ●
170 SCREW; COVER TO BODY
HONG KONG EQUIPMENT(PQ1) 		1-48219-039-0 04 1 0609- ●
170 SCREW; COVER TO BODY 1-48219-039-0 04 1 0609- ●
170 SCREW; COVER TO BODY 1-48219-039-0 08 1 0609- ● ●

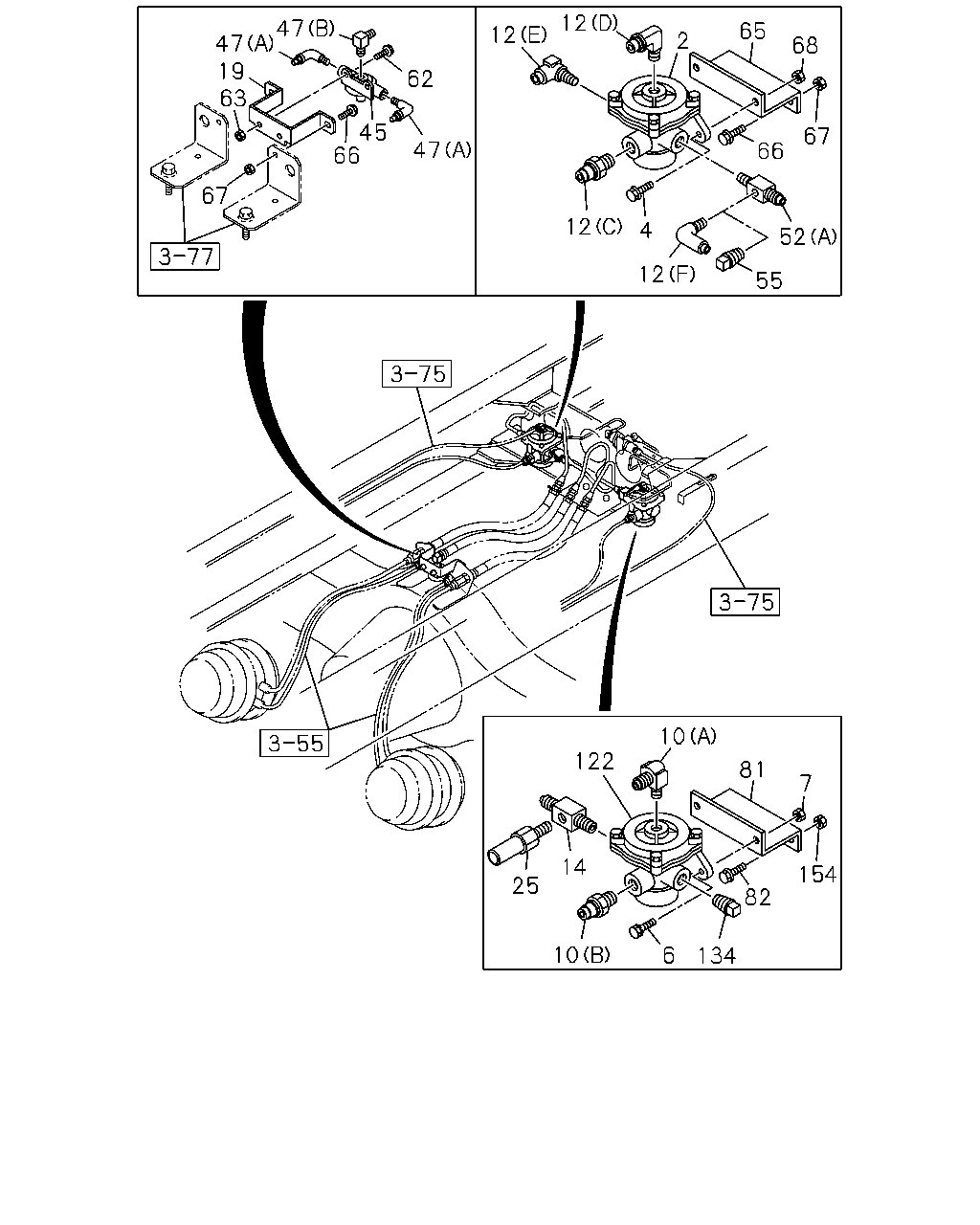

çizim 90873
12 47 65 12 2 47 19 63 68 62 45 66 67 47 66 67 12 4 52 12 55 10 122 81 7 14 154 25 82 10 6 134
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-755-0 01 1 0609- ● ●
2 VALVE; RELAY
HONG KONG EQUIPMENT(PQ1) 		1-48210-755-0 01 1 0609- ●
2 VALVE; RELAY 1-48210-755-0 01 1 0609- ●
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
6 BOLT; VLV
M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609- ● ●
10 CONNECTOR
(B) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0609- ● ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (F) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (E) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0609- ●
12 CONNECTOR; RELAY VLV
(B) M16 		1-09650-245-1 02 1 0609- ● ●
12 CONNECTOR; RELAY VLV
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0609- ● ●
14 CONNECTOR; RELAY VLV 1-09656-476-0 01 1 0609- ● ●
19 BRACKET; QUICK RELEASE VLV 1-47477-518-0 01 1 0609- ● ●
25 SWITCH; PRESSURE 1-82410-163-1 01 1 0609- ● ●
45 VALVE; QUICK RELEASE 1-48410-659-0 01 1 0609- ● ●
47 CONNECTOR; RELAY VLV,CONT
(B) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0609- ● ●
47 CONNECTOR; RELAY VLV,CONT
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0609- ● ●
52 CONNECTOR; RELAY VLV
HONG KONG EQUIPMENT(PQ1) (A) 		1-09656-476-0 01 1 0609- ●
52 CONNECTOR; RELAY VLV
(A) 		1-09656-476-0 01 1 0609- ●
52 CONNECTOR; RELAY VLV
(B) DIN12X2 & R1/2 3WAY 		1-09661-020-0 01 1 0609- ● ●
55 PLUG; SUPPLY
PT1/4 		9-99204-513-0 01 1 0609- ●
62 BOLT; BRKT FIX
M8X25 FLANGE 		0-28050-825-0 02 1 0609- ● ●
63 NUT; BRKT FIX
M8 		0-91110-508-0 02 1 0609- ● ●
65 BRACKET; RELAY VLV RR 1-47477-964-0 01 1 0609- ● ●
66 BOLT; BRKT,RELAY VLV RR
M8X25 FLANGE 		0-28650-825-0 02 1 0609- ● ●
66 BOLT; BRKT,RELAY VLV RR
M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
67 NUT; BRKT,RELAY VLV RR
M8 FLANGE 		0-91180-108-0 02 1 0609- ● ●
67 NUT; BRKT,RELAY VLV RR
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
81 BRACKET; RELAY VLV,PARKING BRK 1-47477-964-0 01 1 0609- ● ●
82 BOLT; BRKT,RELAY VLV
M10X30 FLANGE 		0-28651-030-0 02 1 0609- ● ●
122 VALVE ASM; CONT,WHEEL PARKING 1-48210-755-0 01 1 0609- ● ●
134 PLUG; RELAY VALVE
PT1/2 		9-09204-521-0 01 1 0609- ● ●
154 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0609- ● ●
çizim 106151
45 157 216 158
BalonParca AdiParca NoAdetTipApplied Date A B
45 VALVE; QUICK RELEASE 1-48410-659-0 01 1 0609- ● ●
157 RETAINER; VALVE
HONG KONG EQUIPMENT(PQ1) (A) 		1-48213-002-0 01 1 0609- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 01 1 0609- ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 02 1 0609- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 01 1 0609- ● ●
158 SPRING; VALVE
HONG KONG EQUIPMENT(PQ1) (A) 		1-47819-089-0 01 1 0609- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 01 1 0609- ●
158 SPRING; VALVE
(A) 		1-47819-089-0 02 1 0609- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 01 1 0609- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 01 1 0609- ● ●
