Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#25041) — 39 parça
Tümü
A - FVR5FF
B - FVR5MF
◀
[320A] FRAME SIDE NO.2 (4 parça)
[320A] FRAME SIDE NO.1 (31 parça)
[320A] CAB SIDE (4 parça)
▶
111
111
111
95
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
95
VALVE; DOUBLE CHECK
HONG KONG EQUIPMENT(PQ1)
1-48410-531-1
01
1
0609-
●
111
CONNECTOR; CHECK VLV
HONG KONG EQUIPMENT(PQ1) (A) DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
0609-
●
111
CONNECTOR; CHECK VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
0609-
●
121
BOLT; DOUBLE CHECK VLV
HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE
0-28050-820-0
02
1
0609-
●

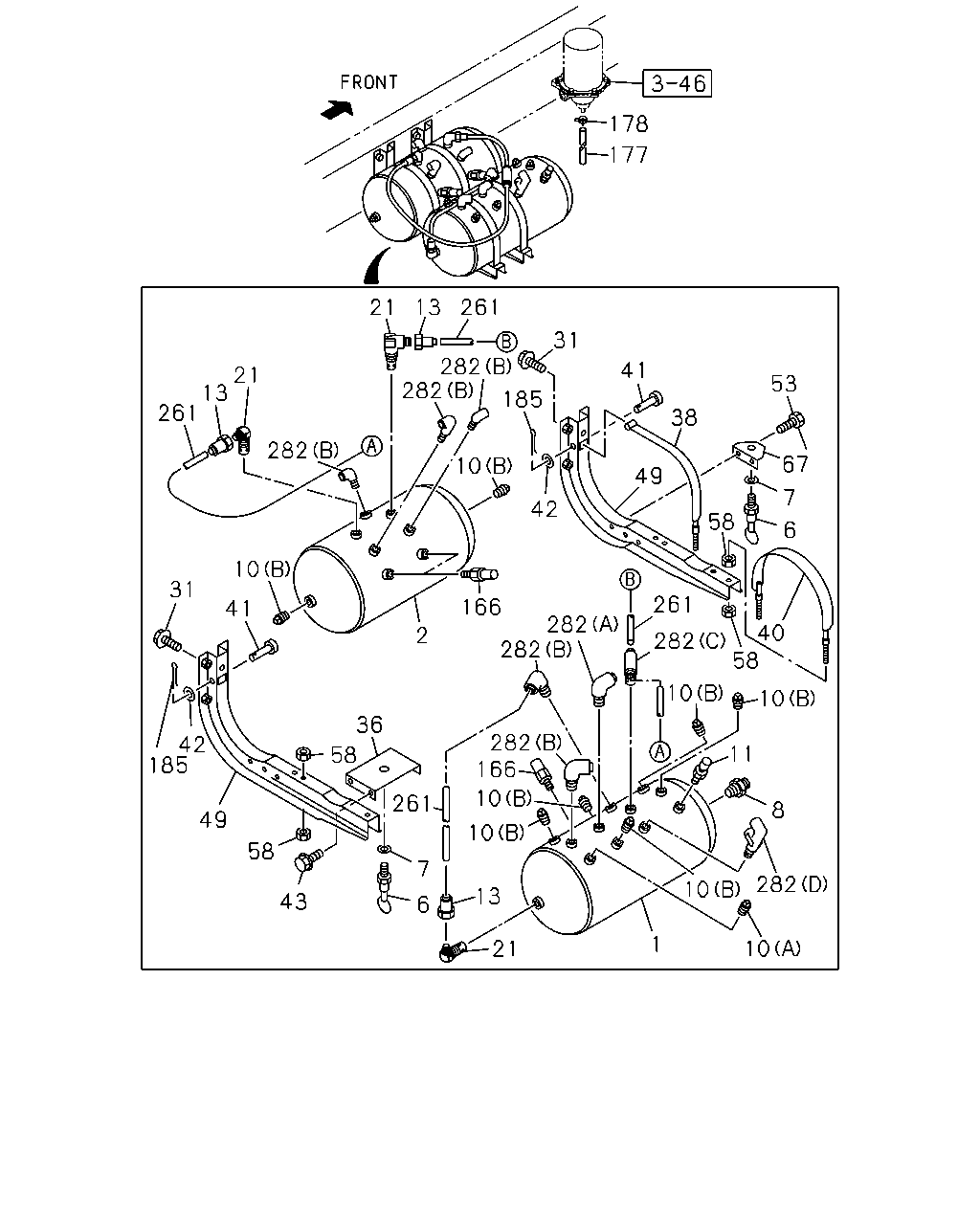

178
177
21
13
261
31
282
282
41
21
13
53
185
261
38
282
67
10
49
7
42
58
6
10
31
261
166
41
282
282
40
282
58
2
10
10
36
282
166
42
185
11
58
10
261
8
49
10
58
7
282
10
13
43
6
1
21
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK ASM; AIR
1-48370-221-0
01
1
0609-
●
●
2
TANK; AIR
1-48370-181-1
01
1
0609-
●
●
6
COCK; DRAIN,AIR TANK
1-48312-015-0
05
1
0609-
●
●
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
05
1
0609-
●
●
8
CONNECTOR; AIR TANK
1-09650-536-0
01
1
0609-
●
●
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
07
1
0609-
●
●
10
PLUG; AIR TANK
(A) PT3/4
9-09204-526-0
01
1
0609-
●
●
11
VALVE; SAFETY,AIR TANK
1-48320-012-2
01
1
0609-
●
●
13
ADAPTER; NYLON TUBE
DIN12 & M20 STRAIGHT
1-09660-877-0
03
1
0609-
●
●
21
VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW
1-48410-412-0
03
1
0609-
●
●
31
BOLT; BRKT TO FRAME
M12X40 FLANGE
0-28651-240-0
08
1
0609-
●
●
36
STAY; MAIN TANK
1-48317-607-0
01
1
0609-
●
●
38
BAND; AIR TANK
1-48317-108-2
02
1
0609-
●
●
40
BAND ASM; AIR TANK
1-48317-109-2
02
1
0609-
●
●
41
PIN; BAND FIX
OD=10 L=60
0-82254-060-0
02
1
0609-
●
●
42
WASHER; PL
ID=10.5
9-09164-510-0
02
1
0609-
●
●
43
BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE
0-28650-825-0
04
1
0609-
●
●
49
BRACKET; AIR TANK
1-48317-601-5
02
1
0609-
●
●
53
BOLT; STAY,AIR TANK
M8X25 FLANGE
0-28650-825-0
02
1
0609-
●
●
58
NUT; BAND,AIR TANK
M8
0-91110-508-0
12
1
0609-
●
●
67
STAY; SUB TANK
1-48317-691-0
01
1
0609-
●
●
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
530KPA
1-48340-054-1
03
1
0609-
●
●
177
HOSE; RUBBER,DRAIN
L=90
9-09712-638-0
01
1
0609-
●
●
178
CLIP; HOSE
ID=33.6
8-94362-518-0
01
1
0609-
●
●
185
PIN; SNAP
L=32.6
1-09987-142-0
02
1
0609-
●
●
261
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
03
1
0609-
●
●
261
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0609-
●
●
282
UNION; 2 WAY
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0609-
●
●
282
UNION; 2 WAY
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
05
1
0609-
●
●
282
UNION; 2 WAY
(C) DIN12X2 & R3/8 3WAY
1-09661-005-0
01
1
0609-
●
●
282
UNION; 2 WAY
(D) DIN8X2 & PT3/8 DOUBLE ELBOW
1-09661-025-0
01
1
0609-
●
●

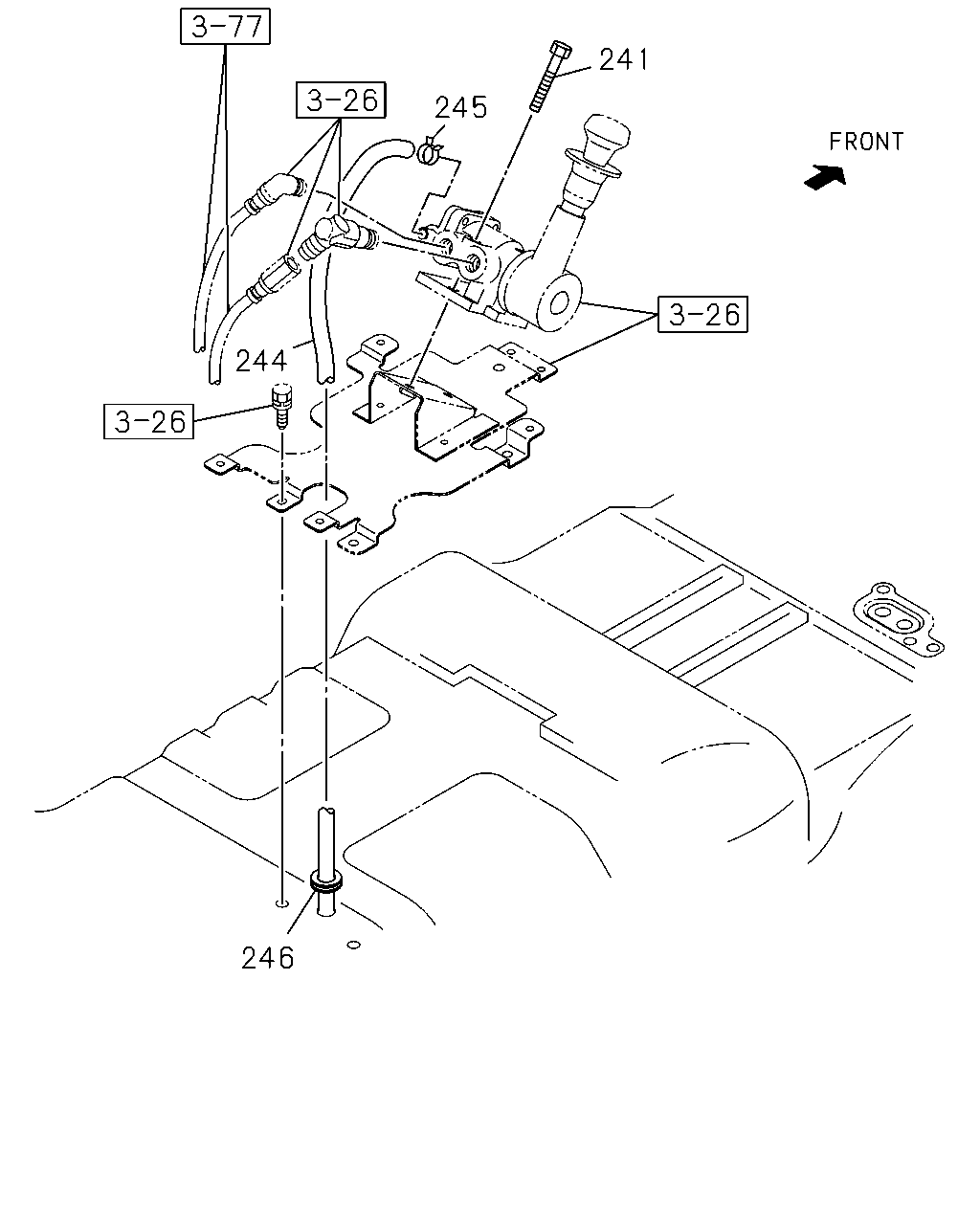

241
245
244
246
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
241
BOLT; SET,CONT VLV
M8X70 FLANGE
0-28050-870-0
02
1
0609-
●
●
244
PIPE; VINYL,EXH
L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
0609-
●
●
245
CLIP; VINYL PIPE
ID=14
8-94238-572-0
01
1
0609-
●
●
246
GROMMET; VINYL PIPE
OD=24
9-61166-007-0
01
1
0609-
●
●
