4-61 — SHOCK ABSORBER; REAR SUSPENSION (#2504) — 27 parça

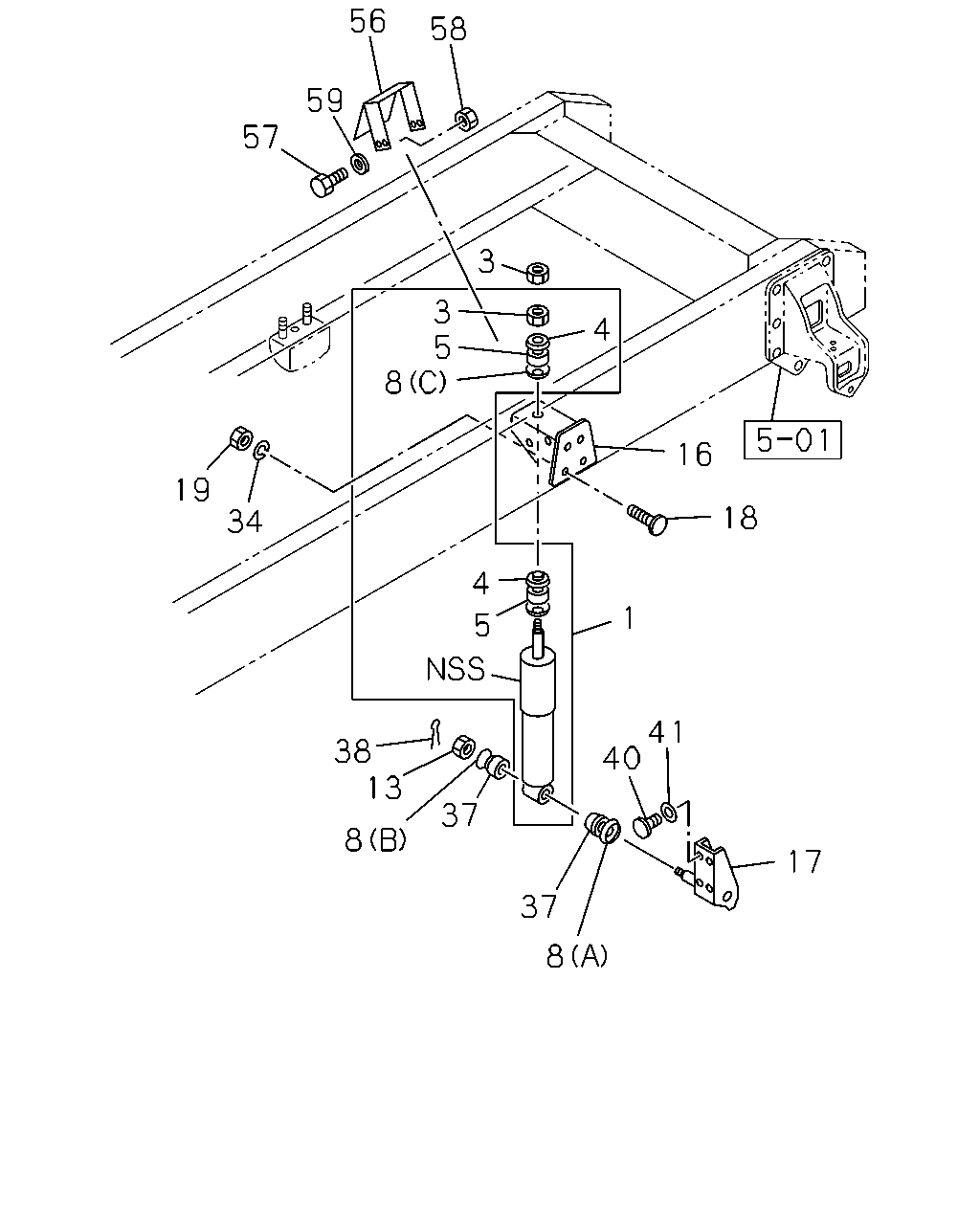

çizim 96442
56 58 59 57 3 3 5 8 4 16 19 18 34 4 1 5 41 40 38 13 37 8 17 37 8
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR
REAR SHOCK ABSORBER(GL6) 		1-51630-236-0 02 1 9002-
3 NUT; S/ABS
REAR SHOCK ABSORBER(GL6) M18 		9-99111-418-0 04 1 9002-
4 WASHER; CENTER,S/ABS
REAR SHOCK ABSORBER(GL6) ID=24.4 OD=74 T=2.3 		9-51631-045-0 04 1 9002-
5 BUSHING; RUBBER,S/ABS,UPR
REAR SHOCK ABSORBER(GL6) 		9-51631-043-0 04 1 9002-
8 WASHER; S/ABS
REAR SHOCK ABSORBER(GL6) (A) ID=33 		9-51631-030-0 02 1 9002-
8 WASHER; S/ABS
REAR SHOCK ABSORBER(GL6) (B) ID=25 		9-51631-031-0 02 1 9002-
8 WASHER; S/ABS
REAR SHOCK ABSORBER(GL6) (C) ID=20.5 OD=74 T=6 		9-51631-044-0 02 1 9002-
13 NUT; LWR,RR S/ABS
REAR SHOCK ABSORBER(GL6) M24 		9-99116-424-0 02 1 9002-
16 BRACKET; S/ABS,RR
REAR SHOCK ABSORBER(GL6) 		1-51681-372-2 02 1 9002-
17 BRACKET; S/ABS LWR
REAR SHOCK ABSORBER(GL6) 		1-51681-261-2 01 1 9002-
17 BRACKET; S/ABS LWR
REAR SHOCK ABSORBER(GL6) 		1-51681-260-2 01 1 9002-
18 BOLT; S/ABS BRKT
REAR SHOCK ABSORBER(GL6) M14X40 		9-92051-440-0 08 1 9002-9005
18 BOLT; S/ABS BRKT
REAR SHOCK ABSORBER(GL6) M14X40 		0-20801-440-0 08 1 9006-9211
18 BOLT; S/ABS BRKT
REAR SHOCK ABSORBER(GL6) M14X40 		9-92061-440-0 08 1 9212-
19 NUT; S/ABS BRKT
REAR SHOCK ABSORBER(GL6) M14 		9-99110-414-0 08 1 9002-9306
19 NUT; S/ABS BRKT
REAR SHOCK ABSORBER(GL6) M14 		9-99110-514-0 08 1 9307-
34 WASHER; LK,S/ABS BRKT
REAR SHOCK ABSORBER(GL6) ID=14.2 		9-09150-614-0 08 1 9002-
37 BUSHING; RUBBER
REAR SHOCK ABSORBER(GL6) 		9-51631-029-0 04 1 9002-
38 PIN; SPLIT,S/ABS
REAR SHOCK ABSORBER(GL6) OD=4.6 L=45 		9-08115-045-0 02 1 9002-
40 BOLT; LWR BRKT
REAR SHOCK ABSORBER(GL6) M14X30 		9-92051-430-0 08 1 9002-9005
40 BOLT; LWR BRKT
REAR SHOCK ABSORBER(GL6) M14X30 		0-20801-430-0 08 1 9006-
41 WASHER; LK
REAR SHOCK ABSORBER(GL6) ID=14.2 		9-09150-614-0 08 1 9002-
56 PROTECTOR; HEAT,RR S/ABS
10PD1 STD ENG(40L) REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-51689-014-0 01 1 9002-9009
57 BOLT; HEAT PROTECTOR
10PD1 STD ENG(40L) REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X20 W/LK WASHER 		9-01910-820-0 04 1 9002-9005
57 BOLT; HEAT PROTECTOR
10PD1 STD ENG(40L) REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2> M8X20 W/LK WASHER 		0-50040-820-0 04 1 9006-9009
58 NUT; HEAT PROTECTOR
10PD1 STD ENG(40L) REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2> M8 		9-09110-408-0 04 1 9002-9009
59 WASHER; PL,HEAT PROTECTOR
10PD1 STD ENG(40L) REAR SHOCK ABSORBER(GL6) TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 		9-09160-508-0 04 1 9002-9009
