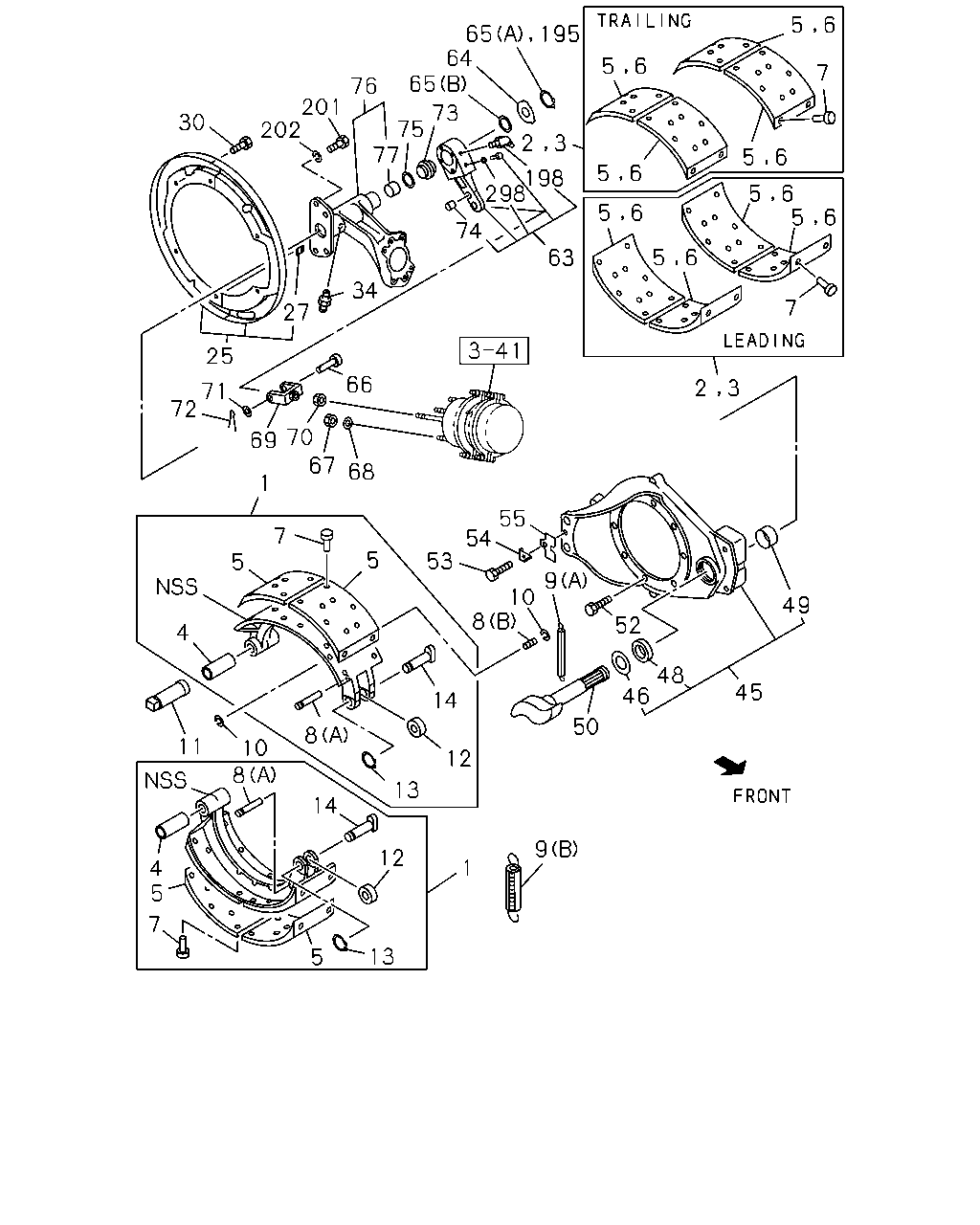

3-05 — REAR WHEEL BRAKE (#25038) — 103 parça
çizim 105737
5 6 65 64 65 195 5 6 7 76 201 202 73 75 77 30 3 2 5 6 5 6 198 298 5 6 5 5 6 6 74 6 5 63 34 7 27 25 66 2 3 71 72 70 69 67 68 1 55 54 7 5 53 5 9 10 8 49 52 4 48 46 45 14 50 8 11 10 8 12 13 14 9 12 1 4 5 7 13 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING 		1-47120-336-0 01 1 0701- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-337-0 01 1 0701- ●
1 SHOE; BRK,RR
LEADING 		1-47120-338-0 01 1 0701- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-339-0 01 1 0701- ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0609-0612 ● ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0701- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0609-0612 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0701- ●
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0609-0612 ● ●
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0701- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0609-0612 ● ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0701- ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-313-1 01 1 0701- ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-315-1 01 1 0701- ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-521-0 01 1 0609-0612 ● ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-521-0 01 1 0701- ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-523-0 01 1 0609-0612 ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-523-0 01 1 0701- ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-314-1 01 1 0701- ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-316-1 01 1 0701- ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-522-0 01 1 0609-0612 ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-522-0 01 1 0701- ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-524-0 01 1 0609-0612 ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-524-0 01 1 0701- ●
4 BUSHING; BRK SHOE,RR WHEEL
TRAILING 		1-47112-012-0 04 1 0609- ● ●
5 LINING; RR BRK SHOE,STANDARD
LEADING WO/INDICATOR HOLE 		1-47125-435-0 04 1 0701- ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING T=16 		1-47125-436-0 04 1 0701- ●
5 LINING; RR BRK SHOE,STANDARD
LEADING W/INDICATOR HOLE 		1-47125-445-0 04 1 0701- ●
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 0609-0612 ● ●
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 0701- ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 0609-0612 ● ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 0701- ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING WO/INDICATOR HOLE 		1-47125-437-0 04 1 0701- ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING T=17 		1-47125-438-0 04 1 0701- ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING W/INDICATOR HOLE 		1-47125-446-0 04 1 0701- ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 0609-0612 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 0701- ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 0609-0612 ● ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 0701- ●
7 RIVET; LINING,RR BRK
TRAILING L=18.5 		1-09732-034-0 AR 1 0609- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 0609-1209 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-021-0 04 1 1210- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 0609- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0609-1209 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0609-1209 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 1210- ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 0609-1209 ● ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 1210- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0609- ● ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0609- ● ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0609- ● ●
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0609- ● ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0609- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0609- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0609-0906 ● ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ● ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 1210- ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0609- ● ●
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 02 1 0609- ● ●
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0609- ● ●
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 02 1 0609- ● ●
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 0609- ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0609- ● ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0609- ● ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0609-1209 ● ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 1210- ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1210- ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0609-1209 ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 1210- ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0609- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0609- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0609- ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0609- ● ●
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 0609- ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0609- ● ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0609- ● ●
66 PIN; JAW JOINT 1-09744-088-0 02 1 0609- ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 0609- ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-516-0 08 1 0609-0802 ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 0803- ● ●
69 JOINT; JAW 1-09768-060-1 02 1 0609- ● ●
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0609- ● ●
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 0609- ● ●
72 PIN; SPLIT
OD=3.7 L=28 		0-81124-028-0 02 1 0609- ● ●
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0609- ● ●
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 0609- ● ●
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0609- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0609-0906 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0609-0906 ● ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ● ●
77 BUSHING 1-47146-003-1 02 1 0609- ● ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0609- ● ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0609- ● ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0609-0612 ● ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0701-1209 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 1210- ●
202 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0609-0612 ● ●
202 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0701- ●
298 GASKET
ID=23.3 		9-09561-223-0 02 1 0609- ● ●
