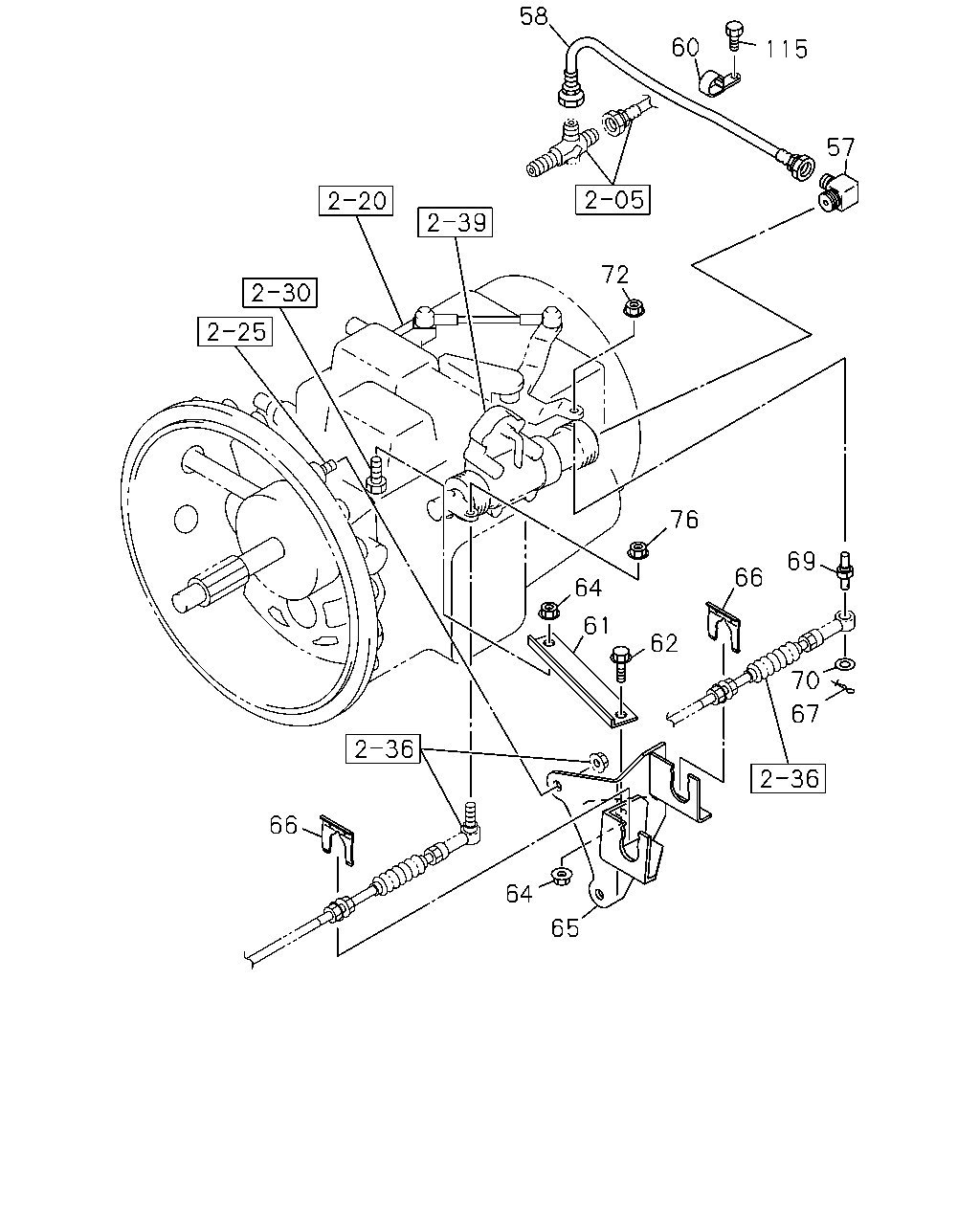

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#25030) — 29 parça

58 60 115 57 72 76 69 66 64 61 62 70 67 66 64 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
57	NIPPLE; POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/4 ELBOW	1-09661-001-1	01	1	0609-	●
58	HOSE; FLEX,POWER ASSISTOR NISSAN DIESEL MPS62B M/T(Y2Z)	1-09363-951-0	01	1	0609-0610		●
58	HOSE; FLEX,POWER ASSISTOR NISSAN DIESEL MPS62B M/T(Y2Z)	1-09363-960-0	01	1	0611-		●
58	HOSE; FLEX,POWER ASSISTOR ASSISTOR SHIFT CONTROL<WX8> L=780	1-09363-620-0	01	1	0609-	●
60	CLIP; FLEX HOSE NISSAN DIESEL MPS62B M/T(Y2Z) ID=13 L=20	0-95235-235-0	02	1	0609-		●
60	CLIP; FLEX HOSE ASSISTOR SHIFT CONTROL<WX8> ID=13 L=20	0-95235-235-0	02	1	0609-	●
61	STAY; BRKT,TRANS CONT NISSAN DIESEL MPS62B M/T(Y2Z)	1-33657-267-0	01	1	0609-		●
61	STAY; BRKT,TRANS CONT	1-33657-267-0	01	1	0609-	●
62	BOLT; STAY NISSAN DIESEL MPS62B M/T(Y2Z) M10X30 FLANGE	0-28651-030-0	02	1	0609-		●
62	BOLT; STAY M10X30 FLANGE	0-28651-030-0	01	1	0609-	●
64	NUT; STAY NISSAN DIESEL MPS62B M/T(Y2Z) M10 FLANGE	0-91180-210-0	01	1	0609-		●
64	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0609-	●
65	BRACKET; SHIFT TO SELECT,TRANS CONT NISSAN DIESEL MPS62B M/T(Y2Z)	1-36183-253-0	01	1	0609-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT ZF9S1110 M/T(Y5E)	8-98012-596-1	01	1	0609-		●
65	BRACKET; SHIFT TO SELECT,TRANS CONT	1-33657-821-0	01	1	0609-	●
66	CLIP; SELECT BRKT ID=22.2	1-09701-209-1	02	1	0609-	●	●
67	PIN; SNAP,SELECT WIRE L=27.7	8-94157-841-0	01	1	0609-	●
69	PIN; TRANS CONT,SELECT	1-33659-116-1	01	1	0609-	●
70	WASHER; PL,SELECT WIRE ID=8.4 OD=18	0-91614-608-0	01	1	0609-	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-049-0	01	1	0609-0609	●	●
72	NUT; TRANS CONT,SELECT M8 FLANGE	1-09440-062-1	01	1	0610-	●	●
76	NUT; BALL JOINT,SELECT WIRE NISSAN DIESEL MPS62B M/T(Y2Z) M10 FLANGE	1-09440-056-0	01	1	0609-0609		●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-056-0	01	1	0609-0609	●
76	NUT; BALL JOINT,SELECT WIRE NISSAN DIESEL MPS62B M/T(Y2Z) M10 FLANGE	1-09440-061-0	01	1	0610-		●
76	NUT; BALL JOINT,SELECT WIRE M10 FLANGE	1-09440-061-0	01	1	0610-	●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) M8 FLANGE	1-09440-049-0	01	1	0609-0609		●
76	NUT; BALL JOINT,SELECT WIRE ZF9S1110 M/T(Y5E) M8 FLANGE	1-09440-062-1	01	1	0610-		●
115	BOLT; CLIP NISSAN DIESEL MPS62B M/T(Y2Z) M8X16 FLANGE	0-28050-816-0	02	1	0609-		●
115	BOLT; CLIP ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE	0-28050-816-0	02	1	0609-	●
