2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#25029) — 69 parça

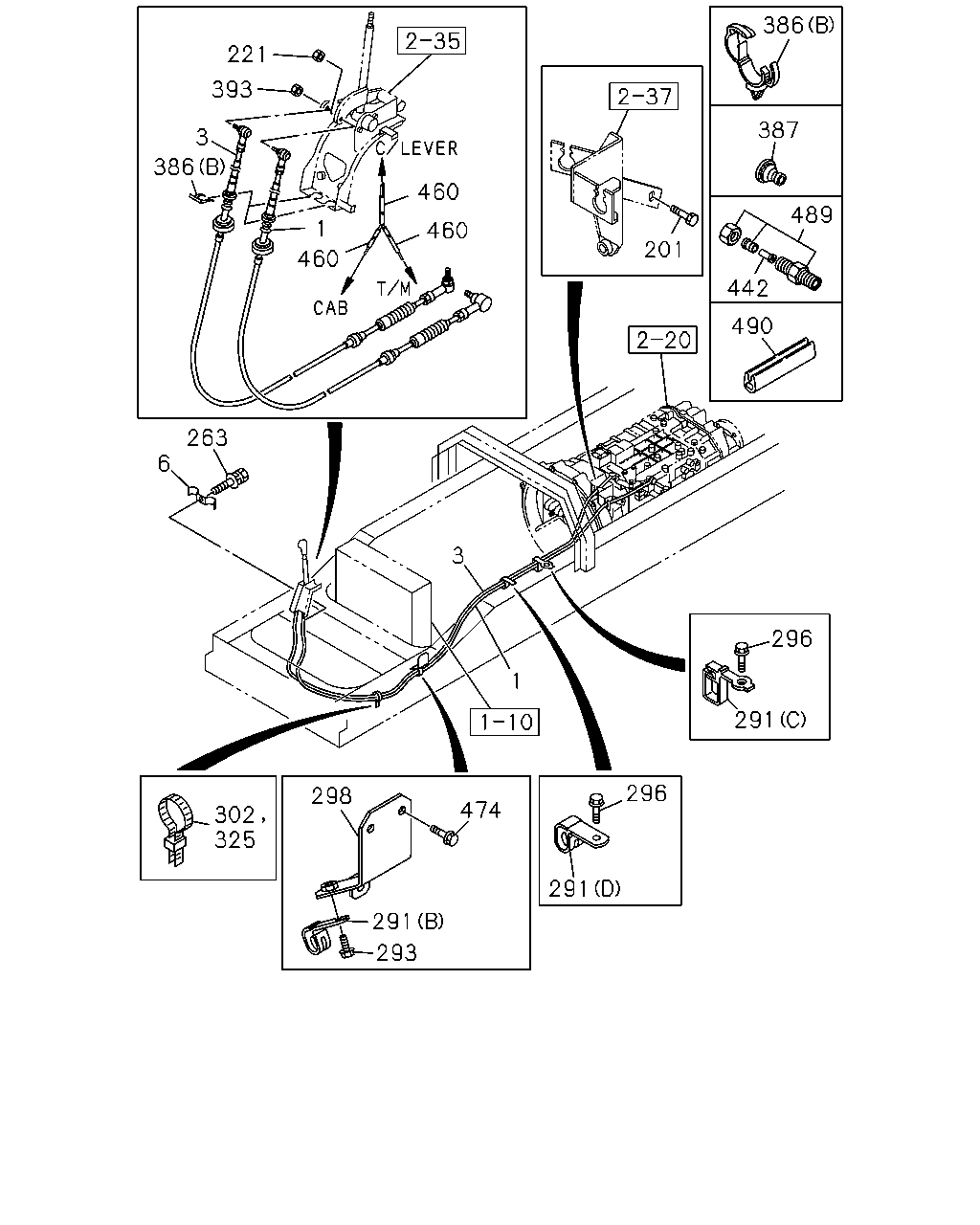

386 221 393 387 3 386 460 489 1 460 201 460 442 490 263 6 3 296 1 291 296 298 474 302 325 291 291 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT NISSAN DIESEL MPS62B M/T(Y2Z) L=3451	8-98023-992-0	01	1	0609-	●
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) L=3659	8-98012-593-0	01	1	0609-	●
1	CABLE; SHIFT,TRANS CONT L=3551	8-98019-621-3	01	1	0609-0612		●
1	CABLE; SHIFT,TRANS CONT L=3701	8-98065-301-0	01	1	0701-		●
3	CABLE; SELECT,TRANS CONT NISSAN DIESEL MPS62B M/T(Y2Z) L=3677	8-98023-993-0	01	1	0609-	●
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) L=3734	8-98012-594-0	01	1	0609-	●
3	CABLE; SELECT,TRANS CONT L=3816	8-98019-622-3	01	1	0609-0612		●
3	CABLE; SELECT,TRANS CONT L=3081	8-98065-302-0	01	1	0701-		●
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0609-	●	●
201	BOLT; BRKT ZF9S1110 M/T(Y5E) M12X30 FLANGE	0-28151-230-0	01	1	0609-	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0609-1011	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0609-	●	●
291	CLIP; SHIFT TO SELECT,FRAME NISSAN DIESEL MPS62B M/T(Y2Z) (A) ID=11X2 L=16	0-95325-026-0	01	1	0609-	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0609-		●
291	CLIP; SHIFT TO SELECT,FRAME ZF9S1110 M/T(Y5E) (D) ID=13 & 13 L=32	8-97389-264-0	01	1	0609-	●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0609-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-312-0	02	1	0609-	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0609-	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	03	1	0609-	●	●
298	BRACKET NISSAN DIESEL MPS62B M/T(Y2Z)	1-36183-252-2	01	1	0609-	●
298	BRACKET	1-36183-252-2	01	1	0609-		●
298	BRACKET ZF9S1110 M/T(Y5E)	8-98012-595-0	01	1	0609-	●
302	CLIP; BAND ZF9S1110 M/T(Y5E) L=140	5-09707-031-1	02	1	0609-	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0609-	●	●
325	CLIP; NYLON TUBE ZF9S1110 M/T(Y5E) L=140	5-09707-031-1	02	1	0609-	●
386	CLIP; CONT CABLE & TUBE ZF9S1110 M/T(Y5E) (B) ID=6 & 10-13	8-97069-515-0	01	1	0609-	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	0609-	●	●
387	GROMMET; CONT TUBE,FULLER ZF9S1110 M/T(Y5E)	1-09333-126-0	01	1	0609-	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0609-1011	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
442	INSERT; NYLON TUBE ZF9S1110 M/T(Y5E) ID=1.4 OD=2.0 L=18	1-09669-100-0	01	1	0609-	●
460	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) L=490 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0609-	●
460	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) L=3505 SERVICED BY L=4000 ID=7	1-87411-017-0	01	1	0609-	●
460	TUBE; CORRUGATE ZF9S1110 M/T(Y5E) L=310 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0609-	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0609-	●	●
489	CONNECTOR ZF9S1110 M/T(Y5E) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0609-	●
490	PROTECTOR; EDGE ZF9S1110 M/T(Y5E) L=60	8-97865-346-0	01	1	0609-	●

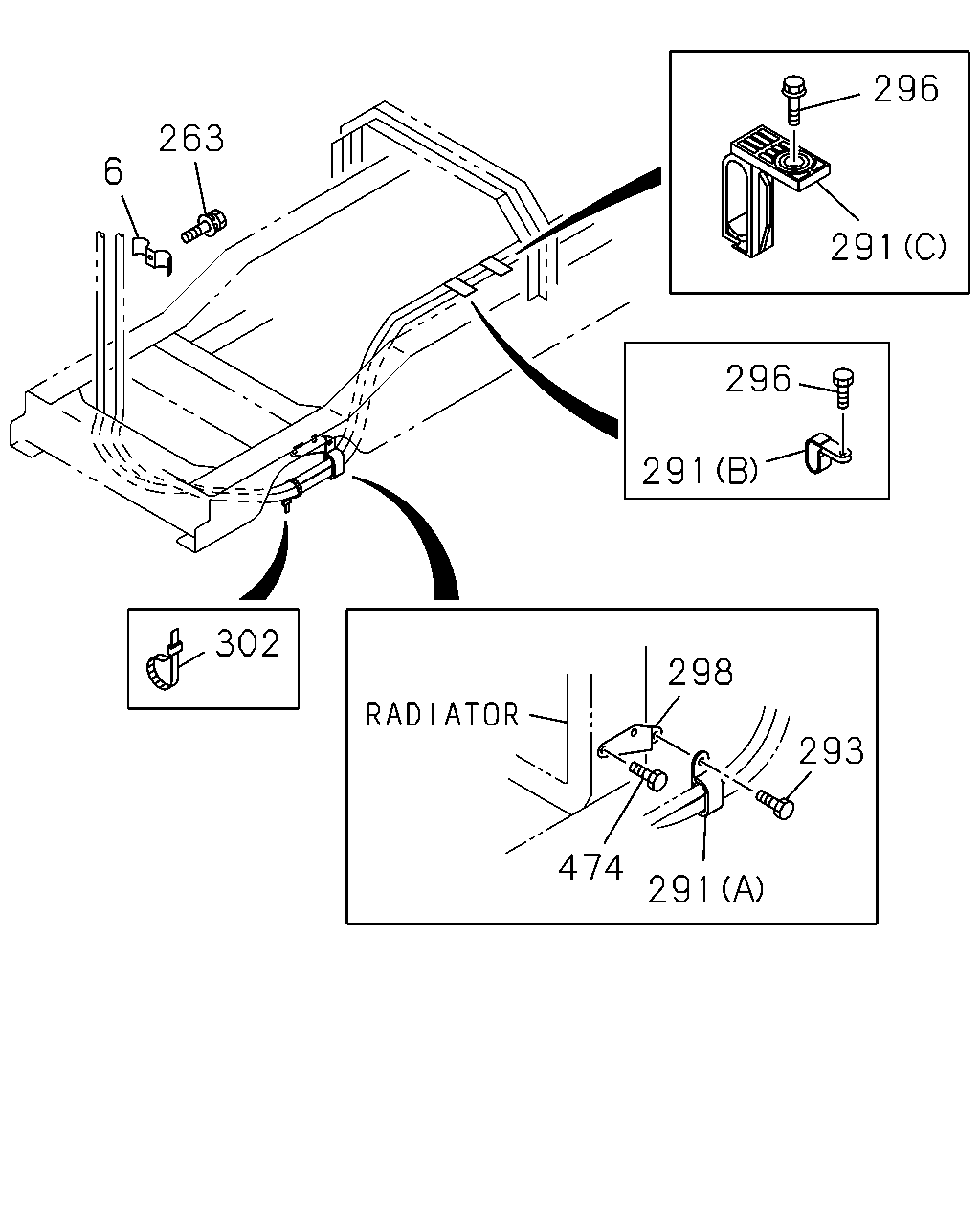

296 263 6 291 296 291 302 298 293 474 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	CLIP; CABLE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	0609-	●	●
263	BOLT; CLIP,TRANS CONT WIRE M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0609-	●	●
291	CLIP; SHIFT TO SELECT,FRAME NISSAN DIESEL MPS62B M/T(Y2Z) (A) ID=11X2 L=16	0-95325-026-0	01	1	0609-	●
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=11X2 L=16	0-95325-026-0	01	1	0609-		●
291	CLIP; SHIFT TO SELECT,FRAME ZF9S1110 M/T(Y5E) (D) ID=13 & 13 L=32	8-97389-264-0	01	1	0609-	●
291	CLIP; SHIFT TO SELECT,FRAME (C)	1-09701-307-2	01	1	0609-	●	●
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=13X2 L=32	1-09701-312-0	02	1	0609-	●	●
293	BOLT; CLIP,SHIFT TO SELECT M8X16 FLANGE	0-28050-816-0	01	1	0609-	●	●
296	BOLT; CLIP,SHIFT & SELECT M8X20 FLANGE	0-28050-820-0	03	1	0609-	●	●
298	BRACKET NISSAN DIESEL MPS62B M/T(Y2Z)	1-36183-252-2	01	1	0609-	●
298	BRACKET	1-36183-252-2	01	1	0609-		●
298	BRACKET ZF9S1110 M/T(Y5E)	8-98012-595-0	01	1	0609-	●
302	CLIP; BAND ZF9S1110 M/T(Y5E) L=140	5-09707-031-1	02	1	0609-	●
302	CLIP; BAND L=300	1-09707-001-1	01	1	0609-	●	●
474	BOLT; BRKT M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0609-	●	●

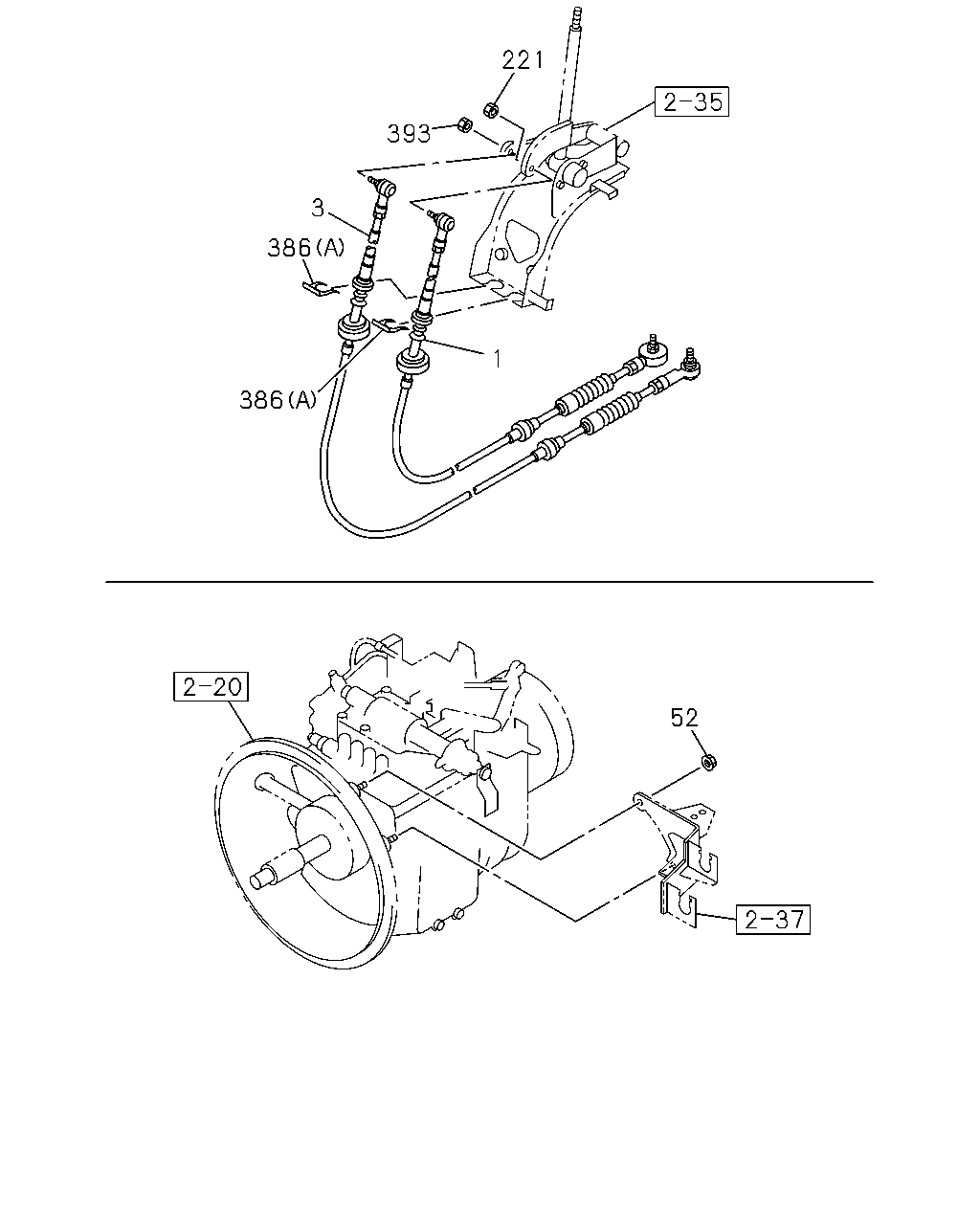

221 393 3 386 1 386 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; SHIFT,TRANS CONT NISSAN DIESEL MPS62B M/T(Y2Z) L=3451	8-98023-992-0	01	1	0609-	●
1	CABLE; SHIFT,TRANS CONT ZF9S1110 M/T(Y5E) L=3659	8-98012-593-0	01	1	0609-	●
1	CABLE; SHIFT,TRANS CONT L=3551	8-98019-621-3	01	1	0609-0612		●
1	CABLE; SHIFT,TRANS CONT L=3701	8-98065-301-0	01	1	0701-		●
3	CABLE; SELECT,TRANS CONT NISSAN DIESEL MPS62B M/T(Y2Z) L=3677	8-98023-993-0	01	1	0609-	●
3	CABLE; SELECT,TRANS CONT ZF9S1110 M/T(Y5E) L=3734	8-98012-594-0	01	1	0609-	●
3	CABLE; SELECT,TRANS CONT L=3816	8-98019-622-3	01	1	0609-0612		●
3	CABLE; SELECT,TRANS CONT L=3081	8-98065-302-0	01	1	0701-		●
52	NUT; BRKT NISSAN DIESEL MPS62B M/T(Y2Z) M10 FLANGE	0-91180-210-0	02	1	0609-	●
52	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0609-		●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-049-0	01	1	0609-1011	●	●
221	NUT; SHIFT WIRE TO LEVER M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
386	CLIP; CONT CABLE & TUBE ZF9S1110 M/T(Y5E) (B) ID=6 & 10-13	8-97069-515-0	01	1	0609-	●
386	CLIP; CONT CABLE & TUBE (A)	1-09700-966-1	02	1	0609-	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-049-0	01	1	0609-1011	●	●
393	NUT; SELECT CABLE,CAB M8 FLANGE	1-09440-062-1	01	1	1012-	●	●
