2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#25028) — 78 parça

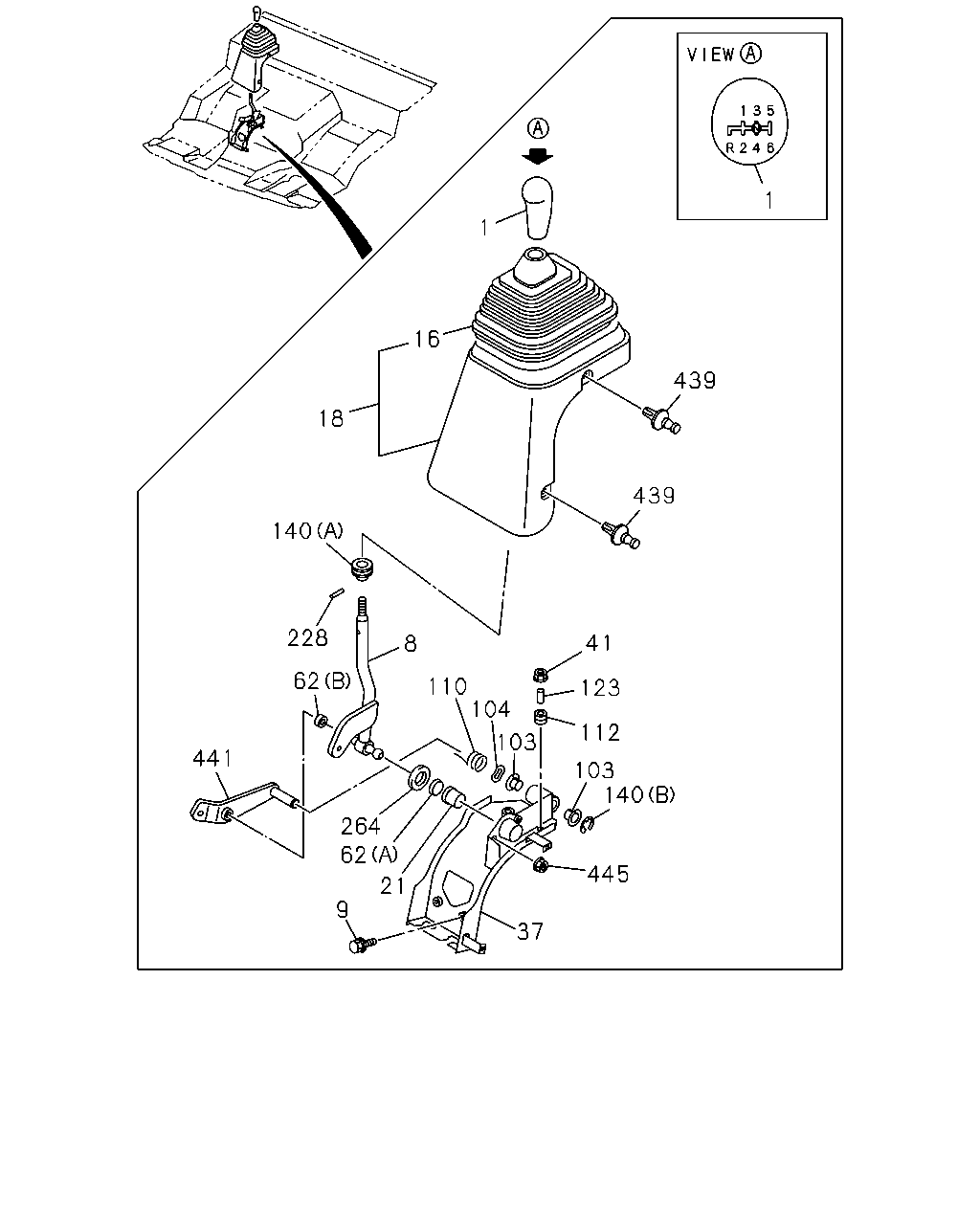

çizim 90104
1 1 16 439 18 439 140 228 41 8 62 110 104 123 112 103 441 103 140 264 62 445 21 9 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) 		8-97500-145-1 01 1 0609- ●
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33611-038-0 01 1 0609- ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0609- ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) 		8-98051-255-0 01 1 0609- ●
8 LEVER; CHANGE
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-553-0 01 1 0609- ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0609- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0609- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0609- ● ●
18 BOOT; CHANGE LEVER 1-79996-396-3 01 1 0609- ●
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 0609- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0609- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) 		8-98051-254-0 01 1 0609- ●
37 BRACKET; CHANGE LEVER SUPPORT
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-445-2 01 1 0609- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0609- ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0609-0805 ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0609- ● ●
62 SEAT; BALL,CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) (B) 		8-97011-900-0 01 1 0609- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0609- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0609- ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0609- ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-586-0 01 1 0609- ●
110 SPRING; RETURN,CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-435-0 01 1 0609- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0609- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0609- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0609- ● ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0609- ● ●
140 RING; SNAP
NISSAN DIESEL MPS62B M/T(Y2Z) (A) 		1-33619-504-0 01 1 0609- ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0609- ●
228 PIN; SPR,CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-505-0 01 1 0609- ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0609- ●
264 PLATE; COVER 1-33619-430-0 01 1 0609- ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0609- ● ●
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) 		1-33619-551-1 01 1 0609- ●
441 LEVER; SELECT
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-437-2 01 1 0609- ●
441 LEVER; SELECT 1-33619-437-2 01 1 0609- ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0609- ● ●

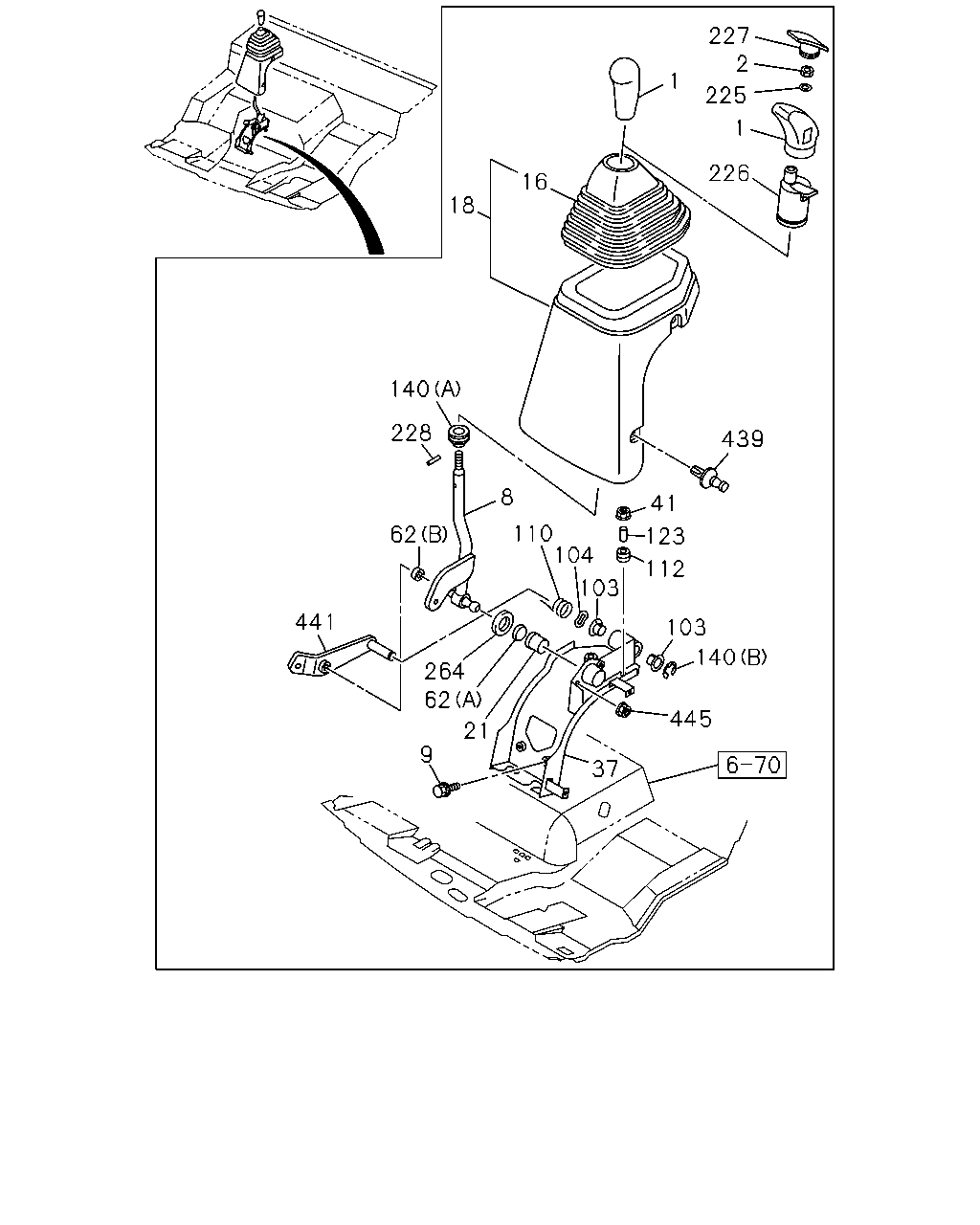

çizim 90109
227 2 1 225 1 226 16 18 140 228 439 8 41 110 104 62 123 112 103 441 103 140 264 62 445 21 37 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) 		8-97500-145-1 01 1 0609- ●
1 KNOB; CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33611-038-0 01 1 0609- ●
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0609- ●
2 NUT; KNOB
ZF9S1110 M/T(Y5E) M10 FLANGE 		0-91180-210-0 01 1 0609- ●
8 LEVER; CHANGE
ZF9S1110 M/T(Y5E) 		8-98051-255-0 01 1 0609- ●
8 LEVER; CHANGE
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-553-0 01 1 0609- ●
8 LEVER; CHANGE 1-33619-553-0 01 1 0609- ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0609- ● ●
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 0609- ● ●
18 BOOT; CHANGE LEVER 1-79996-396-3 01 1 0609- ●
18 BOOT; CHANGE LEVER 1-79996-394-3 01 1 0609- ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0609- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ZF9S1110 M/T(Y5E) 		8-98051-254-0 01 1 0609- ●
37 BRACKET; CHANGE LEVER SUPPORT
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-445-2 01 1 0609- ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-444-2 01 1 0609- ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0609-0805 ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0609- ● ●
62 SEAT; BALL,CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) (B) 		8-97011-900-0 01 1 0609- ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 0609- ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 0609- ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 0609- ● ●
110 SPRING; RETURN,CHANGE LEVER
ZF9S1110 M/T(Y5E) 		1-33619-586-0 01 1 0609- ●
110 SPRING; RETURN,CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-435-0 01 1 0609- ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 0609- ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 0609- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0609- ● ●
140 RING; SNAP
(B) ID=10 		0-91805-510-0 01 1 0609- ● ●
140 RING; SNAP
NISSAN DIESEL MPS62B M/T(Y2Z) (A) 		1-33619-504-0 01 1 0609- ●
140 RING; SNAP
(A) 		1-33619-504-0 01 1 0609- ●
225 WASHER; PL,KNOB
ZF9S1110 M/T(Y5E) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0609- ●
226 VALVE; SELECTOR
ZF9S1110 M/T(Y5E) 		1-33710-008-0 01 1 0609- ●
227 COVER; KNOB
ZF9S1110 M/T(Y5E) 		8-98013-168-0 01 1 0609- ●
228 PIN; SPR,CHANGE LEVER
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-505-0 01 1 0609- ●
228 PIN; SPR,CHANGE LEVER 1-33619-505-0 01 1 0609- ●
264 PLATE; COVER 1-33619-430-0 01 1 0609- ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0609- ● ●
441 LEVER; SELECT
ZF9S1110 M/T(Y5E) 		1-33619-551-1 01 1 0609- ●
441 LEVER; SELECT
NISSAN DIESEL MPS62B M/T(Y2Z) 		1-33619-437-2 01 1 0609- ●
441 LEVER; SELECT 1-33619-437-2 01 1 0609- ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0609- ● ●
