2-30C — GEAR SHIFTER AND QUADRANT BOX (#25027) — 102 parça

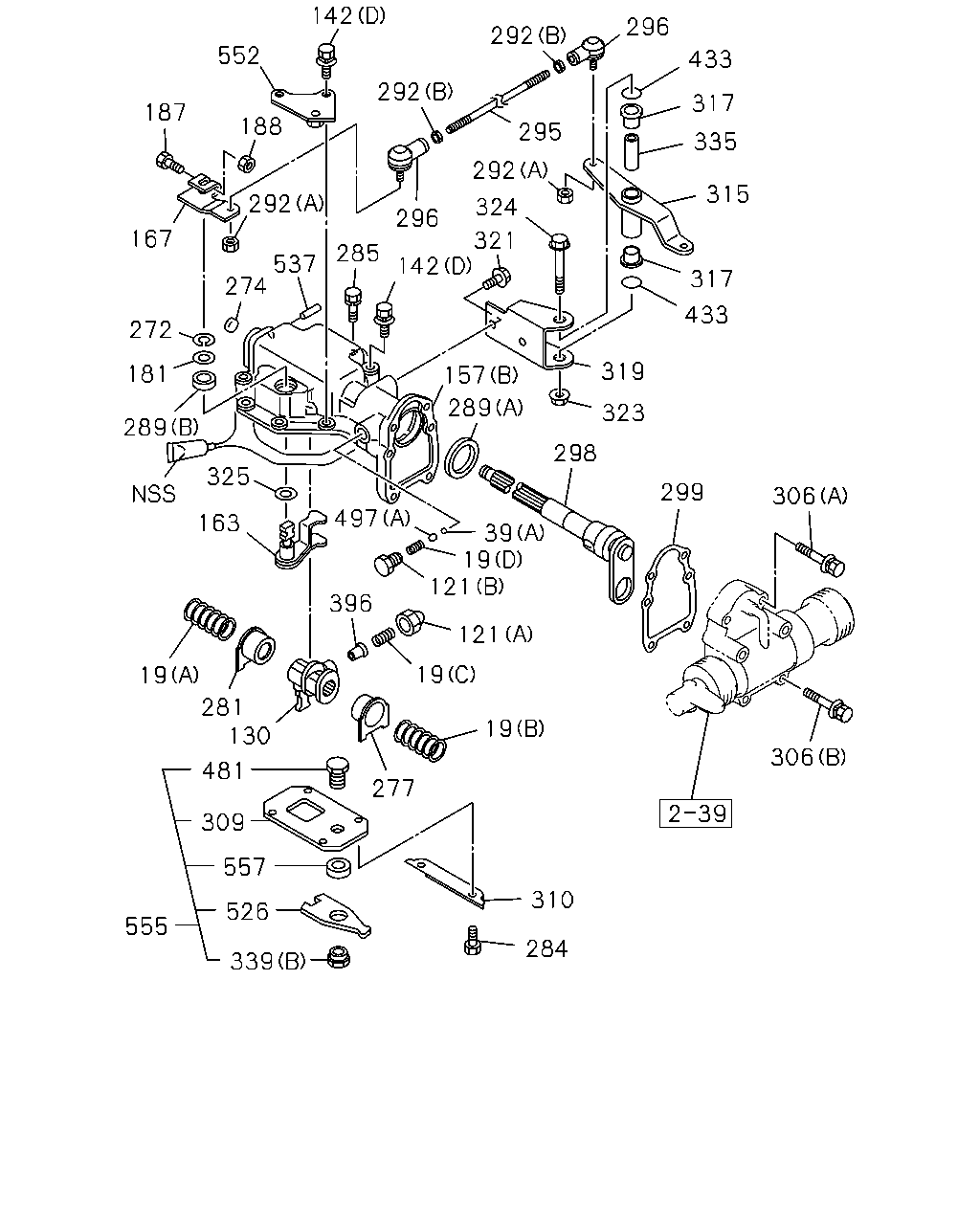

çizim 105828
142 296 292 552 433 292 317 187 188 295 335 292 315 292 324 296 167 321 142 285 537 274 317 433 272 319 181 157 289 323 289 298 325 497 299 306 163 39 19 121 396 121 19 19 281 130 19 306 481 277 309 557 310 526 555 284 339
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33519-109-0 01 1 0609-
19 SPRING; COIL COMP
(B) 		1-33519-110-0 01 1 0609-
19 SPRING; COIL COMP
(C) 		1-33519-111-0 01 1 0609-
19 SPRING; COIL COMP
(D) 		1-33519-112-0 01 1 0609-
39 BALL; DETENT
(A) 		1-33549-284-0 01 1 0609-
39 BALL; DETENT
(B) 		1-33549-287-0 04 1 0609-
121 PLUG; DETENT SPR
(A) 		1-33119-354-0 01 1 0609-
121 PLUG; DETENT SPR
(B) 		1-33119-355-0 01 1 0609-
130 LEVER; SHIFT,INTERNAL 1-33521-178-0 01 1 0609-
142 BOLT; QUAD BOX
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0609-
142 BOLT; QUAD BOX
(A) 		1-33549-260-0 02 1 0609-
142 BOLT; QUAD BOX
(B) 		1-33549-261-0 01 1 0609-
142 BOLT; QUAD BOX
(C) 		1-33549-262-0 16 1 0609-
142 BOLT; QUAD BOX
(D) 		1-33549-265-0 06 1 0609-
157 BOX; QUAD,TRANS
(B) 		1-33541-497-0 01 1 0609-
157 BOX; QUAD,TRANS
(A) 		1-33541-523-0 01 1 0609-
163 LEVER; SELECT,INTERNAL 1-33522-175-0 01 1 0609-
167 LEVER; SELECT,EXTERNAL 1-33521-160-0 01 1 0609-
181 WASHER; PL,SELECT LEVER 1-33549-286-0 01 1 0609-
187 BOLT; SELECT LEVER
M8X45 FLANGE 		0-29260-845-0 01 1 0609-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0609-
272 RING; SNAP,QUAD BOX 1-33529-097-0 01 1 0609-
272 RING; SNAP,QUAD BOX 1-33529-097-0 01 1 0609-
274 COVER; SHAFT,QUAD BOX 1-33549-272-0 01 1 0609-
277 PLATE; SPRING SEAT 1-33529-099-0 01 1 0609-
281 PLATE; OBSTRUCT,QUAD BOX 1-33529-099-0 01 1 0609-
284 BOLT; REAMER,QUAD BOX 1-33549-268-0 04 1 0609-
285 BREATHER; AIR,QUAD BOX 1-33149-014-0 01 1 0609-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-33549-274-0 01 1 0609-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-33549-275-0 01 1 0609-
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0609-
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0609-
295 ROD; LINK,RELAY LEVER 9-08400-813-0 01 1 0609-
296 ROD END
L=45.5 		1-09760-118-1 02 1 0609-
298 SHAFT; SHIFT LEVER 1-33522-165-0 01 1 0609-
299 GASKET; QUAD BOX TO POWER ASSISTOR
ALSO INCLUDED IN GASKET SET(M/T). 		1-33549-269-0 01 1 0609-
306 BOLT; SHIFT ASSISTOR
(A) 		1-33549-266-0 02 1 0609-
306 BOLT; SHIFT ASSISTOR
(B) 		1-33549-267-0 04 1 0609-
309 PLATE; SHIFT LEVER 1-33549-277-0 01 1 0609-
310 PLATE; LOCK,SHIFT LEVER 1-33549-270-0 01 1 0609-
315 LEVER; SELECT 1-33651-688-0 01 1 0609-
317 BUSHING; LEVER 1-09330-119-0 02 1 0609-
319 BRACKET; SELECT LEVER 1-33657-655-0 01 1 0609-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0609-
323 NUT; LK,SELECT LEVER
M10 FLANGE 		0-91150-110-0 01 1 0609-
324 BOLT; SHAFT
M10X80 FLANGE 		0-28081-080-0 01 1 0609-
325 SHIM; LEVER 1-33529-115-0 05 1 0609-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-205-0 01 1 0609-
339 NUT; QUAD BOX
(A) 		1-33549-263-0 02 1 0609-
339 NUT; QUAD BOX
(B) 		1-33549-279-0 01 1 0609-
396 PLUNGER; SHIFT ROD 1-33529-098-0 01 1 0609-
433 GASKET; BUSHING 1-09623-594-0 02 1 0609-
481 BOLT; SHIFT LEVER 1-33549-280-0 01 1 0609-
497 BALL; SWITCH
(A) 		1-33119-356-0 01 1 0609-
497 BALL; SWITCH
(B) 		1-33119-357-0 01 1 0609-
526 LEVER; DETENT 1-33549-281-0 01 1 0609-
537 PIN; DETENT 1-33549-273-0 01 1 0609-
552 BRACKET 1-33657-656-0 01 1 0609-
555 PLATE ASM; SHIFT LEVER 1-33549-276-0 01 1 0609-
557 SPACER; SHIFT LEVER 1-33549-278-0 01 1 0609-

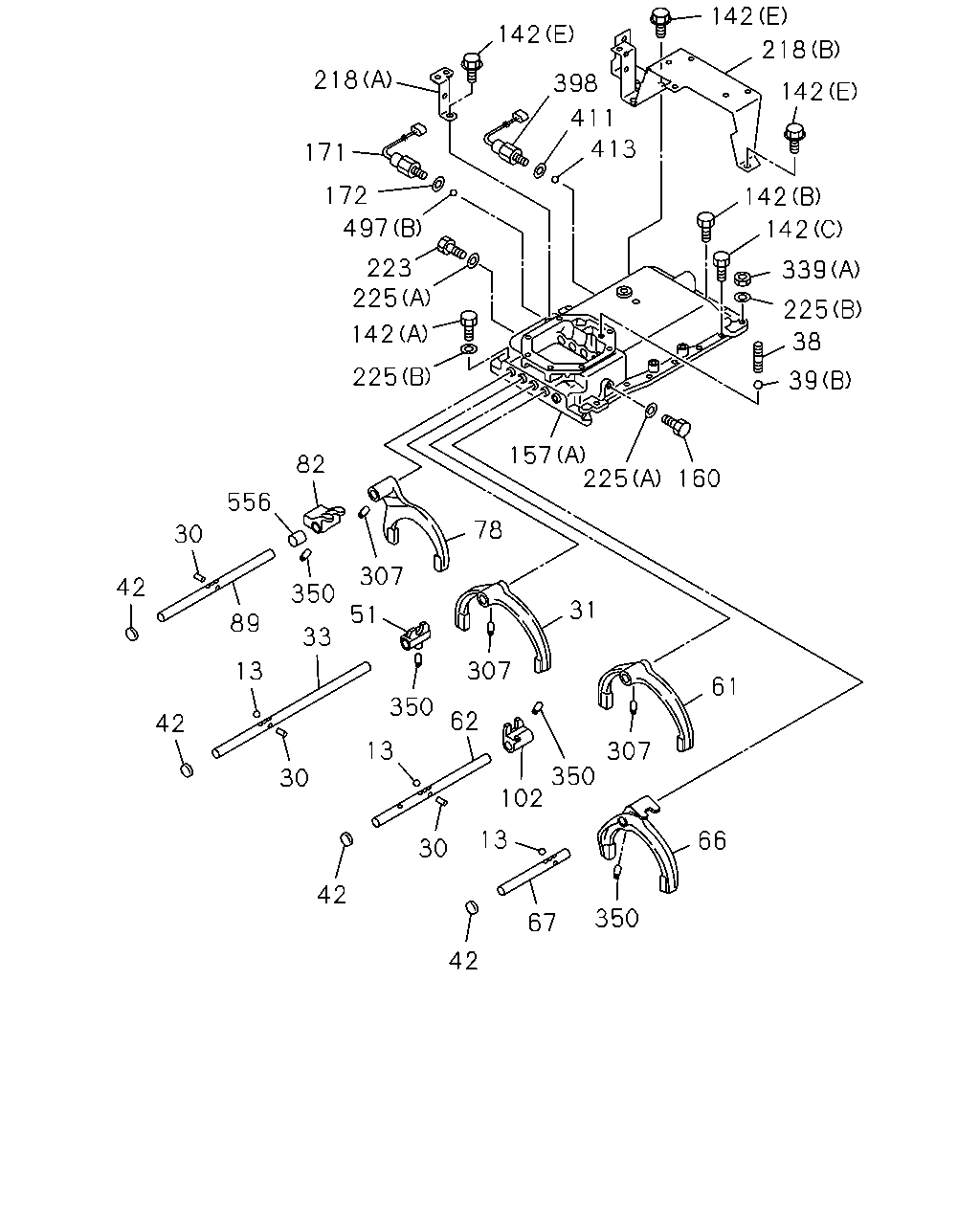

çizim 106154
142 142 218 218 398 142 411 413 171 172 142 497 142 223 225 339 225 142 38 225 39 157 225 82 160 556 78 30 307 42 350 31 51 89 33 307 13 61 350 62 42 13 307 350 102 30 13 66 30 42 350 67 42
BalonParca AdiParca NoAdetTipApplied Date
13 BALL; LK,SHIFT SLEEVE 1-33119-357-0 03 1 0609-
30 PIN; INTER LK 1-33519-115-0 03 1 0609-
31 ARM; SHIFT,LOW & 2ND 1-33511-576-0 01 1 0609-
33 ROD; SHIFT,LOW & 2ND 1-33531-468-0 01 1 0609-
38 SPRING; DETENT 1-33549-283-0 04 1 0609-
39 BALL; DETENT
(A) 		1-33549-284-0 01 1 0609-
39 BALL; DETENT
(B) 		1-33549-287-0 04 1 0609-
42 CAP; QUAD BOX 1-33549-345-0 06 1 0609-
51 BLOCK; SHIFT,1ST & 2ND 1-33519-124-0 01 1 0609-
61 ARM; SHIFT,3RD & 4TH 1-33511-576-0 01 1 0609-
62 ROD; SHIFT,3RD & 4TH 1-33531-453-0 01 1 0609-
66 ARM; SHIFT,5TH & 6TH 1-33511-577-0 01 1 0609-
67 ROD; SHIFT,5TH & 6TH 1-33531-455-0 01 1 0609-
78 ARM; SHIFT,REV 1-33511-563-0 01 1 0609-
82 BLOCK; SHIFT,REV 1-33519-125-0 01 1 0609-
89 ROD; SHIFT,REV 1-33531-454-0 01 1 0609-
102 BLOCK; SHIFT,3RD & 4TH 1-33519-123-0 01 1 0609-
142 BOLT; QUAD BOX
(E) M10X30 FLANGE 		0-28651-030-0 04 1 0609-
142 BOLT; QUAD BOX
(A) 		1-33549-260-0 02 1 0609-
142 BOLT; QUAD BOX
(B) 		1-33549-261-0 01 1 0609-
142 BOLT; QUAD BOX
(C) 		1-33549-262-0 16 1 0609-
142 BOLT; QUAD BOX
(D) 		1-33549-265-0 06 1 0609-
157 BOX; QUAD,TRANS
(B) 		1-33541-497-0 01 1 0609-
157 BOX; QUAD,TRANS
(A) 		1-33541-523-0 01 1 0609-
160 PLUG; BLIND 1-33549-285-0 01 1 0609-
171 SWITCH; NEUTRAL 1-82440-106-0 01 1 0609-
172 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-353-0 01 1 0609-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82698-228-0 01 1 0609-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 01 1 0609-
223 SCREW; SET,QUAD BOX 1-33549-282-0 01 1 0609-
225 WASHER; LK,QUAD BOX
(A) 		1-38119-050-0 01 1 0609-
225 WASHER; LK,QUAD BOX
(B) 		1-33549-264-0 04 1 0609-
307 SCREW; SET,BLOCK 1-33519-113-0 03 1 0609-
339 NUT; QUAD BOX
(A) 		1-33549-263-0 02 1 0609-
339 NUT; QUAD BOX
(B) 		1-33549-279-0 01 1 0609-
350 SCREW; SHIFT ARM 1-33519-113-0 04 1 0609-
398 SWITCH; REV LAMP 1-82440-105-0 01 1 0609-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 		1-33119-353-0 01 1 0609-
413 BALL; BACK SW 1-33119-356-0 01 1 0609-
497 BALL; SWITCH
(A) 		1-33119-356-0 01 1 0609-
497 BALL; SWITCH
(B) 		1-33119-357-0 01 1 0609-
556 SPACER; SHIFT ROD 1-33519-114-0 01 1 0609-
