Isuzu WW
▶
TRUCKS
▶
FVR
▶
11030 - FVR(RHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-26C - MANUAL TRANSMISSION GEAR
▶

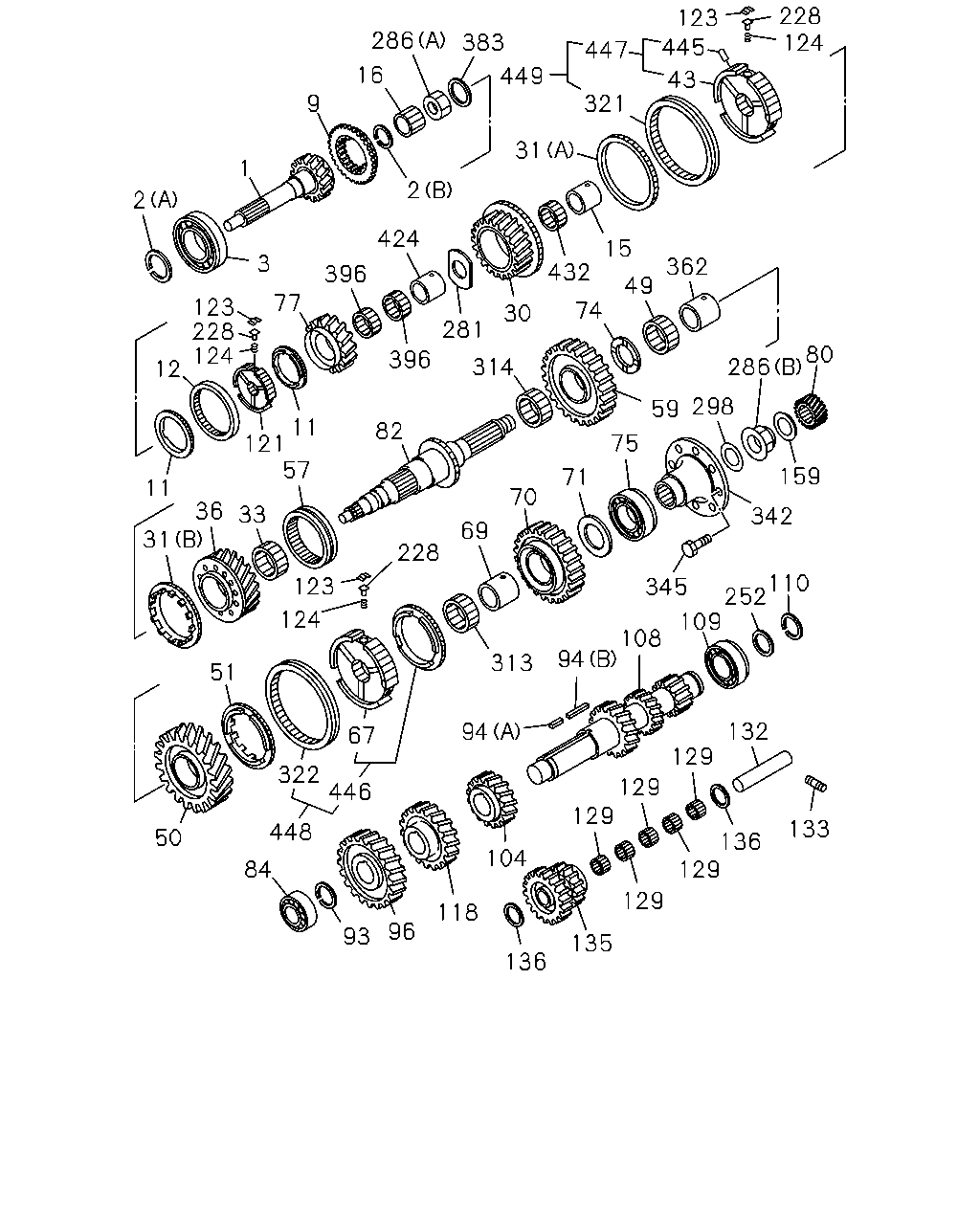

2-26C — MANUAL TRANSMISSION GEAR
(#25024) — 73 parça
228
124
123
286
383
445
447
16
449
43
9
321
31
1
2
2
424
15
3
362
432
396
49
77
123
228
124
74
30
281
80
286
396
314
12
298
59
11
82
75
121
57
159
71
11
70
36
31
33
342
69
228
110
252
109
123
345
124
108
94
313
51
132
94
67
129
322
446
129
129
133
448
50
136
129
104
84
129
118
96
93
135
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHAFT; TOP GEAR,TRANS
Z=24
1-33211-919-0
01
1
0609-
2
RING; SNAP,TOP GEAR SHAFT
(A)
1-33219-202-0
01
1
0609-
2
RING; SNAP,TOP GEAR SHAFT
(B)
1-33219-203-0
01
1
0609-
3
BEARING; TOP GEAR SHAFT
1-33219-205-0
01
1
0609-
9
CLUTCH; DOG,TOP GEAR
1-33265-473-0
01
1
0609-
11
RING; BLOCK,5TH & 6TH
1-33265-476-0
02
1
0609-
12
SLEEVE; 5TH & 6TH
1-33262-204-0
01
1
0609-
15
COLLAR; 4TH GEAR
1-33234-088-0
01
1
0609-
16
BEARING; PILOT,MAINSHAFT
1-33219-204-0
01
1
0609-
30
GEAR; 4TH,MAINSHAFT
Z=27
1-33252-457-0
01
1
0609-
31
RING; BLOCK,3RD & 4TH
(A)
1-33265-475-0
01
1
0609-
31
RING; BLOCK,3RD & 4TH
(B)
1-33265-477-0
01
1
0609-
33
BEARING; NEEDLE,3RD GEAR
1-33259-083-0
01
1
0609-
36
GEAR; 3RD,MAINSHAFT
Z=34
1-33252-469-0
01
1
0609-
43
HUB; CLU,3RD & 4TH,MAIN
1-33261-266-0
01
1
0609-
49
BEARING; NEEDLE,2ND GEAR
1-33259-083-0
01
1
0609-
50
GEAR; 2ND,MAINSHAFT
Z=42
1-33251-409-0
01
1
0609-
51
RING; BLOCK,LOW & 2ND
1-33265-477-0
01
1
0609-
57
SLEEVE; REV
1-33262-202-0
01
1
0609-
59
GEAR; REV MAINSHAFT
Z=43
1-33257-079-0
01
1
0609-
67
HUB; CLU,1ST TO REV
1-33261-265-0
01
1
0609-
69
COLLAR; 1ST GEAR MAIN
1-33234-088-0
01
1
0609-
70
GEAR; 1ST,MAINSHAFT
Z=46
1-33251-408-0
01
1
0609-
71
WASHER; THRUST,LOW
1-33239-268-0
01
1
0609-
74
WASHER; THRUST,REV GEAR
1-33239-302-0
01
1
0609-
75
BEARING; MAINSHAFT
1-33239-303-0
01
1
0609-
77
GEAR; 6TH,MAINSHAFT
Z=20
1-33253-636-0
01
1
0609-
80
GEAR; SPD DRIVE
Z=5
1-33371-066-0
01
1
0609-
82
SHAFT; MAIN,TRANS
1-33231-304-0
01
1
0609-
84
BEARING; COUNTER SHAFT,FRT
1-33319-162-0
01
1
0609-
93
RING; SNAP,COUNTER FRT BRG
1-33319-159-0
01
1
0609-
94
KEY; FEATHER,COUNTER SHAFT
(A)
1-33319-157-0
01
1
0609-
94
KEY; FEATHER,COUNTER SHAFT
(B)
1-33319-158-0
01
1
0609-
96
GEAR; COUNTER DRIVE
Z=44
1-33331-251-0
01
1
0609-
104
GEAR; 4TH,COUNTER
Z=33
1-33338-342-0
01
1
0609-
108
SHAFT; COUNTER
Z=12-18-16-25
1-33311-305-0
01
1
0609-
109
BEARING; COUNTER SHAFT,RR
1-33319-161-0
01
1
0609-
110
RING; SNAP,COUNTER BRG
1-33319-160-0
01
1
0609-
118
GEAR; 6TH,COUNTER
Z=47
1-33338-341-0
01
1
0609-
121
HUB; CLU,6TH
1-33261-243-0
01
1
0609-
123
BLOCK; INDEX,SYN
1-33269-072-0
09
1
0609-
124
SPRING; PLUNGER,CLU HUB
1-33264-040-0
09
1
0609-
129
BEARING; NEEDLE,IDLER
1-33359-009-0
05
1
0609-
132
SHAFT; REV
1-33351-030-0
01
1
0609-
133
SCREW; SET,REV SHAFT
1-33359-008-0
01
1
0609-
135
GEAR; REV IDLER
Z=30-21
1-33331-252-0
01
1
0609-
136
WASHER; THRUST,REV IDLE,RR
1-33359-010-0
02
1
0609-
159
SPACER; SPD DRIVE GEAR
1-33159-047-0
01
1
0609-
228
PLUNGER; SYN
1-33263-032-0
09
1
0609-
252
SPACER
T=3.0
1-33239-263-0
01
1
0609-
252
SPACER
T=3.1
1-33239-264-0
01
1
0609-
252
SPACER
T=3.2
1-33239-265-0
01
1
0609-
252
SPACER
T=3.3
1-33239-266-0
01
1
0609-
281
WASHER; THRUST,MAINSHAFT
1-33239-269-0
01
1
0609-
286
NUT; LK,MAINSHAFT
(A)
1-33239-272-0
01
1
0609-
286
NUT; LK,MAINSHAFT
(B)
1-33239-312-0
01
1
0609-
298
GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T).
1-37249-167-0
01
1
0609-
313
BEARING; NEEDLE,LOW GEAR
1-33259-077-0
01
1
0609-
314
BEARING; NEEDLE,REV GEAR
1-33259-077-0
01
1
0609-
321
SLEEVE; SYN,4TH & 3RD
1-33262-205-0
01
1
0609-
322
SLEEVE; SYN,LOW & 2ND
1-33262-214-0
01
1
0609-
342
FLANGE; OUTPUT
1-37243-331-0
01
1
0609-
345
BOLT; FLANGE TO YOKE
1-46219-069-0
04
1
0609-
362
COLLAR; 2ND GEAR
1-33234-093-0
01
1
0609-
383
WASHER; LK
1-33239-271-0
01
1
0609-
396
BEARING; NEEDLE,MAINSHAFT
1-33239-267-0
01
1
0609-
424
COLLAR; 6TH GEAR
1-33234-090-0
01
1
0609-
432
BEARING; NEEDLE,4TH
1-33259-077-0
01
1
0609-
445
PIN; CLU HUB
1-33269-071-0
01
1
0609-
446
HUB ASM; CLU 1ST & 2ND
1-33261-267-0
01
1
0609-
447
HUB ASM; CLU 3RD & 4TH
1-33261-268-0
01
1
0609-
448
SYNCHRONIZER ASM; 1ST & 2ND
1-33269-087-0
01
1
0609-
449
SYNCHRONIZER ASM; 3RD & 4TH
1-33269-088-0
01
1
0609-
