4-50 — FRONT SUSPENSION (#2501) — 100 parça

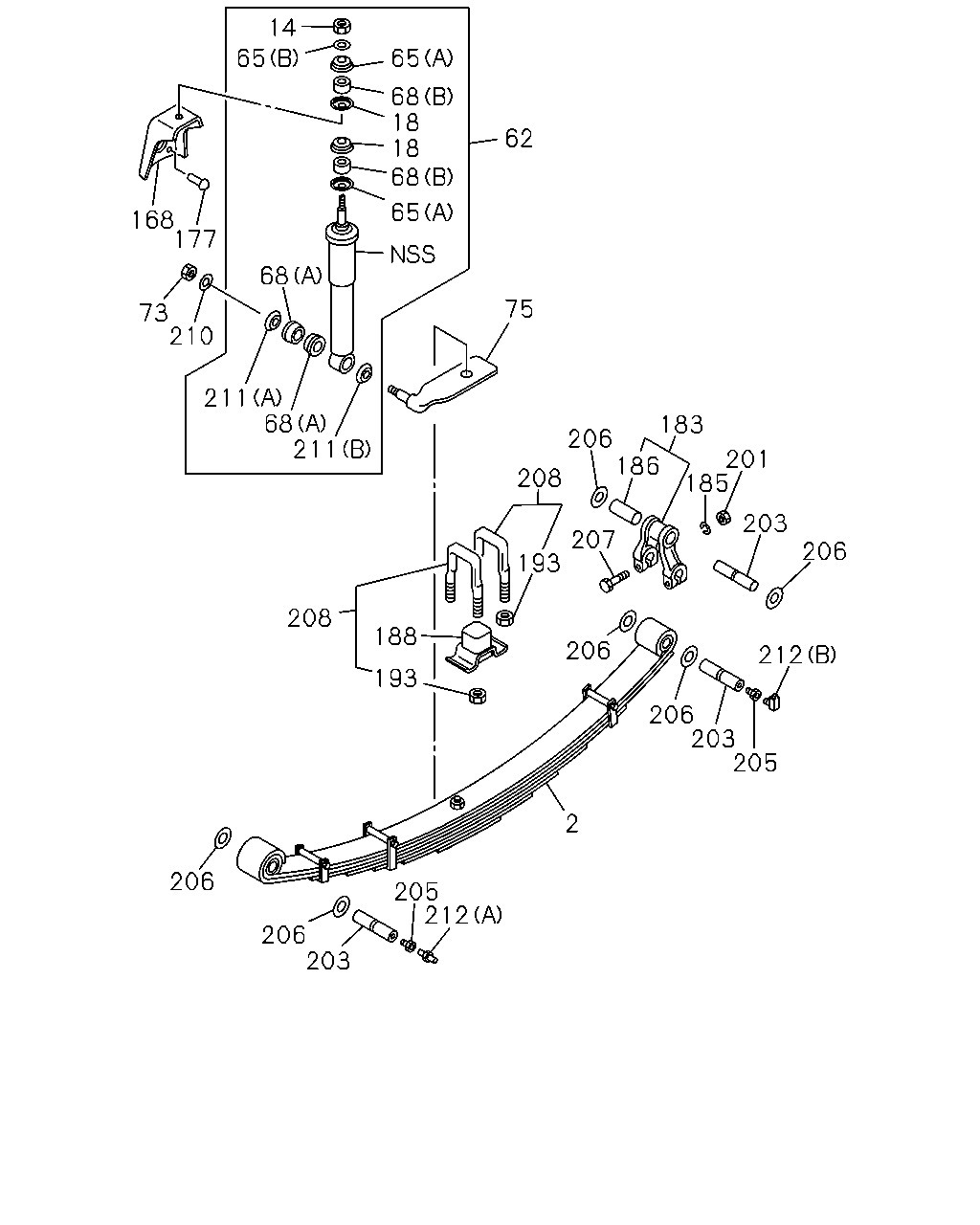

çizim 28842
14 65 65 68 18 18 68 62 65 168 177 68 75 73 210 211 68 211 183 206 186 201 185 208 203 207 206 193 208 188 206 212 193 206 203 205 2 206 205 212 206 203
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-539-0 02 1 9002-9306
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-246-0 02 1 9307-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. L TYPE ENG<90L> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-551-0 02 1 9002-9306
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 10PD1 STD ENG(40L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-513-1 02 1 9002-9306
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-207-0 02 1 9307-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9002-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9002-
62 ABSORBER ASM; SHOCK,FRT 1-51630-053-3 02 1 9002-9306
62 ABSORBER ASM; SHOCK,FRT 1-51630-378-1 02 1 9307-
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-228-0 02 1 9002-
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9002-
68 BUSHING; S/ABS
(A) 		9-51631-026-0 04 1 9002-
68 BUSHING; S/ABS
(B) 		9-51631-039-0 04 1 9002-
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9002-9306
73 NUT; BRKT,SHOCK
EXC. FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9307-
75 BRACKET; FRT S/ABS 1-51681-551-0 01 1 9002-9306
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-598-2 01 1 9307-
75 BRACKET; FRT S/ABS 1-51681-550-0 01 1 9002-9306
75 BRACKET; FRT S/ABS
EXC. FRONT STABILIZER SHAFT<F59> 		1-51681-597-2 01 1 9307-
168 BRACKET; S/ABS,FRT SUSP 1-51681-130-1 02 1 9002-9306
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9307-
177 RIVET; BRKT,S/ABS
D13X36 		1-09730-107-0 08 1 9002-9212
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9301-
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9002-
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9002-9209
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-9306
185 WASHER; LK,PIN
ID=12.2 		9-09150-812-0 12 1 9307-9512
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9002-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-028-1 02 1 9002-9306
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-096-0 02 1 9307-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
L TYPE ENG<90L> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-023-1 02 1 9002-9306
188 RUBBER; CLAMP,U-BOLT,FRT SPR
10PD1 STD ENG(40L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-033-1 02 1 9002-9306
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 9307-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9002-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9002-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9002-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9002-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9002-
207 BOLT; SPR TO SHACKLE
M12X80 		9-91056-280-0 12 1 9002-9005
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9006-
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-2 04 1 9002-9306
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9307-
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9307-
210 WASHER; S/ABS,OUTER
EXC. FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9307-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9002-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9002-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 9002-

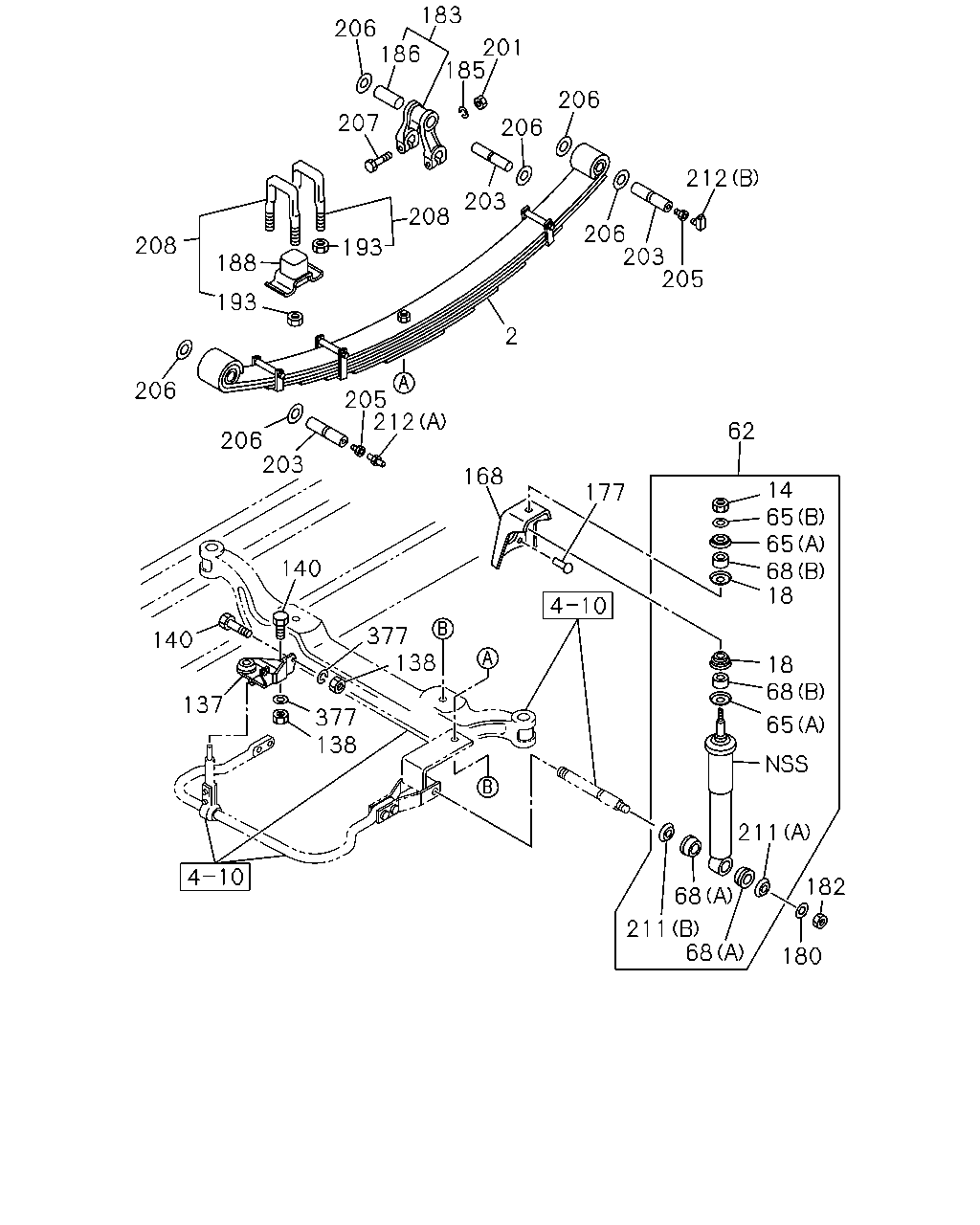

çizim 29119
183 206 186 201 185 206 207 206 212 203 208 206 203 205 208 193 188 193 2 206 205 212 62 206 203 168 14 65 65 68 18 177 140 377 138 140 18 68 377 138 137 65 211 182 68 211 68 180
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-539-0 02 1 9002-9306
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-246-0 02 1 9307-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. L TYPE ENG<90L> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-551-0 02 1 9002-9306
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 10PD1 STD ENG(40L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51110-513-1 02 1 9002-9306
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-207-0 02 1 9307-
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9002-
18 WASHER; CENTERING,S/ABS
ID=20.8 		9-51631-041-0 04 1 9002-
62 ABSORBER ASM; SHOCK,FRT 1-51630-053-3 02 1 9002-9306
62 ABSORBER ASM; SHOCK,FRT 1-51630-378-1 02 1 9307-
65 WASHER; S/ABS
(B) ID=16.5 		1-09503-228-0 02 1 9002-
65 WASHER; S/ABS
(A) 		9-51631-040-0 04 1 9002-
68 BUSHING; S/ABS
(A) 		9-51631-026-0 04 1 9002-
68 BUSHING; S/ABS
(B) 		9-51631-039-0 04 1 9002-
137 BRACKET; STAB BAR TO FRAME
L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> 		1-51781-071-0 01 1 9307-
137 BRACKET; STAB BAR TO FRAME
L TYPE ENG<90L> FRONT STABILIZER SHAFT<F59> 		1-51781-070-1 01 1 9307-
137 BRACKET; STAB BAR TO FRAME
10PD1 STD ENG(40L) FRONT STABILIZER SHAFT<F59> 		1-51781-073-0 01 1 9307-
137 BRACKET; STAB BAR TO FRAME
10PD1 STD ENG(40L) FRONT STABILIZER SHAFT<F59> 		1-51781-072-2 01 1 9307-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14 		9-99110-514-0 06 1 9307-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45 		9-92061-445-0 08 1 9307-
168 BRACKET; S/ABS,FRT SUSP 1-51681-130-1 02 1 9002-9306
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9307-
177 RIVET; BRKT,S/ABS
D13X36 		1-09730-107-0 08 1 9002-9212
177 RIVET; BRKT,S/ABS
D13X36 PLATED TAPER END 		1-09730-087-0 08 1 9301-
180 WASHER; PL,PIN
FRONT STABILIZER SHAFT<F59> ID=21 		9-09160-520-0 02 1 9307-
182 NUT; S/ABS LWR
FRONT STABILIZER SHAFT<F59> M20 		9-99110-420-0 02 1 9307-
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9002-
185 WASHER; LK,PIN
ID=12.2 		9-09150-512-0 12 1 9002-9209
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9210-9306
185 WASHER; LK,PIN
ID=12.2 		9-09150-812-0 12 1 9307-9512
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9601-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9002-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-028-1 02 1 9002-9306
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-096-0 02 1 9307-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
L TYPE ENG<90L> FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-023-1 02 1 9002-9306
188 RUBBER; CLAMP,U-BOLT,FRT SPR
10PD1 STD ENG(40L) FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-033-1 02 1 9002-9306
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 9307-
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9002-
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9002-
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9002-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9002-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9002-
207 BOLT; SPR TO SHACKLE
M12X80 		9-91056-280-0 12 1 9002-9005
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9006-
208 U-BOLT SET; FRT SPRING
L=190 		1-87870-163-2 04 1 9002-9306
208 U-BOLT SET; FRT SPRING
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=230 		1-87870-269-1 04 1 9307-
208 U-BOLT SET; FRT SPRING
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) L=210 		1-87870-380-0 04 1 9307-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9002-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9002-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9002-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 9002-
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=14.2 		9-09150-614-0 08 1 9307-
