Sayfa 4-42 - Isuzu EPC

4-42 — POWER STEERING OIL PUMP (#2500) — 431 parça

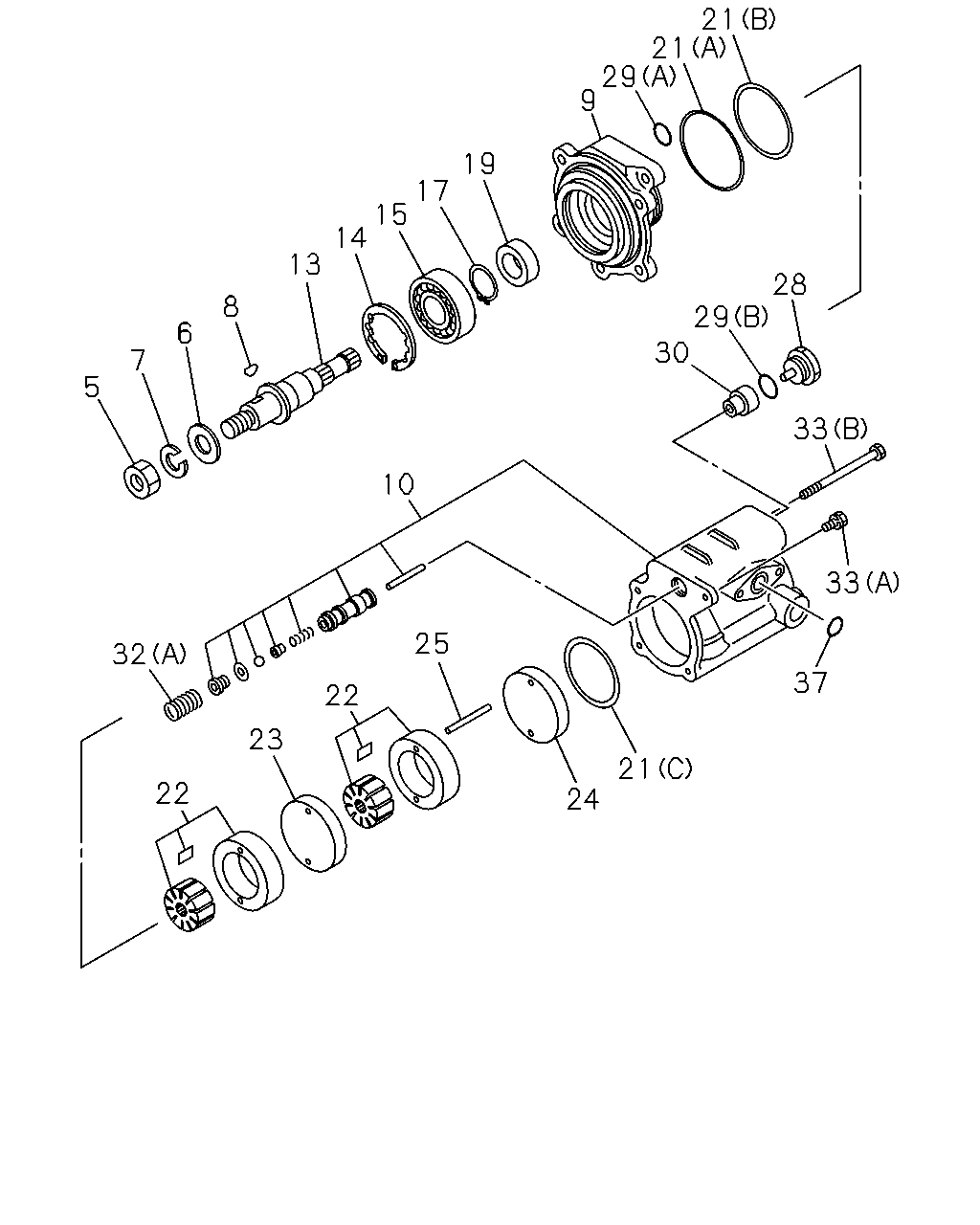

39 21 9 19 17 16 15 14 13 8 6 7 5 28 29 27 37 32 25 22 33 10 26 24 1 29 37 23 39 1 19 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-007-0	01	1	-9109
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-87520-184-0	01	1	9110-9504
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-6	9-19519-112-0	01	1	-9109
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-6	9-88510-424-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-293-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	9-19519-088-0	01	1	-9109
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-09150-016-0	01	1	-9109
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-88510-425-0	01	1	9110-
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-081-0	01	1	-9109
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-130-0	01	1	9110-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-6	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-095-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-6	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-6	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY (D) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	9-88510-234-0	01	1	-9504
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-132-0	01	1	-9109
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-325-0	01	1	9110-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-237-0	01	1	-9109
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-312-0	01	1	9110-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-106-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-168-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-178-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-344-4, C = 1-19500-345-6	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	9-48429-028-0	01	1	-9504
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-100-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-313-0	01	1	9505-

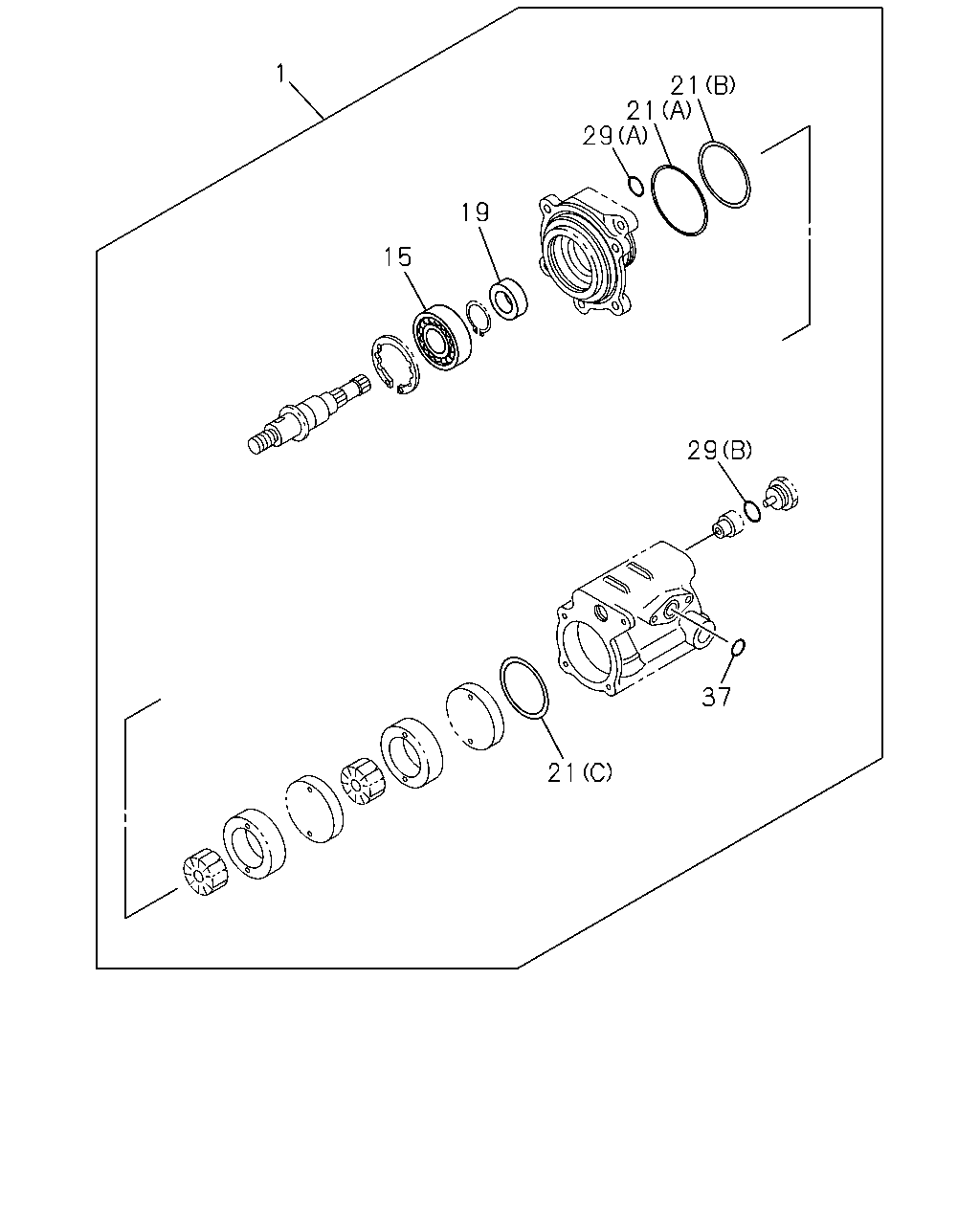

21 39 1 19 15 37 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-007-0	01	1	-9109
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-87520-184-0	01	1	9110-9504
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY (D) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	9-88510-234-0	01	1	-9504
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	9-48429-028-0	01	1	-9504
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-100-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-313-0	01	1	9505-

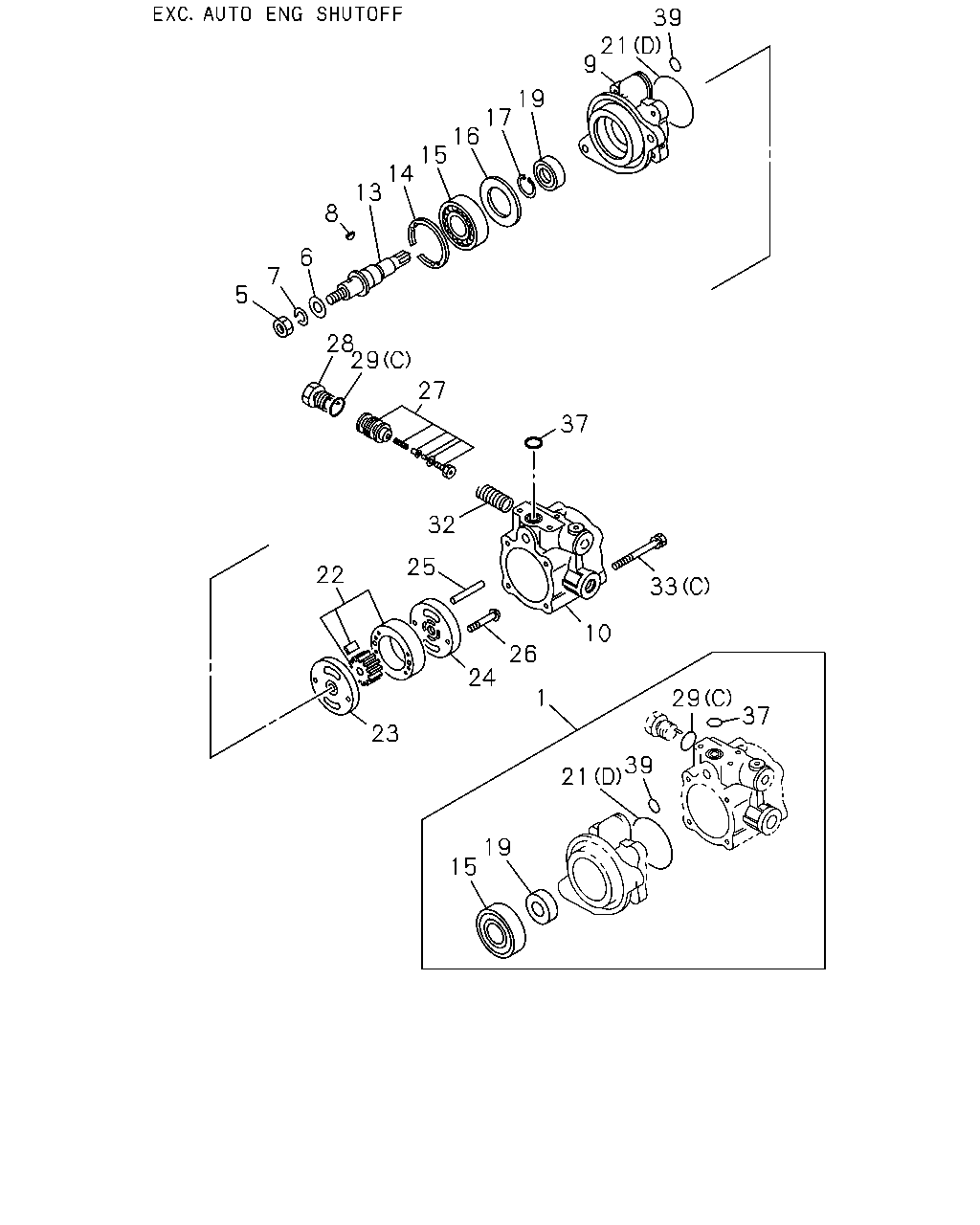

21 21 29 9 19 17 15 14 13 28 29 30 8 6 7 5 33 10 33 25 32 37 22 23 21 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-6	9-19519-112-0	01	1	-9109
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-6	9-88510-424-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-293-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	9-19519-088-0	01	1	-9109
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-09150-016-0	01	1	-9109
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-88510-425-0	01	1	9110-
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-081-0	01	1	-9109
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-130-0	01	1	9110-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-6	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-6	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY (D) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	9-88510-234-0	01	1	-9504
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-132-0	01	1	-9109
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-325-0	01	1	9110-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-237-0	01	1	-9109
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-312-0	01	1	9110-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-248-0	01	1	-
30	VALVE; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-163-1	01	1	-
30	VALVE; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-225-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	9-48429-028-0	01	1	-9504
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-

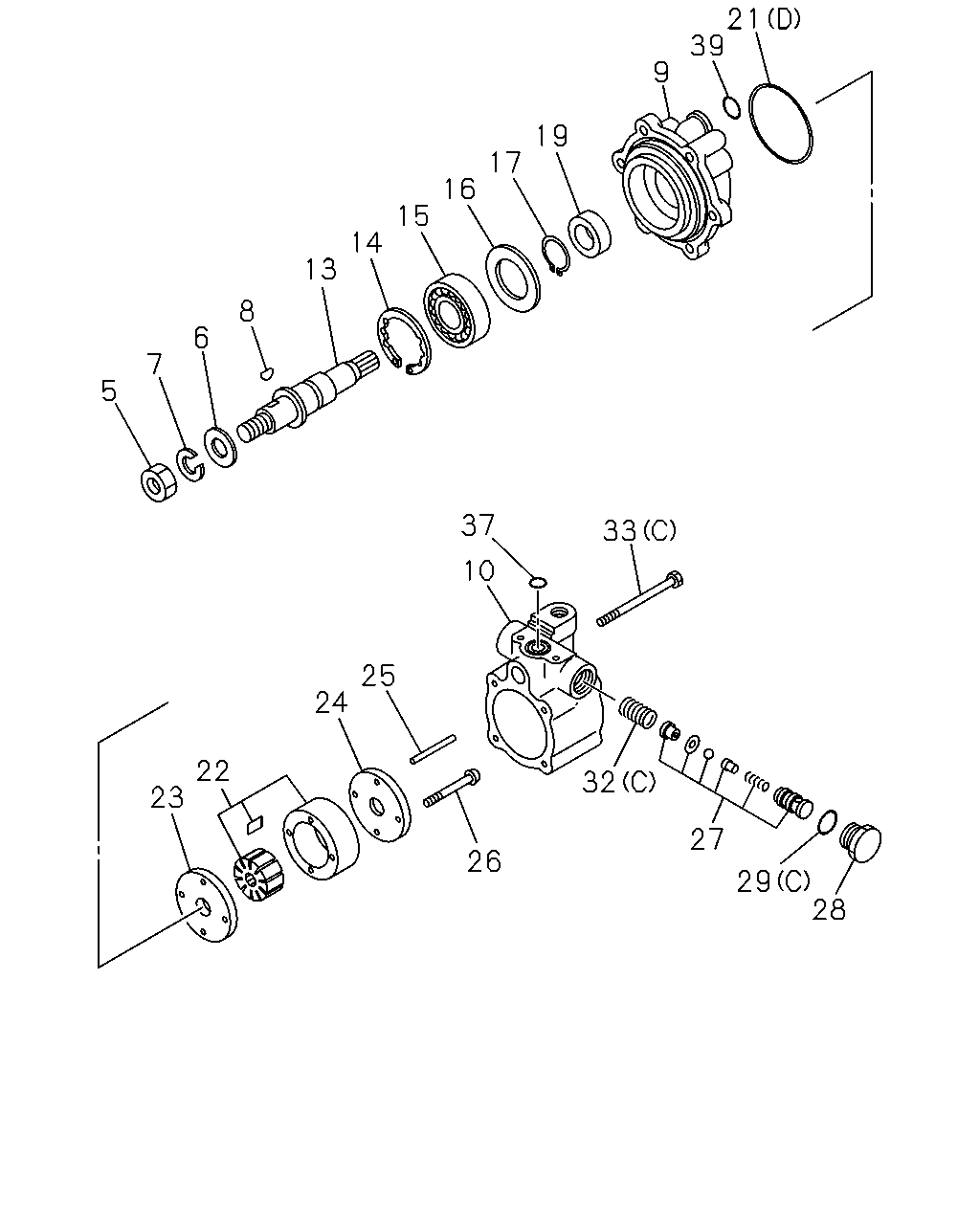

1 21 21 19 15 29 29 29 37 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

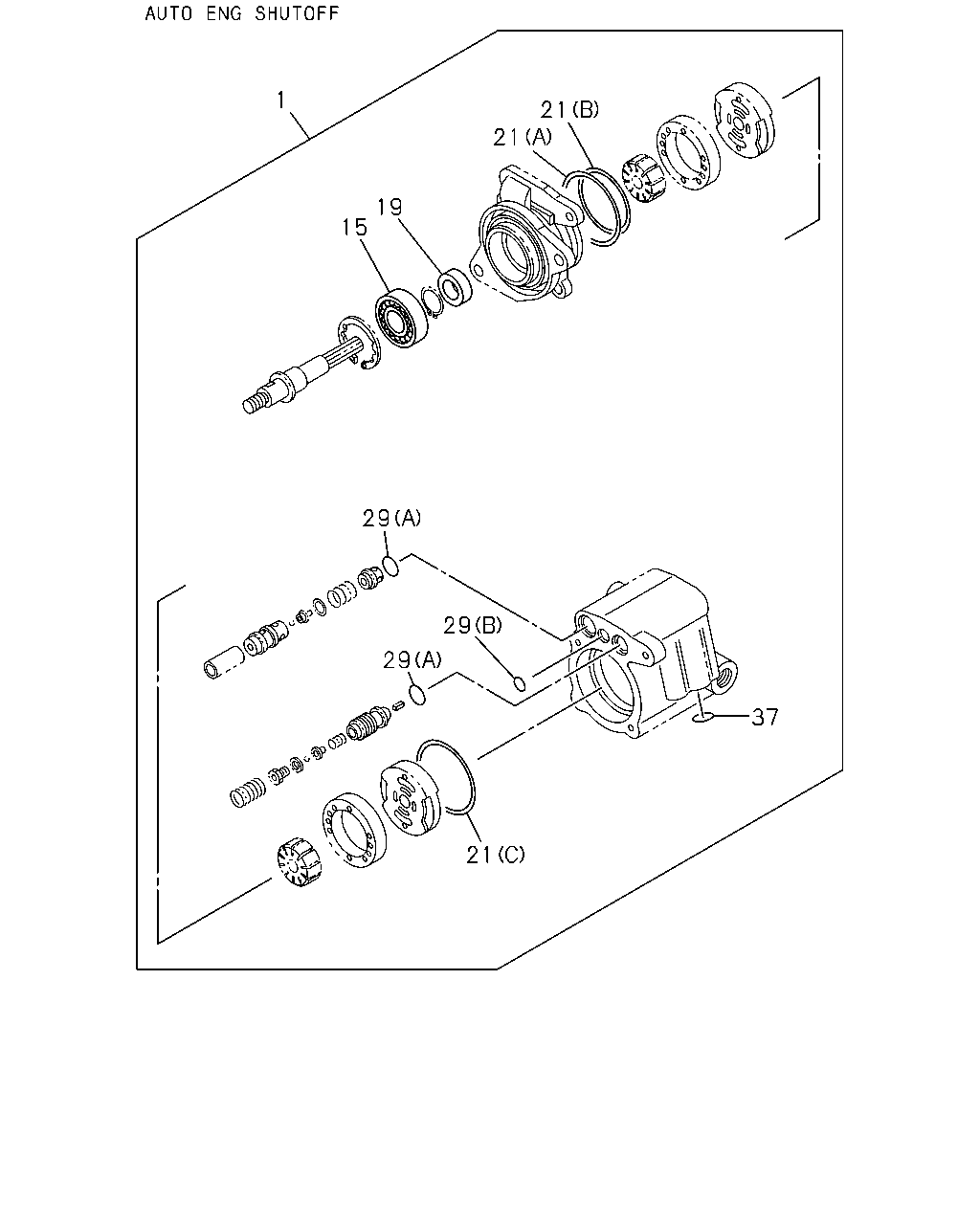

1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-007-0	01	1	-9109
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-87520-184-0	01	1	9110-9504
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY (D) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	9-88510-234-0	01	1	-9504
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	9-48429-028-0	01	1	-9504
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-

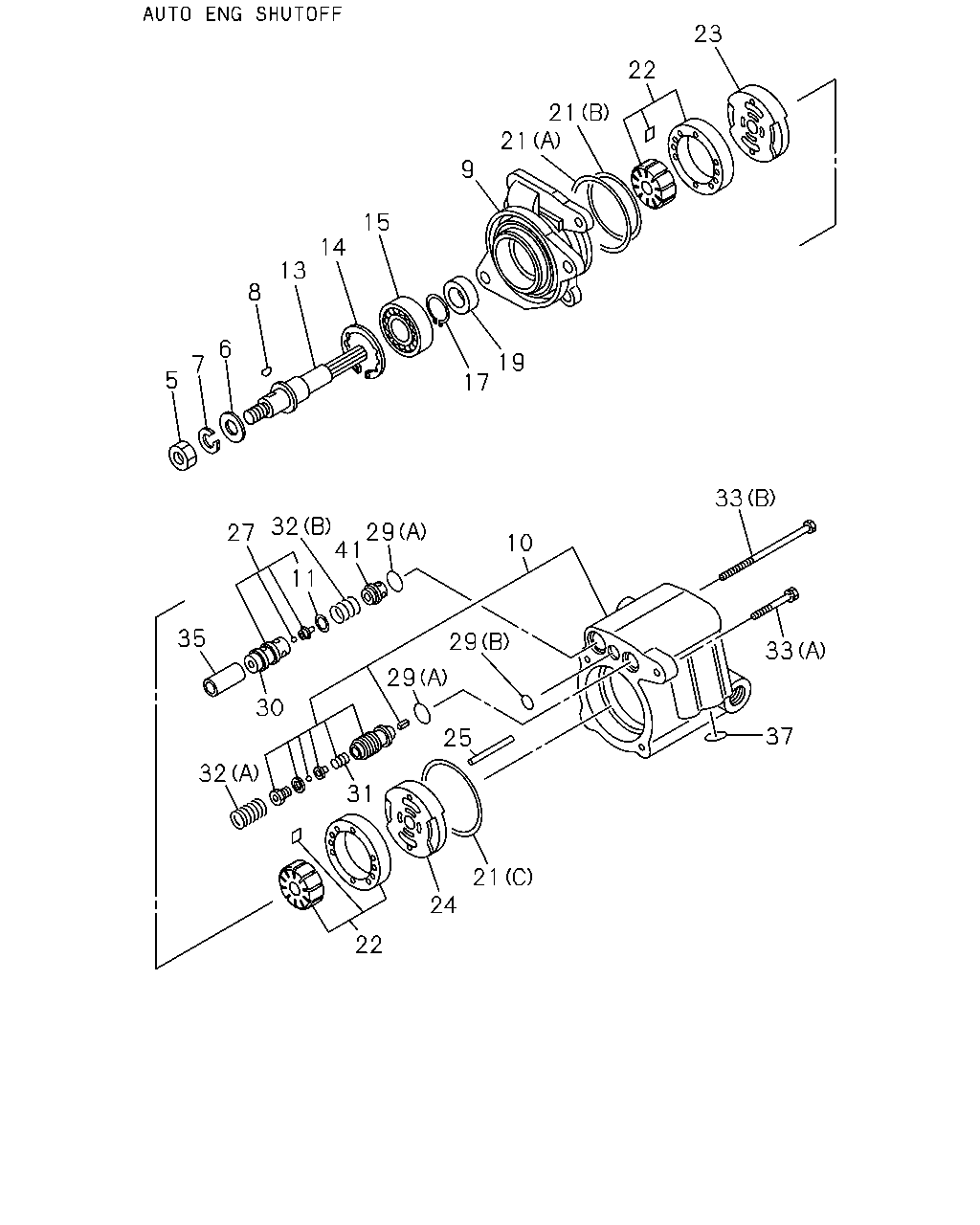

23 22 21 21 9 15 14 13 8 6 19 7 5 17 33 32 29 41 27 10 11 35 29 33 29 30 37 25 32 31 21 24 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-6	9-19519-112-0	01	1	-9109
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-6	9-88510-424-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-293-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	9-19519-088-0	01	1	-9109
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-09150-016-0	01	1	-9109
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-88510-425-0	01	1	9110-
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-081-0	01	1	-9109
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-130-0	01	1	9110-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
11	RING; RET,OIL TANK ASM PART: D = 1-19500-381-3	1-19519-165-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-6	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-6	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY (D) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	9-88510-234-0	01	1	-9504
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-132-0	01	1	-9109
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-325-0	01	1	9110-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-237-0	01	1	-9109
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-312-0	01	1	9110-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-168-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-178-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-344-4, C = 1-19500-345-6	1-19519-183-1	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-248-0	01	1	-
30	VALVE; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-163-1	01	1	-
30	VALVE; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-225-0	01	1	-
31	SPRING; INNER,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-164-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-169-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	9-48429-028-0	01	1	-9504
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
41	SPACER; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-170-0	01	1	-

21 39 9 19 17 16 15 14 13 8 6 7 5 37 33 10 25 24 22 23 32 27 26 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-003-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: D = 1-19500-381-3	9-19519-112-0	01	1	-
5	NUT; SHAFT,P/S PUMP M16 ASM PART: C = 1-19500-345-6	9-19519-112-0	01	1	-9109
5	NUT; SHAFT,P/S PUMP ASM PART: E = 1-19500-444-1	9-88510-424-0	01	1	-
5	NUT; SHAFT,P/S PUMP ASM PART: C = 1-19500-345-6	9-88510-424-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-001-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-293-0	01	1	-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-293-0	01	1	9110-
6	WASHER; PL,OIL PUMP ASM PART: C = 1-19500-345-6	9-19519-088-0	01	1	-9109
7	WASHER; SHAFT ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-002-0	01	1	-
7	WASHER; SHAFT ASM PART: D = 1-19500-381-3	9-09150-016-0	01	1	-
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-09150-016-0	01	1	-9109
7	WASHER; SHAFT ASM PART: C = 1-19500-345-6	9-88510-425-0	01	1	9110-
7	WASHER; SHAFT ASM PART: E = 1-19500-444-1	9-88510-425-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, D = 1-19500-381-3, E = 1-19500-444-1	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-045-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-080-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-081-0	01	1	-9109
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-126-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-130-0	01	1	9110-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19511-063-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 1-19500-345-6	1-19511-082-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 1-19500-381-3	1-19511-117-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 1-19500-444-1	1-19511-127-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 1-19500-381-3	1-19521-017-0	01	1	-
13	SHAFT KIT; RET ASM PART: C = 1-19500-345-6	1-19521-018-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19521-026-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 1-19500-444-1	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-135-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-135-0	01	1	-9205
14	RING; RET,OIL PUMP ASM PART: B = 1-19500-344-4, E = 1-19500-444-1	1-19519-172-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-172-0	01	1	9206-
14	RING; RET,OIL PUMP ASM PART: D = 1-19500-381-3	1-48129-078-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-095-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 1-19500-345-6	9-19519-078-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, E = 1-19500-444-1	1-19519-094-0	01	1	-
17	RING; RET ASM PART: D = 1-19500-381-3	1-19519-148-0	01	1	-
17	RING; RET ASM PART: C = 1-19500-345-6	1-19519-177-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY (D) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	9-88510-234-0	01	1	-9504
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-088-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-132-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-132-0	01	1	-9109
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-280-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-325-0	01	1	9110-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-234-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-240-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-145-0	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-310-4	1-19519-233-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 1-19500-344-4	1-19519-237-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-237-0	01	1	-9109
24	PLATE ASM; THRUST ASM PART: C = 1-19500-345-6	1-19519-312-0	01	1	9110-
25	PIN; HSG,P/S ASM PART: D = 1-19500-381-3	9-88510-368-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-408-0	02	1	-
25	PIN; HSG,P/S ASM PART: E = 1-19500-444-1	9-88510-421-0	02	1	-
26	SCREW; PLATE ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-106-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-168-1	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-310-4	1-19519-178-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 1-19500-344-4, C = 1-19500-345-6	1-19519-183-1	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-230-0	01	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: E = 1-19500-444-1	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-288-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 1-19500-381-3	8-94115-185-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-19529-013-0	01	1	-
33	BOLT; COVER (B) ASM PART: D = 1-19500-381-3	1-19519-151-0	03	1	-
33	BOLT; COVER (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-243-0	01	1	-
33	BOLT; COVER (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	1-19519-244-0	04	1	-
33	BOLT; COVER (B) ASM PART: E = 1-19500-444-1	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	9-48429-028-0	01	1	-9504
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-
39	GASKET; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-19519-100-0	01	1	-
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-100-0	01	1	-9504
39	GASKET; OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-313-0	01	1	9505-

1 21 21 29 19 15 29 37 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	1-85574-006-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-007-0	01	1	-9109
1	REPAIR KIT; OIL PUMP ASM PART: D = 1-19500-381-3	1-85574-033-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 1-19500-444-1	1-85574-039-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-85574-049-0	01	1	9505-
1	REPAIR KIT; OIL PUMP ASM PART: C = 1-19500-345-6	1-87520-184-0	01	1	9110-9504
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19515-004-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: D = 1-19500-381-3	1-19519-158-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6, E = 1-19500-444-1	1-19519-252-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: D = 1-19500-381-3	8-94153-693-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-296-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	1-19519-314-0	01	1	9505-
21	GASKET; FRT COVER TO BODY (D) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-88510-234-0	01	1	-
21	GASKET; FRT COVER TO BODY (D) ASM PART: C = 1-19500-345-6	9-88510-234-0	01	1	-9504
29	GASKET; PLUG TO VLV (A) ASM PART: E = 1-19500-444-1	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: D = 1-19500-381-3	1-19519-289-0	02	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: E = 1-19500-444-1	1-19519-298-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: D = 1-19500-381-3	1-19519-299-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 1-19500-310-4, B = 1-19500-344-4, C = 1-19500-345-6	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: D = 1-19500-381-3, E = 1-19500-444-1	1-19519-292-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	1-19519-292-0	01	1	9505-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 1-19500-345-6	9-48429-028-0	01	1	-9504
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-310-4, B = 1-19500-344-4	9-48429-028-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
