Isuzu WW
▶
TRUCKS
▶
FRR
▶
11027 - FRR RHD EURO4
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶

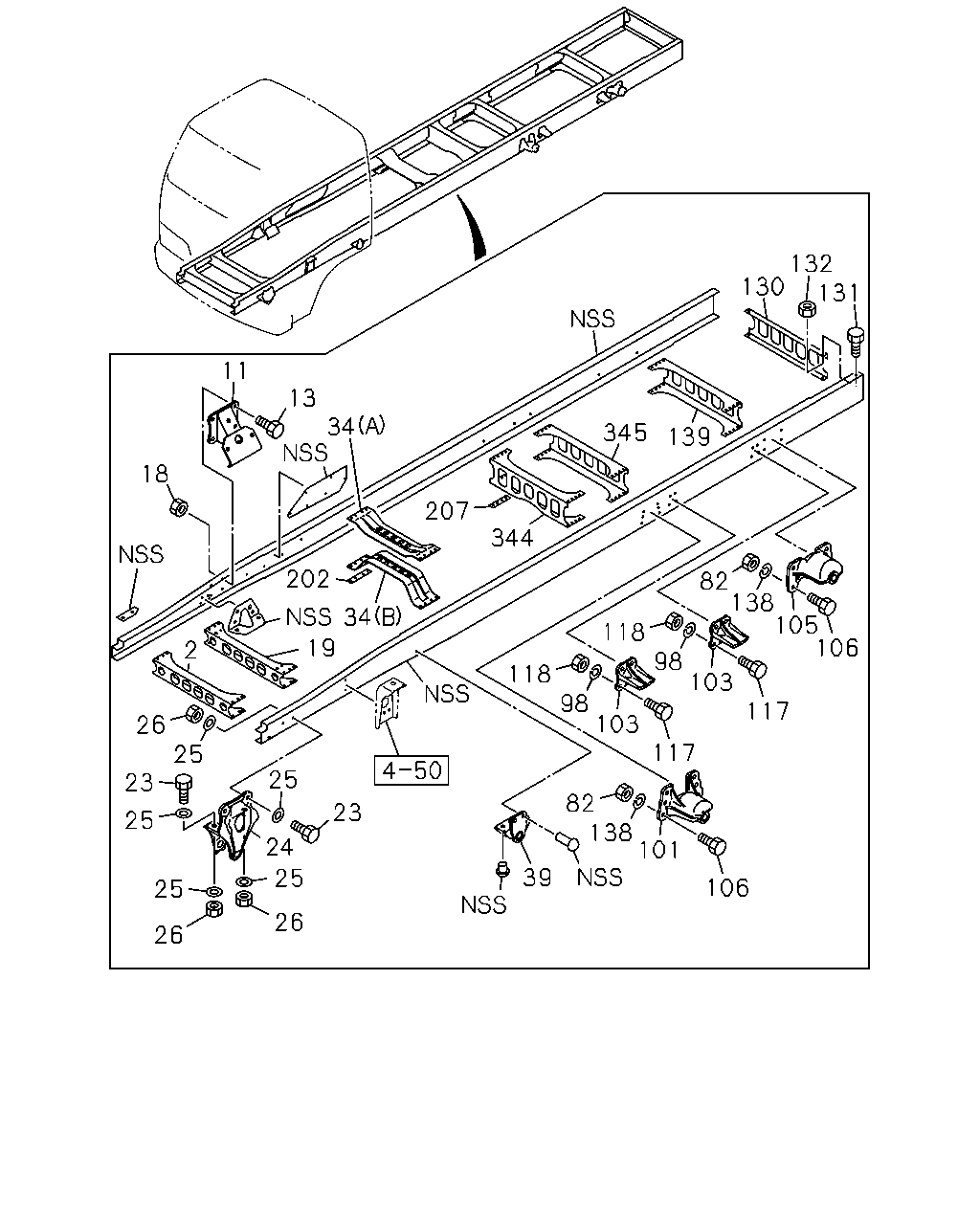

5-01 — FRAME AND OTHER PARTS
(#24993) — 39 parça
Tümü
A - WHEEL BASE 4200MM
B - WHEEL BASE 4800MM
132
130
131
11
13
34
345
139
18
207
344
82
138
105
106
202
2
34
118
98
103
19
118
98
103
117
26
25
117
25
23
82
138
101
23
25
24
39
25
106
25
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
1-53181-892-4
01
1
0609-
●
●
11
BRACKET; ENG MTG
1-53211-195-0
02
1
0609-
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0609-
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0609-
●
●
19
MEMBER; CROSS,2ND
8-97606-307-1
01
1
0609-
●
●
23
BOLT; BRKT,SPR
M14X45
9-92061-445-0
08
1
0609-
●
●
24
BRACKET; FRT SPR,FRT
1-53351-215-0
01
1
0609-
●
24
BRACKET; FRT SPR,FRT
1-53351-216-0
01
1
0609-
●
24
BRACKET; FRT SPR,FRT
1-53351-233-0
01
1
0609-
●
24
BRACKET; FRT SPR,FRT
1-53351-234-0
01
1
0609-
●
25
WASHER; PL,BRKT
ID=15
9-09651-069-0
16
1
0609-1201
●
●
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
1202-
●
●
26
NUT; BRKT,SPR
M14
0-91110-514-0
08
1
0609-
●
●
34
MEMBER; CROSS,3RD
(B)
1-53175-359-1
01
1
0609-
●
34
MEMBER; CROSS,3RD
(B)
1-53175-360-1
01
1
0609-
●
34
MEMBER; CROSS,3RD
(A)
1-53175-358-1
01
1
0609-
●
●
39
BRACKET; FRT SPR,RR
1-53352-154-2
02
1
0609-
●
●
82
NUT; BRKT
M14
0-91110-514-0
22
1
0609-
●
●
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
0609-
●
●
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
0609-
●
●
103
STOPPER; SUB SPR
1-53356-059-1
04
1
0609-
●
●
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
0609-
●
●
106
BOLT; BRKT
M14X40
0-20851-440-0
22
1
0609-
●
●
117
BOLT; STOPPER
M14X45
0-20801-445-0
16
1
0609-
●
●
118
NUT; STOPPER
M14
0-91110-514-0
16
1
0609-
●
●
130
MEMBER; CROSS,END
1-53181-469-2
01
1
0609-
●
130
MEMBER; CROSS,END
1-53181-516-2
01
1
0609-
●
131
BOLT; END C/MBR
M10X25 FLANGE
0-28651-025-0
04
1
0609-
●
●
132
NUT; END C/MBR
M10 FLANGE
0-91180-110-0
04
1
0609-
●
●
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
22
1
0609-
●
●
139
MEMBER; CROSS,6TH
1-53181-521-3
01
1
0609-
●
139
MEMBER; CROSS,6TH
1-53181-465-9
01
1
0609-
●
202
SPACER; 3RD C/MBR
1-53178-015-0
02
1
0609-
●
207
SPACER; 4TH C/MBR
T=7.0
1-53168-321-0
02
1
0609-
●
207
SPACER; 4TH C/MBR
T=4.5
1-53168-357-0
02
1
0609-
●
344
MEMBER; CROSS,4TH
1-53181-604-3
01
1
0609-
●
344
MEMBER; CROSS,4TH
1-53181-463-3
01
1
0609-
●
345
MEMBER; CROSS,5TH
1-53181-520-8
01
1
0609-
●
345
MEMBER; CROSS,5TH
1-53181-465-9
01
1
0609-
●
