◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11027 - FRR RHD EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#24992) — 28 parça

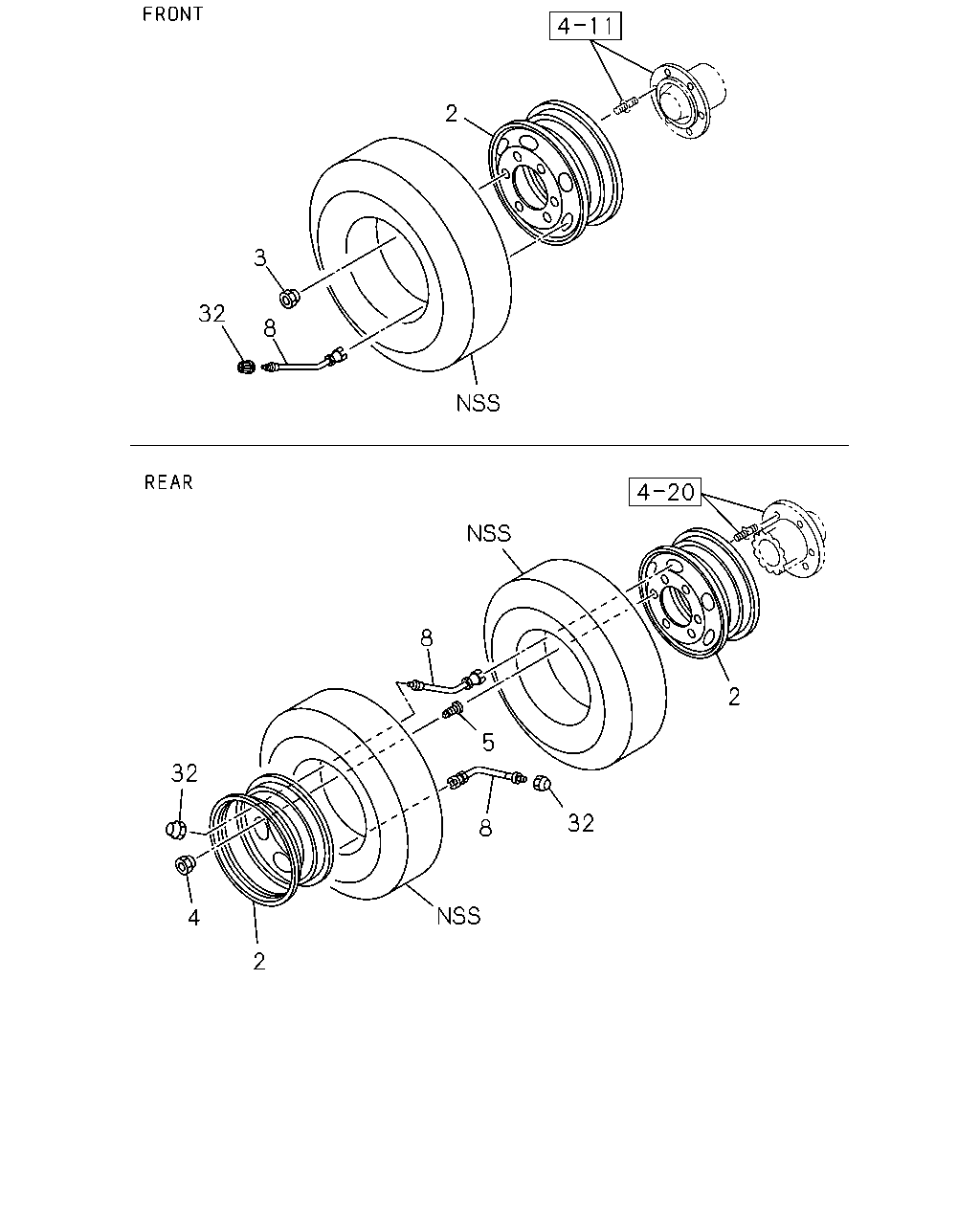

çizim 85737
2 3 32 8 8 2 5 32 32 8 4 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42350-725-0 01 1 0609-0702
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED<W20> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-725-0 01 1 0609-0702
2 WHEEL; DISC
DISC WHEEL SPARE<N79> DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42350-771-0 01 1 0703-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> DISC WHEEL SPECIAL PAINTED<W20> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42350-771-0 01 1 0703-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42350-698-0 01 1 0609-0702
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42350-698-0 01 1 0609-0702
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42350-770-0 01 1 0703-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL SPECIAL PAINTED<W20> SPARE 		1-42350-770-0 01 1 0703-
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42350-725-0 06 1 0609-0702
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42350-771-0 06 1 0703-
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42350-698-0 06 1 0609-0702
2 WHEEL; DISC
EXC. DISC WHEEL SPECIAL PAINTED<W20> FRONT,REAR 		1-42350-770-0 06 1 0703-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 0609-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 0609-
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 06 1 0609-0610
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0611-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 06 1 0609-0610
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 06 1 0609-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 06 1 0609-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0611-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 0609-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-019-3 01 1 0609-
8 VALVE; TIRE
FRONT,REAR 		1-42370-019-3 06 1 0609-
32 CAP; VALVE
DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0609-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0609-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL REAR<R46> 		1-42374-001-0 06 1 0609-
