◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10658 - EXR RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#2499) — 67 parça

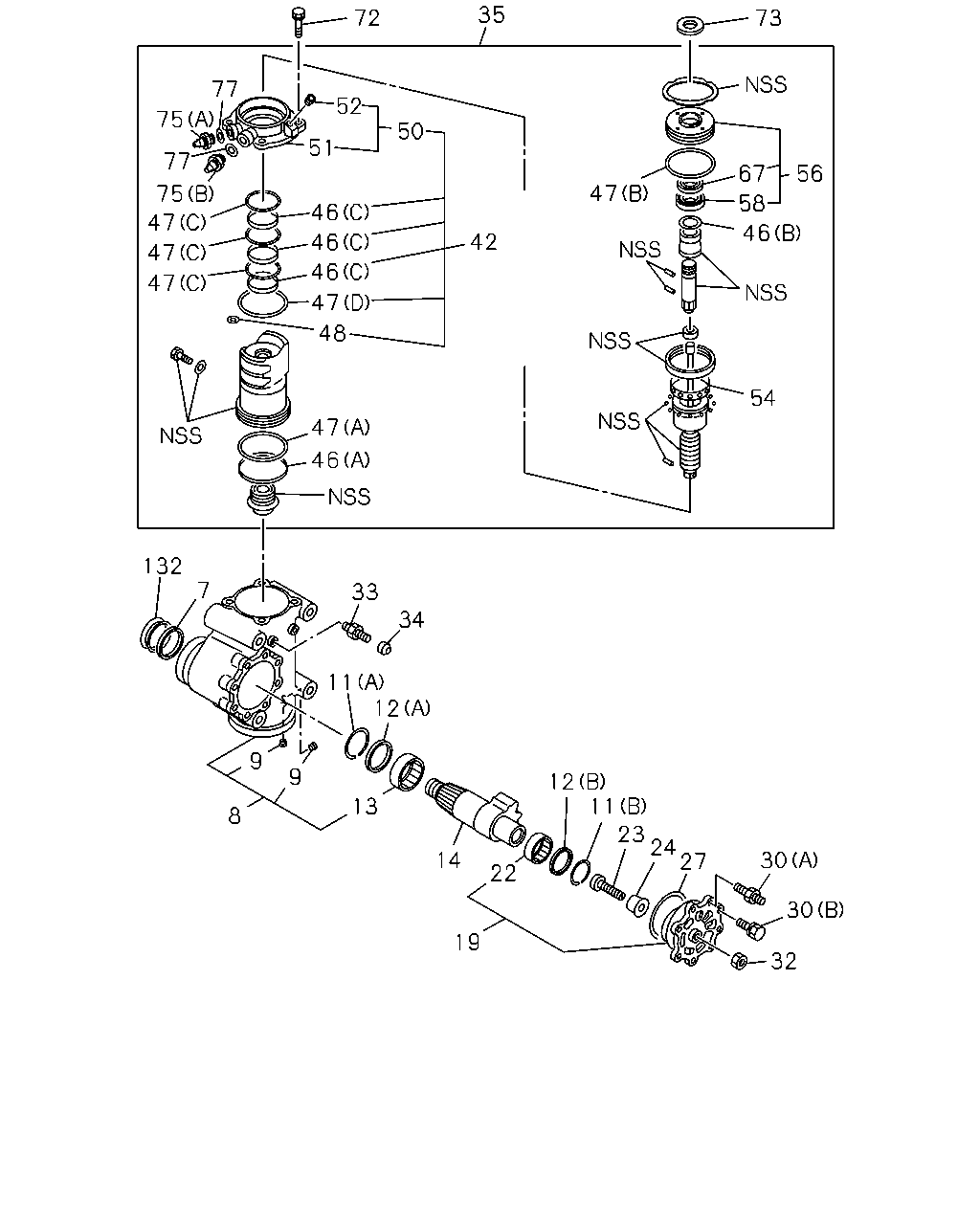

çizim 29281
35 72 73 77 52 75 50 51 77 56 67 47 75 58 46 47 46 42 46 47 46 47 47 48 54 47 46 132 7 33 34 11 12 9 9 12 11 23 24 27 13 8 30 14 22 30 19 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44240-040-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44240-089-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44249-038-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44260-019-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44261-031-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-105-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44269-016-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44269-007-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		9-83331-704-0 01 1 -
34 PROTECTOR; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		9-83335-044-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44150-026-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44150-048-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44560-039-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44560-073-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-097-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44560-040-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44250-006-0 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44259-029-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44259-036-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44519-227-0 01 1 -

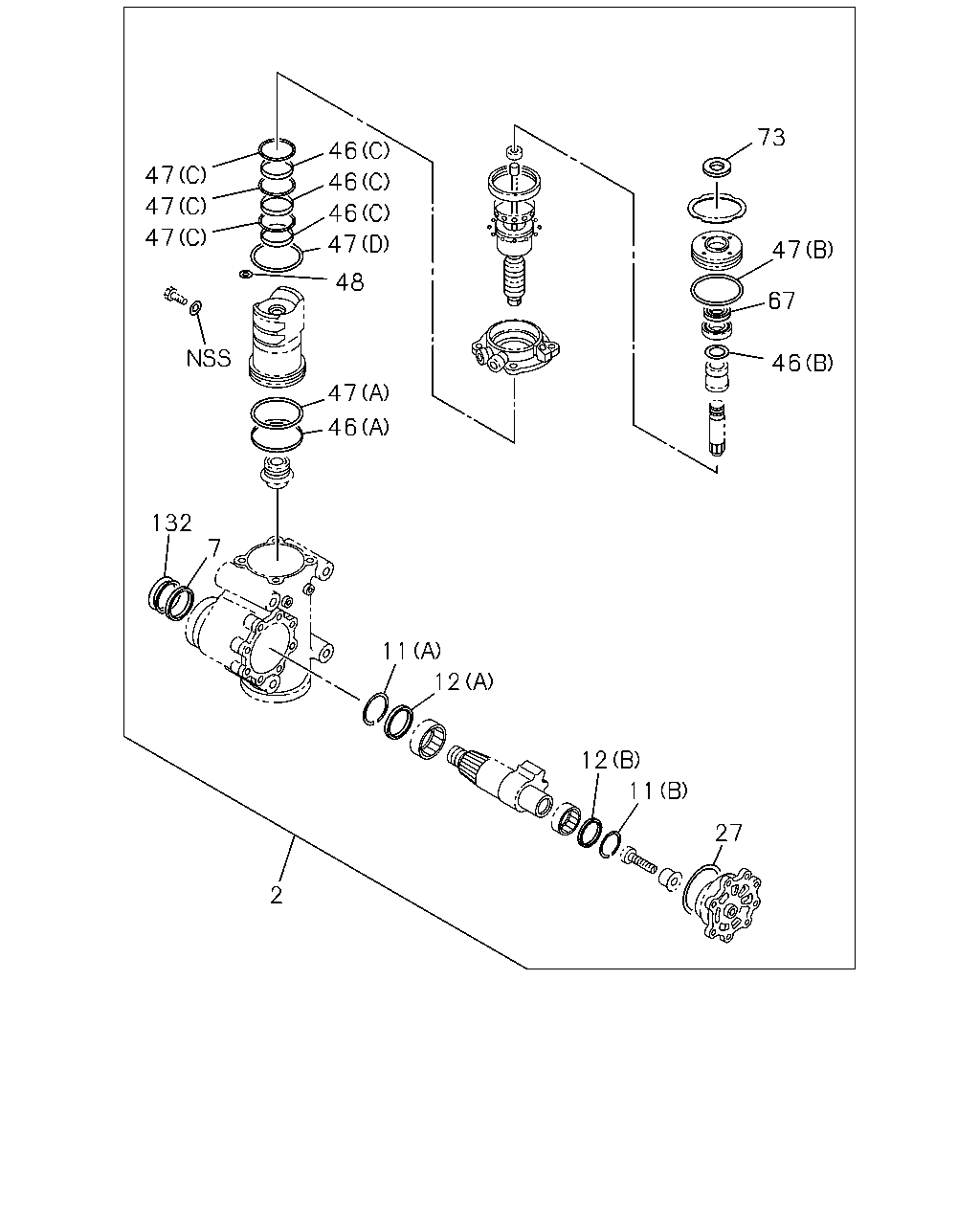

çizim 96406
73 46 47 46 47 46 47 47 47 48 67 46 47 46 132 7 11 12 12 11 27 2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: A = 1-44000-761-3 		1-85574-005-1 01 1 -
2 REPAIR KIT; STRG UNIT,2 YEAR
ASM PART: B = 1-44000-805-2 		1-85574-030-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44249-040-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44249-071-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44269-016-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-100-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-099-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-116-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44519-097-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 1-44000-761-3, B = 1-44000-805-2 		1-44259-036-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-761-3 		1-44159-039-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: B = 1-44000-805-2 		1-44519-227-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
