Isuzu WW
▶
TRUCKS
▶
FTR
▶
11029 - FTR(RHD) EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

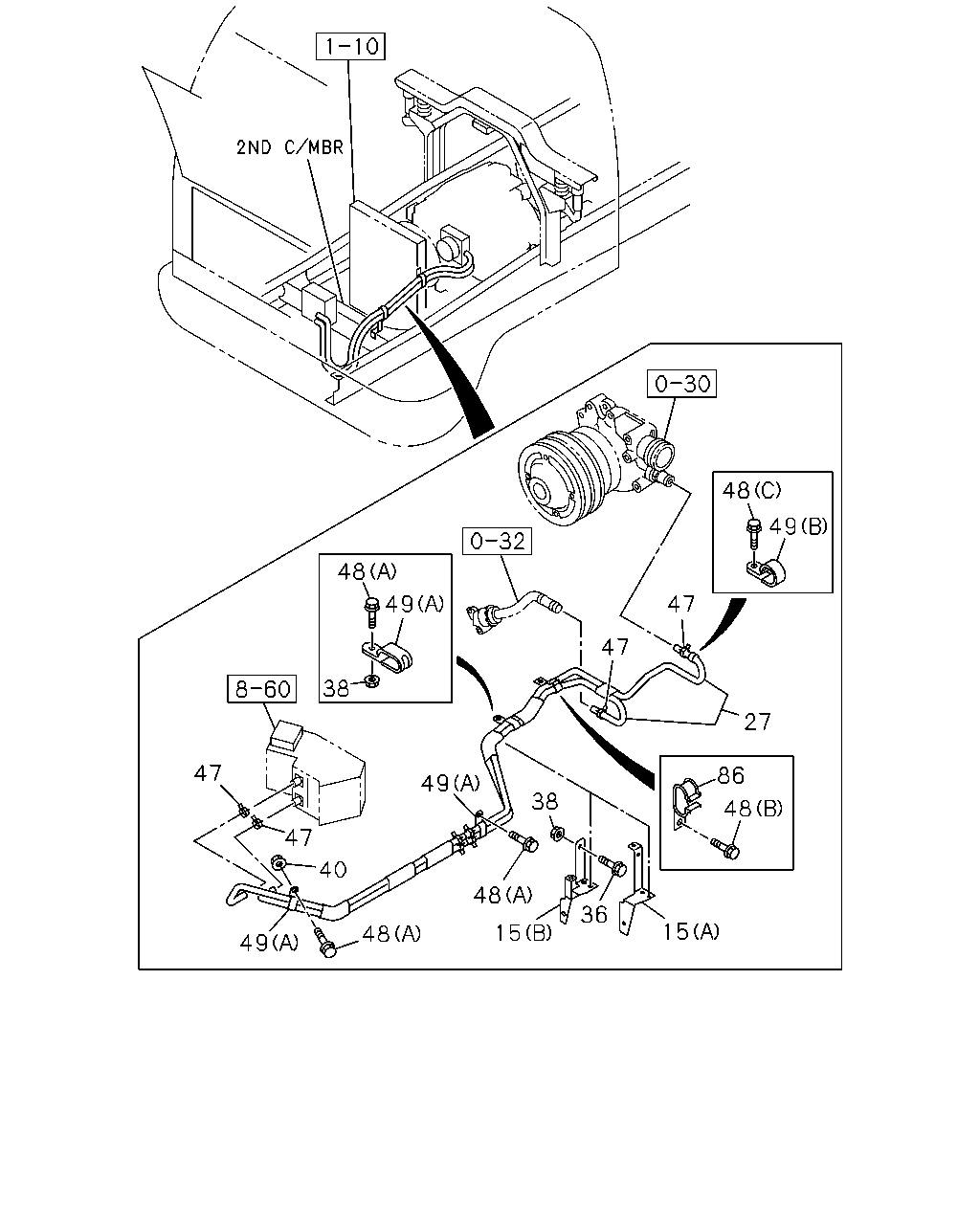

8-45 — HEATER PIPING
(#24981) — 16 parça
48
49
48
49
47
38
47
27
47
86
49
38
48
47
40
48
36
15
15
48
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
HEAVY DUTY PACKAGE TRUCK<RD2> (A)
1-83573-070-1
01
1
0609-
15
BRACKET; WATER HOSE
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)
1-83573-196-1
01
1
0609-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83565-848-1
01
1
0609-
36
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0609-
38
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0609-
40
NUT; CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0609-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-94382-401-0
04
1
0609-0611
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
0612-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE
0-28050-816-0
01
1
0609-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
01
1
0609-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE
0-28650-820-0
03
1
0609-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0609-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
01
1
0609-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
0609-
49
CLIP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=24 L=32
1-09700-766-1
01
1
0609-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-049-1
01
1
0609-
