4-36 — POWER STEERING CONTROL; ENGINE SIDE (#2498) — 83 parça

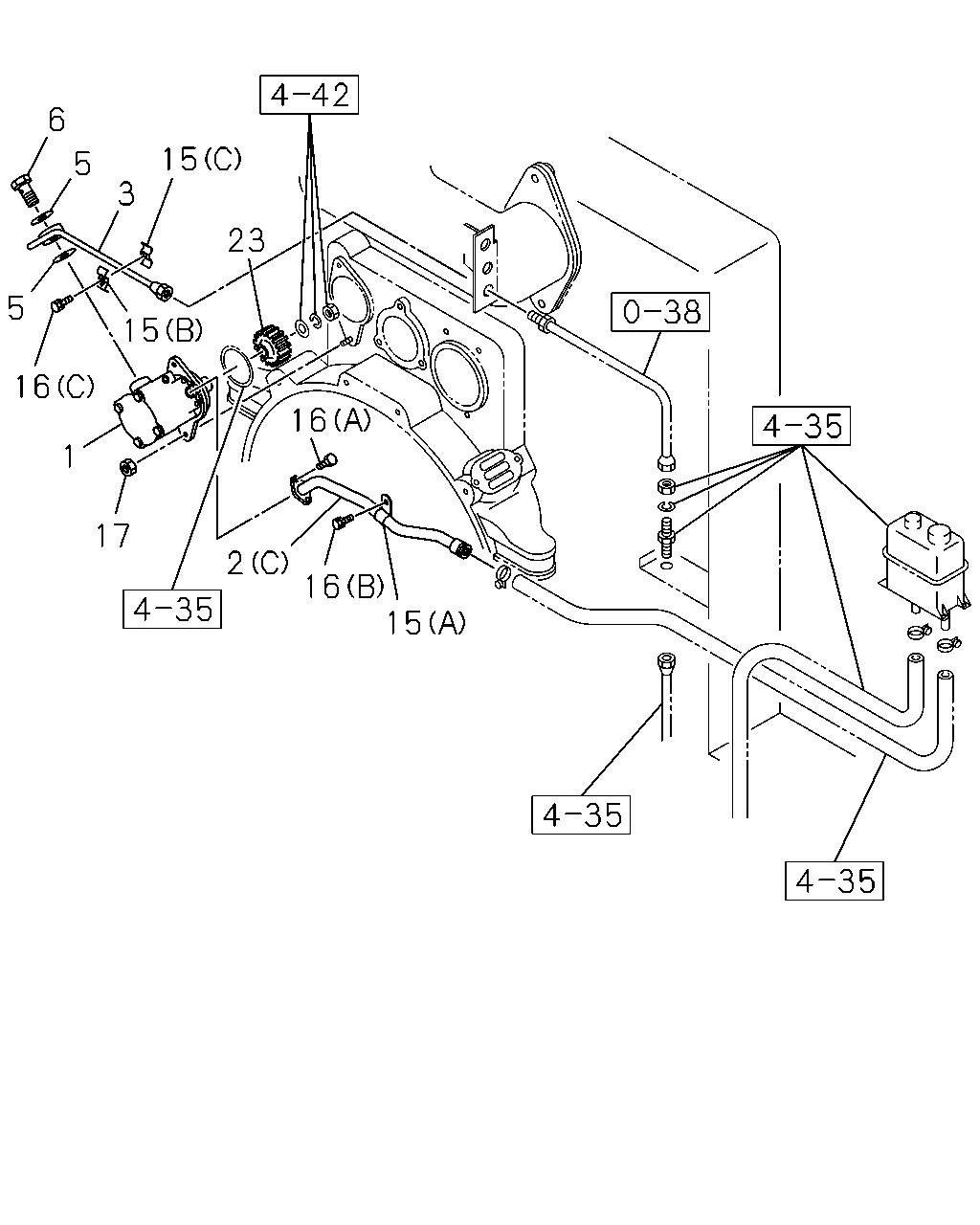

çizim 29839
6 15 5 3 23 5 15 16 16 1 17 2 16 15
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-310-4 01 1 9002-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-444-1 01 1 9307-9401
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-344-4 01 1 9402-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) 		1-19500-345-5 01 1 9002-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) AUTO ENG SHUTOFF(KB6) 		1-19500-381-3 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) EXC. AUTO ENG SHUTOFF(KB6) 		1-19500-345-5 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) 		1-19500-345-6 01 1 9308-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (A) 		1-21112-048-0 01 1 9002-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21112-581-1 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21114-163-0 01 1 9307-9401
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21112-581-1 01 1 9402-
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) (C) 		1-13312-655-0 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) AUTO ENG SHUTOFF(KB6) (C) 		1-13312-012-1 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) EXC. AUTO ENG SHUTOFF(KB6) (C) 		1-13312-655-0 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) (C) 		1-13312-655-0 01 1 9308-
3 PIPE; OIL,CHARGE,P/S
10PD1 STD ENG(40L) 		1-13312-035-0 01 1 9002-9212
3 PIPE; OIL,CHARGE,P/S
10PD1 STD ENG(40L) 		1-13313-341-0 01 1 9301-9306
3 PIPE; OIL,CHARGE,P/S
10PD1 STD ENG(40L) AUTO ENG SHUTOFF(KB6) 		1-13313-343-0 01 1 9307-9307
3 PIPE; OIL,CHARGE,P/S
10PD1 STD ENG(40L) EXC. AUTO ENG SHUTOFF(KB6) 		1-13313-341-0 01 1 9307-9307
3 PIPE; OIL,CHARGE,P/S
10PD1 STD ENG(40L) 		1-13313-341-0 01 1 9308-
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 10PD1 STD ENG(40L) ID=18.2 OD=24.4 		1-09630-087-0 02 1 9002-
6 BOLT; EYE,P/S PIPE
10PD1 STD ENG(40L) M18X36 		1-09675-174-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (A) ID=23.6 L=35 		1-09700-634-0 04 1 9002-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (B) W/NUT 		9-09917-564-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (C) WO/NUT 		9-09917-565-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
10PD1 STD ENG(40L) (A) ID=19 L=32 		9-09525-866-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
10PD1 STD ENG(40L) (B) 		9-09917-385-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
10PD1 STD ENG(40L) (C) 		9-09917-386-0 01 1 9002-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 		9-01910-822-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		9-01911-020-0 04 1 9002-9002
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9003-
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (C) M6X25 		0-28020-625-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (C) M6X25 FLANGE 		0-28080-625-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (A) M8X12 		0-28020-812-0 02 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9006-
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (B) M8X14 		0-28020-814-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (B) M8X14 FLANGE 		0-28080-814-0 01 1 9006-
17 NUT; POWER STRG PUMP
L TYPE ENG<90L> M8 		9-09110-408-0 05 1 9002-
17 NUT; POWER STRG PUMP
10PD1 STD ENG(40L) M10 FLANGE 		0-91150-110-0 02 1 9002-
23 GEAR; OIL PUMP
L TYPE ENG<90L> 		1-19581-006-3 01 1 9002-
23 GEAR; OIL PUMP
10PD1 STD ENG(40L) Z=20 		1-19581-011-1 01 1 9002-

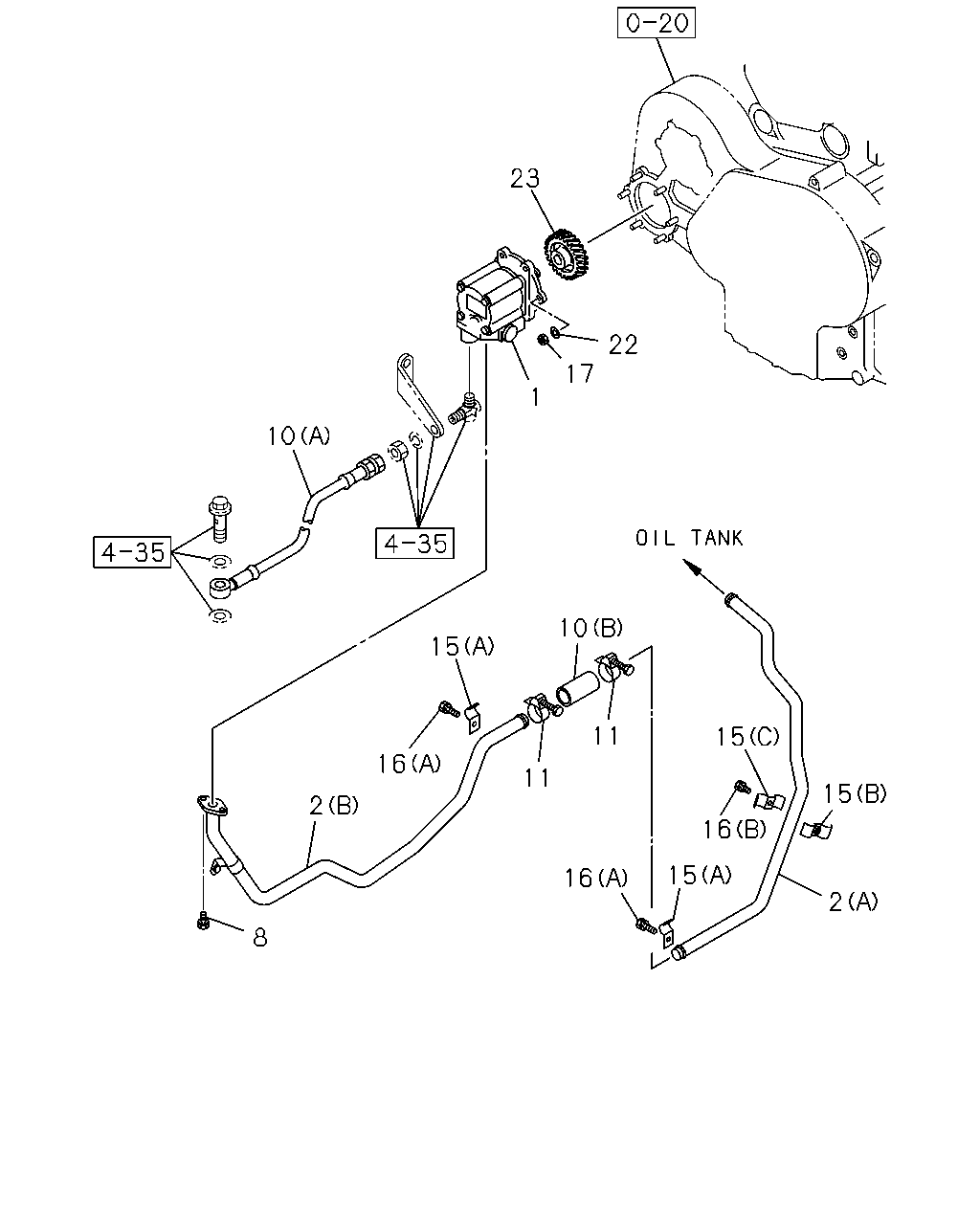

çizim 93621
23 22 17 1 10 10 15 11 15 16 11 15 2 16 15 16 2 8
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-310-4 01 1 9002-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-444-1 01 1 9307-9401
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. L TYPE ENG<90L> 		1-19500-344-4 01 1 9402-
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) 		1-19500-345-5 01 1 9002-9306
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) AUTO ENG SHUTOFF(KB6) 		1-19500-381-3 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) EXC. AUTO ENG SHUTOFF(KB6) 		1-19500-345-5 01 1 9307-9307
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 10PD1 STD ENG(40L) 		1-19500-345-6 01 1 9308-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (A) 		1-21112-048-0 01 1 9002-
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21112-581-1 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21114-163-0 01 1 9307-9401
2 PIPE ASM; OIL,SUCTION
L TYPE ENG<90L> (B) 		1-21112-581-1 01 1 9402-
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) (C) 		1-13312-655-0 01 1 9002-9306
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) AUTO ENG SHUTOFF(KB6) (C) 		1-13312-012-1 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) EXC. AUTO ENG SHUTOFF(KB6) (C) 		1-13312-655-0 01 1 9307-9307
2 PIPE ASM; OIL,SUCTION
10PD1 STD ENG(40L) (C) 		1-13312-655-0 01 1 9308-
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005
8 BOLT; OIL PIPE
L TYPE ENG<90L> M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (B) L=75 		1-09360-524-0 01 1 9002-
10 HOSE; FLEX,P/S OIL PUMP,INL
L TYPE ENG<90L> (A) L=380 		1-09364-459-0 01 1 9002-
11 CLIP; FLEX HOSE
L TYPE ENG<90L> ID=38 		9-09915-666-1 02 1 9002-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (A) ID=23.6 L=35 		1-09700-634-0 04 1 9002-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (B) W/NUT 		9-09917-564-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
L TYPE ENG<90L> (C) WO/NUT 		9-09917-565-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
10PD1 STD ENG(40L) (A) ID=19 L=32 		9-09525-866-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
10PD1 STD ENG(40L) (B) 		9-09917-385-0 01 1 9002-
15 CLIP; OIL PIPE SUCTION
10PD1 STD ENG(40L) (C) 		9-09917-386-0 01 1 9002-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 		9-01910-822-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		9-01911-020-0 04 1 9002-9002
16 BOLT; STAY,P/S OIL PUMP
L TYPE ENG<90L> (B) M10X20 W/LK WASHER 		0-50041-020-0 04 1 9003-
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (C) M6X25 		0-28020-625-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (C) M6X25 FLANGE 		0-28080-625-0 01 1 9006-
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (A) M8X12 		0-28020-812-0 02 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (A) M8X12 FLANGE 		0-28080-812-0 02 1 9006-
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (B) M8X14 		0-28020-814-0 01 1 9002-9005
16 BOLT; STAY,P/S OIL PUMP
10PD1 STD ENG(40L) (B) M8X14 FLANGE 		0-28080-814-0 01 1 9006-
17 NUT; POWER STRG PUMP
L TYPE ENG<90L> M8 		9-09110-408-0 05 1 9002-
17 NUT; POWER STRG PUMP
10PD1 STD ENG(40L) M10 FLANGE 		0-91150-110-0 02 1 9002-
22 WASHER; LK,OIL PUMP,P/S
L TYPE ENG<90L> ID=8.2 		9-09150-508-0 05 1 9002-
23 GEAR; OIL PUMP
L TYPE ENG<90L> 		1-19581-006-3 01 1 9002-
23 GEAR; OIL PUMP
10PD1 STD ENG(40L) Z=20 		1-19581-011-1 01 1 9002-
