◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11029 - FTR(RHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#24974) — 264 parça

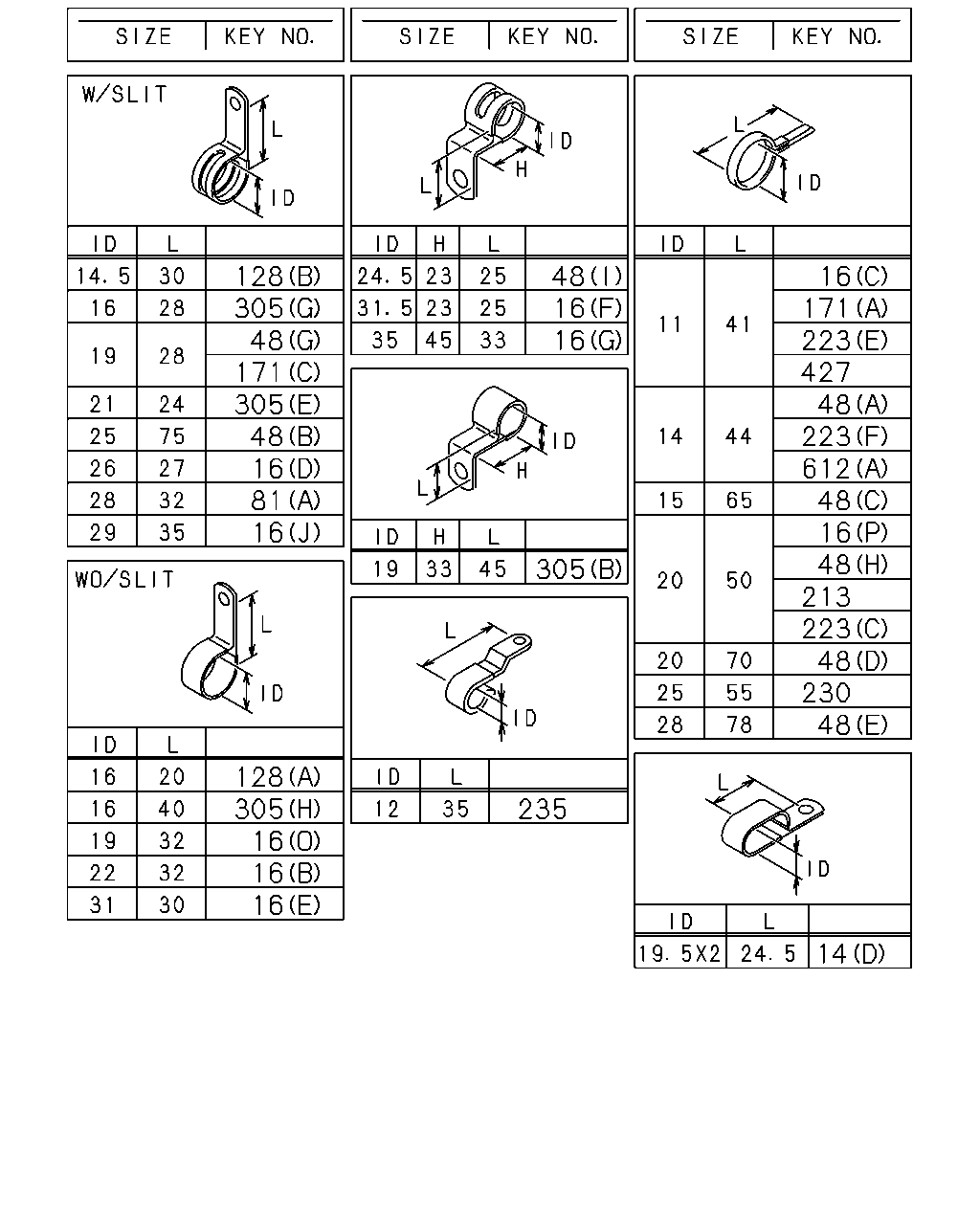

çizim 26503
128 305 48 171 305 48 16 81 16 48 16 16 16 171 223 427 48 223 612 48 16 48 213 223 48 230 48 305 128 305 16 16 16 235 14
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0609-1205
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 06 1 1206-
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-1 01 1 0609-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 05 1 0609-0611
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 08 1 0612-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1206-
14 CLIP; BAND,HARNESS
(D) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0609-
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0609-
16 CLIP; HARNESS
POWER WINDOW<A30> (M) L=55 		8-94432-655-0 06 1 0609-
16 CLIP; HARNESS
POWER WINDOW<A30> (N) L=175 		8-97110-167-0 06 1 0609-
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0609-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0609-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0609-
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0609-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0609-
16 CLIP; HARNESS
(G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0609-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0609-0609
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (H) L=300 		1-09707-001-1 01 1 0610-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0610-
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0609-
16 CLIP; HARNESS
(J) ID=29 L=35 		5-09700-293-1 01 1 0609-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0609-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0609-
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0609-0701
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 03 1 0609-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=20 L=50 		9-09917-430-0 18 1 0611-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 14 1 0609-0610
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 15 1 0611-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 17 1 0609-0610
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=20 L=50 		9-09917-430-0 17 1 0611-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0609-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 05 1 0609-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 02 1 0609-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 06 1 0609-0701
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0702-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0609-
48 CLIP; FRAME HARNESS
(I) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0609-
48 CLIP; FRAME HARNESS
(B) ID=25 L=75 		1-09701-275-0 01 1 0609-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 0609-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 05 1 0609-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 0609-
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0609-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0609-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0609-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0609-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0609-
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0609-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0609-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0609-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0609-
223 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0609-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0609-
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 0609-
223 CLIP; AIR TANK HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 0609-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 05 1 0609-
230 CLIP; C/MBR HARNESS
ID=25 L=55 		9-09917-573-0 02 1 0609-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0609-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0609-
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0609-
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0609-
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0609-0611
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		9-09525-576-0 02 1 0612-0806
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 02 1 0807-
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0609-0810
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0811-
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0609-0702
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0609-0701
427 CLIP; HARNESS,FULL ELEC
ID=11 L=41 		1-09700-403-0 01 1 0609-
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0609-
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0609-
çizim 83925
119 64 524 219 294 515 210 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0609-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0609-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0609-
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0609-0701
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0609-
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0609-
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 0609-
294 NUT
PARKING BRAKE DRUM 10"(B1T) M8 FLANGE 		0-91180-108-0 01 1 0609-
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0609-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0609-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0609-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0609-

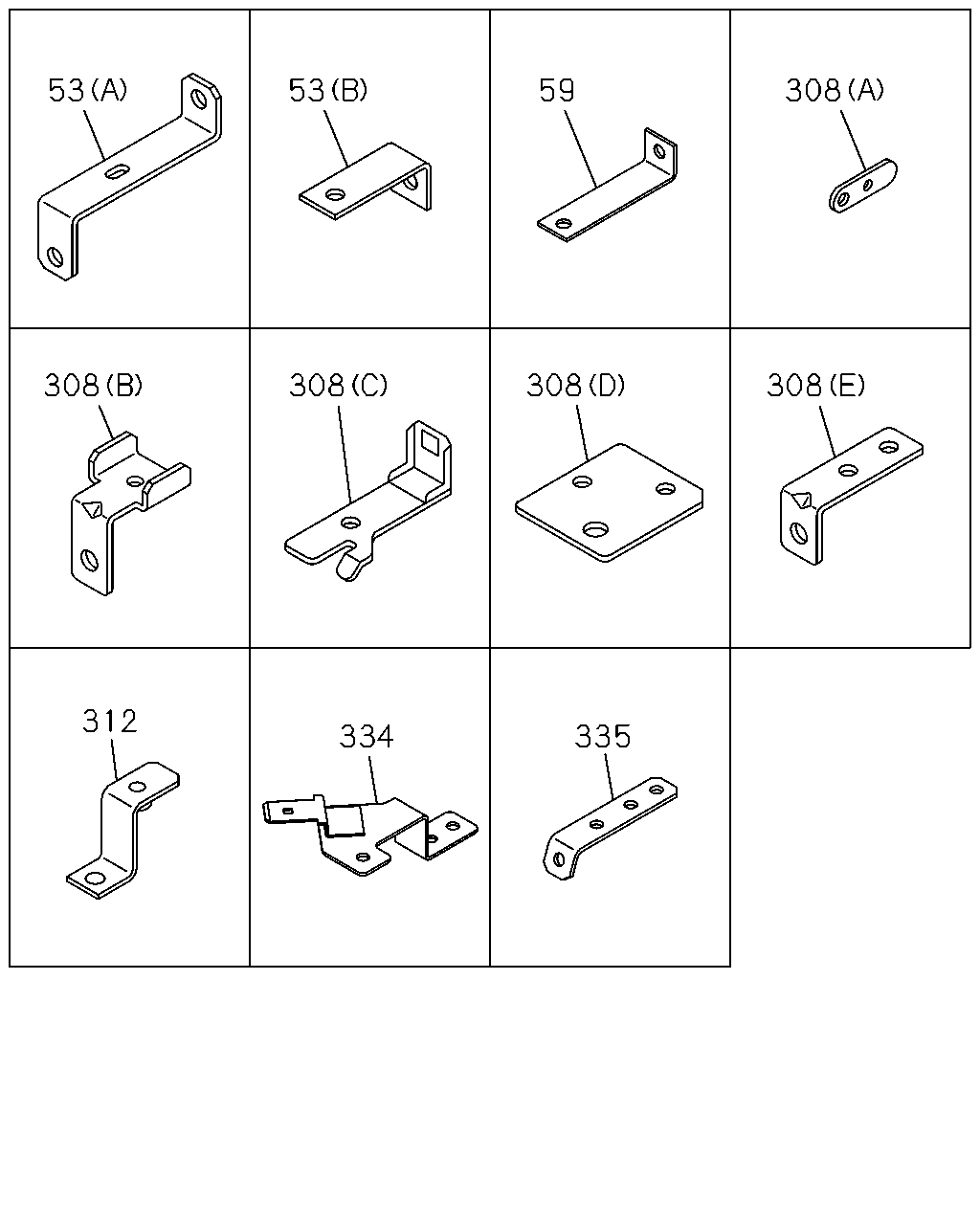

çizim 84053
53 53 59 308 308 308 308 308 312 334 335
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(B) L=55 		1-47475-304-0 01 1 0609-
53 BRACKET; HARNESS
(A) 		1-82698-656-1 02 1 0609-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0609-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0609-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0609-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0609-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 02 1 0609-
308 BRACKET; CLIP,ENG HARNESS
(E) 		8-98021-694-1 01 1 0609-
312 BRACKET; CLIP HARNESS
PARKING BRAKE DRUM 10"(B1T) 		1-47478-981-0 01 1 0609-
334 BRACKET 1-82698-494-3 01 1 0609-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0609-

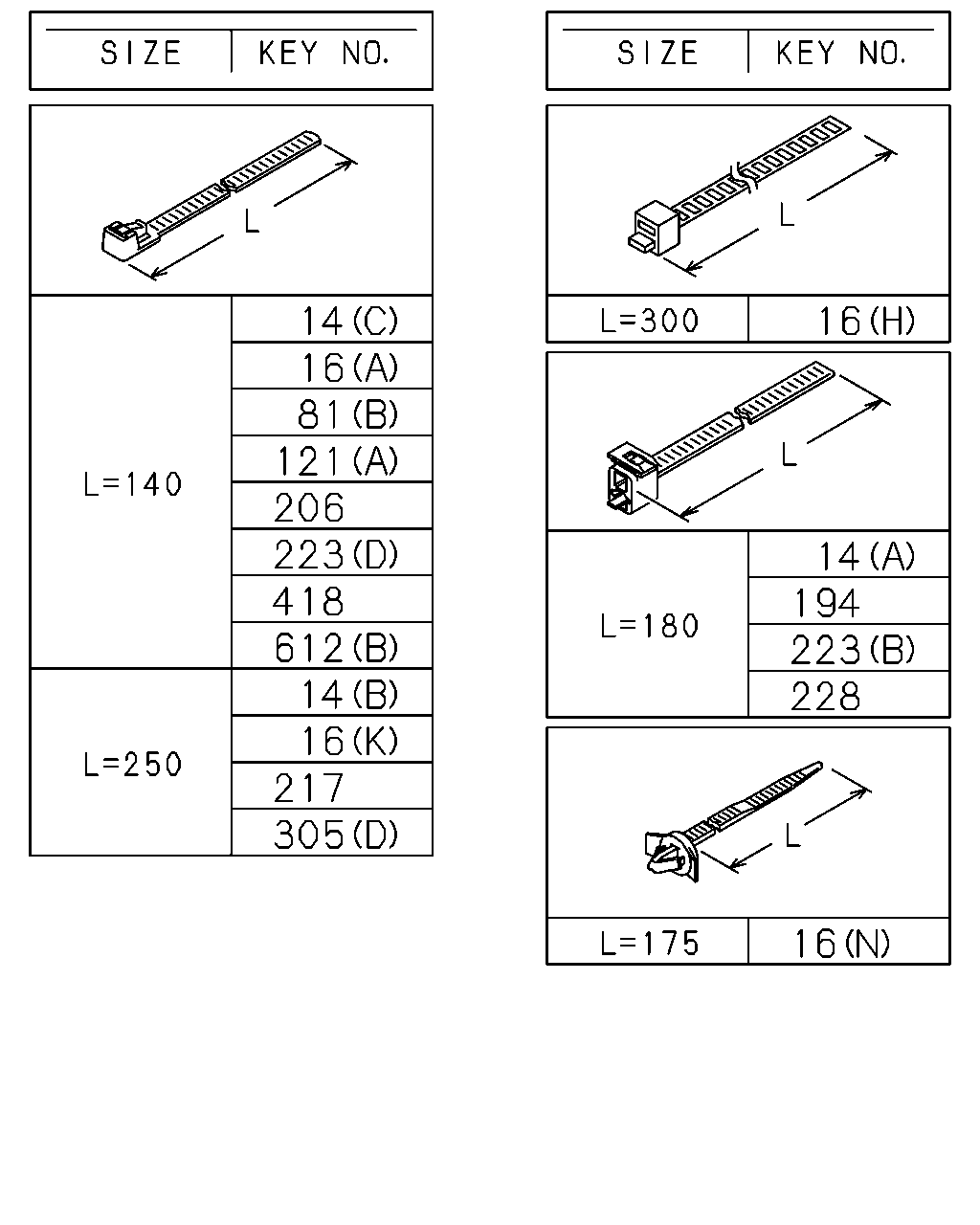

çizim 84054
14 16 81 121 206 223 418 612 14 16 217 305 16 14 194 223 228 16
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(C) L=140 		5-09707-031-1 06 1 0609-1205
14 CLIP; BAND,HARNESS
(C) L=140 		8-98216-431-0 06 1 1206-
14 CLIP; BAND,HARNESS
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=180 		1-09707-162-1 01 1 0609-
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 05 1 0609-0611
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 08 1 0612-1205
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1206-
14 CLIP; BAND,HARNESS
(D) ID=19.5X2 L=24.5 		9-09917-356-0 01 1 0609-
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0609-
16 CLIP; HARNESS
POWER WINDOW<A30> (M) L=55 		8-94432-655-0 06 1 0609-
16 CLIP; HARNESS
POWER WINDOW<A30> (N) L=175 		8-97110-167-0 06 1 0609-
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0609-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0609-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0609-
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0609-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0609-
16 CLIP; HARNESS
(G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0609-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0609-0609
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (H) L=300 		1-09707-001-1 01 1 0610-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0610-
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0609-
16 CLIP; HARNESS
(J) ID=29 L=35 		5-09700-293-1 01 1 0609-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0609-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0609-
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0609-0701
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 03 1 0609-
81 CLIP; HARNESS
(A) ID=28 L=32 		1-09701-107-1 01 1 0609-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 0609-
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0609-
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (B) OD=7 H=1.2 		8-94364-750-0 02 1 0609-
194 CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180 		1-09707-162-1 02 1 0609-
194 CLIP; BAND
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=180 		1-09707-162-1 01 1 0609-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0609-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0609-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0609-
223 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0609-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0609-
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 0609-
223 CLIP; AIR TANK HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 0609-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 05 1 0609-
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0609-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0609-
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0609-
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0609-
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0609-0611
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		9-09525-576-0 02 1 0612-0806
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 02 1 0807-
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0609-0810
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0811-
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0609-0702
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0609-0701
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 		5-09707-031-1 01 1 0703-
612 CLIP; HARNESS DPD
(B) L=140 		5-09707-031-1 01 1 0609-
612 CLIP; HARNESS DPD
(A) ID=14 L=44 		9-09917-427-0 01 1 0609-

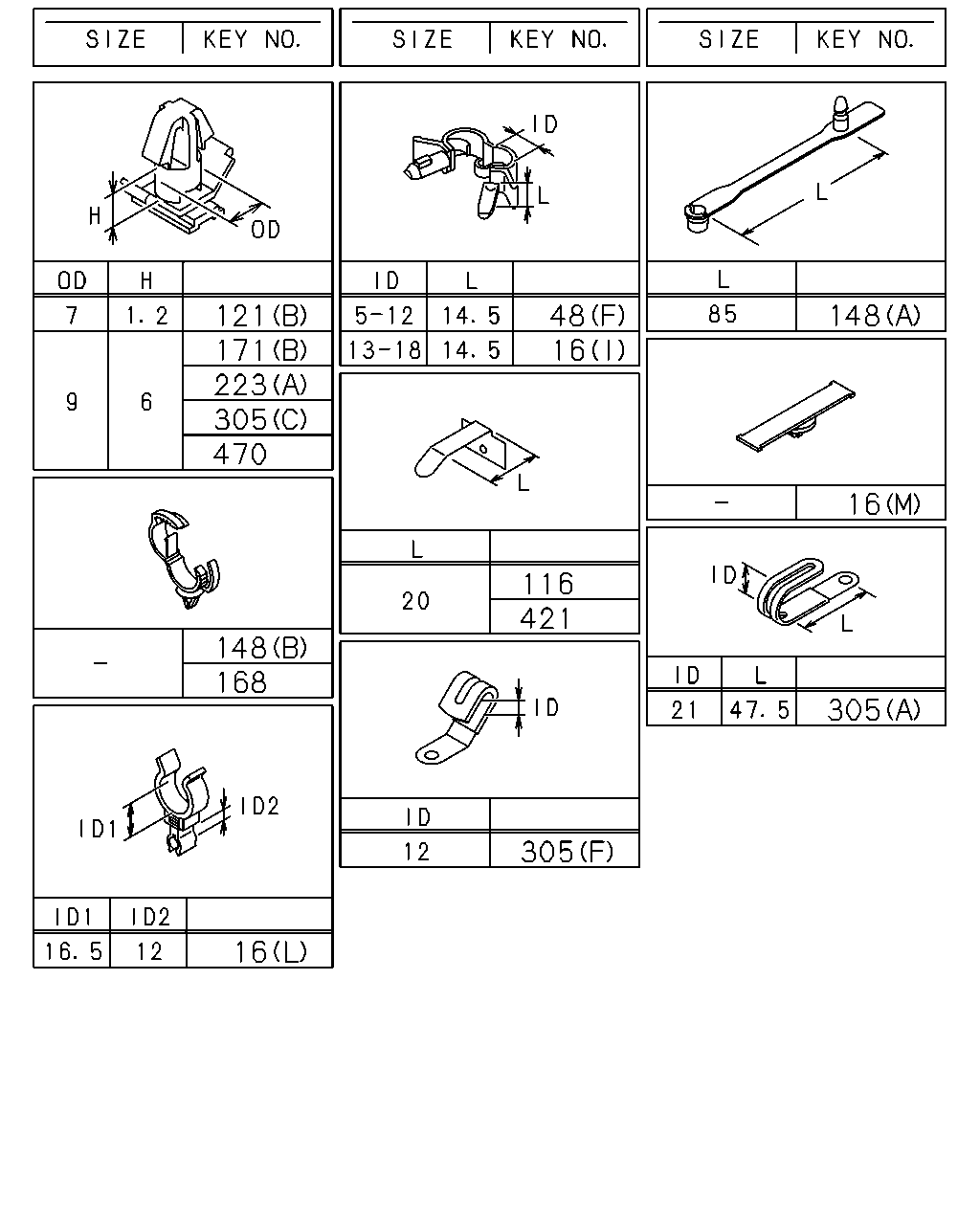

çizim 84057
121 171 223 305 470 148 168 16 48 16 116 421 305 148 16 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=26 L=27 		1-09701-006-0 01 1 0609-
16 CLIP; HARNESS
POWER WINDOW<A30> (M) L=55 		8-94432-655-0 06 1 0609-
16 CLIP; HARNESS
POWER WINDOW<A30> (N) L=175 		8-97110-167-0 06 1 0609-
16 CLIP; HARNESS
(O) ID=19 L=32 		0-95235-866-0 01 1 0609-
16 CLIP; HARNESS
(B) ID=22 L=32 		1-09700-126-1 01 1 0609-
16 CLIP; HARNESS
(C) ID=11 L=41 		1-09700-403-0 03 1 0609-
16 CLIP; HARNESS
(E) ID=31 L=30 		1-09700-969-0 01 1 0609-
16 CLIP; HARNESS
(F) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0609-
16 CLIP; HARNESS
(G) ID=35 H=45 L=33 		1-09701-047-0 01 1 0609-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0609-0609
16 CLIP; HARNESS
EXC. FRAME EQUIPMENT HEAVY DUTY(F03) (H) L=300 		1-09707-001-1 01 1 0610-
16 CLIP; HARNESS
(H) L=300 		1-09707-001-1 01 1 0610-
16 CLIP; HARNESS
(I) ID=13-18 L=14.5 		1-09709-290-0 01 1 0609-
16 CLIP; HARNESS
(J) ID=29 L=35 		5-09700-293-1 01 1 0609-
16 CLIP; HARNESS
(K) L=250 		5-09707-030-1 01 1 0609-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0609-
16 CLIP; HARNESS
(L) ID=12 & 16.5 		8-94400-865-0 01 1 0609-0701
16 CLIP; HARNESS
(P) ID=20 L=50 		9-09917-430-0 03 1 0609-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=20 L=50 		9-09917-430-0 18 1 0611-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 14 1 0609-0610
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=50 		9-09917-430-0 15 1 0611-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (H) ID=20 L=50 		9-09917-430-0 17 1 0609-0610
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) ID=20 L=50 		9-09917-430-0 17 1 0611-
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		0-95235-856-0 01 1 0609-
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 05 1 0609-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 02 1 0609-
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 06 1 0609-0701
48 CLIP; FRAME HARNESS
(D) ID=20 L=70 		1-09700-485-0 04 1 0702-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 04 1 0609-
48 CLIP; FRAME HARNESS
(I) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0609-
48 CLIP; FRAME HARNESS
(B) ID=25 L=75 		1-09701-275-0 01 1 0609-
48 CLIP; FRAME HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 02 1 0609-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 05 1 0609-
48 CLIP; FRAME HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 0609-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0609-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 04 1 1410-
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0609-1409
116 CLIP; ROOF HARNESS
LOW ROOF<6XQ> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0609-
121 CLIP; FACIA HARNESS
EXC. POWER WINDOW<A30> (B) OD=7 H=1.2 		8-94364-750-0 02 1 0609-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0609-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0609-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0609-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 02 1 0609-
171 CLIP; STARTER HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0609-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0609-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0609-
223 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0609-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 02 1 0609-
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 01 1 0609-
223 CLIP; AIR TANK HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 0609-
223 CLIP; AIR TANK HARNESS
(C) ID=20 L=50 		9-09917-430-0 05 1 0609-
305 CLIP; ENG HARNESS
(G) ID=16 L=28 		0-95235-556-0 02 1 0609-
305 CLIP; ENG HARNESS
(B) ID=19 H=33 L=45 		1-09701-045-0 01 1 0609-
305 CLIP; ENG HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 0609-
305 CLIP; ENG HARNESS
(E) ID=21 L=24 		8-94176-807-1 02 1 0609-0611
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		9-09525-576-0 02 1 0612-0806
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 02 1 0807-
305 CLIP; ENG HARNESS
(A) ID=21 L=47.5 		8-94178-108-0 01 1 0609-0810
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=21 L=47.5 		8-94178-108-0 01 1 0811-
305 CLIP; ENG HARNESS
(F) ID=12 		8-97329-630-0 01 1 0609-0702
305 CLIP; ENG HARNESS
(D) L=250 		5-09707-030-1 07 1 0609-0701
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 0609-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0609-

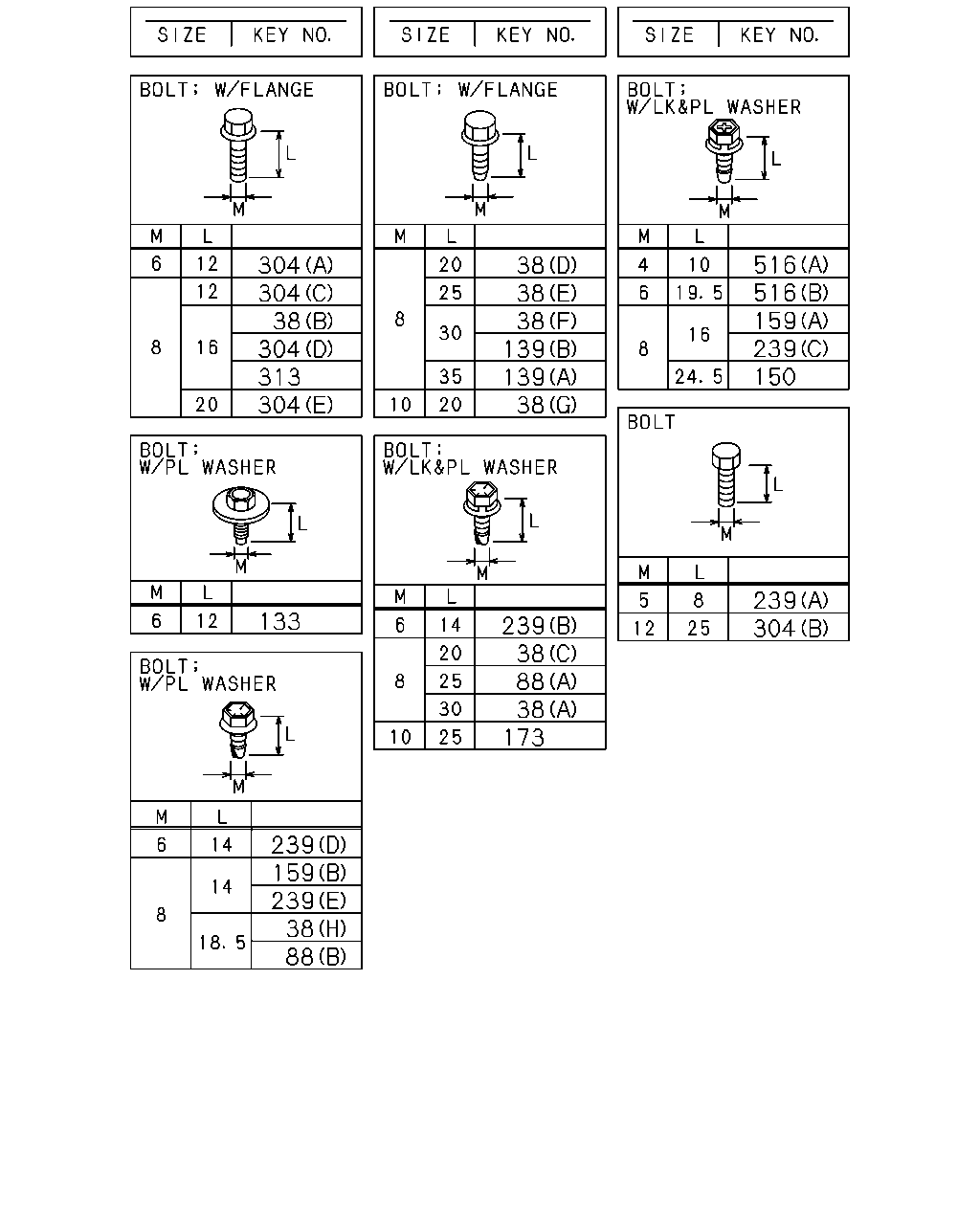

çizim 84477
304 313 304 38 304 304 133 88 239 159 239 38 173 239 38 88 38 38 139 139 38 38 38 304 239 150 239 159 516 516
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(G) M10X20 FLANGE 		0-28751-020-0 01 1 0609-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0609-
38 BOLT; CLIP,HARNESS
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0609-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28050-825-0 03 1 0609-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0609-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28650-820-0 03 1 0609-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28650-825-0 02 1 0609-
38 BOLT; CLIP,HARNESS
(F) M8X30 FLANGE 		0-28650-830-0 02 1 0609-
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0609-
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0609-1201
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0609-1007
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0609-1007
88 BOLT; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0609-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0609-
139 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0609-
150 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0609-0904
150 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
159 BOLT; GRAND ENG ELEC
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0609-1201
159 BOLT; GRAND ENG ELEC
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0609-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0609-0701
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0609-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0609-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
304 BOLT; ENG HARNESS CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 0609-
304 BOLT; ENG HARNESS CLIP
(C) M8X12 FLANGE 		0-28050-812-0 03 1 0609-
304 BOLT; ENG HARNESS CLIP
(D) M8X16 FLANGE 		0-28050-816-0 05 1 0609-
304 BOLT; ENG HARNESS CLIP
(E) M8X20 FLANGE 		0-28050-820-0 01 1 0609-
304 BOLT; ENG HARNESS CLIP
(B) M12X25 		5-09000-227-0 01 1 0609-
313 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) M8X16 FLANGE 		0-28050-816-0 01 1 0609-
516 BOLT; HARNESS
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0609-
516 BOLT; HARNESS
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0609-
çizim 86658
1 224 1 178 178 178 510 513 530 503 514
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 02 1 0609-0609
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 03 1 0610-0611
1 SLEEVE; RUBBER
(A) ID=17 OD=21 L=40 		1-09337-012-0 04 1 0612-
1 SLEEVE; RUBBER
(B) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0609-
178 GROMMET; HARNESS
LOW ROOF<6XQ> (C) ID=32 OD=48 T=5 		9-09575-232-0 01 1 0609-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0609-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0609-
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 05 1 0609-0701
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 0609-0609
503 CONNECTOR
EXC. AIR DRYER<PS7> 		1-82690-668-0 01 1 0610-
503 CONNECTOR
SPEED LIMITER 60KM<ECF> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),GENERATOR NIKKO 24V-60A 1.5KW(SC8),AN TI NOISE EQUIPMENT VAR2<TAK> 		1-82690-668-0 01 1 0610-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 0609-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0609-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 02 1 0702-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 03 1 0609-0701
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-0 01 1 0702-0906
514 FINISHER; HARNESS
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) L=50 		8-94270-377-1 01 1 0907-
530 SEAL; HARNESS
180X40 		1-72498-019-1 06 1 0609-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
