8-01 — LAMP; FRONT AND FRONT SIDE (#24970) — 143 parça

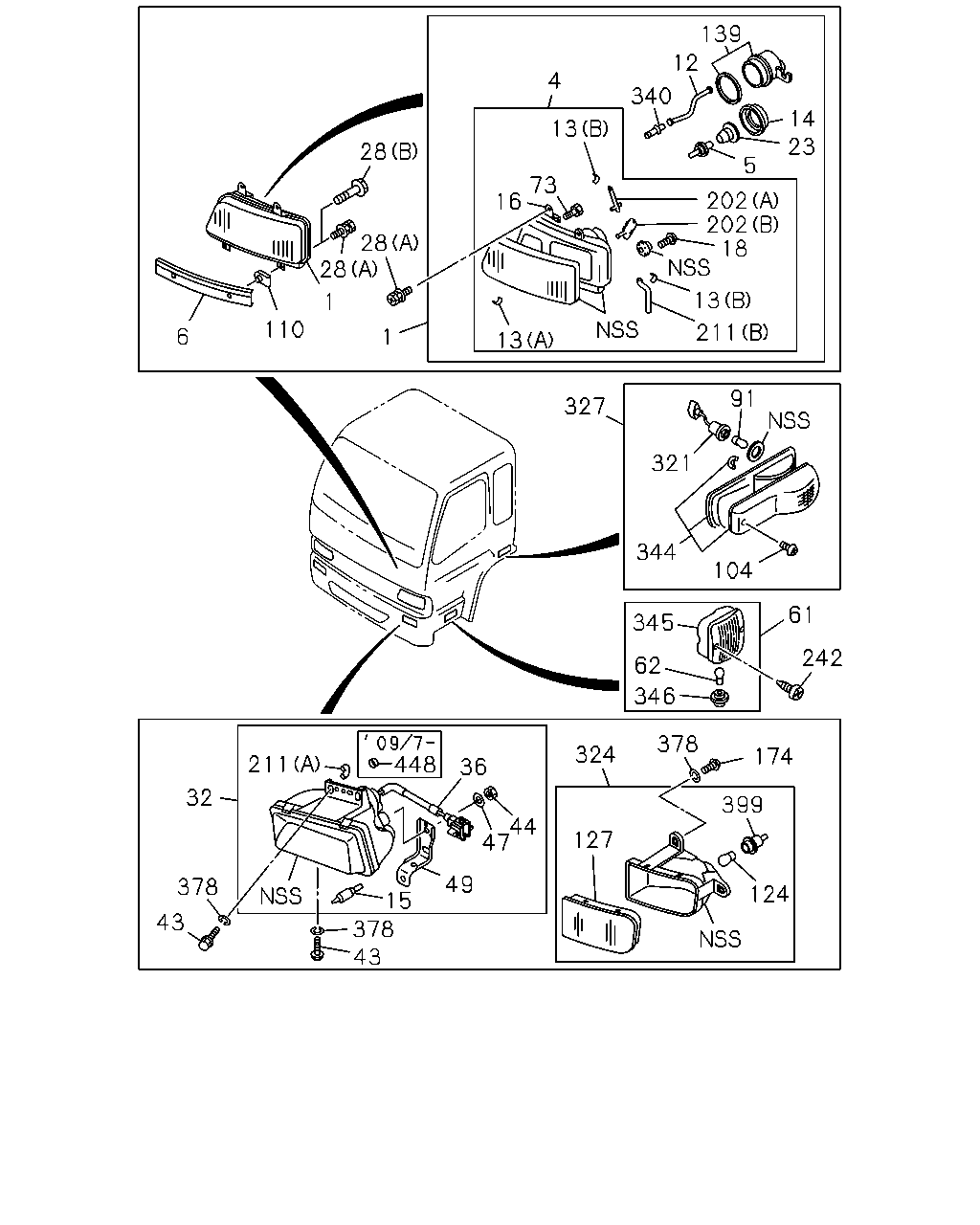

124 127 399 174 378 324 44 47 36 49 15 43 378 43 378 32 211 448 346 62 345 242 61 104 344 321 91 327 211 13 18 202 202 5 23 14 139 12 340 13 16 73 13 4 1 1 110 6 28 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HONG KONG EQUIPMENT(PQ1)	1-86830-121-4	01	1	0609-
1	LAMP ASM; HEAD HONG KONG EQUIPMENT(PQ1)	1-86830-122-4	01	1	0609-
1	LAMP ASM; HEAD SINGAPORE EQUIPMENT(WQ3)	1-86830-358-0	01	1	0609-
1	LAMP ASM; HEAD SINGAPORE EQUIPMENT(WQ3)	1-86830-359-0	01	1	0609-
4	HEADLAMP UNIT HONG KONG EQUIPMENT(PQ1)	1-86830-193-1	01	1	0609-
4	HEADLAMP UNIT HONG KONG EQUIPMENT(PQ1)	1-86830-194-1	01	1	0609-
4	HEADLAMP UNIT SINGAPORE EQUIPMENT(WQ3)	1-82119-199-0	01	1	0609-
4	HEADLAMP UNIT SINGAPORE EQUIPMENT(WQ3)	1-82119-200-0	01	1	0609-
5	BULB; HEADLAMP HONG KONG EQUIPMENT(PQ1) 24V 75/70W	8-94405-657-0	02	1	0609-
5	BULB; HEADLAMP SINGAPORE EQUIPMENT(WQ3) 24V 75/70W	1-82194-063-0	02	1	0609-
6	RIM; HEADLAMP FOG LAMP<T96>	1-86830-035-5	01	1	0609-
6	RIM; HEADLAMP FOG LAMP<T96>	1-86830-036-5	01	1	0609-
6	RIM; HEADLAMP EXC. FOG LAMP<T96>	1-86830-005-5	01	1	0609-
6	RIM; HEADLAMP EXC. FOG LAMP<T96>	1-86830-006-5	01	1	0609-
12	HARNESS; HEADLAMP HONG KONG EQUIPMENT(PQ1)	1-86830-199-0	02	1	0609-
12	HARNESS; HEADLAMP SINGAPORE EQUIPMENT(WQ3)	1-86830-145-0	02	1	0609-
13	CLIP; HEADLAMP (B)	1-82119-084-0	04	1	0609-
13	CLIP; HEADLAMP (A)	8-94381-588-0	14	1	0609-
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0609-
15	BULB; FOG LAMP HONG KONG EQUIPMENT(PQ1) 24V 70W	1-82194-106-0	02	1	0609-
15	BULB; FOG LAMP SINGAPORE EQUIPMENT(WQ3) 24V 55W	1-82194-079-0	02	1	0609-
16	BRACKET; HEADLAMP	1-86830-075-0	01	1	0609-
16	BRACKET; HEADLAMP	1-86830-076-0	01	1	0609-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0609-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0609-
28	BOLT; HEADLAMP (B) M6X16 FLANGE	0-28650-616-0	04	1	0709-
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0609-0708
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	1-82110-453-0	01	1	0609-0712
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	1-82110-475-0	01	1	0801-0906
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	8-98149-149-1	01	1	0907-1301
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	8-98232-064-1	01	1	1302-
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	1-82110-454-0	01	1	0609-0712
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	1-82110-476-0	01	1	0801-0906
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	8-98149-150-1	01	1	0907-1301
32	LAMP ASM; FOG HONG KONG EQUIPMENT(PQ1)	8-98232-065-1	01	1	1302-
36	CORD; FOG LAMP HONG KONG EQUIPMENT(PQ1)	1-82118-015-0	01	1	0609-
36	CORD; FOG LAMP HONG KONG EQUIPMENT(PQ1)	1-82118-016-0	01	1	0609-
43	BOLT; FOG LAMP HONG KONG EQUIPMENT(PQ1) M6X20 FLANGE	0-28650-620-0	04	1	0609-
43	BOLT; FOG LAMP HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28650-820-0	02	1	0609-
44	NUT; FOG LAMP HONG KONG EQUIPMENT(PQ1) M6	8-98217-430-0	02	1	1205-
47	WASHER; PL,FOG LAMP HONG KONG EQUIPMENT(PQ1)	8-98217-429-0	02	1	1205-
49	BRACKET; LAMP HONG KONG EQUIPMENT(PQ1)	8-98051-437-0	01	1	0609-
49	BRACKET; LAMP HONG KONG EQUIPMENT(PQ1)	8-98051-438-0	01	1	0609-
61	LAMP ASM; CORNERING HONG KONG EQUIPMENT(PQ1) 24V 30W	1-86830-185-2	01	1	0609-
61	LAMP ASM; CORNERING HONG KONG EQUIPMENT(PQ1) 24V 30W	1-86830-186-2	01	1	0609-
62	BULB; CORNERING LAMP HONG KONG EQUIPMENT(PQ1) 24V 30W	8-97010-179-0	02	1	0609-
73	BOLT; BRKT,HEADLAMP	8-94332-050-0	04	1	0609-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0609-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0609-
110	CLIP; RIM,HEADLAMP	1-86830-213-1	04	1	0609-
124	BULB; FRT TURN SIGNAL HONG KONG EQUIPMENT(PQ1) 24V 21W	1-82194-105-0	02	1	0609-
124	BULB; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3) 24V 21W	1-82194-036-0	02	1	0609-
127	LENS; FRT TURN SIGNAL HONG KONG EQUIPMENT(PQ1) ORANGE	1-82215-073-0	01	1	0609-
127	LENS; FRT TURN SIGNAL HONG KONG EQUIPMENT(PQ1) ORANGE	1-82215-074-0	01	1	0609-
127	LENS; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3) ORANGE	1-82215-064-0	01	1	0609-
127	LENS; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3) ORANGE	1-82215-065-0	01	1	0609-
139	COVER; HEADLAMP HONG KONG EQUIPMENT(PQ1)	1-82119-224-0	02	1	0609-
174	BOLT HONG KONG EQUIPMENT(PQ1) M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0609-
202	GEAR UNIT; HEADLAMP (A)	1-86830-139-0	02	1	0609-
202	GEAR UNIT; HEADLAMP (B)	1-86830-140-0	02	1	0609-
211	TUBE; HEADLAMP HONG KONG EQUIPMENT(PQ1) (A)	8-97025-128-0	02	1	0609-0906
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0609-
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0609-
242	SCREW; CORNERING LAMP HONG KONG EQUIPMENT(PQ1) M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0609-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0609-
324	LAMP; FRT FLASHER HONG KONG EQUIPMENT(PQ1)	1-82210-259-1	01	1	0609-
324	LAMP; FRT FLASHER HONG KONG EQUIPMENT(PQ1)	1-82210-260-1	01	1	0609-
324	LAMP; FRT FLASHER SINGAPORE EQUIPMENT(WQ3)	1-82210-202-1	01	1	0609-
324	LAMP; FRT FLASHER SINGAPORE EQUIPMENT(WQ3)	1-82210-203-1	01	1	0609-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0609-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0609-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0609-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0609-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0609-
345	LAMP UNIT; CORNERING HONG KONG EQUIPMENT(PQ1)	1-86830-254-0	01	1	0609-
345	LAMP UNIT; CORNERING HONG KONG EQUIPMENT(PQ1)	1-86830-255-0	01	1	0609-
346	SOCKET; CORNERING LAMP HONG KONG EQUIPMENT(PQ1)	1-86830-256-0	02	1	0609-
378	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=6.4	0-91610-606-0	08	1	0609-
399	SOCKET; TURN SIGNAL HONG KONG EQUIPMENT(PQ1)	1-82219-038-0	02	1	0609-
399	SOCKET; TURN SIGNAL SINGAPORE EQUIPMENT(WQ3)	1-82219-034-0	02	1	0609-
448	CAP ASM; LAMP HONG KONG EQUIPMENT(PQ1)	8-97378-874-0	02	1	0907-

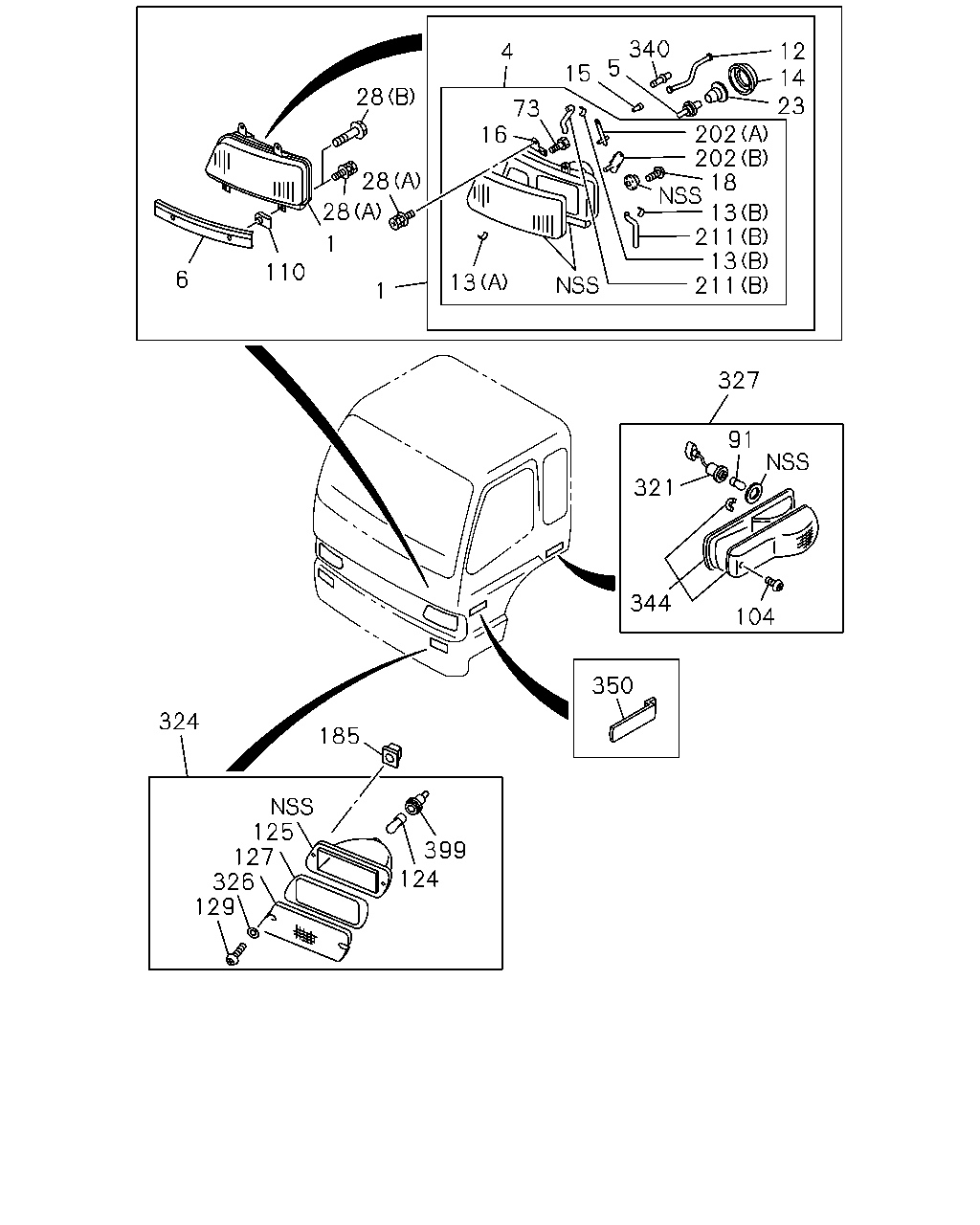

340 5 15 4 12 14 23 202 202 18 13 211 13 211 13 73 16 28 28 28 1 1 110 6 327 321 91 104 344 350 185 324 399 124 125 127 326 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HONG KONG EQUIPMENT(PQ1)	1-86830-121-4	01	1	0609-
1	LAMP ASM; HEAD HONG KONG EQUIPMENT(PQ1)	1-86830-122-4	01	1	0609-
1	LAMP ASM; HEAD SINGAPORE EQUIPMENT(WQ3)	1-86830-358-0	01	1	0609-
1	LAMP ASM; HEAD SINGAPORE EQUIPMENT(WQ3)	1-86830-359-0	01	1	0609-
4	HEADLAMP UNIT HONG KONG EQUIPMENT(PQ1)	1-86830-193-1	01	1	0609-
4	HEADLAMP UNIT HONG KONG EQUIPMENT(PQ1)	1-86830-194-1	01	1	0609-
4	HEADLAMP UNIT SINGAPORE EQUIPMENT(WQ3)	1-82119-199-0	01	1	0609-
4	HEADLAMP UNIT SINGAPORE EQUIPMENT(WQ3)	1-82119-200-0	01	1	0609-
5	BULB; HEADLAMP HONG KONG EQUIPMENT(PQ1) 24V 75/70W	8-94405-657-0	02	1	0609-
5	BULB; HEADLAMP SINGAPORE EQUIPMENT(WQ3) 24V 75/70W	1-82194-063-0	02	1	0609-
6	RIM; HEADLAMP FOG LAMP<T96>	1-86830-035-5	01	1	0609-
6	RIM; HEADLAMP FOG LAMP<T96>	1-86830-036-5	01	1	0609-
6	RIM; HEADLAMP EXC. FOG LAMP<T96>	1-86830-005-5	01	1	0609-
6	RIM; HEADLAMP EXC. FOG LAMP<T96>	1-86830-006-5	01	1	0609-
12	HARNESS; HEADLAMP HONG KONG EQUIPMENT(PQ1)	1-86830-199-0	02	1	0609-
12	HARNESS; HEADLAMP SINGAPORE EQUIPMENT(WQ3)	1-86830-145-0	02	1	0609-
13	CLIP; HEADLAMP (B)	1-82119-084-0	04	1	0609-
13	CLIP; HEADLAMP (A)	8-94381-588-0	14	1	0609-
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0609-
15	BULB; FOG LAMP HONG KONG EQUIPMENT(PQ1) 24V 70W	1-82194-106-0	02	1	0609-
15	BULB; FOG LAMP SINGAPORE EQUIPMENT(WQ3) 24V 55W	1-82194-079-0	02	1	0609-
16	BRACKET; HEADLAMP	1-86830-075-0	01	1	0609-
16	BRACKET; HEADLAMP	1-86830-076-0	01	1	0609-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0609-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0609-
28	BOLT; HEADLAMP (B) M6X16 FLANGE	0-28650-616-0	04	1	0709-
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0609-0708
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0709-
73	BOLT; BRKT,HEADLAMP	8-94332-050-0	04	1	0609-
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0609-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0609-
110	CLIP; RIM,HEADLAMP	1-86830-213-1	04	1	0609-
124	BULB; FRT TURN SIGNAL HONG KONG EQUIPMENT(PQ1) 24V 21W	1-82194-105-0	02	1	0609-
124	BULB; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3) 24V 21W	1-82194-036-0	02	1	0609-
125	GASKET; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3)	1-82216-033-0	02	1	0609-
127	LENS; FRT TURN SIGNAL HONG KONG EQUIPMENT(PQ1) ORANGE	1-82215-073-0	01	1	0609-
127	LENS; FRT TURN SIGNAL HONG KONG EQUIPMENT(PQ1) ORANGE	1-82215-074-0	01	1	0609-
127	LENS; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3) ORANGE	1-82215-064-0	01	1	0609-
127	LENS; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3) ORANGE	1-82215-065-0	01	1	0609-
129	SCREW; FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3)	1-82219-026-0	04	1	0609-
185	GROMMET; SCREW SINGAPORE EQUIPMENT(WQ3) D=9.7X9.7 L=8	8-94222-314-0	04	1	0609-
202	GEAR UNIT; HEADLAMP (A)	1-86830-139-0	02	1	0609-
202	GEAR UNIT; HEADLAMP (B)	1-86830-140-0	02	1	0609-
211	TUBE; HEADLAMP HONG KONG EQUIPMENT(PQ1) (A)	8-97025-128-0	02	1	0609-0906
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0609-
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0609-
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0609-
324	LAMP; FRT FLASHER HONG KONG EQUIPMENT(PQ1)	1-82210-259-1	01	1	0609-
324	LAMP; FRT FLASHER HONG KONG EQUIPMENT(PQ1)	1-82210-260-1	01	1	0609-
324	LAMP; FRT FLASHER SINGAPORE EQUIPMENT(WQ3)	1-82210-202-1	01	1	0609-
324	LAMP; FRT FLASHER SINGAPORE EQUIPMENT(WQ3)	1-82210-203-1	01	1	0609-
326	WASHER; PL,FRT TURN SIGNAL SINGAPORE EQUIPMENT(WQ3)	1-82216-032-0	04	1	0609-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0609-
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0609-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0609-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0609-
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0609-
350	COVER; SIDE TURN HOLE	1-79996-606-0	01	1	0609-
350	COVER; SIDE TURN HOLE	1-79996-607-0	01	1	0609-
399	SOCKET; TURN SIGNAL HONG KONG EQUIPMENT(PQ1)	1-82219-038-0	02	1	0609-
399	SOCKET; TURN SIGNAL SINGAPORE EQUIPMENT(WQ3)	1-82219-034-0	02	1	0609-
