Sayfa 4-35 - Isuzu EPC

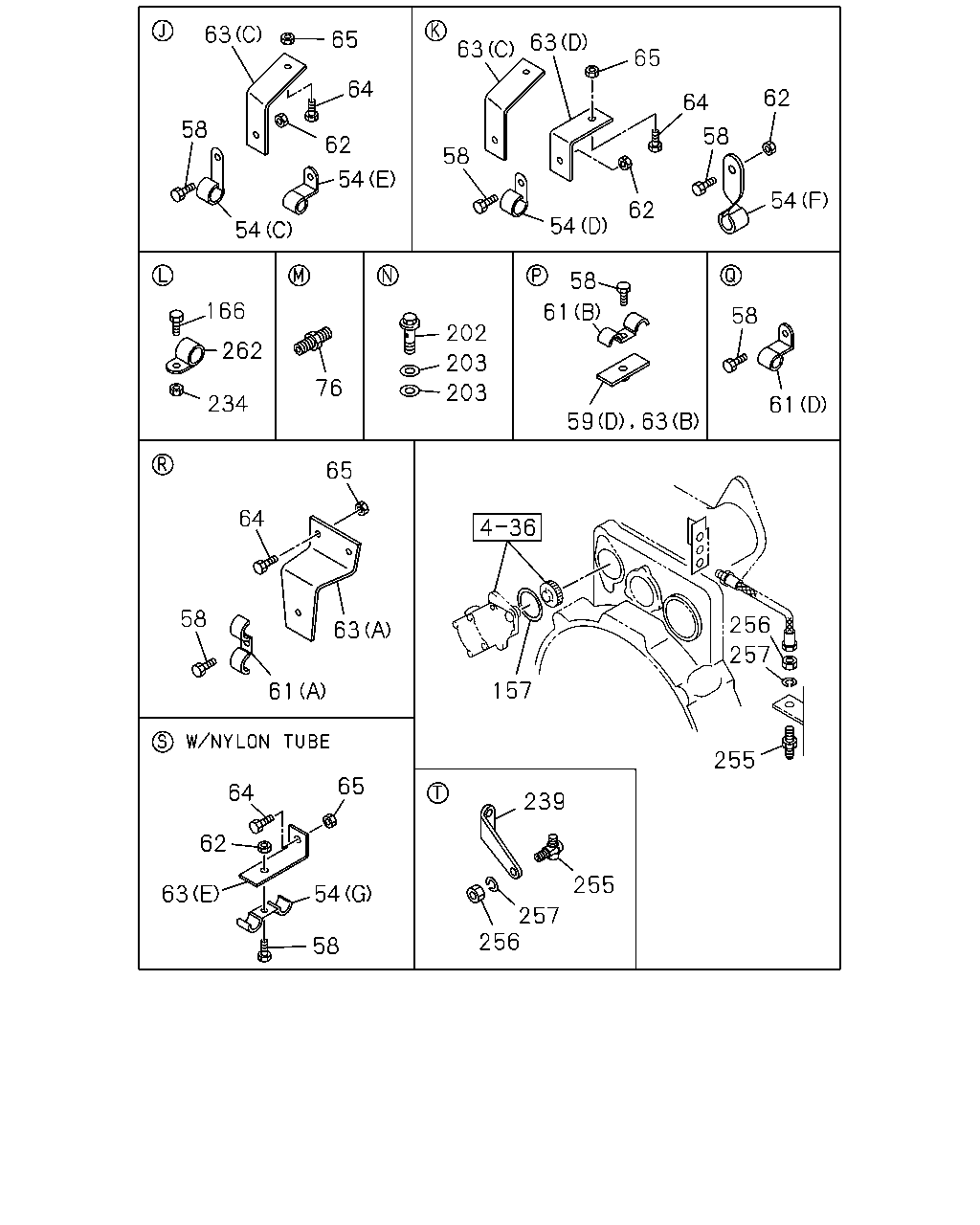

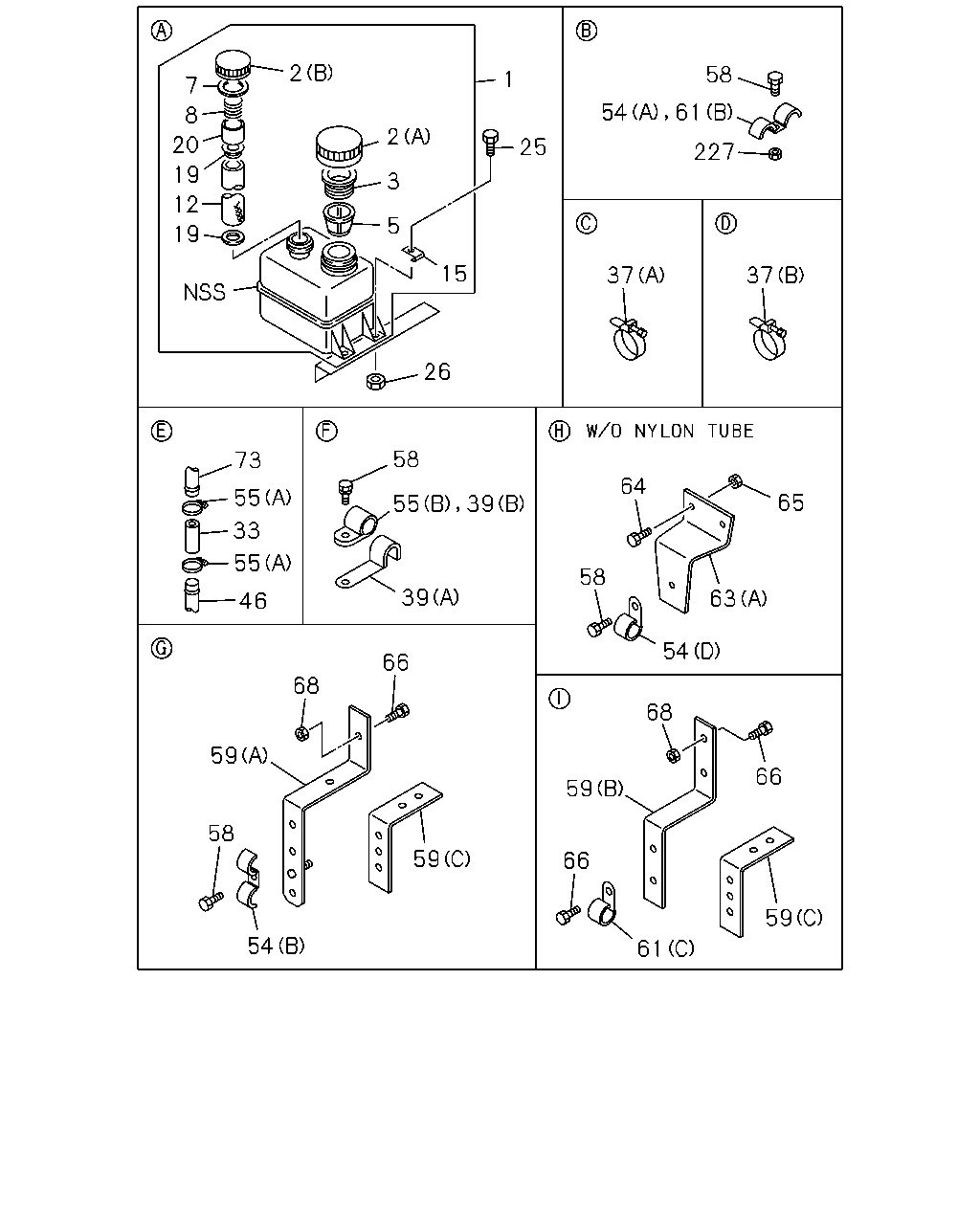

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#2497) — 245 parça

2 58 1 7 54 61 8 2 20 25 227 19 3 12 5 19 15 37 37 26 58 73 64 55 65 33 55 58 39 63 46 54 66 68 68 59 66 59 58 59 66 59 54 61 55 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-127-5	01	1	9002-9202
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9203-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9002-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9002-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9002-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9002-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9002-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9002-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9002-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9002-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9002-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9002-
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	9-01910-820-0	04	1	9002-9005
25	BOLT; OIL TANK BRKT M8X20 W/LK WASHER	0-50040-820-0	04	1	9006-9302
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9303-
26	NUT; OIL TANK TO BRKT M8	9-09110-408-0	04	1	9002-
33	HOSE; RUBBER,POWER STRG 10PD1 STD ENG(40L) L=80	1-09360-570-0	01	1	9002-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	9002-
37	CLIP; HOSE,P/S L TYPE ENG<90L> (B) ID=38	9-09915-666-1	02	1	9002-
37	CLIP; HOSE,P/S 10PD1 STD ENG(40L) (A) ID=32	1-09704-085-0	01	1	9002-
37	CLIP; HOSE,P/S 10PD1 STD ENG(40L) (B) ID=38	9-09915-666-1	01	1	9002-
39	CLIP; FLEX HOSE (A) ID=32 L=75	1-09700-702-0	01	1	9002-
39	CLIP; FLEX HOSE 10PD1 STD ENG(40L) (B) ID=32 L=75	1-09700-704-1	01	1	9002-9409
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21113-533-0	01	1	9002-9002
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21113-764-0	01	1	9003-9306
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21114-873-0	01	1	9307-9410
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-873-0	01	1	9411-
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-260-0	01	1	9411-
54	CLIP; OIL PIPE (D) ID=16 L=50	9-09525-586-0	01	1	9307-9402
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=50	9-09525-586-0	01	1	9403-
54	CLIP; OIL PIPE L TYPE ENG<90L> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=50	9-09525-586-0	01	1	9304-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=20	9-09525-535-0	01	1	9002-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=16 L=20	9-09525-535-0	01	1	9002-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=20	9-09525-535-0	01	1	9307-
54	CLIP; OIL PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (C) ID=16	9-09525-525-0	01	1	9307-
54	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (F) ID=16 L=48	9-09916-568-1	01	1	9002-9312
54	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (G) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9401-
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9403-
55	CLIP; P/S RUBBER HOSE (B) ID=28 L=30	1-09700-607-1	01	1	9002-
55	CLIP; P/S RUBBER HOSE 10PD1 STD ENG(40L) (A) ID=28	9-09915-672-1	02	1	9002-
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	9002-9002
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9303-9306
58	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18 W/LK WASHER	9-01900-818-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18 W/LK WASHER	0-50040-818-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE (C) 80X75	1-47475-081-4	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9307-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (D) L=50	1-47475-299-2	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (A)	1-47477-128-0	01	1	9307-9410
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-47477-128-0	01	1	9411-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16	9-09525-525-0	01	1	9002-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (A),(B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9410
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A),(B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (A),(B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C) 43X43	1-47475-369-0	01	1	9002-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C) 43X43	1-47475-369-0	02	1	9304-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C) 25X39	1-47476-164-0	01	1	9002-9004
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D) 25X37	1-34656-004-0	01	1	9005-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=55	1-47475-298-0	01	1	9002-
63	BRACKET; CLIP,P/S NYLON TUBE AIR PIPING<Z29> (E) L=68	1-47475-525-0	01	1	9401-
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L) (A) L=75	1-21119-100-1	01	1	9002-
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L) (B) WO/NUT	1-47475-299-2	01	1	9307-
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	04	1	9303-
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9303-9312
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-9312
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9401-
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9401-
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306
65	NUT; BRKT 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9306
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-
65	NUT; BRKT 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9307-9312
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-9312
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9401-
65	NUT; BRKT 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9401-
66	BOLT; BRKT,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
66	BOLT; BRKT,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28080-820-0	02	1	9303-9306
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	02	1	9307-9410
66	BOLT; BRKT,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	02	1	9411-
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> M8X30 FLANGE	0-28080-830-0	02	1	9307-
68	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-
68	NUT; CLIP,OIL PIPE 10PD1 STD ENG(40L) M8	9-09110-408-0	03	1	9002-9306
68	NUT; CLIP,OIL PIPE 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9307-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 10PD1 STD ENG(40L) L=390	1-21111-975-1	01	1	9002-
227	NUT; PIPE CLIP 10PD1 STD ENG(40L) M8	9-09110-408-0	01	1	9307-

63 65 63 63 65 64 62 64 58 58 62 58 54 54 62 54 54 58 166 61 58 202 262 203 76 203 234 61 65 64 58 256 63 257 157 61 255 65 64 239 62 255 63 54 257 256 58 59 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (D) ID=16 L=50	9-09525-586-0	01	1	9307-9402
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=50	9-09525-586-0	01	1	9403-
54	CLIP; OIL PIPE L TYPE ENG<90L> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9002-9303
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=50	9-09525-586-0	01	1	9304-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=20	9-09525-535-0	01	1	9002-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) ID=16 L=20	9-09525-535-0	01	1	9002-9306
54	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 L=20	9-09525-535-0	01	1	9307-
54	CLIP; OIL PIPE L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (C) ID=16	9-09525-525-0	01	1	9307-
54	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (F) ID=16 L=48	9-09916-568-1	01	1	9002-9312
54	CLIP; OIL PIPE NYLON TUBE AIR PIPING<Z29> (G) ID=16 & 11 L=18 & 17	1-09700-657-0	01	1	9401-
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9307-
54	CLIP; OIL PIPE 10PD1 STD ENG(40L) (E) ID=15 H=24 L=20	1-09700-606-0	01	1	9403-
58	BOLT; CLIP M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9303-9306
58	BOLT; CLIP M10X25	9-01911-025-0	01	1	9002-9002
58	BOLT; CLIP M10X25 W/LK WASHER	0-50041-025-0	01	1	9003-9506
58	BOLT; CLIP M10X20 FLANGE	0-28081-020-0	01	1	9507-
58	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	01	1	9307-
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	9-01900-820-0	04	1	9002-9204
58	BOLT; CLIP L TYPE ENG<90L> M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9302
58	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	04	1	9303-9306
58	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28010-825-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18 W/LK WASHER	9-01900-818-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X18 W/LK WASHER	0-50040-818-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 W/LK WASHER	0-50040-820-0	03	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X20 FLANGE	0-28080-820-0	04	1	9307-
58	BOLT; CLIP 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	01	1	9307-
59	BRACKET; CLIP,OIL PIPE (C) 80X75	1-47475-081-4	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47475-963-1	01	1	9307-
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (D) L=50	1-47475-299-2	01	1	9002-9306
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) (A)	1-47477-128-0	01	1	9307-9410
59	BRACKET; CLIP,OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-47477-128-0	01	1	9411-
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9002-9410
61	CLIP; OIL PIPE (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> (D) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	9411-
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=16	9-09525-525-0	01	1	9002-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	03	1	9002-9306
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (C) ID=15 H=24 L=20	1-09700-606-0	02	1	9307-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (A),(B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9002-9410
61	CLIP; OIL PIPE ANTI NOISE EQUIPMENT<SV9> V TYPE ENG<91L> (A),(B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-
61	CLIP; OIL PIPE 10PD1 STD ENG(40L) (A),(B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9411-
62	NUT; CLIP FIX L TYPE ENG<90L> M8	9-09110-408-0	03	1	9002-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C) 43X43	1-47475-369-0	01	1	9002-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C) 43X43	1-47475-369-0	02	1	9304-
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C) 25X39	1-47476-164-0	01	1	9002-9004
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D) 25X37	1-34656-004-0	01	1	9005-9303
63	BRACKET; CLIP,P/S L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> (A) L=55	1-47475-298-0	01	1	9002-
63	BRACKET; CLIP,P/S NYLON TUBE AIR PIPING<Z29> (E) L=68	1-47475-525-0	01	1	9401-
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L) (A) L=75	1-21119-100-1	01	1	9002-
63	BRACKET; CLIP,P/S 10PD1 STD ENG(40L) (B) WO/NUT	1-47475-299-2	01	1	9307-
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	04	1	9002-9204
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	04	1	9205-9302
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	04	1	9303-
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9303-9312
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	02	1	9303-9312
64	BOLT; CLIP BRKT NYLON TUBE AIR PIPING<Z29> M8X25 FLANGE	0-28080-825-0	03	1	9401-
64	BOLT; CLIP BRKT 10PD1 STD ENG(40L) M8X25 FLANGE	0-28080-825-0	02	1	9401-
65	NUT; BRKT M8	9-09110-408-0	01	1	9002-9009
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9002-9306
65	NUT; BRKT 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9002-9306
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9002-9306
65	NUT; BRKT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	04	1	9307-
65	NUT; BRKT 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9307-9312
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	02	1	9307-9312
65	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	03	1	9401-
65	NUT; BRKT 10PD1 STD ENG(40L) M8	9-09110-408-0	02	1	9401-
76	UNION; OIL PIPE L TYPE ENG<90L> M22	9-09233-015-1	01	1	9002-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 10PD1 STD ENG(40L) ID=79.6	1-09623-421-0	01	1	9002-
166	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	03	1	9307-9410
166	BOLT; CLIP L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8X20 FLANGE	0-28080-820-0	03	1	9411-
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X39	1-09675-114-0	01	1	9002-9310
202	BOLT; EYE,OIL PIPE L TYPE ENG<90L> M18X36	1-09675-205-0	01	1	9311-
203	GASKET; EYE BOLT L TYPE ENG<90L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9002-
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8	9-09110-408-0	03	1	9307-9410
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> M8	9-09110-408-0	03	1	9411-
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47475-412-0	01	1	9002-
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9002-
255	UNION; FLEX HOSE 10PD1 STD ENG(40L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9002-
256	NUT; UNION M22	9-09111-422-0	01	1	9002-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9002-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9307-9312
262	CLIP; P/S PIPE L TYPE ENG<90L> ID=16	9-09525-525-0	01	1	9307-9410
262	CLIP; P/S PIPE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> ID=16	9-09525-525-0	01	1	9411-

48 31 34 74 45 74 45 48 48 31 73 34 46 73 48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	1-21111-924-0	01	1	9002-
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21112-037-2	01	1	9002-
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21112-084-1	01	1	9002-9306
34	HOSE; P/S OIL TANK,OUTLET 10PD1 STD ENG(40L)	1-21113-001-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21113-486-0	01	1	9002-9306
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21114-725-0	01	1	9307-
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-485-0	01	1	9002-9002
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-762-0	01	1	9003-9008
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-809-0	01	1	9009-9306
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21114-726-0	01	1	9307-
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21113-533-0	01	1	9002-9002
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21113-764-0	01	1	9003-9306
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L)	1-21114-873-0	01	1	9307-9410
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-873-0	01	1	9411-
46	PIPE; OIL,P/S UNIT TO OIL TANK 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-260-0	01	1	9411-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21113-317-0	01	1	9002-9306
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21114-722-0	01	1	9307-9308
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> NYLON TUBE AIR PIPING<Z29>	1-21114-970-0	01	1	9309-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-481-0	01	1	9002-9006
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21113-799-0	01	1	9007-9306
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21114-724-0	01	1	9307-9308
48	PIPE; OIL,FLEX HOSE TO STRG UNIT L TYPE ENG<90L> EXC. NYLON TUBE AIR PIPING<Z29>	1-21114-971-0	01	1	9309-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L)	1-21113-531-0	01	1	9002-9306
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L)	1-21114-872-0	01	1	9307-9410
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9>	1-21114-872-0	01	1	9411-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9>	1-21115-258-0	01	1	9411-
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE 10PD1 STD ENG(40L) L=390	1-21111-975-1	01	1	9002-
74	PIPE; OIL,P/S,UNION TO FLEX HOSE L TYPE ENG<90L> L=1279	1-21113-099-0	01	1	9002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
