◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11029 - FTR(RHD) EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#24969) — 100 parça

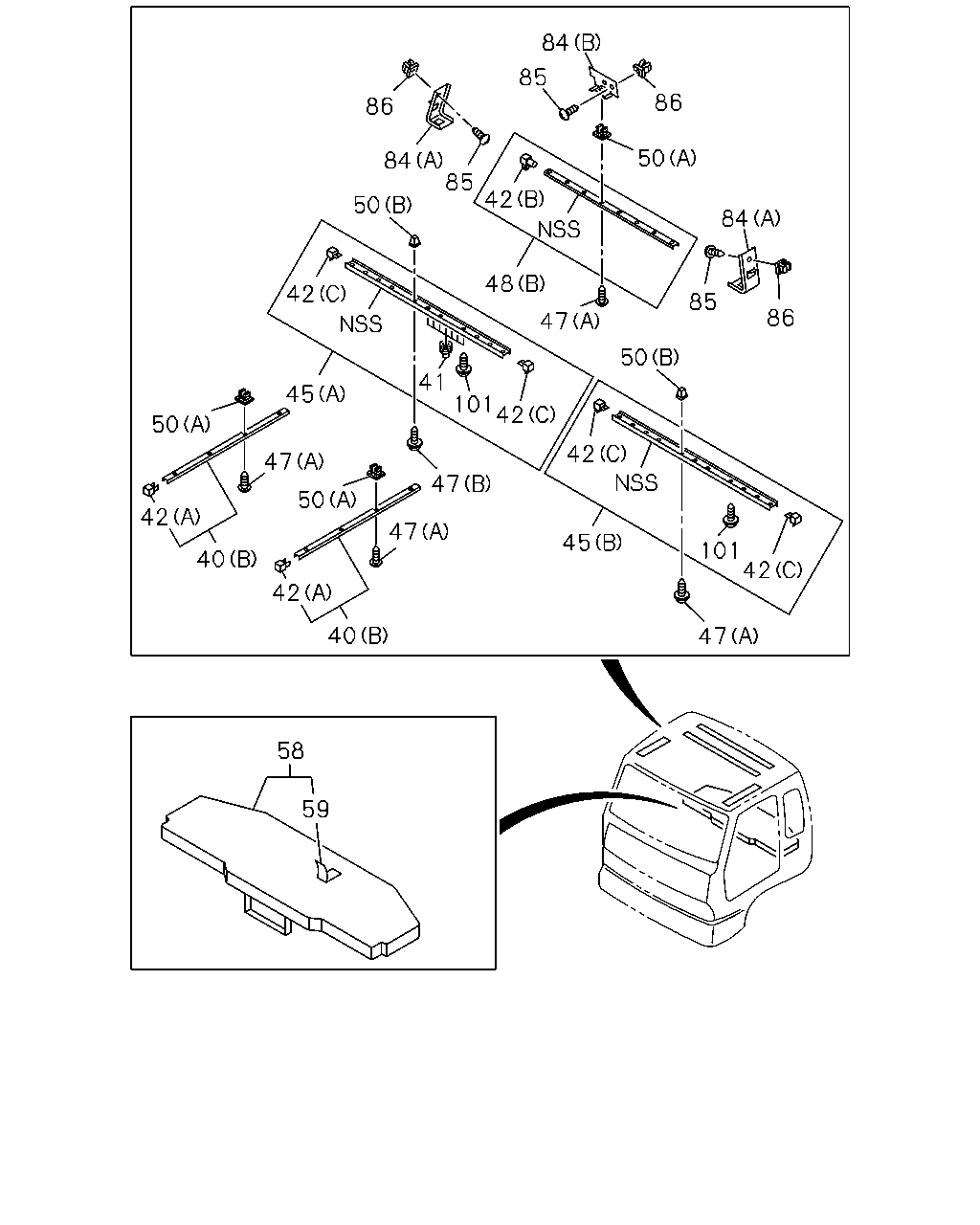

çizim 26404
84 85 86 86 50 84 85 42 50 84 48 42 85 86 47 50 41 45 101 42 50 42 47 47 50 42 47 45 101 42 40 42 40 47 58 59
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-367-1 01 1 0609-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-368-1 01 1 0609-
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-378-1 02 1 0609-
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (B) 		1-73996-379-0 01 1 0609-
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (B) 		1-73996-380-1 01 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0609-
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0609-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0609-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0609-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73996-370-1 01 1 0609-
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0609-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-369-1 01 1 0609-
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0609-
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 25 1 0609-
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 		5-09981-059-0 19 1 0609-
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 0609-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0609-
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0609-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 19 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0609-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-531-1 01 1 0609-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-700-1 01 1 0609-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0609-
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0609-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0609-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0609-
101 SCREW; STOPPER
LOW ROOF<6XQ> 		1-73907-400-0 02 1 0609-

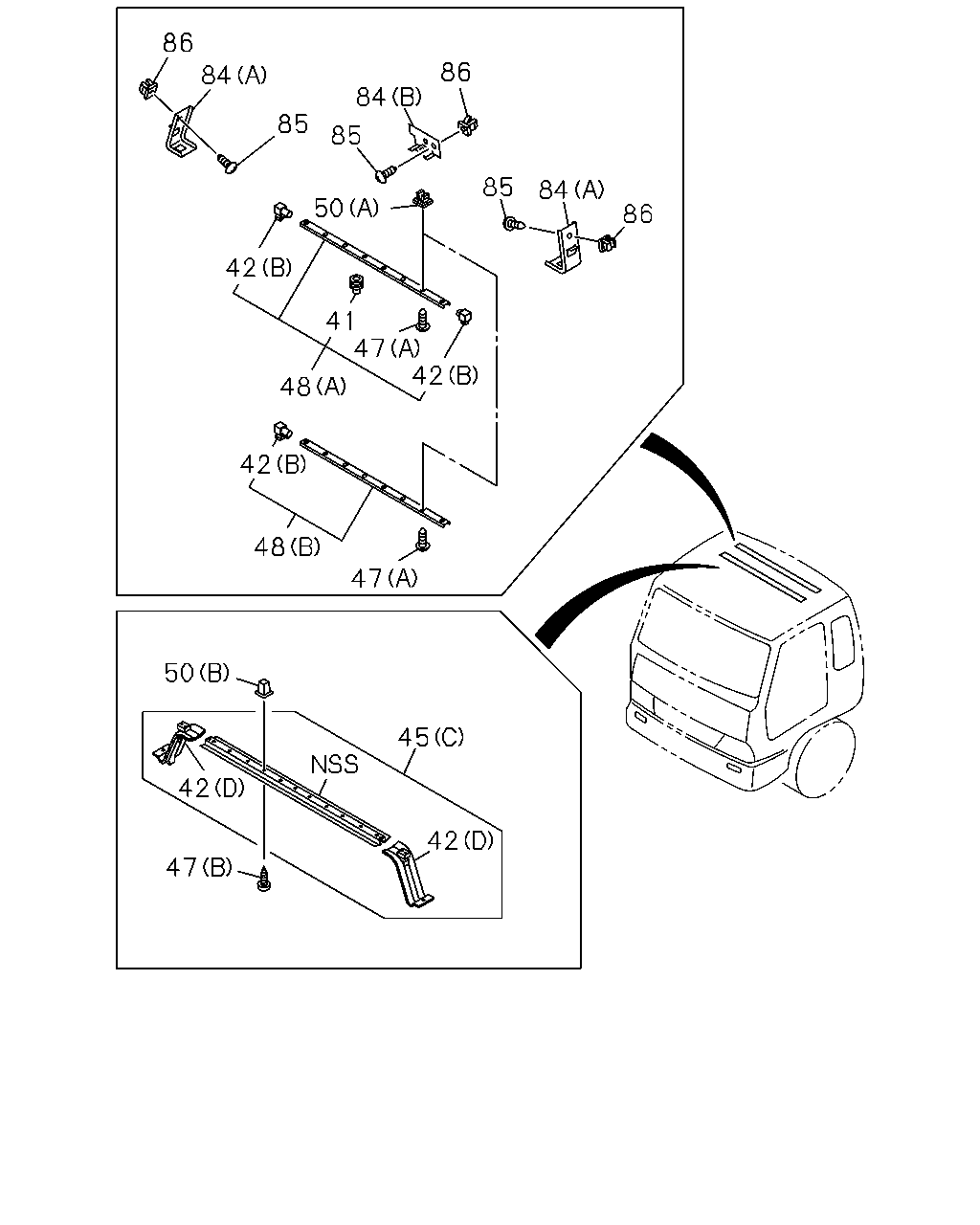

çizim 85275
86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 45 42 42 47
BalonParca AdiParca NoAdetTipApplied Date
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0609-
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0609-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0609-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0609-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (C) 		1-73996-370-1 01 1 0609-
45 RAIL; CURTAIN,FRT
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> (A) 		1-73908-374-2 01 1 0609-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (C) 		1-73996-369-1 01 1 0609-
45 RAIL; CURTAIN,FRT
LOW ROOF<6XQ> EXC. CURTAIN SLEEPER COMPARTMENT<E25> (B) 		1-73908-373-1 01 1 0609-
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 25 1 0609-
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 		5-09981-059-0 19 1 0609-
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 0609-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0609-
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-386-1 01 1 0609-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-385-1 01 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 19 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0609-
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0609-
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 0609-
85 SCREW; BRKT
M5X20 		5-09981-059-0 09 1 0609-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 09 1 0609-

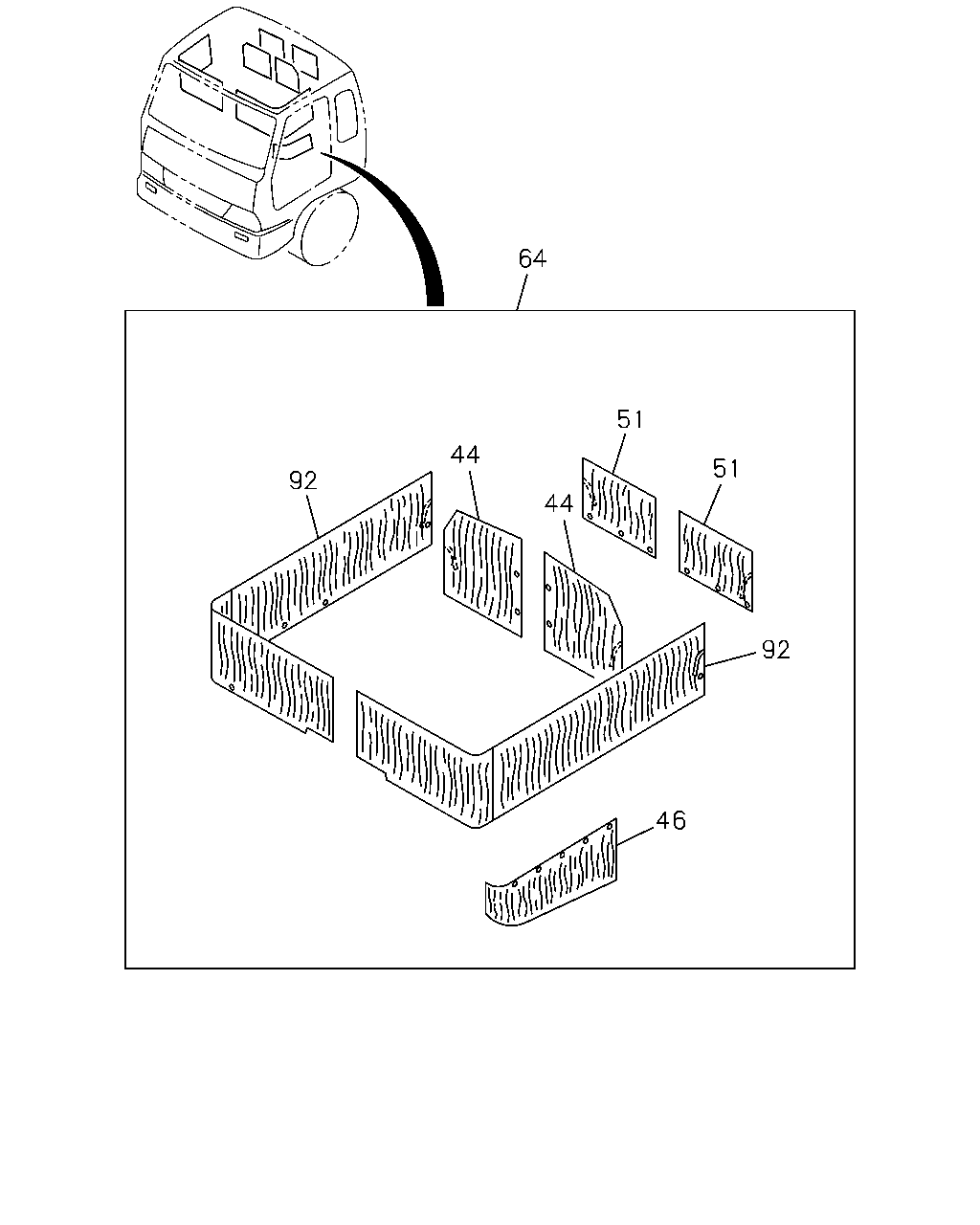

çizim 85296
64 51 44 51 92 44 92 46
BalonParca AdiParca NoAdetTipApplied Date
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73908-207-1 02 1 0609-
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> 		1-73908-208-1 02 1 0609-
46 CURTAIN ASM; DOOR
HIGH ROOF<S2F> 		1-73907-303-0 01 1 0609-
51 CURTAIN; BACK
HIGH ROOF<S2F> 		1-73908-211-1 01 1 0609-
51 CURTAIN; BACK
HIGH ROOF<S2F> 		1-73908-212-1 01 1 0609-
64 CURTAIN KIT
HIGH ROOF<S2F> 		1-73908-205-1 01 1 0609-
92 CURTAIN ASM; ROUND
HIGH ROOF<S2F> 		1-73908-215-1 01 1 0609-
92 CURTAIN ASM; ROUND
HIGH ROOF<S2F> 		1-73908-216-1 01 1 0609-

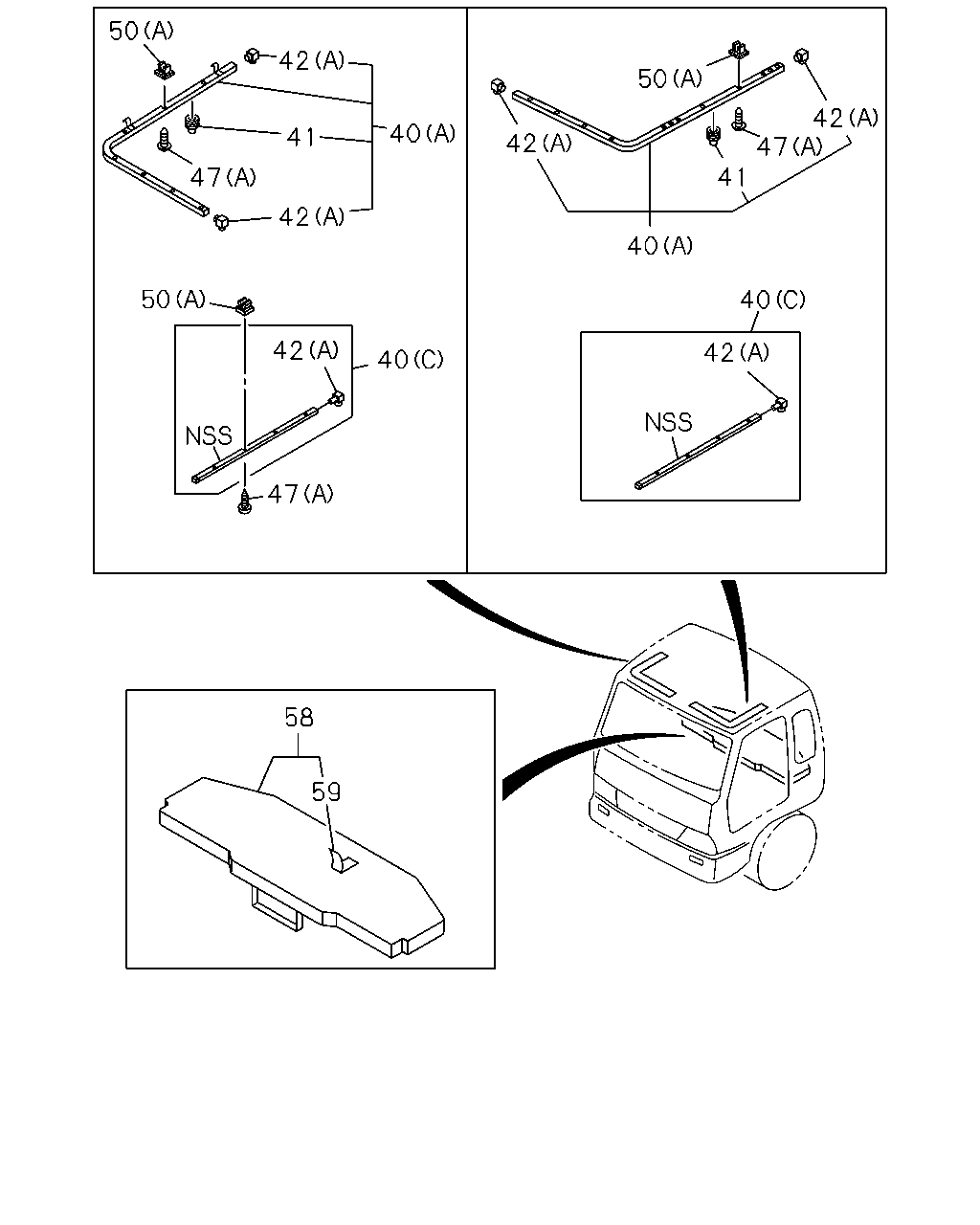

çizim 86654
50 42 50 42 40 41 42 47 47 41 42 40 50 40 42 42 40 47 58 59
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-367-1 01 1 0609-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-368-1 01 1 0609-
40 RAIL; CURTAIN,SIDE
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-378-1 02 1 0609-
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (B) 		1-73996-379-0 01 1 0609-
40 RAIL; CURTAIN,SIDE
LOW ROOF<6XQ> (B) 		1-73996-380-1 01 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE 		1-73996-398-0 08 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 32 1 0609-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> H=14.5 WHITE 		1-73996-398-0 14 1 0609-
41 HOOK; CURTAIN RAIL
CURTAIN SLEEPER COMPARTMENT<E25> LOW ROOF<6XQ> H=14.5 WHITE 		1-73996-398-0 14 1 0609-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) 		1-73996-393-0 04 1 0609-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (D) 		1-73996-402-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (A) 		1-73996-393-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) 		1-73996-393-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
LOW ROOF<6XQ> (C) 		1-73907-657-0 02 1 0609-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0609-
47 SCREW; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) M5X20 		5-09981-059-0 25 1 0609-
47 SCREW; CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) M5X20 		5-09981-059-0 19 1 0609-
47 SCREW; CURTAIN RAIL
LOW ROOF<6XQ> (A) M5X20 		5-09981-059-0 17 1 0609-
47 SCREW; CURTAIN RAIL
(B) M5X25 		5-09981-093-0 07 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 25 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 19 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
LOW ROOF<6XQ> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 17 1 0609-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8X8 L=13 M5 		1-09983-159-0 07 1 0609-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-531-1 01 1 0609-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75116-700-1 01 1 0609-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
