Isuzu WW
▶
TRUCKS
▶
FTR
▶
11029 - FTR(RHD) EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶

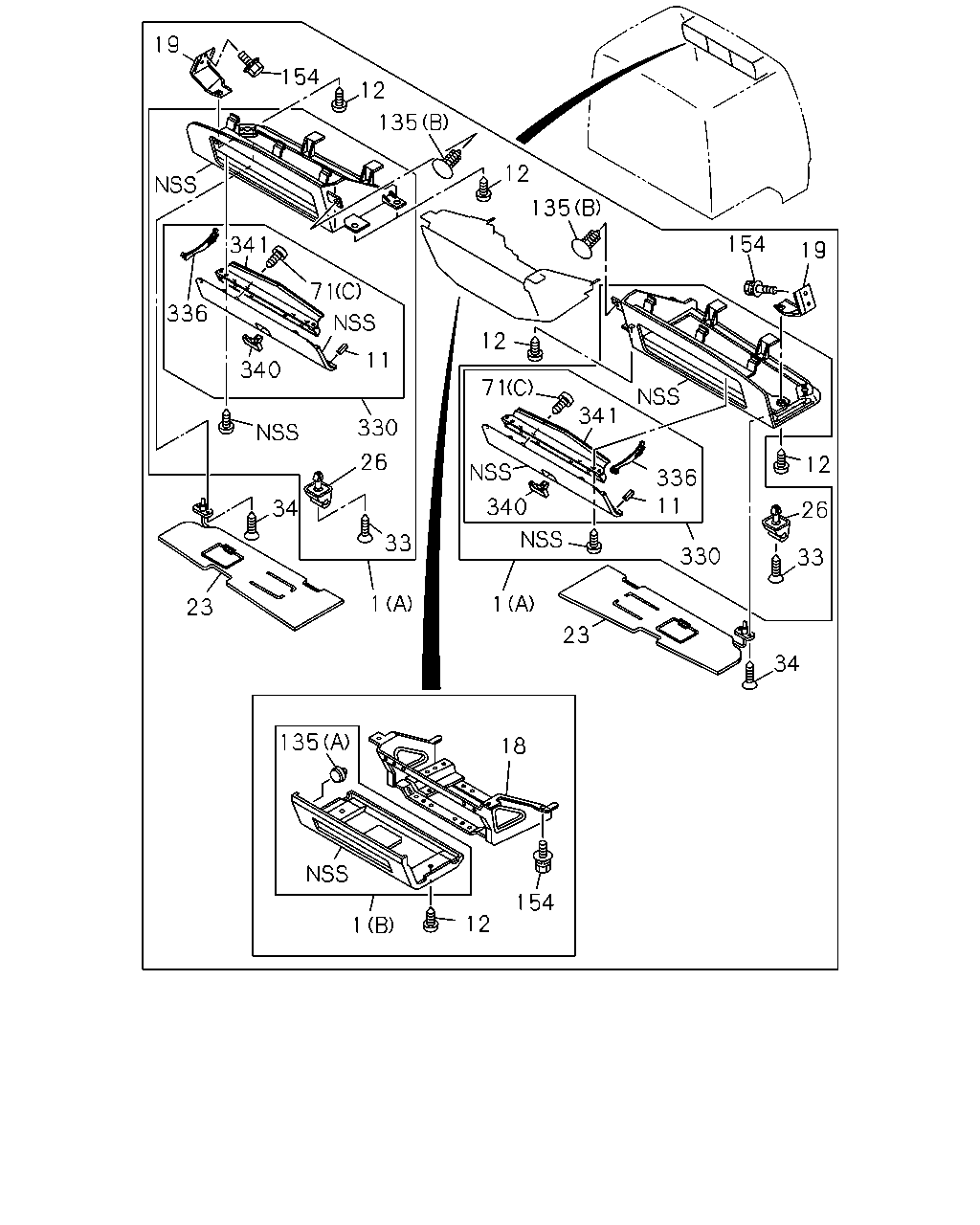

7-43 — SUN VISOR AND ASSIST GRIP
(#24965) — 64 parça
◀
[743A] HIGH ROOF (25 parça)
[743A] ASSIST GRIP;CAB INSIDE (14 parça)
[743A] LOW ROOF (12 parça)
[743A] ASSIST GRIP;CAB OUTSIDE (13 parça)
▶
19
154
12
135
12
135
154
341
19
71
336
12
11
340
71
341
330
26
12
336
11
340
34
26
33
330
33
1
1
23
23
34
135
18
154
12
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
HIGH ROOF<S2F> (B)
1-72448-663-0
01
1
0609-
1
BOARD; HEADER SHELF
HIGH ROOF<S2F> (A)
1-73318-690-0
01
1
0609-
1
BOARD; HEADER SHELF
HIGH ROOF<S2F> (A)
1-73318-691-0
01
1
0609-
11
CAP; HEADER SHELF
HIGH ROOF<S2F>
8-94270-538-0
04
1
0609-
12
SCREW; HEADER SHELF
HIGH ROOF<S2F> M6X24 W/LK&PL WASHER
8-94279-404-0
12
1
0609-
18
SUPPORT; HEADER SHELF CENTER
HIGH ROOF<S2F>
8-97865-124-1
01
1
0609-
19
SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F>
1-72448-323-1
01
1
0609-
19
SUPPORT ASM; HEADER SHELF
HIGH ROOF<S2F>
1-72448-324-1
01
1
0609-
23
SUN VISOR
1-73138-156-1
01
1
0609-
23
SUN VISOR
1-73138-157-1
01
1
0609-
26
HOLDER; SUN VISOR
1-73137-175-0
02
1
0609-
33
SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD
0-70540-416-0
02
1
0609-
33
SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
0609-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
0609-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
0609-
71
SCREW
ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER
5-09981-064-0
02
1
0609-
71
SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER
5-09981-050-0
06
1
0609-
71
SCREW
(B) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0609-
135
CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 BLACK
1-09987-114-0
02
1
0609-
135
CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) OD=7.9 BLACK
8-94279-974-1
06
1
0609-
154
BOLT; SUPPORT
HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0609-
330
LID; HEADER SHELF
HIGH ROOF<S2F>
1-72448-679-0
02
1
0609-
336
STAY; LID
HIGH ROOF<S2F>
1-72448-379-3
04
1
0609-
340
LOCK; HEADER SHELF
HIGH ROOF<S2F>
1-72448-376-0
02
1
0609-
341
HINGE; LID,HEADER SHELF
HIGH ROOF<S2F>
1-72448-403-1
02
1
0609-
87
71
48
54
150
71
56
150
142
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0609-
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0609-
48
BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0609-
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0609-
54
GRIP; ASSIST,QUARTER SIDE
1-73618-185-1
02
1
0609-
56
GRIP; ASSIST,SIDE SILL
1-73617-570-0
02
1
0609-0804
56
GRIP; ASSIST,SIDE SILL
8-98081-700-0
02
1
0805-
71
SCREW
ASSIST GRIP<EG5> (A) M6X30 W/LK WASHER
5-09981-064-0
02
1
0609-
71
SCREW
HIGH ROOF<S2F> (C) M5X14 W/PL WASHER
5-09981-050-0
06
1
0609-
71
SCREW
(B) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0609-
87
GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP<EG5> DARK GRAY
8-97098-476-2
01
1
0609-
142
SEAL; ASSIST GRIP
OD=25 BLACK
1-76798-019-0
02
1
0609-
150
CLIP; ASSIST GRIP HOLE
ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0609-
150
CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP<EG5> OD=6 L=17 LIGHT GRAY
1-73996-301-0
04
1
0609-
24
26
24
14
24
33
24
26
121
14
33
34
121
23
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
SCREW; BRKT
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER
8-94279-404-0
02
1
0609-
23
SUN VISOR
1-73138-156-1
01
1
0609-
23
SUN VISOR
1-73138-157-1
01
1
0609-
24
BRACKET; SUN VISOR
LOW ROOF<6XQ> (A)
1-73138-143-1
01
1
0609-
24
BRACKET; SUN VISOR
LOW ROOF<6XQ> (A)
1-73138-144-1
01
1
0609-
24
BRACKET; SUN VISOR
LOW ROOF<6XQ> (B)
1-73138-145-0
02
1
0609-
26
HOLDER; SUN VISOR
1-73137-175-0
02
1
0609-
33
SCREW; HOLDER,SUN VISOR
HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD
0-70540-416-0
02
1
0609-
33
SCREW; HOLDER,SUN VISOR
LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD
0-70540-420-0
02
1
0609-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
0609-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
02
1
0609-
121
SCREW; BRKT,SUN VISOR
LOW ROOF<6XQ> M6X24 W/LK&PL WASHER
8-94279-404-0
02
1
0609-
64
64
64
62
64
48
48
48
48
62
68
66
103
48
59
68
66
48
48
59
103
48
59
48
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
HIGH ROOF<S2F> (A) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0609-
48
BOLT; ASSIST GRIP
(B) M6X16 W/LK&PL WASHER
1-09980-492-0
04
1
0609-
48
BOLT; ASSIST GRIP
(D) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0609-
48
BOLT; ASSIST GRIP
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0609-
59
COVER; ASSIST GRIP
(B) INNER
1-71998-789-2
02
1
0609-
59
COVER; ASSIST GRIP
(A) OUTER
1-71998-790-2
02
1
0609-
62
GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F>
1-71907-492-0
02
1
0609-0907
62
GRIP; ASSIST,ROOF PANEL
HIGH ROOF<S2F>
8-97630-819-0
02
1
0908-
64
SHEET; ASSIST GRIP
HIGH ROOF<S2F> 25X25
8-94272-533-0
04
1
0609-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0609-
68
BRACKET; ASSIST GRIP,FRT PANEL
1-65580-203-0
02
1
0609-
103
GRIP; ASSIST,FRT PNL
1-71998-791-2
01
1
0609-
103
GRIP; ASSIST,FRT PNL
1-71998-792-2
01
1
0609-
