7-20 — MIRROR AND MIRROR STAY (#24962) — 160 parça

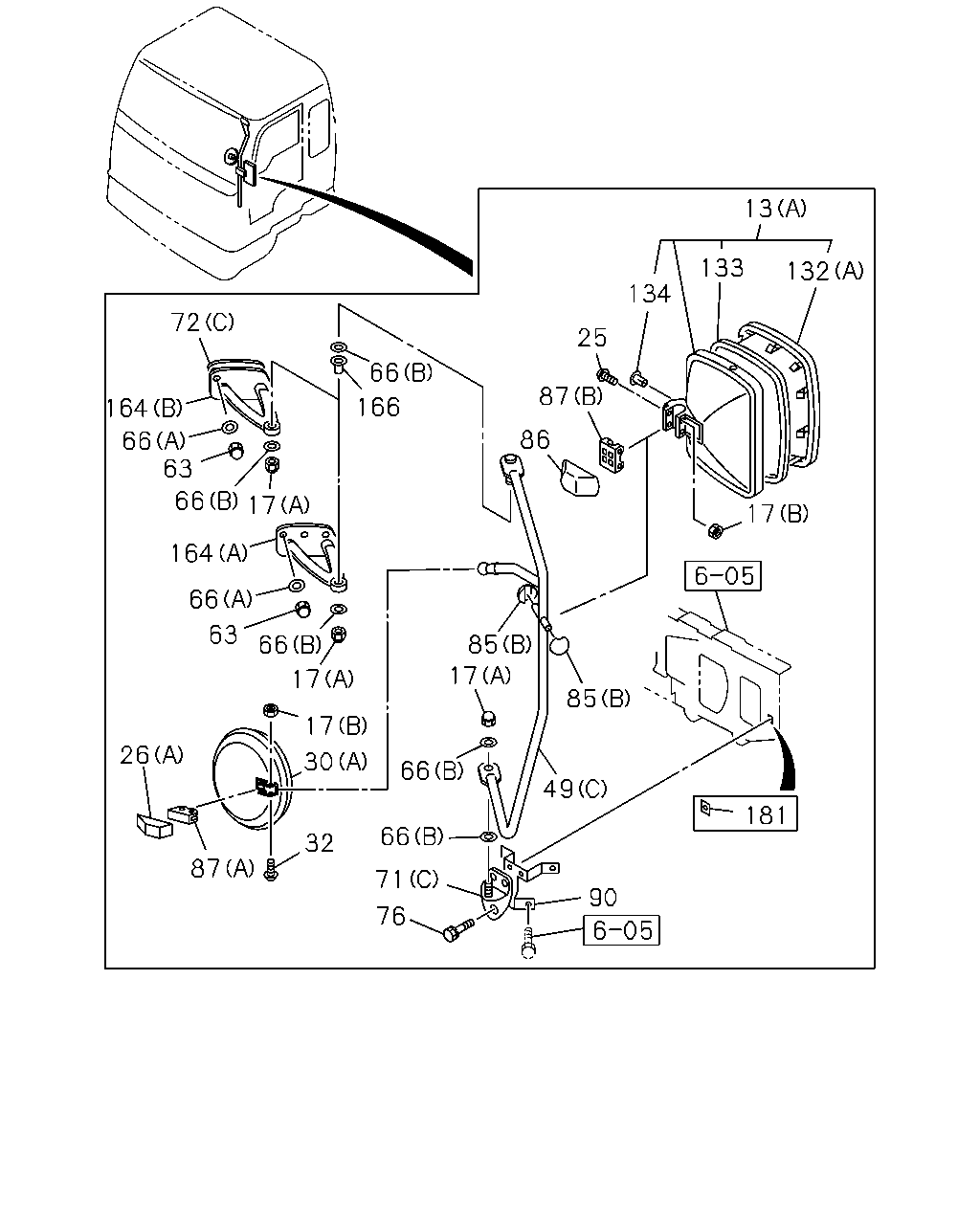

13 133 132 134 72 25 66 87 166 164 86 66 63 66 17 17 164 66 63 85 66 17 17 85 17 26 30 66 49 181 66 32 87 71 90 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0609-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0609-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0609-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0609-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0609-
30	MIRROR; UNDER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0609-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-856-2	01	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0609-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0609-
63	NUT; STAY HIGH ROOF<S2F> M8	1-09984-187-0	03	1	0609-
63	NUT; STAY LOW ROOF<6XQ> M8	1-09984-187-0	02	1	0609-
66	WASHER; PL HIGH ROOF<S2F> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0609-
66	WASHER; PL LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0609-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0609-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0609-
72	SHEET LOW ROOF<6XQ> (C)	1-71798-393-3	01	1	0609-
72	SHEET (A)	1-71798-487-3	01	1	0609-
72	SHEET (B)	1-71798-488-1	01	1	0609-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0609-
85	PIVOT; MAIN MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0609-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0609-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0609-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0609-
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0609-
164	STAY; ROOF HIGH ROOF<S2F> (A)	1-71798-299-4	01	1	0609-
164	STAY; ROOF LOW ROOF<6XQ> (B)	1-71798-211-4	01	1	0609-
166	BUSHING; STAY	1-09983-175-1	01	1	0609-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0609-

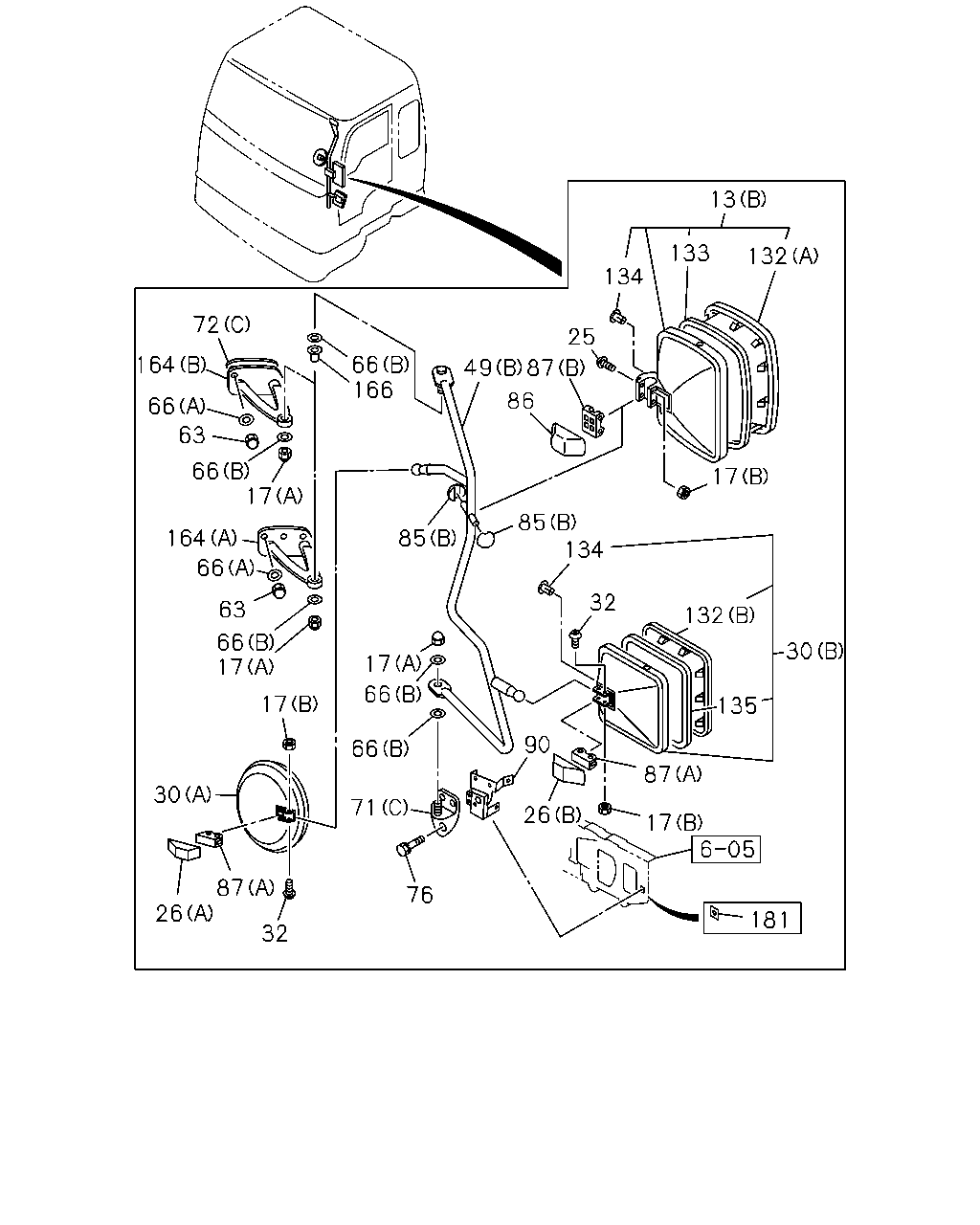

13 133 13 134 72 25 66 166 164 86 66 63 66 17 17 85 134 164 85 66 32 63 132 66 17 30 17 66 17 135 90 66 87 30 71 26 17 87 76 26 181 32 49 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0609-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0609-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0609-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-649-1	01	1	0609-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-652-1	01	1	0609-
30	MIRROR; UNDER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0609-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0609-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-856-2	01	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0609-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0609-
63	NUT; STAY HIGH ROOF<S2F> M8	1-09984-187-0	03	1	0609-
63	NUT; STAY LOW ROOF<6XQ> M8	1-09984-187-0	02	1	0609-
66	WASHER; PL HIGH ROOF<S2F> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0609-
66	WASHER; PL LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0609-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0609-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0609-
72	SHEET LOW ROOF<6XQ> (C)	1-71798-393-3	01	1	0609-
72	SHEET (A)	1-71798-487-3	01	1	0609-
72	SHEET (B)	1-71798-488-1	01	1	0609-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0609-
85	PIVOT; MAIN MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0609-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0609-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0609-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0609-
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0609-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-929-0	01	1	0609-
164	STAY; ROOF HIGH ROOF<S2F> (A)	1-71798-299-4	01	1	0609-
164	STAY; ROOF LOW ROOF<6XQ> (B)	1-71798-211-4	01	1	0609-
166	BUSHING; STAY	1-09983-175-1	01	1	0609-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0609-

2 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	MIRROR; ROOM	1-73117-033-1	01	1	0609-
	2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0609-

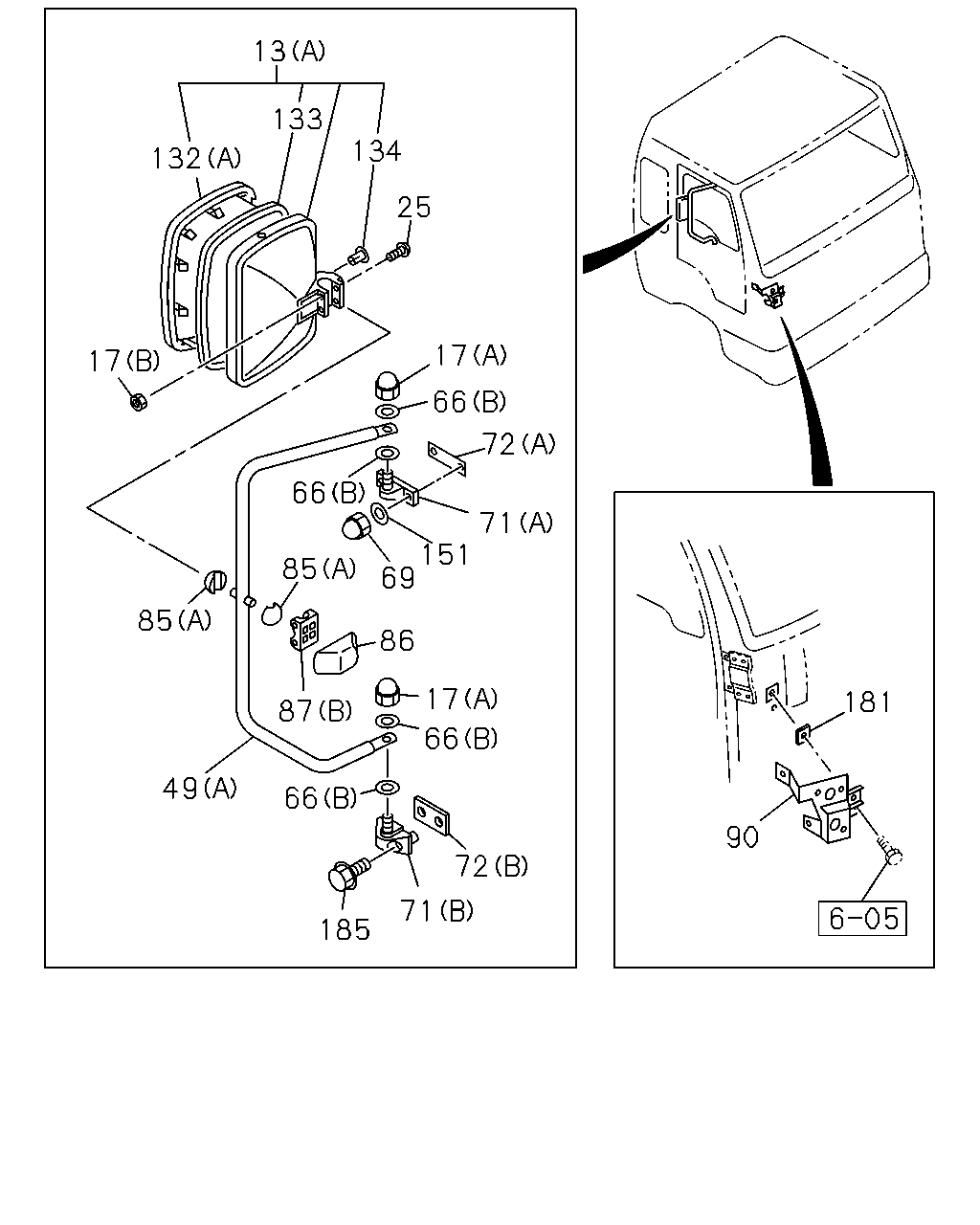

13 133 134 132 25 17 17 66 72 66 71 151 69 85 85 86 17 181 87 66 49 66 90 72 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0609-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0609-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0609-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0609-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	04	1	0609-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0609-
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER VIEW<RR9> (C)	1-71797-856-2	01	1	0609-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-517-4	01	1	0609-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0609-
66	WASHER; PL HIGH ROOF<S2F> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0609-
66	WASHER; PL LOW ROOF<6XQ> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0609-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0609-
69	NUT; CAP M8	1-09984-187-0	02	1	0609-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0609-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0609-
72	SHEET LOW ROOF<6XQ> (C)	1-71798-393-3	01	1	0609-
72	SHEET (A)	1-71798-487-3	01	1	0609-
72	SHEET (B)	1-71798-488-1	01	1	0609-
85	PIVOT; MAIN MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) ID=22.2	1-71736-489-2	02	1	0609-
85	PIVOT; MAIN MIRROR (A) ID=19.1	1-71737-633-2	02	1	0609-
86	COVER; STAY,OUTSIDE MIRROR BLACK	1-71737-760-1	01	1	0609-
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-1	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9> (A)	1-71737-646-2	01	1	0609-
87	SPACER (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-704-0	01	1	0609-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-646-2	02	1	0609-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0609-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0609-
132	RING; MIRROR MIR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR (A)	1-71737-934-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	0609-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	01	1	0609-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-926-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0609-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0609-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0609-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0609-
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	02	1	0609-
