◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11029 - FTR(RHD) EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#24952) — 23 parça

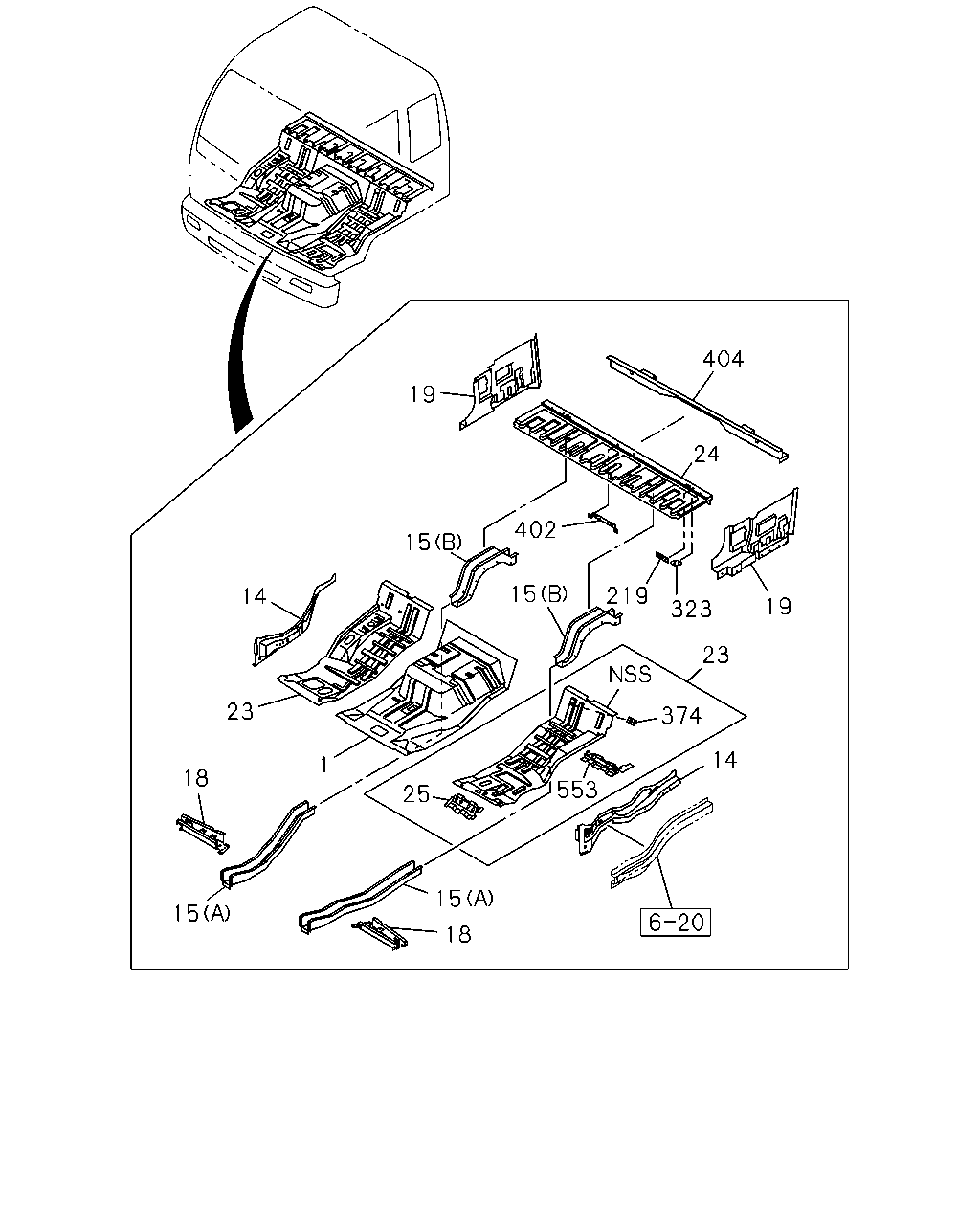

çizim 88349
19 404 24 19 323 23 219 15 402 15 14 23 18 1 374 14 553 25 15 18 15
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
DUAL AIR GAUGE<UG2> 		1-62183-846-0 01 1 0609-
1 PANEL; FLOOR
EXC. DUAL AIR GAUGE<UG2> 		1-62183-700-0 01 1 0609-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0609-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0609-
15 FRAME; UNDER
(B) 		1-62483-153-3 01 1 0609-
15 FRAME; UNDER
(B) 		1-62483-154-3 01 1 0609-
15 FRAME; UNDER
(A) 		1-62483-333-1 01 1 0609-
15 FRAME; UNDER
(A) 		8-97583-580-0 01 1 0609-
18 FRAME; FLOOR,CENTER SIDE 1-62482-957-6 01 1 0609-
18 FRAME; FLOOR,CENTER SIDE 1-62482-958-6 01 1 0609-
19 PANEL; FLOOR SIDE,REAR 1-62482-923-5 01 1 0609-
19 PANEL; FLOOR SIDE,REAR 1-62482-924-6 01 1 0609-
23 PANEL; FLOOR,SIDE
DUAL AIR GAUGE<UG2> 		1-62183-270-4 01 1 0609-
23 PANEL; FLOOR,SIDE 1-62172-799-0 01 1 0609-
23 PANEL; FLOOR,SIDE
EXC. DUAL AIR GAUGE<UG2> 		1-62183-271-4 01 1 0609-
24 PANEL; BED PAN 1-62182-940-9 01 1 0609-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62182-926-4 01 1 0609-
219 PATCH; AIR DUCT LWR 1-62182-941-0 01 1 0609-
323 PATCH; HAND LEVER 1-62182-961-0 01 1 0609-
374 NUT; FLOOR
M6 		1-09984-110-0 01 1 0609-
402 PATCH; CAB LOCK 1-62182-947-2 01 1 0609-
404 RAIL ASM; MTG,RR 1-62483-123-1 01 1 0609-
553 REINFORCEMENT; SEAT STAND RR 1-62172-795-0 01 1 0609-
